AE101-ATMVF (1992)
Toyota Lvn/Cre/Trn/Mrn
(9205- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-12080 |
AE10#..HT |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-1A590 |
AE10#..HT..(4FC,5F) ｱﾘ(*RS) |
1 | ||
| 64401-1A580 |
AE10#..HT |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06056 |
AE10#..HT FRONT |
2 | ||
| 90541-06056 |
AE10#..4FC,5F FRONT |
2 | ||
| 90541-09055 |
AE10#..HT..(4FC,5F) REAR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06056 |
AE10#..HT FRONT |
2 | ||
| 90541-06056 |
AE10#..4FC,5F FRONT |
2 | ||
| 90541-09055 |
AE10#..HT..(4FC,5F) REAR |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01506 |
AE10#..HT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12490 |
AE10#..HT |
1 | ||
| 64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-12250 |
AE10#..HT |
1 | ||
| 64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-12240 |
AE10#..HT |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12530 |
AE10#..HT..(4FC,5F) ｱﾘ(*RS) |
1 | ||
| 64531-12540 |
AE10#..HT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64531-12550 |
AE10#..HT..(4FC,5F) ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(*RS) |
1 | ||
| 64531-12520 |
AE10#..HT |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12510 |
AE10#..HT |
1 | ||
| 64532-12530 |
AE10#..HT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64532-12540 |
AE10#..HT..(4FC,5F) ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(*RS) |
1 | ||
| 64532-12520 |
AE10#..HT..(4FC,5F) ｱﾘ(*RS) |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12660 |
AE10#..HT |
1 | ||
| 64607-12661 |
AE10# |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12210 |
AE10#..HT |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-12100 |
AE10#..HT |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-12090G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 64640-1209022 |
AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 64640-1209022 |
AE10# BLACK,TRIM2# |
1 | ||
| 64606-20160 |
AE10# |
1 | ||
| 64606-20161 |
AE10# |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-12090G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 64640-1209022 |
AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 64640-1209022 |
AE10# BLACK,TRIM2# |
1 | ||
| 64606-20160 |
AE10# |
1 | ||
| 64606-20161 |
AE10# |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12010 |
AE10# |
2 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12010 |
AE10# |
2 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
AE10#..HT |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06092 | ||||
| 90119-06256 | ||||
| 90164-60015 | ||||
| 90469-05003 | ||||
| 91651-40616 | ||||
| 93315-15010 | ||||

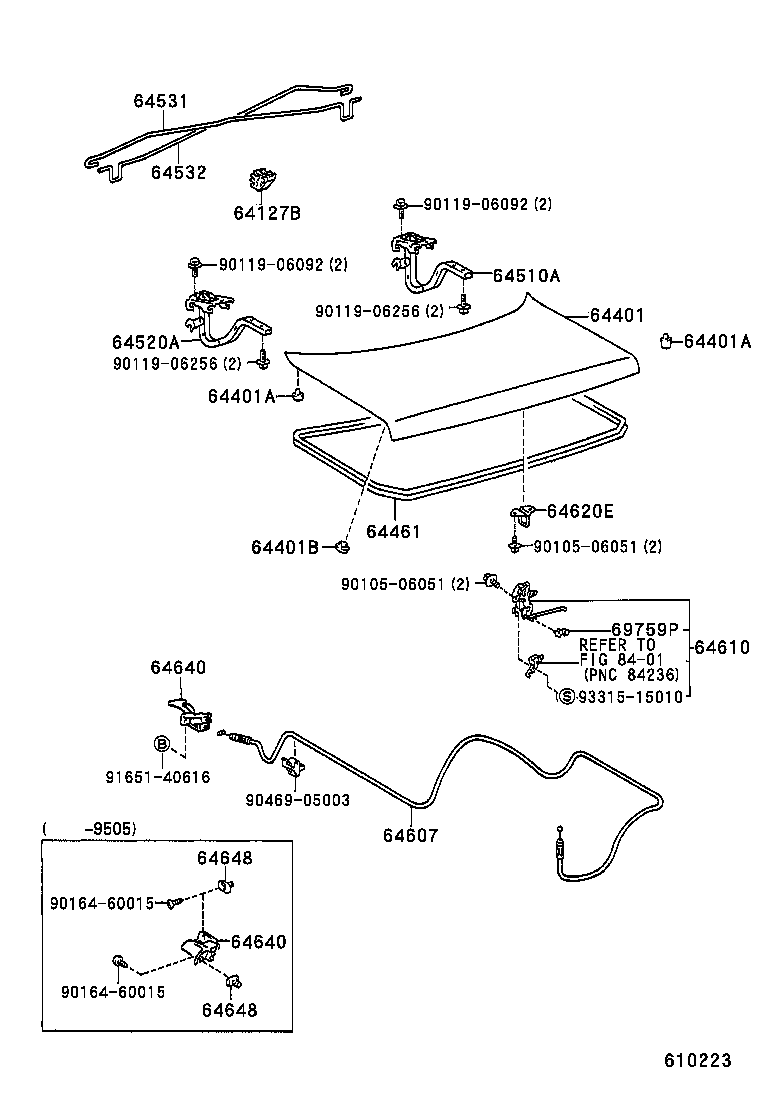

| Linked diagrams | ||||
| 8401 | ||||
