AE101-ATMVF (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Apr 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

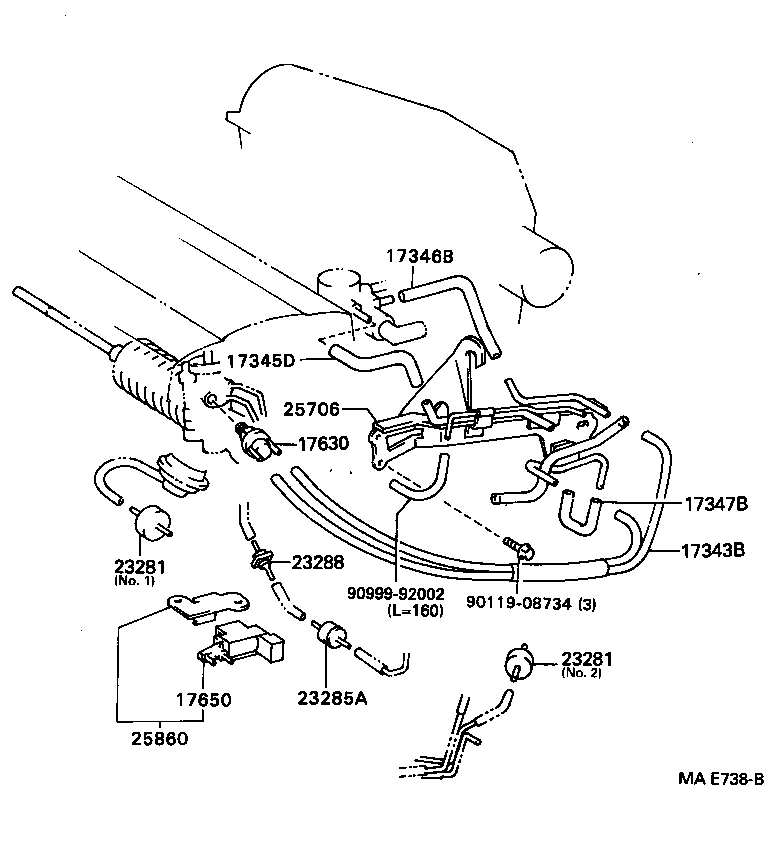

(9106-9505)4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17308-16040 |
4AGE..AE101 |
1 | ||
| 17345D - HOSE, AIR, NO.5 | ||||
| 17345-16030 |
4AGE..AE101 |
1 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-16020 |
4AGE..AE101 |
1 | ||
| 17347B - HOSE, AIR, NO.7 | ||||
| 17347-16020 |
4AGE..AE101 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
4AG#..AE101 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12110 |
4AG#..AE101 |
1 | ||
| 90910-12144 |
4AGE..AE101 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4AGE..AE101..5F NO.1 |
1 | ||
| 90925-01084 |
4AGE..AE101 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4AGE..AE101..5F NO.1 |
1 | ||
| 90925-01084 |
4AGE..AE101 NO.2 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10080 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04034 |
4AGE..AE101 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16390 |
4AGE..AE101 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-16140 |
4AGE..AE101 |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 90999-92002 | ||||

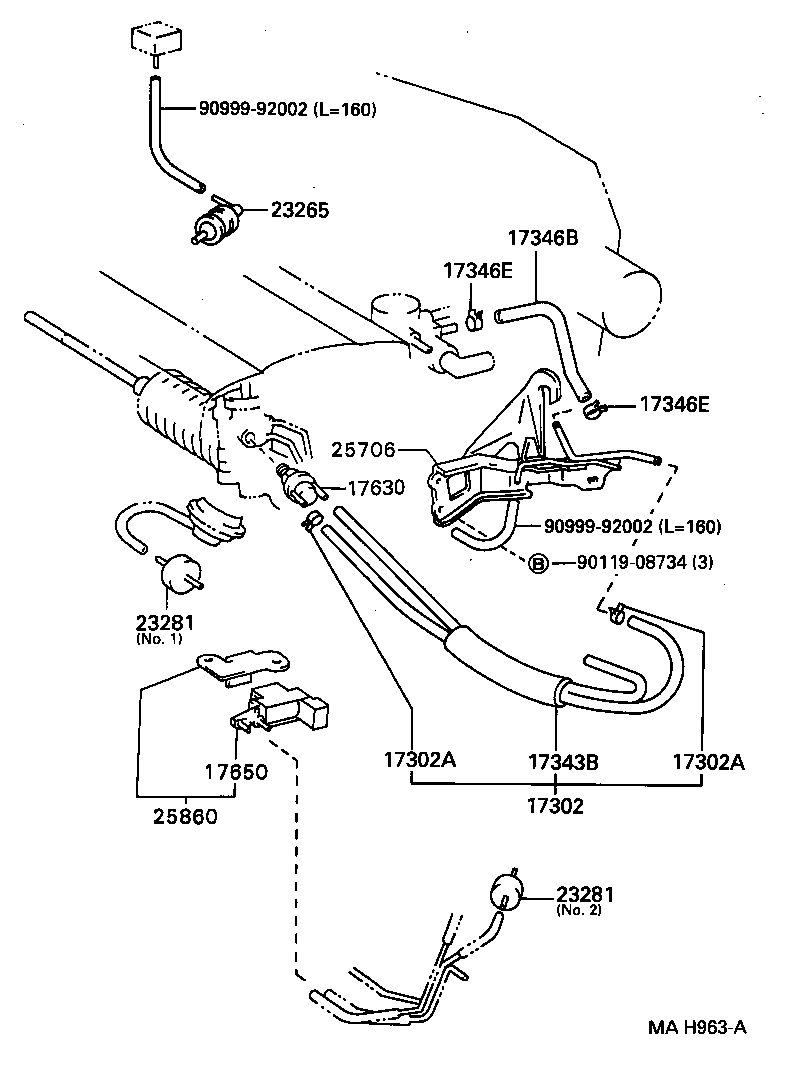

(9505- )4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-16040 |
4AGE..AE101 |
1 | ||
| 17302A - CLIP, HOSE | ||||
| 96132-51000 |
4A#,5AFE..AE10# |
2 | ||
| 17302A - CLIP, HOSE | ||||
| 96132-51000 |
4A#,5AFE..AE10# |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17308-16040 |
4AGE..AE101 |
1 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-16020 |
4AGE..AE101 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
4AG#..AE101 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12110 |
4AG#..AE101 |
1 | ||
| 90910-12144 |
4AGE..AE101 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4AGE..AE101..5F NO.1 |
1 | ||
| 90925-01084 |
4AGE..AE101 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4AGE..AE101..5F NO.1 |
1 | ||
| 90925-01084 |
4AGE..AE101 NO.2 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16390 |
4AGE..AE101 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-16140 |
4AGE..AE101 |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 90999-92002 | ||||
