Toyota Lvn/cre/trn/mrn AE101 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
LVN/CRE/TRN/MRN
AE101-ATMEK (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE101-ATMEK (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Aug 1998

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

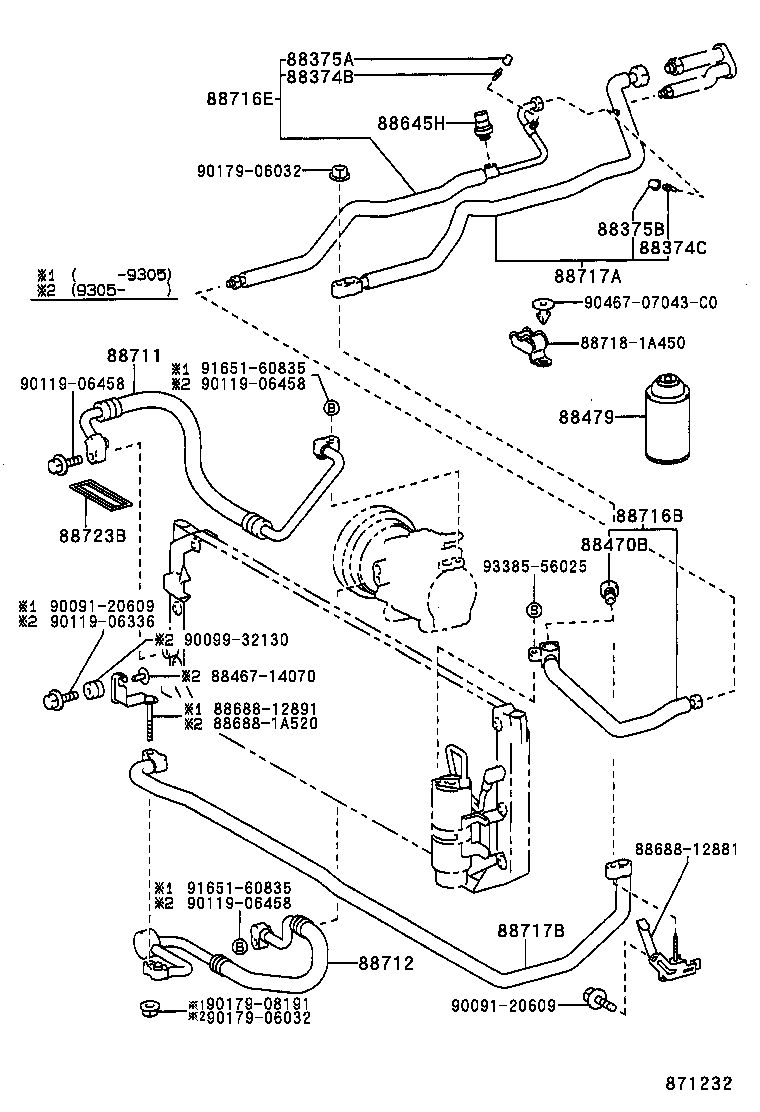

ILLUST NO. 2 OF 3(9505- )F,X

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
48094-10010	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	05/1993 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AE10#..F,S,X	05/1993 - 08/1994	1
88374-12020	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	08/1994 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#	06/1991 - 05/1993	1
88375-30280	AE10#	05/1993 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#..F,S,X	06/1991 - 05/1993	1
88375-30290	AE10#	08/1994 - 12/2999	1
88375-30290	AE10#..F,S,X	05/1993 - 08/1994	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE10#..F,S,X 250G	06/1991 - 05/1993	3
90986-02008	AE10#..F,S,X 200G	05/1993 - 05/1995	3
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#	06/1991 - 05/1993	1
88645-20050	AE10#	05/1993 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12640	AE101..SJ,X	06/1991 - 10/1992	1
88711-1A060	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88711-12820	AE101..SJ,X	10/1992 - 05/1993	1
88711-12700	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88711-1A050	AE101..SJ,X	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A090	AE10#..F,S,SJ,X	05/1993 - 11/1994	1
88712-12840	AE10#..F,S,SJ,X	06/1991 - 05/1993	1
88712-1A130	AE10#..F,S,SJ,X	11/1994 - 05/1995	1
88712-1A450	AE10#..F,X	05/1995 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A240	AE10#..F,S,X	05/1993 - 05/1995	1
88716-1A020	AE10#..F,S,X	06/1991 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88716-1A330	AE101	05/1993 - 04/1997	1
88716-1A250	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88716-1A520	AE101	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88704-12380	AE101	06/1991 - 05/1993	1
88704-12540	AE101	05/1993 - 08/1994	1
88717-12760	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88717-13020	AE10#	04/1997 - 12/2999	1
88717-1A010	AE101	08/1994 - 05/1995	1
88717-1A020	AE10#	05/1995 - 04/1997	1
88717-12560	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE10#	05/1993 - 12/2999	1
88723-12050	AE10#	06/1991 - 05/1993	1
Common parts
88718-1A540
88718-1A590
88718-1A640
90091-20619
90119-06458
90179-06032
93385-56025

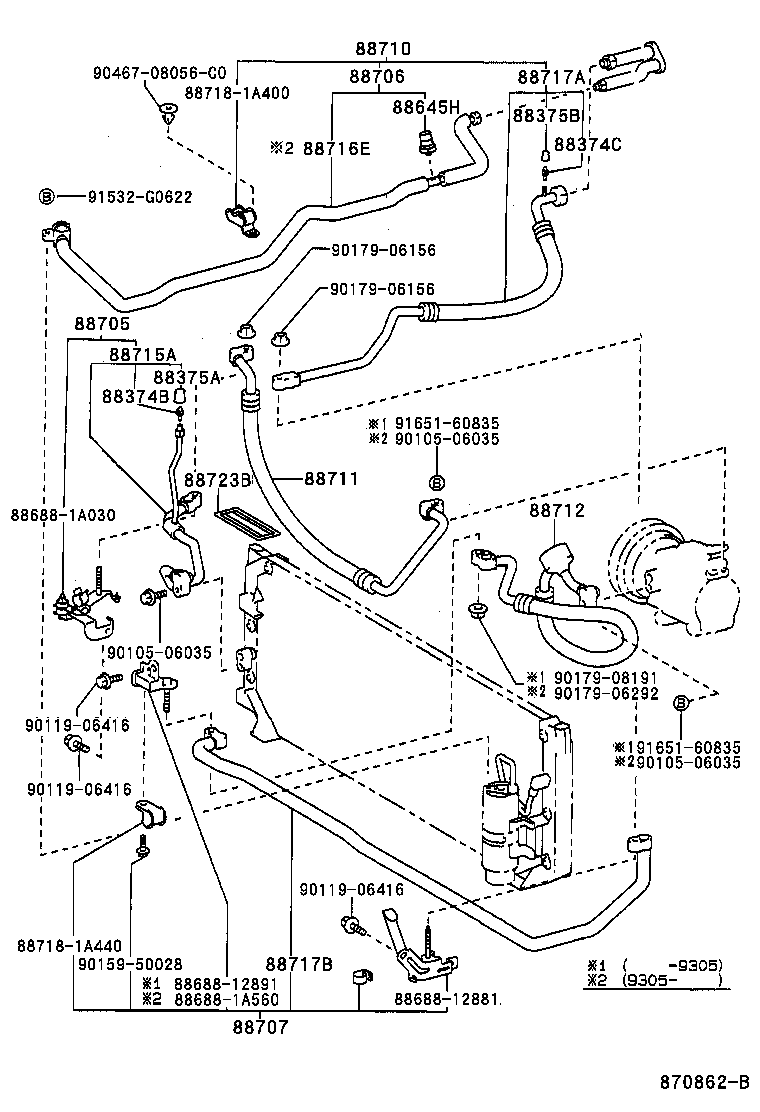

ILLUST NO. 2 OF 3(9106-9505)SJ,X

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
48094-10010	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	05/1993 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AE10#..F,S,X	05/1993 - 08/1994	1
88374-12020	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	08/1994 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#	06/1991 - 05/1993	1
88375-30280	AE10#	05/1993 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#..F,S,X	06/1991 - 05/1993	1
88375-30290	AE10#	08/1994 - 12/2999	1
88375-30290	AE10#..F,S,X	05/1993 - 08/1994	1
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#	06/1991 - 05/1993	1
88645-20050	AE10#	05/1993 - 12/2999	1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-12090	AE101	05/1993 - 05/1994	1
88705-12150	AE101	04/1997 - 12/2999	1
88705-12010	AE101	06/1991 - 05/1993	1
88705-12120	AE101	05/1994 - 04/1997	1
88706 - PIPE SUB-ASSY, LIQUID
88706-12300	AE101..4FC,5F	05/1993 - 05/1997	1
88706-12080	AE101	06/1991 - 05/1993	1
88707 - PIPE SUB-ASSY, SUCTION
88707-12030	AE101	06/1991 - 05/1993	1
88707-12130	AE101	05/1993 - 08/1994	1
88707-12160	AE101	08/1994 - 05/1995	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12230	AE101	06/1991 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12640	AE101..SJ,X	06/1991 - 10/1992	1
88711-1A060	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88711-12820	AE101..SJ,X	10/1992 - 05/1993	1
88711-12700	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88711-1A050	AE101..SJ,X	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A090	AE10#..F,S,SJ,X	05/1993 - 11/1994	1
88712-12840	AE10#..F,S,SJ,X	06/1991 - 05/1993	1
88712-1A130	AE10#..F,S,SJ,X	11/1994 - 05/1995	1
88712-1A450	AE10#..F,X	05/1995 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12500	AE101	04/1997 - 12/2999	1
88715-12470	AE101	05/1993 - 04/1997	1
88715-12380	AE101	06/1991 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88716-1A330	AE101	05/1993 - 04/1997	1
88716-1A250	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88716-1A520	AE101	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88704-12380	AE101	06/1991 - 05/1993	1
88704-12540	AE101	05/1993 - 08/1994	1
88717-12760	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88717-13020	AE10#	04/1997 - 12/2999	1
88717-1A010	AE101	08/1994 - 05/1995	1
88717-1A020	AE10#	05/1995 - 04/1997	1
88717-12560	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12740	AE10#	05/1993 - 05/1995	1
88717-12550	AE10#	06/1991 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE10#	05/1993 - 12/2999	1
88723-12050	AE10#	06/1991 - 05/1993	1
Common parts
88688-12881
88688-12891
88688-1A030
88688-1A560
88718-1A400
88718-1A440
90105-06035
90119-06416
90159-50028
90179-06156
90179-06292
90179-08191
90467-08056C0
91532-G0622
91651-60835

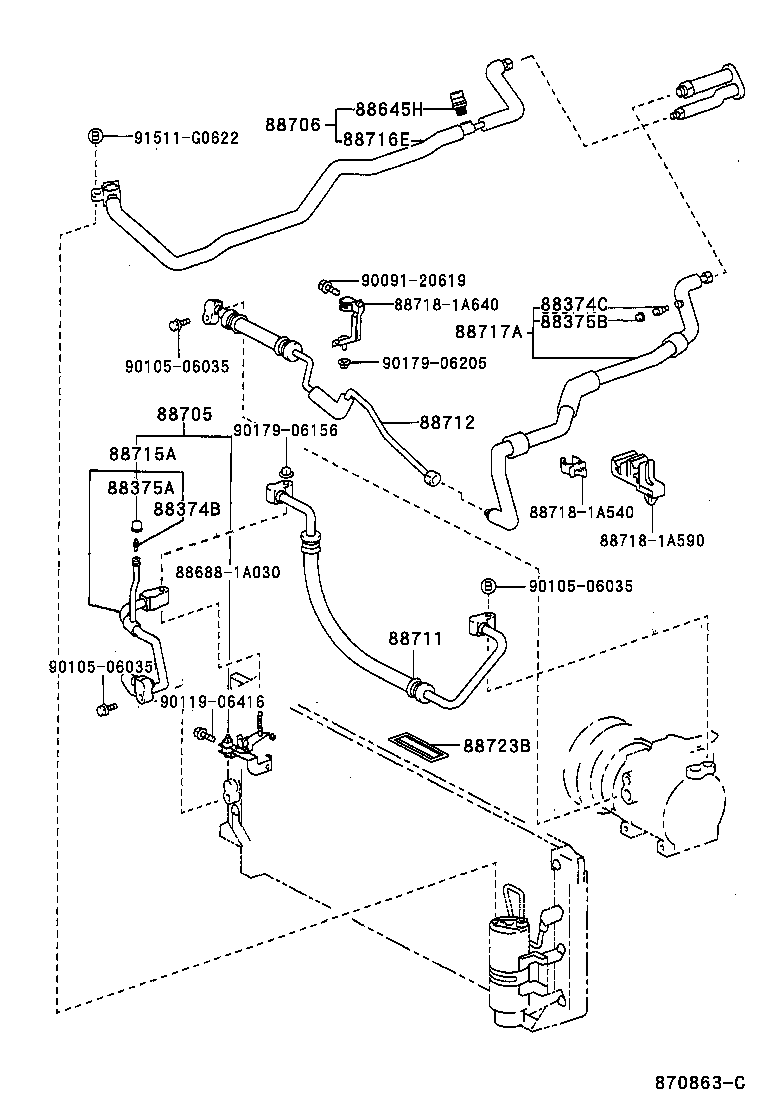

ILLUST NO. 2 OF 3(9505- )X

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
48094-10010	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	05/1993 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AE10#..F,S,X	05/1993 - 08/1994	1
88374-12020	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	08/1994 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#	06/1991 - 05/1993	1
88375-30280	AE10#	05/1993 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#..F,S,X	06/1991 - 05/1993	1
88375-30290	AE10#	08/1994 - 12/2999	1
88375-30290	AE10#..F,S,X	05/1993 - 08/1994	1
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#	06/1991 - 05/1993	1
88645-20050	AE10#	05/1993 - 12/2999	1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-12090	AE101	05/1993 - 05/1994	1
88705-12150	AE101	04/1997 - 12/2999	1
88705-12010	AE101	06/1991 - 05/1993	1
88705-12120	AE101	05/1994 - 04/1997	1
88706 - PIPE SUB-ASSY, LIQUID
88706-12300	AE101..4FC,5F	05/1993 - 05/1997	1
88706-12080	AE101	06/1991 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12640	AE101..SJ,X	06/1991 - 10/1992	1
88711-1A060	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88711-12820	AE101..SJ,X	10/1992 - 05/1993	1
88711-12700	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88711-1A050	AE101..SJ,X	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A090	AE10#..F,S,SJ,X	05/1993 - 11/1994	1
88712-12840	AE10#..F,S,SJ,X	06/1991 - 05/1993	1
88712-1A130	AE10#..F,S,SJ,X	11/1994 - 05/1995	1
88712-1A450	AE10#..F,X	05/1995 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12500	AE101	04/1997 - 12/2999	1
88715-12470	AE101	05/1993 - 04/1997	1
88715-12380	AE101	06/1991 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88716-1A330	AE101	05/1993 - 04/1997	1
88716-1A250	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88716-1A520	AE101	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88704-12380	AE101	06/1991 - 05/1993	1
88704-12540	AE101	05/1993 - 08/1994	1
88717-12760	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88717-13020	AE10#	04/1997 - 12/2999	1
88717-1A010	AE101	08/1994 - 05/1995	1
88717-1A020	AE10#	05/1995 - 04/1997	1
88717-12560	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE10#	05/1993 - 12/2999	1
88723-12050	AE10#	06/1991 - 05/1993	1
Common parts
88688-1A030
88718-1A540
88718-1A590
88718-1A640
90091-20619
90105-06035
90119-06416
90179-06156
90179-06205
91511-G0622

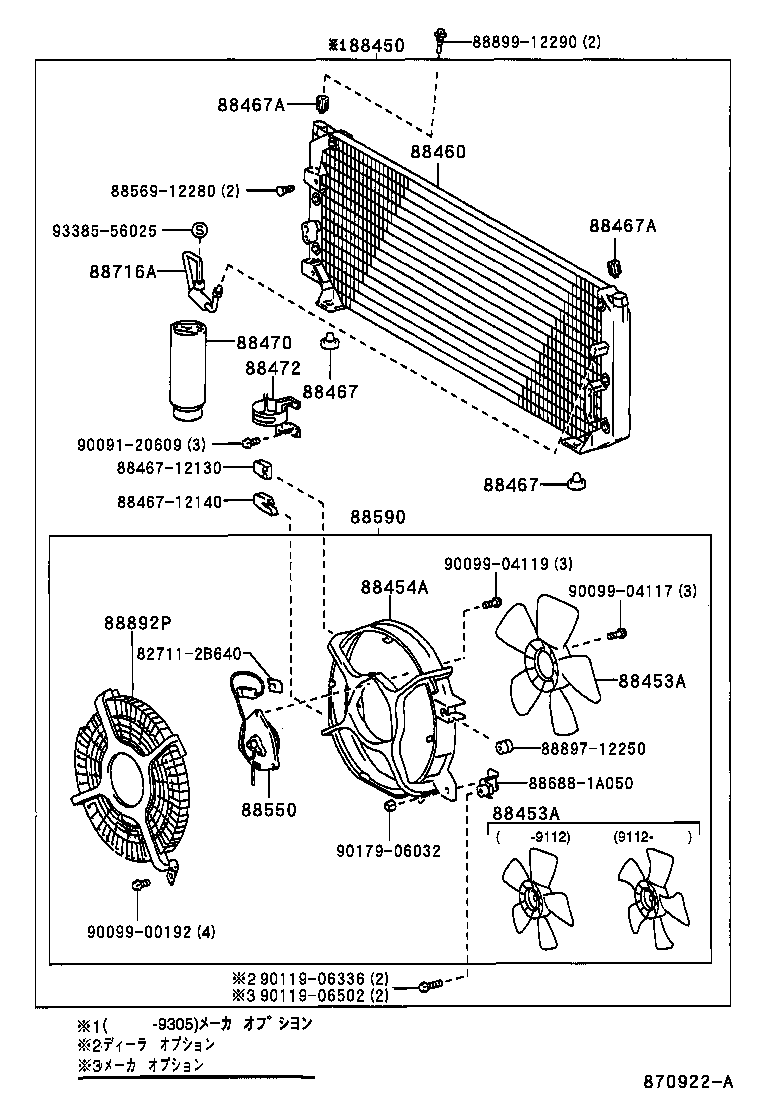

ILLUST NO. 1 OF 3(9106-9312)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-12110	AE101	06/1991 - 05/1993	1
88453A - FAN, COOLING
88453-10020	AE10#	06/1991 - 12/1991	1
88453-10022	AE101	01/1996 - 12/2999	1
88453-10021	AE101	05/1995 - 01/1996	1
88453A - FAN, COOLING
88453-10020	AE10#	06/1991 - 12/1991	1
88453-10022	AE101	01/1996 - 12/2999	1
88453-10021	AE101	05/1995 - 01/1996	1
88454A - SHROUD, FAN
88454-12130	AE10#	06/1991 - 12/1993	1
88454-12150	AE10#	12/1993 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-12410	AE10#	06/1991 - 05/1993	1
88460-12490	AE101	04/1997 - 12/2999	1
88460-12440	AE10#	05/1993 - 04/1997	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#	06/1991 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#	06/1991 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#	06/1991 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#	06/1991 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE10#	05/1993 - 12/2999	1
88471-12020	AE10#	06/1991 - 05/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080	AE10#	06/1991 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	AE10#	06/1991 - 12/1993	1
88550-12150	AE10#	12/1993 - 05/1995	1
88550-12160	AE10#	05/1995 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12210	AE10#	06/1991 - 05/1995	1
88590-12270	AE10#	05/1995 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12360	AE10#	06/1991 - 05/1993	1
88726-12410	AE10#	05/1993 - 12/2999	1
88892P - NET, FAN SHROUD
88892-12200	AE10#	06/1991 - 12/1993	1
Common parts
82711-2B640
88467-12130
88467-12140
88569-12280
88688-1A050
88897-12250
88899-12290
90091-20609
90099-00192
90099-04117
90099-04119
90119-06336
90119-06502
90179-06032
93385-56025

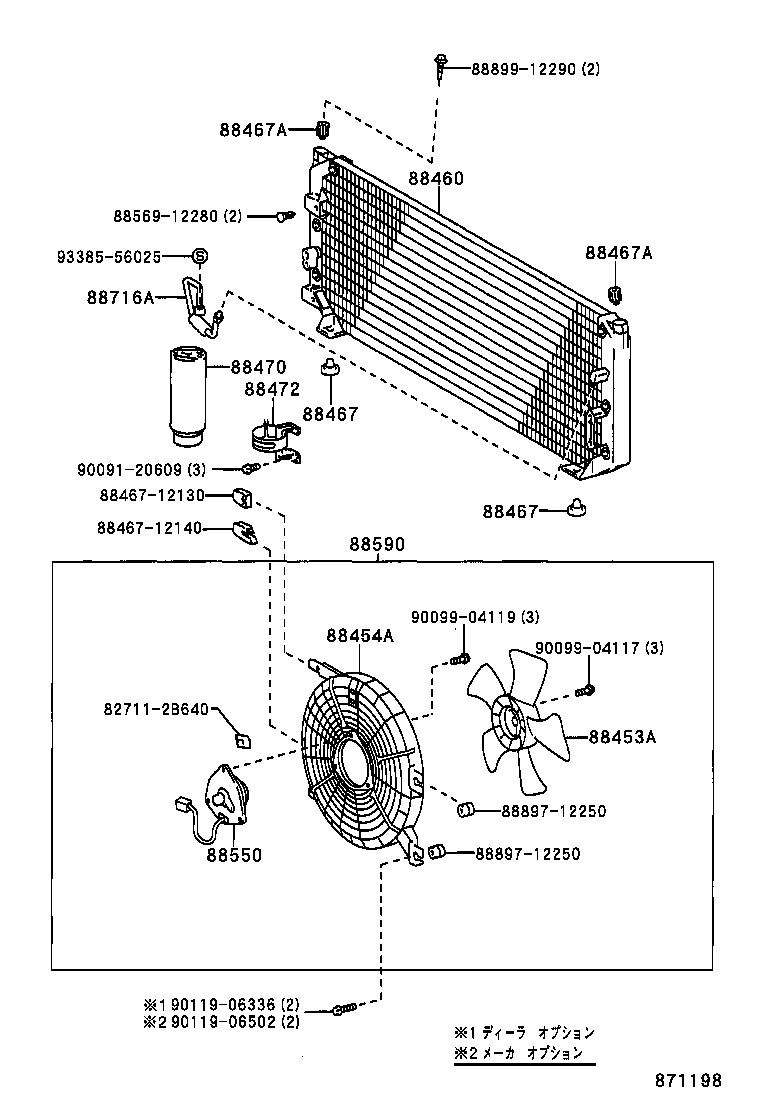

ILLUST NO. 1 OF 3(9312- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-10020	AE10#	06/1991 - 12/1991	1
88453-10022	AE101	01/1996 - 12/2999	1
88453-10021	AE101	05/1995 - 01/1996	1
88454A - SHROUD, FAN
88454-12130	AE10#	06/1991 - 12/1993	1
88454-12150	AE10#	12/1993 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-12410	AE10#	06/1991 - 05/1993	1
88460-12490	AE101	04/1997 - 12/2999	1
88460-12440	AE10#	05/1993 - 04/1997	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#	06/1991 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#	06/1991 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#	06/1991 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#	06/1991 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE10#	05/1993 - 12/2999	1
88471-12020	AE10#	06/1991 - 05/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080	AE10#	06/1991 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	AE10#	06/1991 - 12/1993	1
88550-12150	AE10#	12/1993 - 05/1995	1
88550-12160	AE10#	05/1995 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12210	AE10#	06/1991 - 05/1995	1
88590-12270	AE10#	05/1995 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12360	AE10#	06/1991 - 05/1993	1
88726-12410	AE10#	05/1993 - 12/2999	1
Common parts
82711-2B640
88467-12130
88467-12140
88569-12280
88897-12250
88899-12290
90091-20609
90099-04117
90099-04119
90119-06336
90119-06502
93385-56025

ILLUST NO. 2 OF 3(9106-9505)F,S,X

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
48094-10010	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	05/1993 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AE10#..F,S,X	05/1993 - 08/1994	1
88374-12020	AE10#..F,S,X	06/1991 - 05/1993	1
88374-30010	AE10#	08/1994 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#	06/1991 - 05/1993	1
88375-30280	AE10#	05/1993 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#..F,S,X	06/1991 - 05/1993	1
88375-30290	AE10#	08/1994 - 12/2999	1
88375-30290	AE10#..F,S,X	05/1993 - 08/1994	1
88470B - BOLT, FUSE
88475-12020	AE10#..F,S,X	06/1991 - 05/1993	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE10#..F,S,X 250G	06/1991 - 05/1993	3
90986-02008	AE10#..F,S,X 200G	05/1993 - 05/1995	3
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#	06/1991 - 05/1993	1
88645-20050	AE10#	05/1993 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12640	AE101..SJ,X	06/1991 - 10/1992	1
88711-1A060	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88711-12820	AE101..SJ,X	10/1992 - 05/1993	1
88711-12700	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88711-1A050	AE101..SJ,X	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A090	AE10#..F,S,SJ,X	05/1993 - 11/1994	1
88712-12840	AE10#..F,S,SJ,X	06/1991 - 05/1993	1
88712-1A130	AE10#..F,S,SJ,X	11/1994 - 05/1995	1
88712-1A450	AE10#..F,X	05/1995 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A240	AE10#..F,S,X	05/1993 - 05/1995	1
88716-1A020	AE10#..F,S,X	06/1991 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88716-1A330	AE101	05/1993 - 04/1997	1
88716-1A250	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88716-1A520	AE101	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88704-12380	AE101	06/1991 - 05/1993	1
88704-12540	AE101	05/1993 - 08/1994	1
88717-12760	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1993 - 05/1995	1
88717-13020	AE10#	04/1997 - 12/2999	1
88717-1A010	AE101	08/1994 - 05/1995	1
88717-1A020	AE10#	05/1995 - 04/1997	1
88717-12560	AE101..X ｱﾘ(ｴｱｺﾝ=DOP)	05/1992 - 05/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12740	AE10#	05/1993 - 05/1995	1
88717-12550	AE10#	06/1991 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110	AE10#	05/1993 - 12/2999	1
88723-12050	AE10#	06/1991 - 05/1993	1
Common parts
88467-14070
88688-12881
88688-12891
88688-1A520
88718-1A450
90091-20609
90099-32130
90119-06336
90119-06458
90179-06032
90179-08191
90467-07043C0
91651-60835
93385-56025

AE101-ATMEK (1992)

ILLUST NO. 2 OF 3(9505- )F,X

ILLUST NO. 2 OF 3(9106-9505)SJ,X

ILLUST NO. 2 OF 3(9505- )X

ILLUST NO. 1 OF 3(9106-9312)

ILLUST NO. 1 OF 3(9312- )

ILLUST NO. 2 OF 3(9106-9505)F,S,X

Part Price Details
