AE101-ATMEK (1992)
Toyota Lvn/Cre/Trn/Mrn

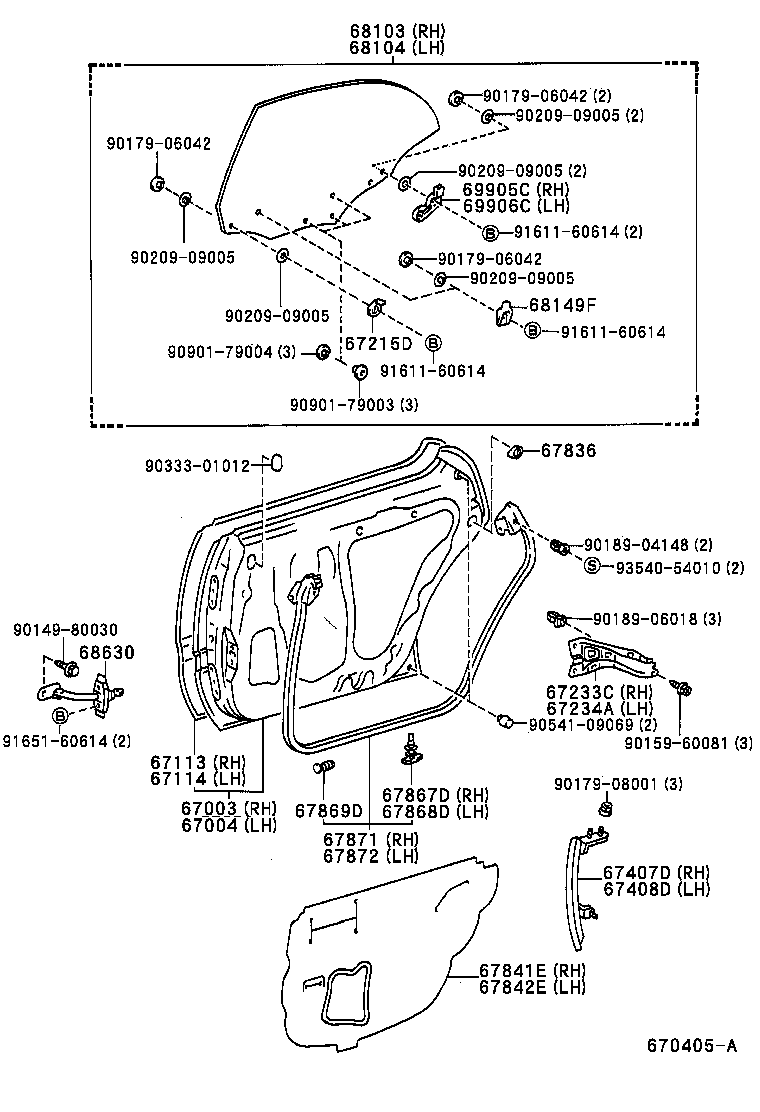

ILLUST NO. 2 OF 2(9205- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12710 |
AE10#..HT |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12710 |
AE10#..HT |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12240 |
AE10#..HT..(4FC,5F) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12240 |
AE10#..HT..(4FC,5F) |
1 | ||
| 67215D - STOP, REAR DOOR WINDOW, UPPER | ||||
| 67215-12040 |
AE10#..HT |
2 | ||
| 67233C - SUPPORT, REAR DOOR TRIM, RH | ||||
| 67233-12010 |
AE10#..HT |
1 | ||
| 67234A - SUPPORT, REAR DOOR TRIM, LH | ||||
| 67234-12010 |
AE10#..HT |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-12200 |
AE10#..HT |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-12200 |
AE10#..HT |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-32010 |
AE10#..HT |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12270 |
AE10#..HT |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12100 |
AE10#..HT |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
AE10#..HT |
17 | ||
| 67867-12150 |
AE10#..HT |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20150 |
AE10#..HT |
17 | ||
| 67867-12150 |
AE10#..HT |
17 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-20030 |
AE10#..HT |
8 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12370 |
AE10#..HT |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12370 |
AE10#..HT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12480 |
AE10#..HT *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68103-12481 |
AE10#..4FC,5F *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68103-12620 |
AE10# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12660 |
AE10# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-12490 |
AE10#..HT *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68104-12491 |
AE10#..4FC,5F *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68149F - STABILIZER, DOOR GLASS MALE | ||||
| 68149-20020 |
AE10#..HT |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12060 |
AE10#..HT..(4FC,5F) 右側 |
1 | ||
| 68640-12020 |
AE10#..HT..(4FC,5F) 左側 |
1 | ||
| 69905C - BRACKET SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-12130 |
AE10#..HT |
1 | ||
| 69906C - BRACKET SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-12120 |
AE10#..HT |
1 | ||
| Common parts | ||||
| 90149-80030 | ||||
| 90159-60081 | ||||
| 90179-06042 | ||||
| 90179-08001 | ||||
| 90189-04148 | ||||
| 90189-06018 | ||||
| 90209-09005 | ||||
| 90333-01012 | ||||
| 90541-09069 | ||||
| 90901-79003 | ||||
| 90901-79004 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 93540-54010 | ||||

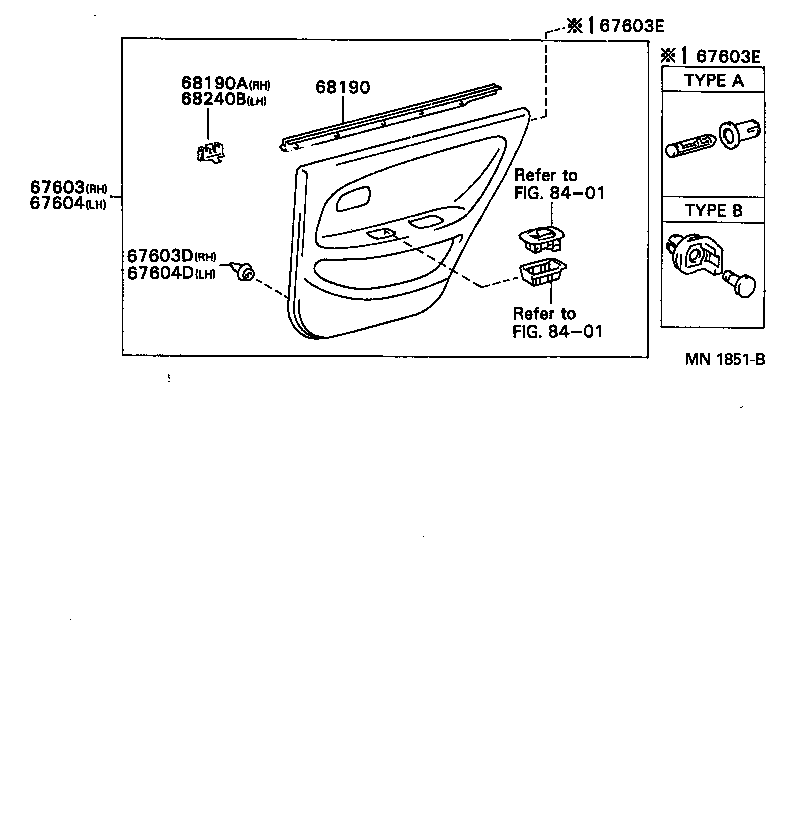

ILLUST NO. 1 OF 2(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E410C0 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67630-1E410G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67630-1E411C2 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67630-1H280C0 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67630-1E411G2 |
AE10#..F,X DK. SPRUCE,TRIM6# |
1 | ||
| 67630-1E421C0 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-1E421C0 |
AE10#..F,X ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2# |
1 | ||
| 67630-1E421C1 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-1E420C0 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ｼ-ﾄ)-*104,BLACK,TRIM2# |
1 | ||
| 67630-1H280G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67630-1E411C1 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67630-1E411G1 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-28020 |
AE10#..HT |
5 | ||
| 67771-12050 |
AE10#..HT |
5 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09141 |
AE10#..HT ﾀｲﾌﾟ B |
4 | ||
| 90467-07066G0 |
AE10#..F,X SPRUCE,TRIM6# |
4 | ||
| 90467-0706622 |
AE10#..HT BLACK,TRIM2# |
4 | ||
| 90467-0706601 |
AE10#..HT BLACK,TRIM2# |
4 | ||
| 90467-07066P0 |
AE10#..F,X SHADOW GRAY,TRIM6# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09141 |
AE10#..HT ﾀｲﾌﾟ B |
4 | ||
| 90467-07066G0 |
AE10#..F,X SPRUCE,TRIM6# |
4 | ||
| 90467-0706622 |
AE10#..HT BLACK,TRIM2# |
4 | ||
| 90467-0706601 |
AE10#..HT BLACK,TRIM2# |
4 | ||
| 90467-07066P0 |
AE10#..F,X SHADOW GRAY,TRIM6# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E410G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67640-1E410C0 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67640-1H280C0 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67640-1E421C0 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67640-1E411C1 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67640-1E421C0 |
AE10#..F,X ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2# |
1 | ||
| 67640-1E411G1 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67640-1E420C0 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ｼ-ﾄ)-*104,BLACK,TRIM2# |
1 | ||
| 67640-1E421C1 |
AE101..X ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67640-1E411C2 |
AE10#..F,X BLACK,TRIM2# |
1 | ||
| 67640-1E411G2 |
AE10#..F,X DK. SPRUCE,TRIM6# |
1 | ||
| 67640-1H280G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE10#..HT |
5 | ||
| 67771-28020 |
AE10#..HT |
5 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-12060 |
AE10#..HT 左側 |
1 | ||
| 68173-12200 |
AE10#..HT 右側 |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12200 |
AE10#..HT |
3 | ||
| 68211-12200 |
AE10#..HT |
2 | ||
| 68240B - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 68211-12200 |
AE10#..HT |
2 | ||
| 68211-12200 |
AE10#..HT |
3 | ||
| Linked diagrams | ||||
| 8401 | ||||
