AE101-ATMEK (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )HT

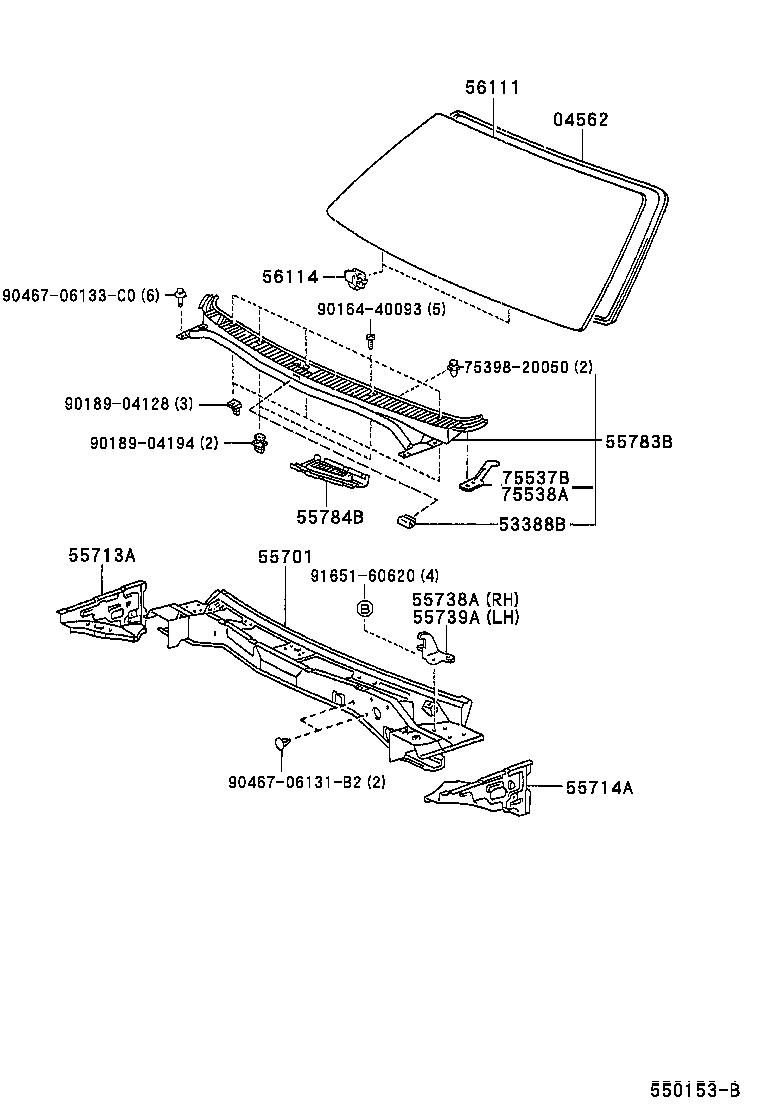

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AE10# |
1 | ||
| 53388B - CUSHION, HOOD, REAR | ||||
| 53388-12050 |
AE10#..HT |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-1A041 |
AE10#..F,X |
1 | ||
| 55700-12810 |
AE10#..F,S,SJ,X |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12080 |
AE10#..HT |
1 | ||
| 55713-12081 |
AE10# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12080 |
AE10#..HT |
1 | ||
| 55714-12081 |
AE10# |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-12110 |
AE10#..HT |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-12070 |
AE10#..HT |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55708-12100 |
AE10#..HT |
1 | ||
| 55708-12150 |
AE10#..HT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-12110 |
AE10#..HT |
1 | ||
| 55784-12110 |
AE10# |
1 | ||
| 55784-12090 |
AE10#..HT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-1A570 |
AE10#..HT *TL,T=4.7,ﾌﾞﾙｰ |
1 | ||
| 56111-1A571 |
AE10#..HT *TL,T=4.7,ﾌﾞﾙｰ |
1 | ||
| 56111-1A572 |
AE10# *TL,T=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56110-12010 |
AE10# |
2 | ||
| 75537B - PAD, WINDSHIELD MOULDING, RH | ||||
| 75537-12120 |
AE10#..HT..(4FC,5F) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75538A - PAD, WINDSHIELD MOULDING, LH | ||||
| 75538-12100 |
AE10#..HT..(4FC,5F) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 75398-20050 | ||||
| 90164-40093 | ||||
| 90189-04128 | ||||
| 90189-04194 | ||||
| 90467-06131B2 | ||||
| 90467-06133C0 | ||||
| 91651-60620 | ||||
