AE101-ATMEK (1992)
Toyota Lvn/Cre/Trn/Mrn

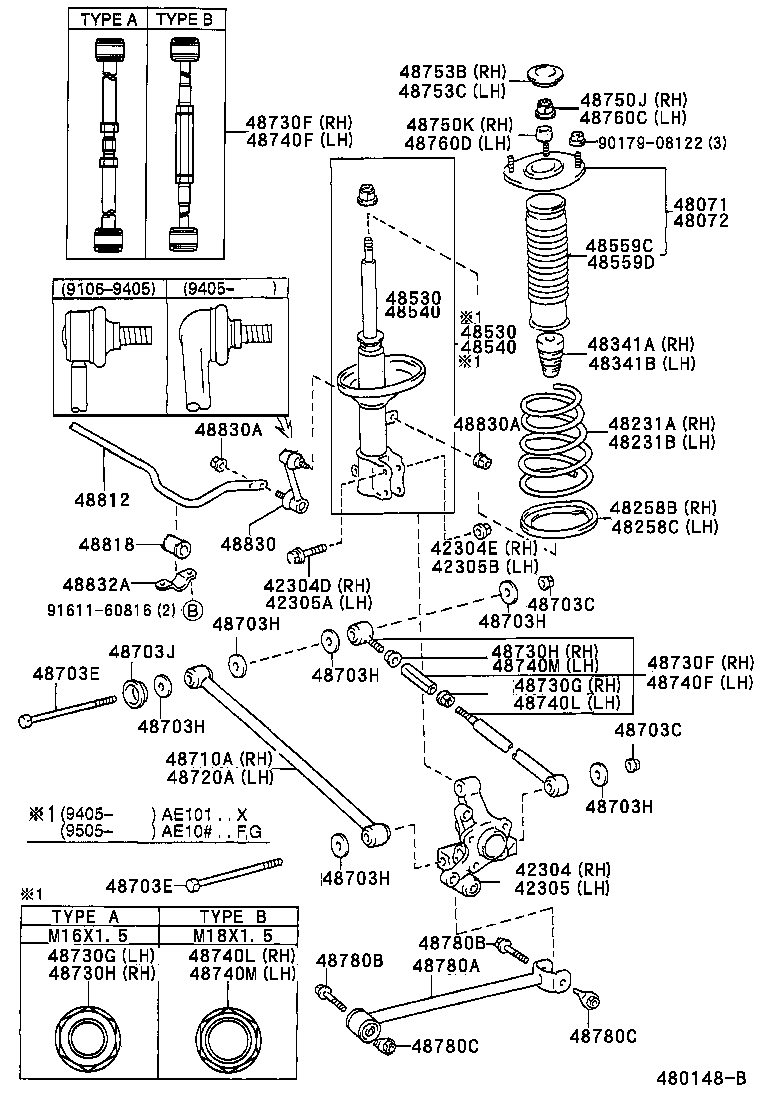

(9106-9505) ; (9505- )G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12130 |
AE10#..F,S,SJ,X |
1 | ||
| 42304-12090 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 42304-12090 |
AE10#..F,X |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-12102 |
AE10# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-12025 |
AE10# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12090 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 42305-12090 |
AE10#..F,X |
1 | ||
| 42305-12130 |
AE10#..F,S,SJ,X |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-12102 |
AE10# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-12025 |
AE10# |
2 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-12080 |
AE10# |
1 | ||
| 48071-12130 |
AE10#..F,X |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-12130 |
AE10#..F,X |
1 | ||
| 48072-12080 |
AE10# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H090 |
AE10#..F,X |
1 | ||
| 48231-1H070 |
AE101..X |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H070 |
AE101..X |
1 | ||
| 48231-1H090 |
AE10#..F,X |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-12030 |
AE10# |
1 | ||
| 48258-12040 |
AE10# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-12030 |
AE10# |
1 | ||
| 48258-12040 |
AE10# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-12120 |
AE10#..F,S,X |
1 | ||
| 48341-12130 |
AE101 |
1 | ||
| 48341-12180 |
AE10#..F,X |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-12130 |
AE101 |
1 | ||
| 48341-12120 |
AE10#..F,S,X |
1 | ||
| 48341-12180 |
AE10#..F,X |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-12820 |
AE101..SJ,X |
1 | ||
| 48530-19665 |
AE10#..F,X |
1 | ||
| 48530-19555 |
AE101..X |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-12820 |
AE101..SJ,X |
1 | ||
| 48530-19665 |
AE10#..F,X |
1 | ||
| 48530-19555 |
AE101..X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-12750 |
AE101..SJ,X |
1 | ||
| 48540-19065 |
AE101..X |
1 | ||
| 48540-19115 |
AE10#..F,X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-12750 |
AE101..SJ,X |
1 | ||
| 48540-19065 |
AE101..X |
1 | ||
| 48540-19115 |
AE10#..F,X |
1 | ||
| 48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-12070 |
AE10# |
1 | ||
| 48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-12070 |
AE10# |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE10# |
4 | ||
| 90179-14025 |
AE10# |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE10# |
4 | ||
| 90179-14025 |
AE10# |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE10# *14−1.50PX225−32 |
4 | ||
| 90105-14099 |
AE10# *14−1.5PX222−29 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE10# *14−1.50PX225−32 |
4 | ||
| 90105-14099 |
AE10# *14−1.5PX222−29 |
4 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 90209-15002 |
AE10# |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12190 |
AE10#..F,S,SJ,X |
1 | ||
| 48710-12200 |
AE10#..F,X |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12200 |
AE10#..F,X |
1 | ||
| 48710-12190 |
AE10#..F,S,SJ,X |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
AE10# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
AE10# |
1 | ||
| 90387-15012 |
AE10# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-12010 |
AE10# |
1 | ||
| 48753-12050 |
AE10# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-12050 |
AE10# |
1 | ||
| 48753-12010 |
AE10# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
AE10# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15012 |
AE10# |
1 | ||
| 90387-15027 |
AE10# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
AE10#..F,S,SJ,X |
2 | ||
| 48780-12080 |
AE10#..F,X |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE10# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE10# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
AE10# BODY SIDE |
2 | ||
| 90179-12062 |
AE10# CARRIER SIDE |
2 | ||
| 90179-12063 |
AE10# |
2 | ||
| 90179-12091 |
AE10#..4FC,5F CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
AE10# BODY SIDE |
2 | ||
| 90179-12062 |
AE10# CARRIER SIDE |
2 | ||
| 90179-12063 |
AE10# |
2 | ||
| 90179-12091 |
AE10#..4FC,5F CARRIER SIDE |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-12170 |
AE10#..F,S,SJ,X |
1 | ||
| 48812-12170 |
AE101..X |
1 | ||
| 48812-02020 |
AE101..X (L) |
1 | ||
| 48812-12170 |
AE101..X (J) |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20070 |
AE10#..F,S,SJ,X |
2 | ||
| 48818-12150 |
AE10#..F,S,SJ,X |
2 | ||
| 48818-12150 |
AE101..X |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-12060 |
AE10#..F,X |
2 | ||
| 48830-20010 |
AE10# |
2 | ||
| 48830-32010 |
AE10#..F,X |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE10# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE10# |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20030 |
AE10# |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91611-60816 | ||||

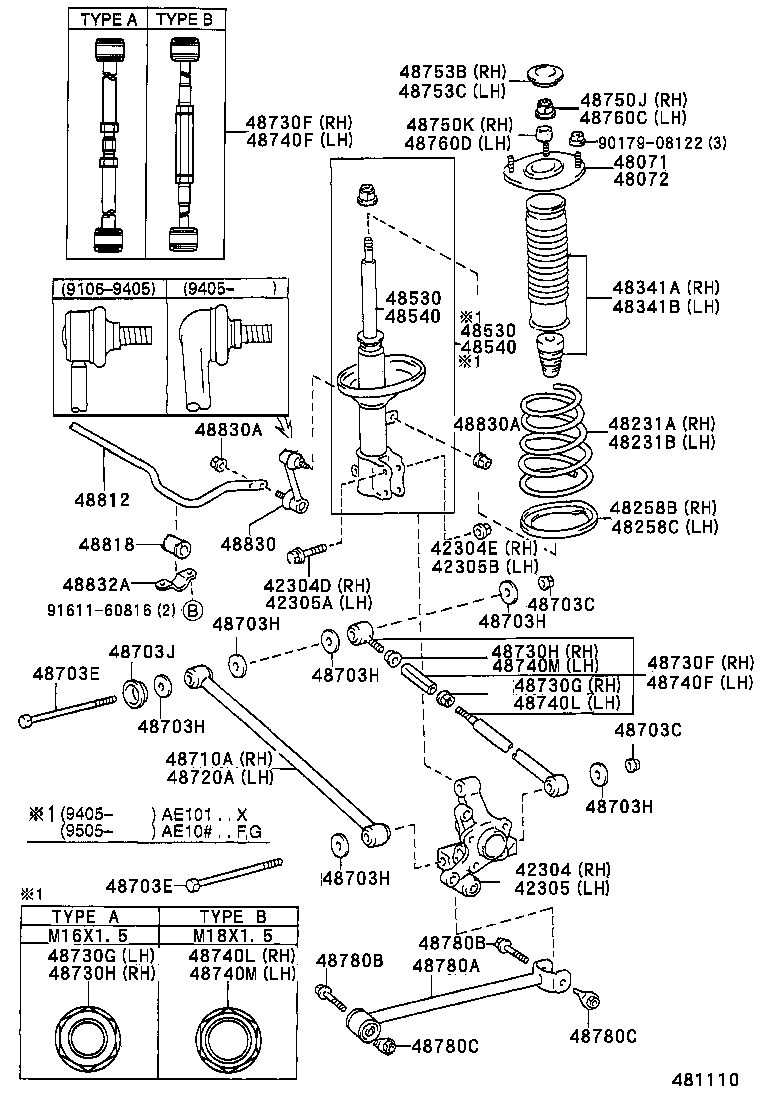

(9505- )F,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12130 |
AE10#..F,S,SJ,X |
1 | ||
| 42304-12090 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 42304-12090 |
AE10#..F,X |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-12102 |
AE10# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-12025 |
AE10# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12090 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 42305-12090 |
AE10#..F,X |
1 | ||
| 42305-12130 |
AE10#..F,S,SJ,X |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-12102 |
AE10# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-12025 |
AE10# |
2 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-12080 |
AE10# |
1 | ||
| 48071-12130 |
AE10#..F,X |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-12130 |
AE10#..F,X |
1 | ||
| 48072-12080 |
AE10# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H090 |
AE10#..F,X |
1 | ||
| 48231-1H070 |
AE101..X |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H070 |
AE101..X |
1 | ||
| 48231-1H090 |
AE10#..F,X |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-12030 |
AE10# |
1 | ||
| 48258-12040 |
AE10# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-12030 |
AE10# |
1 | ||
| 48258-12040 |
AE10# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-12120 |
AE10#..F,S,X |
1 | ||
| 48341-12130 |
AE101 |
1 | ||
| 48341-12180 |
AE10#..F,X |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-12130 |
AE101 |
1 | ||
| 48341-12120 |
AE10#..F,S,X |
1 | ||
| 48341-12180 |
AE10#..F,X |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-12820 |
AE101..SJ,X |
1 | ||
| 48530-19665 |
AE10#..F,X |
1 | ||
| 48530-19555 |
AE101..X |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-12820 |
AE101..SJ,X |
1 | ||
| 48530-19665 |
AE10#..F,X |
1 | ||
| 48530-19555 |
AE101..X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-12750 |
AE101..SJ,X |
1 | ||
| 48540-19065 |
AE101..X |
1 | ||
| 48540-19115 |
AE10#..F,X |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-12750 |
AE101..SJ,X |
1 | ||
| 48540-19065 |
AE101..X |
1 | ||
| 48540-19115 |
AE10#..F,X |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE10# |
4 | ||
| 90179-14025 |
AE10# |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
AE10# |
4 | ||
| 90179-14025 |
AE10# |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE10# *14−1.50PX225−32 |
4 | ||
| 90105-14099 |
AE10# *14−1.5PX222−29 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-14083 |
AE10# *14−1.50PX225−32 |
4 | ||
| 90105-14099 |
AE10# *14−1.5PX222−29 |
4 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE10# |
12 | ||
| 90201-14017 |
AE10# |
12 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 90209-15002 |
AE10# |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12190 |
AE10#..F,S,SJ,X |
1 | ||
| 48710-12200 |
AE10#..F,X |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12200 |
AE10#..F,X |
1 | ||
| 48710-12190 |
AE10#..F,S,SJ,X |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12060 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-12110 |
AE10#..F,X |
1 | ||
| 48730-12090 |
AE10#..F,S,SJ,X |
1 | ||
| 48730-13020 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48730-12110 |
AE10#..F,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16022 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18016 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16021 |
AE10#..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90179-18017 |
AE10#..F,X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
AE10# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
AE10# |
1 | ||
| 90387-15012 |
AE10# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-12010 |
AE10# |
1 | ||
| 48753-12050 |
AE10# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-12050 |
AE10# |
1 | ||
| 48753-12010 |
AE10# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
AE10# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15012 |
AE10# |
1 | ||
| 90387-15027 |
AE10# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
AE10#..F,S,SJ,X |
2 | ||
| 48780-12080 |
AE10#..F,X |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE10# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE10# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
AE10# BODY SIDE |
2 | ||
| 90179-12062 |
AE10# CARRIER SIDE |
2 | ||
| 90179-12063 |
AE10# |
2 | ||
| 90179-12091 |
AE10#..4FC,5F CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
AE10# BODY SIDE |
2 | ||
| 90179-12062 |
AE10# CARRIER SIDE |
2 | ||
| 90179-12063 |
AE10# |
2 | ||
| 90179-12091 |
AE10#..4FC,5F CARRIER SIDE |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-12170 |
AE10#..F,S,SJ,X |
1 | ||
| 48812-12170 |
AE101..X |
1 | ||
| 48812-02020 |
AE101..X (L) |
1 | ||
| 48812-12170 |
AE101..X (J) |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20070 |
AE10#..F,S,SJ,X |
2 | ||
| 48818-12150 |
AE10#..F,S,SJ,X |
2 | ||
| 48818-12150 |
AE101..X |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-12060 |
AE10#..F,X |
2 | ||
| 48830-20010 |
AE10# |
2 | ||
| 48830-32010 |
AE10#..F,X |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE10# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE10# |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20030 |
AE10# |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
