AE101-ATMEK (1992)
Toyota Lvn/Cre/Trn/Mrn

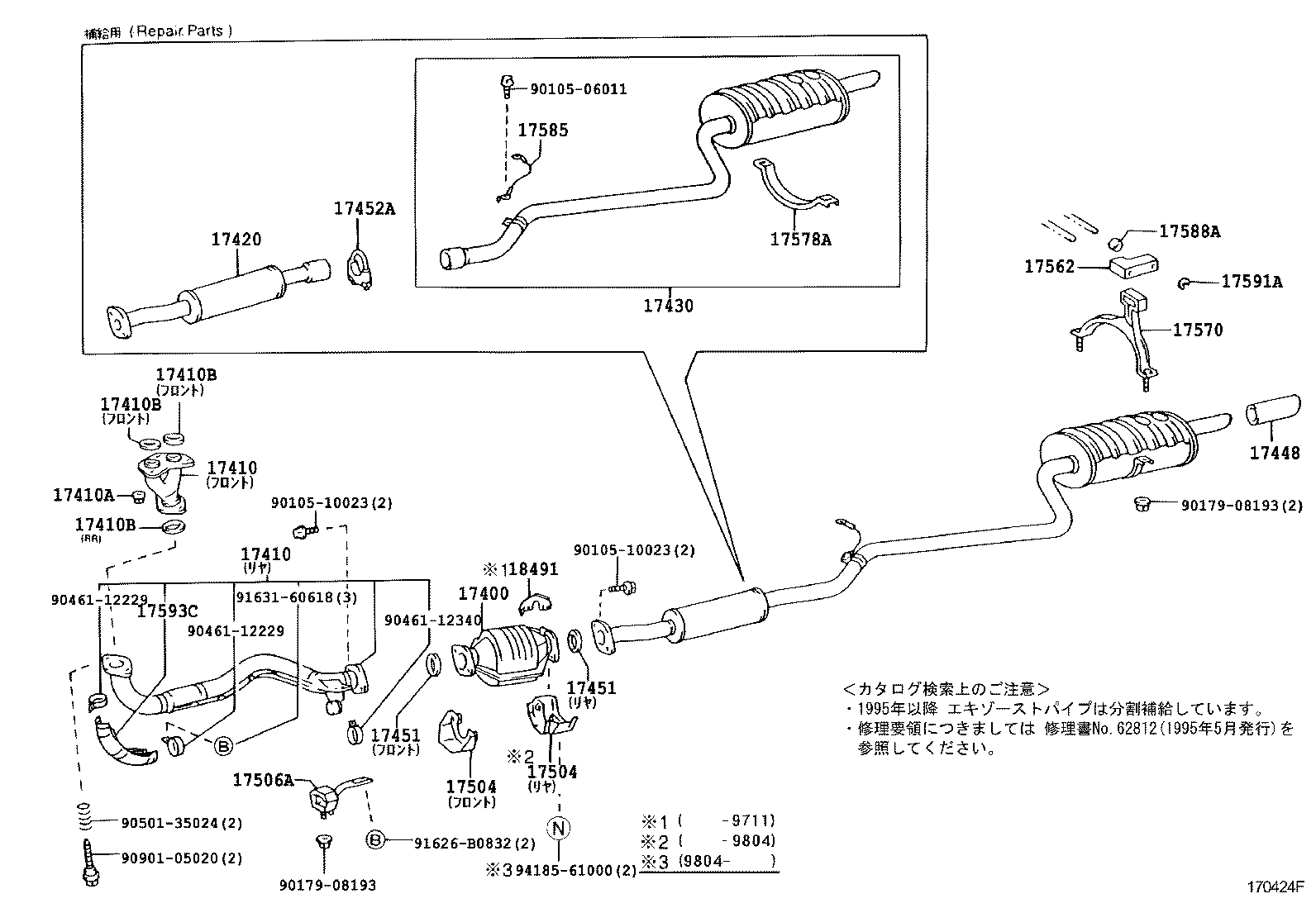

(9505- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16540 |
4AFE..AE101 |
1 | ||
| 18450-16650 |
4AFE..AE101 |
1 | ||
| 18450-16780 |
4AFE..AE101 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 18450-1A030 |
4AFE..AE101 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A220 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410-16780 |
4AFE..AE101 |
1 | ||
| 17410-1A330 |
4AFE..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A220 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410-16780 |
4AFE..AE101 |
1 | ||
| 17410-1A330 |
4AFE..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE,4AG#..AE101 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16350 |
4AFE..AE101 |
1 | ||
| 17420-16641 |
4AFE..AE101 |
1 | ||
| 17420-16640 |
4AFE..AE101 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1A010 |
4AFE..AE101 |
1 | ||
| 17430-1A580 |
4AFE..AE101 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-63010 |
4AFE..AE101 |
1 | ||
| 17448-70020 |
4AFE..AE101 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
4AFE,4AG#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 90917-06057 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
4AFE,4AG#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 90917-06057 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-16120 |
4AFE..AE101 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16030 |
4AFE,4AG#..AE101 |
1 | ||
| 17504-16030 |
4A#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17504-16040 |
4A#..AE101 ﾘﾔ |
1 | ||
| 17504-16030 |
4AFE..AE101 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16030 |
4AFE,4AG#..AE101 |
1 | ||
| 17504-16030 |
4A#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17504-16040 |
4A#..AE101 ﾘﾔ |
1 | ||
| 17504-16030 |
4AFE..AE101 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-11100 |
4AFE,5AFE..AE10# |
1 | ||
| 17506-15070 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17506-15080 |
4AFE,5AFE..AE10# |
1 | ||
| 17506-16120 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-16240 |
4A#,5AFE..AE10# |
1 | ||
| 17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT | ||||
| 17570-16010 |
4AFE,5AFE..AE10# |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-16020 |
4AFE,5AFE..AE10# |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-16060 |
4A#,5AFE..AE10# |
1 | ||
| 17588A - SPACER, EXHAUST PIPE HANGER | ||||
| 17588-16020 |
4A#,5AFE..AE10# |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-16020 |
4A#,5AFE..AE10# |
2 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-16360 |
4AFE..AE101 |
1 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 18491-16010 |
4AFE,4AGZE,5AFE..AE10# |
1 | ||
| 18491-16010 |
4A#..AE101 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 18491-16010 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-10023 | ||||
| 90179-08193 | ||||
| 90461-12229 | ||||
| 90461-12340 | ||||
| 90501-35024 | ||||
| 90901-05020 | ||||
| 91626-B0832 | ||||
| 91631-60618 | ||||
| 94185-61000 | ||||

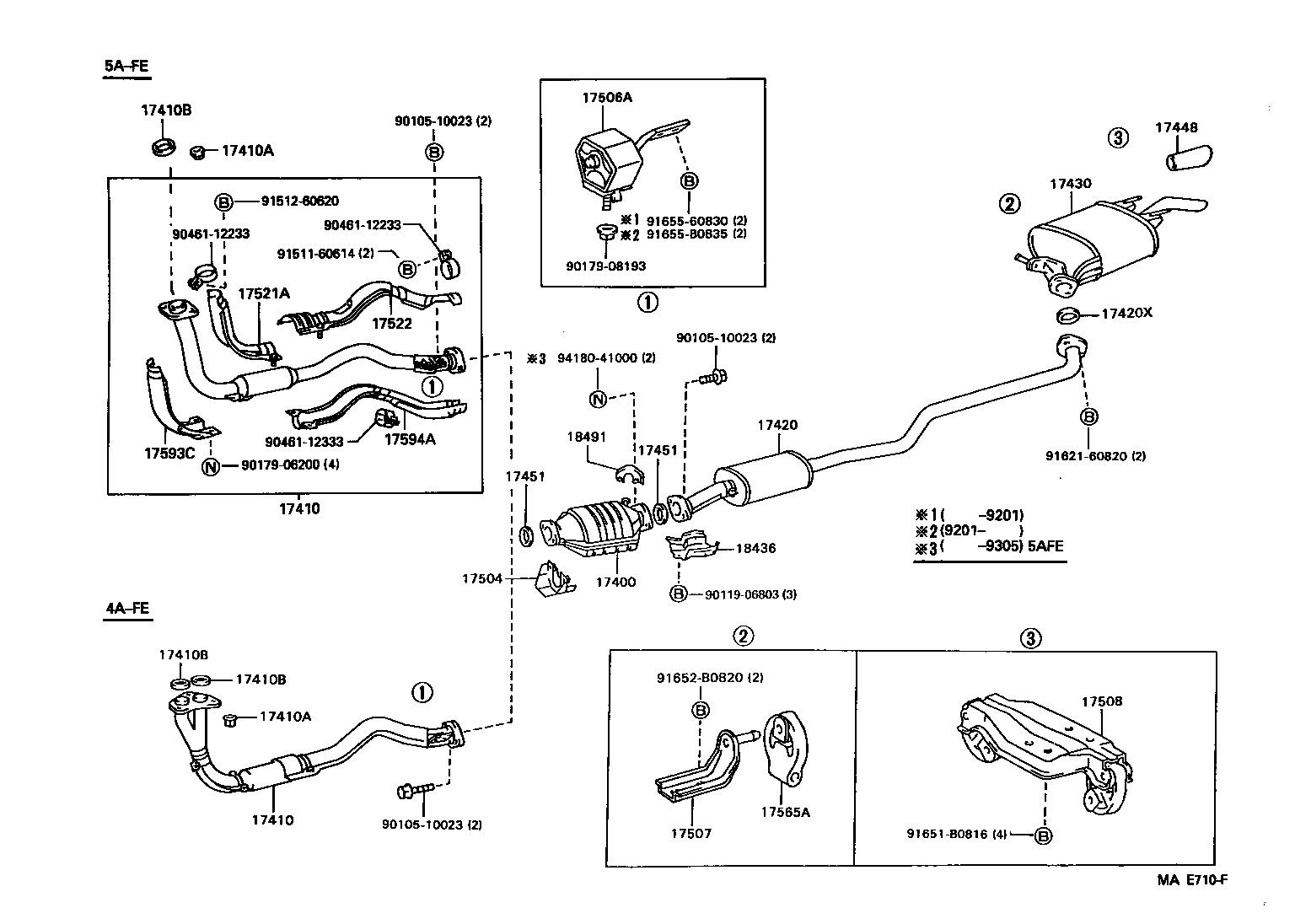

(9106-9505)4AFE,5AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16540 |
4AFE..AE101 |
1 | ||
| 18450-16650 |
4AFE..AE101 |
1 | ||
| 18450-16780 |
4AFE..AE101 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 18450-1A030 |
4AFE..AE101 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A220 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410-16780 |
4AFE..AE101 |
1 | ||
| 17410-1A330 |
4AFE..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A220 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410-16780 |
4AFE..AE101 |
1 | ||
| 17410-1A330 |
4AFE..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE,4AG#..AE101 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE,4AG#..AE101 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101 ﾌﾛﾝﾄ |
2 | ||
| 90917-06064 |
4AFE..AE101 |
2 | ||
| 17451-16030 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16350 |
4AFE..AE101 |
1 | ||
| 17420-16641 |
4AFE..AE101 |
1 | ||
| 17420-16640 |
4AFE..AE101 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06039 |
4AFE..AE101 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1A010 |
4AFE..AE101 |
1 | ||
| 17430-1A580 |
4AFE..AE101 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-63010 |
4AFE..AE101 |
1 | ||
| 17448-70020 |
4AFE..AE101 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
4AFE,4AG#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 90917-06057 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
4AFE,4AG#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 90917-06057 |
4AFE..AE101 ﾘﾔ |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16030 |
4AFE,4AG#..AE101 |
1 | ||
| 17504-16030 |
4A#..AE101 ﾌﾛﾝﾄ |
1 | ||
| 17504-16040 |
4A#..AE101 ﾘﾔ |
1 | ||
| 17504-16030 |
4AFE..AE101 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-11100 |
4AFE,5AFE..AE10# |
1 | ||
| 17506-15070 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17506-15080 |
4AFE,5AFE..AE10# |
1 | ||
| 17506-16120 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15040 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15050 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16230 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-16360 |
4AFE..AE101 |
1 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18436-16030 |
4AFE,4AGE..AE101 |
1 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 18491-16010 |
4AFE,4AGZE,5AFE..AE10# |
1 | ||
| 18491-16010 |
4A#..AE101 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 18491-16010 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-06803 | ||||
| 90179-06200 | ||||
| 90179-08193 | ||||
| 90461-12233 | ||||
| 90461-12333 | ||||
| 91511-60614 | ||||
| 91512-60620 | ||||
| 91621-60820 | ||||
| 91651-B0816 | ||||
| 91652-B0820 | ||||
| 91655-60830 | ||||
| 91655-B0835 | ||||
| 94180-41000 | ||||
