AE101-ATFVF (1997)

Toyota Lvn/Cre/Trn/Mrn

Production Apr 1997 - Aug 1998
Engine 4AGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )6F

Click highlighted areas on diagram

C160

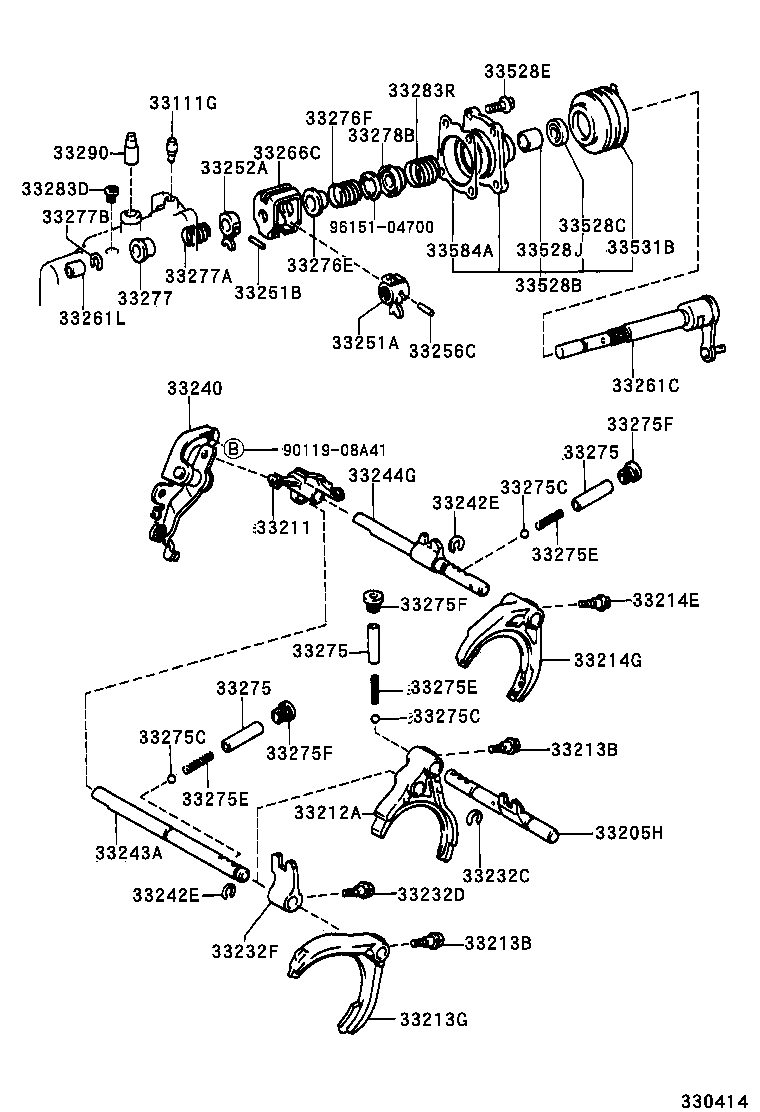

diagram 33111G 33205H 33211 33212A 33213B 33213B 33213G 33214E 33214G 33232C 33232D 33232F 33240 33242E 33242E 33243A 33244G 33251A 33251B 33252A 33256C 33261C 33261L 33266C 33275 33275 33275 33275C 33275C 33275C 33275E 33275E 33275E 33275F 33275F 33275F 33276E 33276F 33277 33277A 33277B 33278B 33283D 33283R 33290 33528B 33528C 33528E 33528J 33531B 33584A 9011908A41 9615104700
Part # Description Qty Price
33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33205-12040

AE101..6F

 1
33211 - FORK, REVERSE SHIFT
33211-12050

AE101..6F

 1
33212A - FORK, GEAR SHIFT, NO.1
33212-10013

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

AE101..6F

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

AE101..6F

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-10022

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 1
33214E - BOLT(FOR GEAR SHIFT FORK LOCK)
90105-06115

AE101..6F

 1
33214G - FORK, GEAR SHIFT, NO.3
33230-12010

AE101..6F

 1
33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
90520-12003

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 1
33232D - BOLT (FOR SHIFT HEAD SET)
90105-06115

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 1
33232F - HEAD, GEAR SHIFT, NO.1
33232-10021

AE101..6F

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-12030

AE101..6F

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

AE101..6F

 2
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

AE101..6F

 2
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-12120

AE101..6F

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-12090

AE101..6F

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-12070

AE101..6F

 1
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-05016

AE101..6F;AE101..GTZ

長さ=25.5

 1
33252A - LEVER, SHIFT, INNER NO.2
33252-12020

AE101..6F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-12080

AE101..6F

 1
33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
90384-15002

AE101..6F

 1
33266C - PLATE, SHIFT INTER LOCK
33266-12040

AE101..6F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

外径=10.7

 3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

外径=10.7

 3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

外径=10.7

 3
33275C - BALL (FOR SHIFT DETENT)
90360-10003

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 3
33275C - BALL (FOR SHIFT DETENT)
90360-10003

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 3
33275C - BALL (FOR SHIFT DETENT)
90360-10003

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12173

AE101..6F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12173

AE101..6F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12173

AE101..6F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

AE10#..MTM

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

AE10#..MTM

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

AE10#..MTM

 3
33276E - SEAT, SELECT SPRING, NO.1
33276-12030

AE101..6F

 1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-16151

AE101..6F

 1
33277 - SEAT, SELECT SPRING, NO.2
33277-12020

AE101..6F

 1
33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
90501-16152

AE101..6F

 1
33277B - RING, E (FOR SELECT SPRING NO.2 SEAT)
90523-12003

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

 1
33278B - SUPPORT, SHIFT & SELECT LEVER SHAFT
33278-12020

AE101..6F

 1
33283R - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
90501-26087

AE101..6F

 1
33290 - BALL ASSY, LOCK, NO.1
33290-33011

AE101..6F

 1
33528B - COVER, CONTROL SHAFT
33506-12110

AE101..6F

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-10288

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

*10−1.25PX25−19.8

 2
91611-61025

AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)

*10−1.25PX25−25

 2
33528J - BUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)
90384-18017

AE101..6F

 1
33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33531-12030

AE101..6F

 1
33584A - GASKET, CONTROL SHIFT LEVER RETAINER
33584-12060

AE101..6F

 1
Common parts
90119-08A41
96151-04700
