AE101-ACPVF (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1993
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

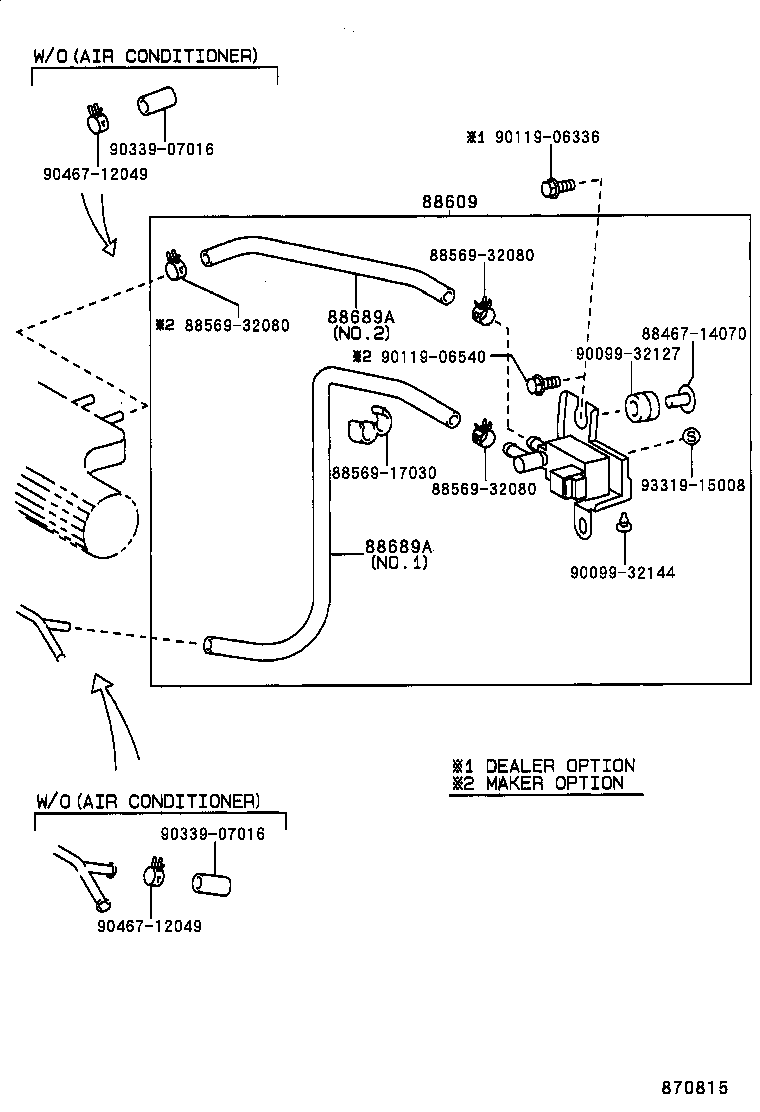

(9106- )F,S,SJ,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-12820 |
AE101..G,GT,GTAPX |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12460 |
AE101..G,GT,GTAPX NO.2(OUT) |
1 | ||
| 88689-12440 |
AE10#..F,S,SJ,X NO.1(IN) |
1 | ||
| 88689-12450 |
AE101..G,GT,GTAPX NO.1(IN) |
1 | ||
| 88689-12430 |
AE10#..F,S,SJ,X NO.2(OUT) |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12460 |
AE101..G,GT,GTAPX NO.2(OUT) |
1 | ||
| 88689-12440 |
AE10#..F,S,SJ,X NO.1(IN) |
1 | ||
| 88689-12450 |
AE101..G,GT,GTAPX NO.1(IN) |
1 | ||
| 88689-12430 |
AE10#..F,S,SJ,X NO.2(OUT) |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88569-17030 | ||||
| 88569-32080 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06336 | ||||
| 90119-06540 | ||||
| 90339-07016 | ||||
| 90467-12049 | ||||
| 93319-15008 | ||||

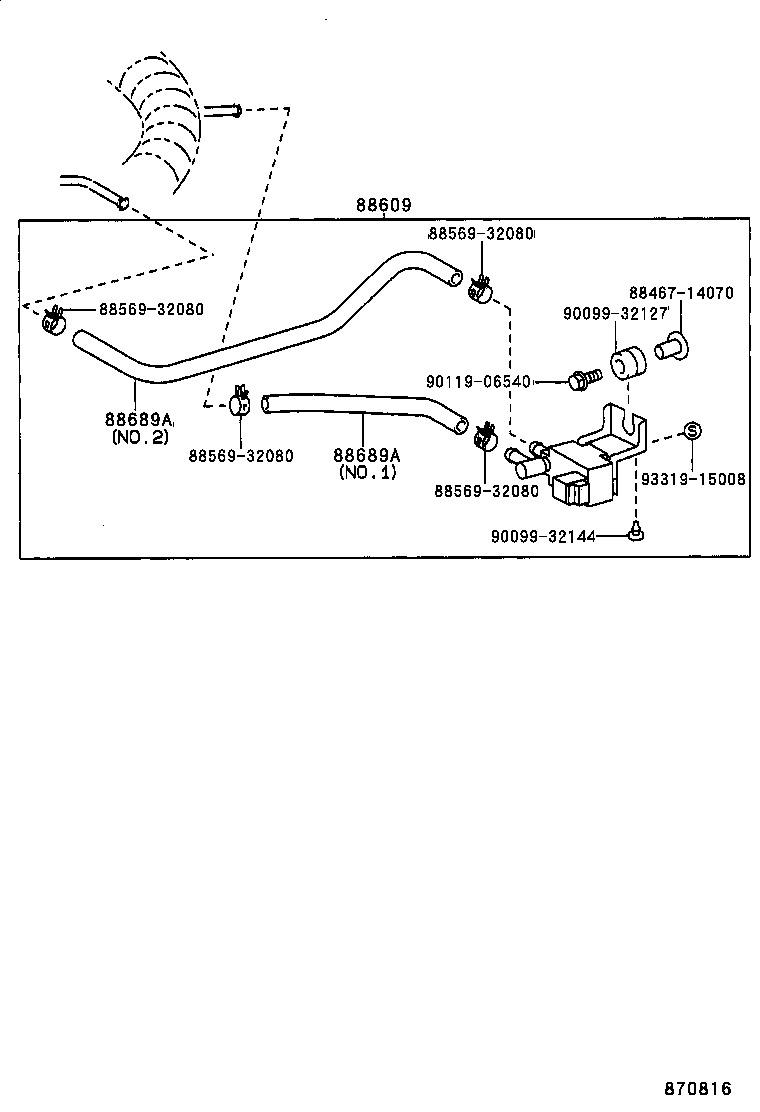

(9106- )G,GT,GTAPX
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-12820 |
AE101..G,GT,GTAPX |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12460 |
AE101..G,GT,GTAPX NO.2(OUT) |
1 | ||
| 88689-12440 |
AE10#..F,S,SJ,X NO.1(IN) |
1 | ||
| 88689-12450 |
AE101..G,GT,GTAPX NO.1(IN) |
1 | ||
| 88689-12430 |
AE10#..F,S,SJ,X NO.2(OUT) |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12460 |
AE101..G,GT,GTAPX NO.2(OUT) |
1 | ||
| 88689-12440 |
AE10#..F,S,SJ,X NO.1(IN) |
1 | ||
| 88689-12450 |
AE101..G,GT,GTAPX NO.1(IN) |
1 | ||
| 88689-12430 |
AE10#..F,S,SJ,X NO.2(OUT) |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88569-32080 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06540 | ||||
| 93319-15008 | ||||
