AE101-ACPVF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1993
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )CP

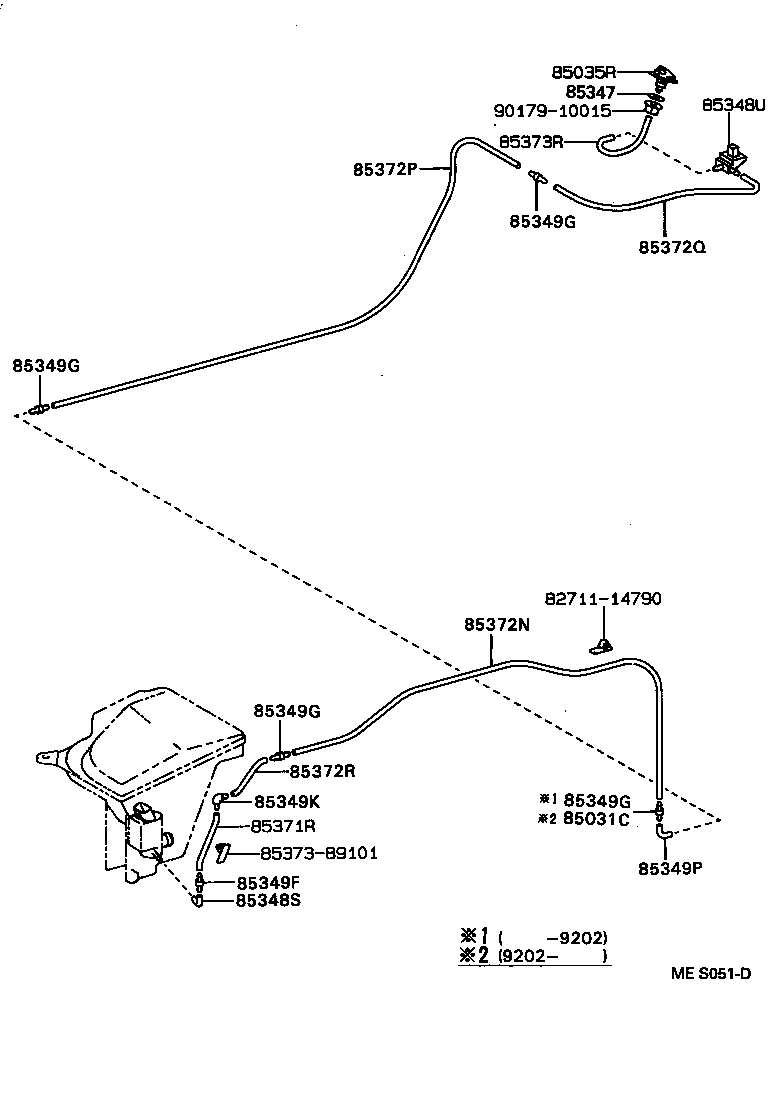

Click highlighted areas on diagram

diagram 8271114790 85031C 85035R 85347 85348S 85348U 85349F 85349G 85349G 85349G 85349G 85349K 85349P 85371R 85372N 85372P 85372Q 85372R 8537389101 85373R 9017910015
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-12010

AE101..CP

 1
85347 - PACKING, REAR WASHER
85347-12010

AE101..CP;AE101..6F

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85377-32220

AE101..CP

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE101

 3
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE101

 3
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE101

 3
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE101

 3
85349K - JOINT, REAR WASHER ELBOW, NO.2
85317-12230

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-14481

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

*H,L=130

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE101..CP;AE101..6F

*H,L=200

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-59045

AE101..CP

*H,L=2200

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE101..CP

*H,L=950

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

AE10#..F,G,GT,GTAPX,GTZ,SJ,X

*H,L=70

 1
90099-33299

AE101

*H,L=50

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374-12010

AE101..CP

長さ=185

 1
Common parts
82711-14790
85373-89101
90179-10015
