AE101-ACPVF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1993
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE101..4FC

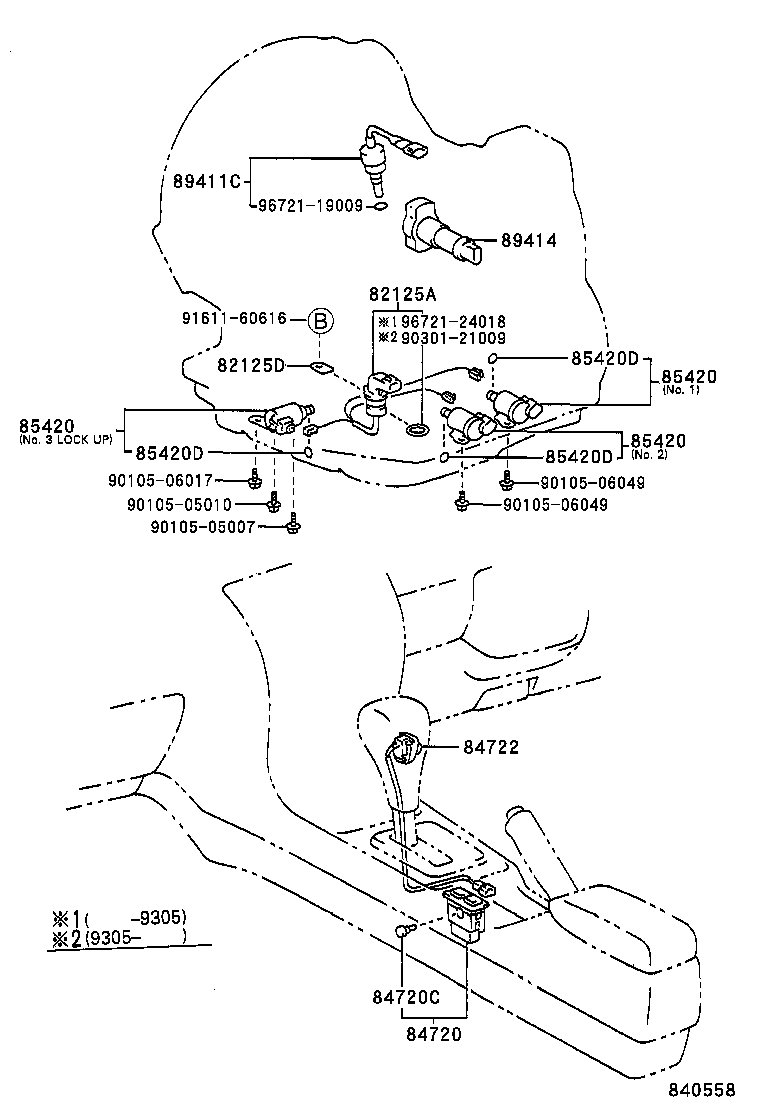

Click highlighted areas on diagram

ECT

diagram 82125A 82125D 84720 84720C 84722 85420 85420 85420 85420D 85420D 85420D 89411C 89414 9010505007 9010505010 9010506017 9010506049 9010506049 9030121009 9161160616 9672119009 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20160

AE101..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE10#..4FC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-12060

AE101..4FC

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-10420

AE101..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12050C0

AE10#..(F,G,GT,S,X)..4FC

BLACK,TRIM2#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

AE101..4FC

NO.3(LOCK UP)

 1
85420-22080

AE101..4FC

NO.1 & NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

AE101..4FC

NO.3(LOCK UP)

 1
85420-22080

AE101..4FC

NO.1 & NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-12062

AE101..4FC

NO.3(LOCK UP)

 1
85420-22080

AE101..4FC

NO.1 & NO.2

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE101..4FC

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE101..4FC

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE101..4FC

 3
89411C - SENSOR, SPEED
89411-20040

AE101..4FC

 1
89414 - ROTOR, SENSOR
89414-12010

AE101..4FC

 1
Common parts
90105-05007
90105-05010
90105-06017
90105-06049
90301-21009
91611-60616
96721-19009
96721-24018
