AE101-ACPVF (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106-9505)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0505001 |
AE10#..G,GT,GTZ,S BLACK,TRIM2# |
2 | ||
| 90467-08160 |
AE10# |
2 | ||
| 90467-0505001 |
AE10#..F,X BLACK,TRIM2#,6# |
2 | ||
| 90467-0505022 |
AE10#..G,GT,GTZ,S BLACK,TRIM2# |
2 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0505001 |
AE10#..G,GT,GTZ,S BLACK,TRIM2# |
2 | ||
| 90467-08160 |
AE10# |
2 | ||
| 90467-0505001 |
AE10#..F,X BLACK,TRIM2#,6# |
2 | ||
| 90467-0505022 |
AE10#..G,GT,GTZ,S BLACK,TRIM2# |
2 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-12200G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62111-1220022 |
AE10#..F,G,GT,GTAPX,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-1220022 |
AE10#..F,G,GT,GTAPX,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 62112-12200G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-1214022 |
AE10#..F,G,GT,GTAPX,S,X BLACK,TRIM2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-08149 |
AE10# |
1 | ||
| 62199A - HOLDER, FUSEE | ||||
| 90468-25003 |
AE10# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-12270G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62211-1225022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1225022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62212-12270G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-1203022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62225-12050G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-1203022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62226-12050G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-12050 |
AE10#..CP |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-12060 |
AE10#..CP |
1 | ||
| 62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH | ||||
| 62381-12200 |
AE10#..CP |
1 | ||
| 62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH | ||||
| 62382-12210 |
AE10#..CP |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-12690G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62471-1267022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-0707211 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925 |
2 | ||
| 90467-0707211 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925 |
2 | ||
| 90467-0707222 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925 |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-0707211 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925 |
2 | ||
| 90467-0707211 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925 |
2 | ||
| 90467-0707222 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925 |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-1267022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 62472-12690G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1A570C0 |
AE101..GT,GTAPX,GTZ BLACK GRAY,TRIM20 |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-32110 |
AE10#..CP NO.1 |
2 | ||
| 67771-12040 |
AE10# NO.2 |
8 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-32110 |
AE10#..CP NO.1 |
2 | ||
| 67771-12040 |
AE10# NO.2 |
8 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1A550C0 |
AE101..GT,GTAPX,GTZ BLACK GRAY,TRIM20 |
1 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62566-12030 |
AE10#..CP |
12 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-1221022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 67913-12230G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-1218022 |
AE10#..GT,GTAPX,GTZ,S BLACK,TRIM2# |
1 | ||
| 67914-12200G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-33030 | ||||
| 67869-12030 | ||||
| 90468-04157 | ||||
| 90468-05060 | ||||
| 90468-05077 | ||||
| 90468-05103 | ||||

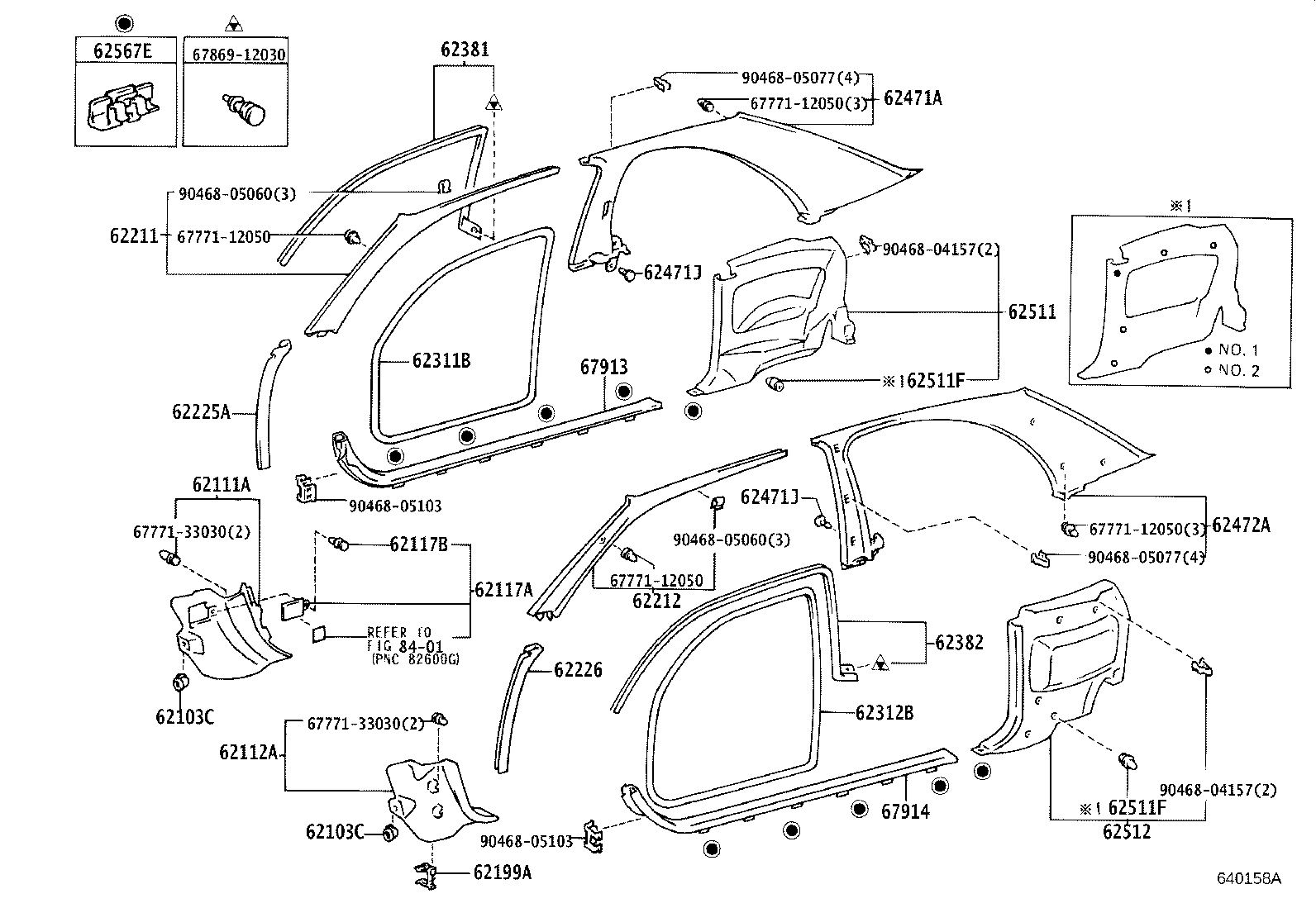

| Linked diagrams | ||||
| 8401 | ||||
