AE101-ACPVF (1991)
Toyota Lvn/Cre/Trn/Mrn
ILLUST NO. 1 OF 2(9106-9505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-1A140 |
AE101..GT,GTAPX ｱﾘ(ABS) |
1 | ||
| 44610-1A050 |
AE101..GT,GTAPX |
1 | ||
| 44610-1A420 |
AE101..G |
1 | ||
| 44610-1A430 |
AE101..G ｱﾘ(ABS) |
1 | ||
| 44731C - BRACKET, BRAKE BOOSTER | ||||
| 44731-12050 |
AE10#..F,GTAPX,GTZ,S,SJ,X |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12010 |
AE10# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

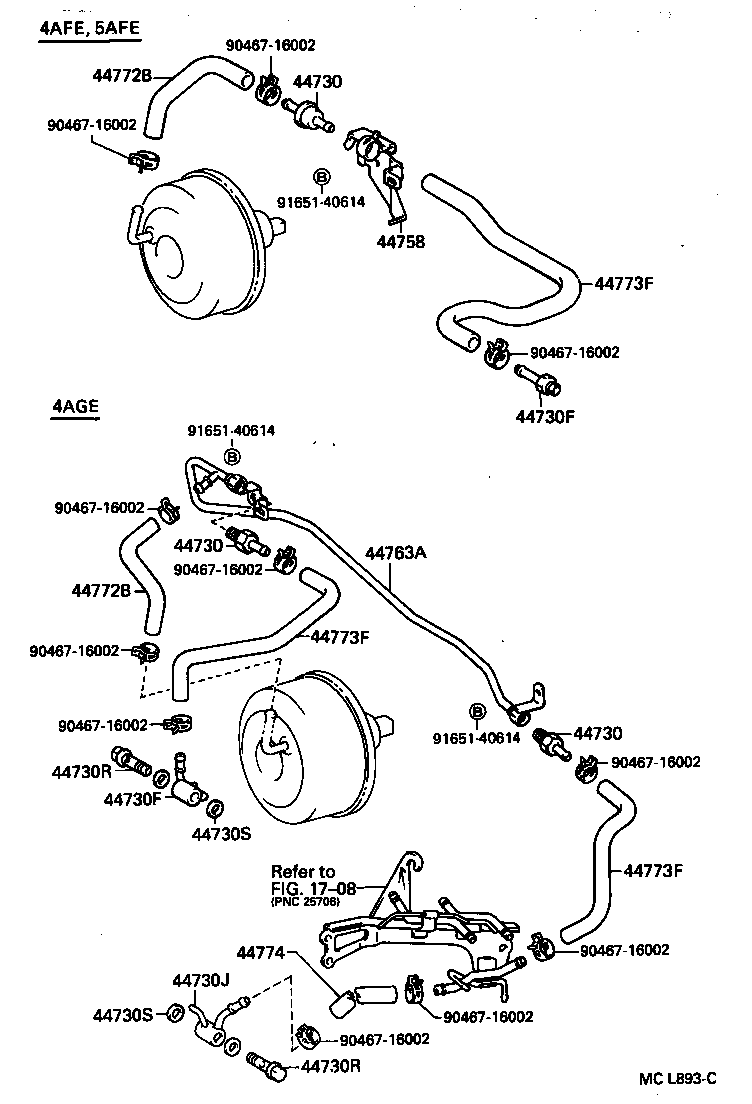

ILLUST NO. 2 OF 2(9106-9505)F,G,GT,GTAPX,S,SJ,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20100 |
AE101..G,GT,GTAPX |
2 | ||
| 44730-10010 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20100 |
AE101..G,GT,GTAPX |
2 | ||
| 44730-10010 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20100 |
AE101..G,GT,GTAPX |
2 | ||
| 44730-10010 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09162 |
AE101..G,GT,GTAPX |
1 | ||
| 90404-51319 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09162 |
AE101..G,GT,GTAPX |
1 | ||
| 90404-51319 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90405-09161 |
AE101..G,GT,GTAPX |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-10054 |
AE101..G,GT,GTAPX |
2 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-10054 |
AE101..G,GT,GTAPX |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-10015 |
AE101..G,GT,GTAPX |
4 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-10015 |
AE101..G,GT,GTAPX |
4 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12290 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12220 |
AE101..G,GT,GTAPX |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12420 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44772-12430 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 44772-12480 |
AE101..G,GT,GTAPX |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12420 |
AE10#..F,GTZ,S,SJ,X |
1 | ||
| 44772-12430 |
AE10#..F,S,SJ,X ｱﾘ(ABS) |
1 | ||
| 44772-12480 |
AE101..G,GT,GTAPX |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12470 |
AE10#..F,S,SJ,X |
1 | ||
| 44773-12510 |
AE101..CRE..G..5F;AE101..(LVN,MRN,TRN)..(G,GT,GTAPX) |
1 | ||
| 44773-12500 |
AE101..G,GT,GTAPX 左側 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12470 |
AE10#..F,S,SJ,X |
1 | ||
| 44773-12510 |
AE101..CRE..G..5F;AE101..(LVN,MRN,TRN)..(G,GT,GTAPX) |
1 | ||
| 44773-12500 |
AE101..G,GT,GTAPX 左側 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12470 |
AE10#..F,S,SJ,X |
1 | ||
| 44773-12510 |
AE101..CRE..G..5F;AE101..(LVN,MRN,TRN)..(G,GT,GTAPX) |
1 | ||
| 44773-12500 |
AE101..G,GT,GTAPX 左側 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12310 |
AE101..G,GT,GTAPX |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 1708 | ||||
