AE101-ACPVF (1991)
Toyota Lvn/Cre/Trn/Mrn

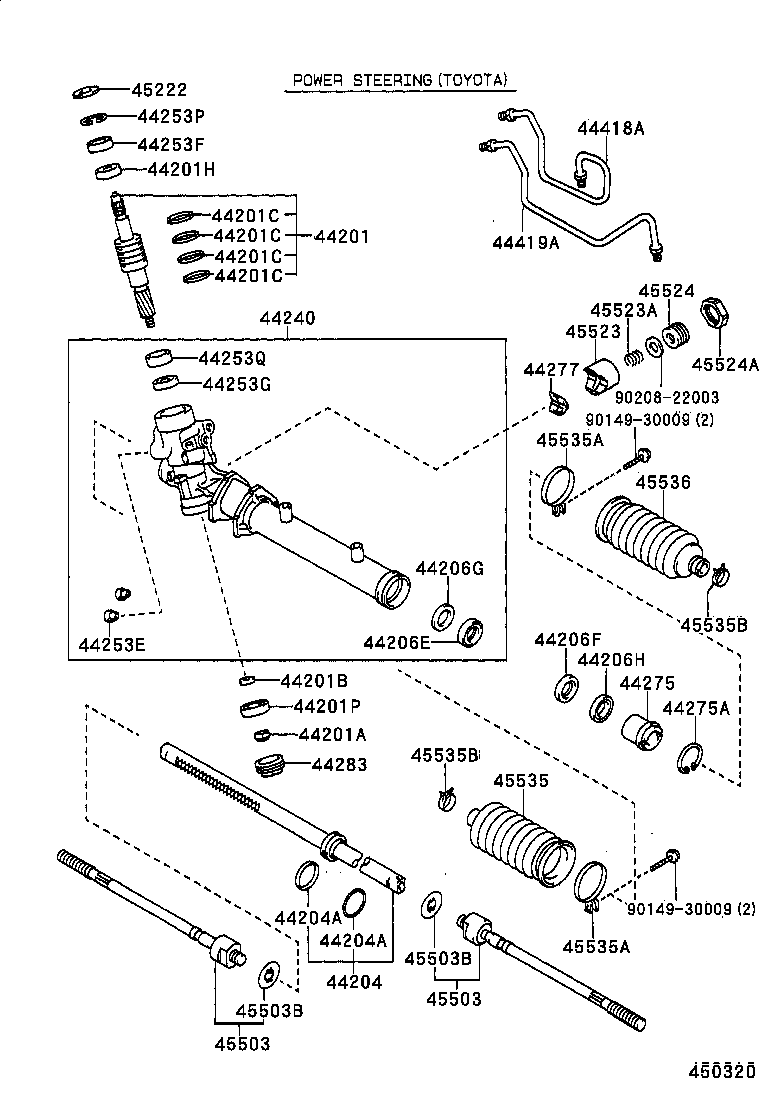

ILLUST NO. 2 OF 2(9106-9505)AE100 ; (9505- )F,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12240 |
AE101..G,GT,GTAPX |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-10048 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12009 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12100 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,内側 |
1 | ||
| 90562-37003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,内側 |
1 | ||
| 90562-37003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-24007 |
AE101 |
1 | ||
| 90311-24007 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25014 |
AE101 |
1 | ||
| 90560-25014 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 44240-12140 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12051 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12150 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 44418-12120 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12150 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 44419-12160 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12080 |
AE10#..F,GTAPX,GTZ KOYO GEAR BOX |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19175 |
AE101..G,GT,GTAPX |
2 | ||
| 45503-29365 |
AE10#..F,S,SJ,X |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19175 |
AE101..G,GT,GTAPX |
2 | ||
| 45503-29365 |
AE10#..F,S,SJ,X |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE10# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE10# 外径=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-12010 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26075 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 90501-26042 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12030 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12060 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE10# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE10# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12060 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| Common parts | ||||
| 90149-30009 | ||||
| 90208-22003 | ||||

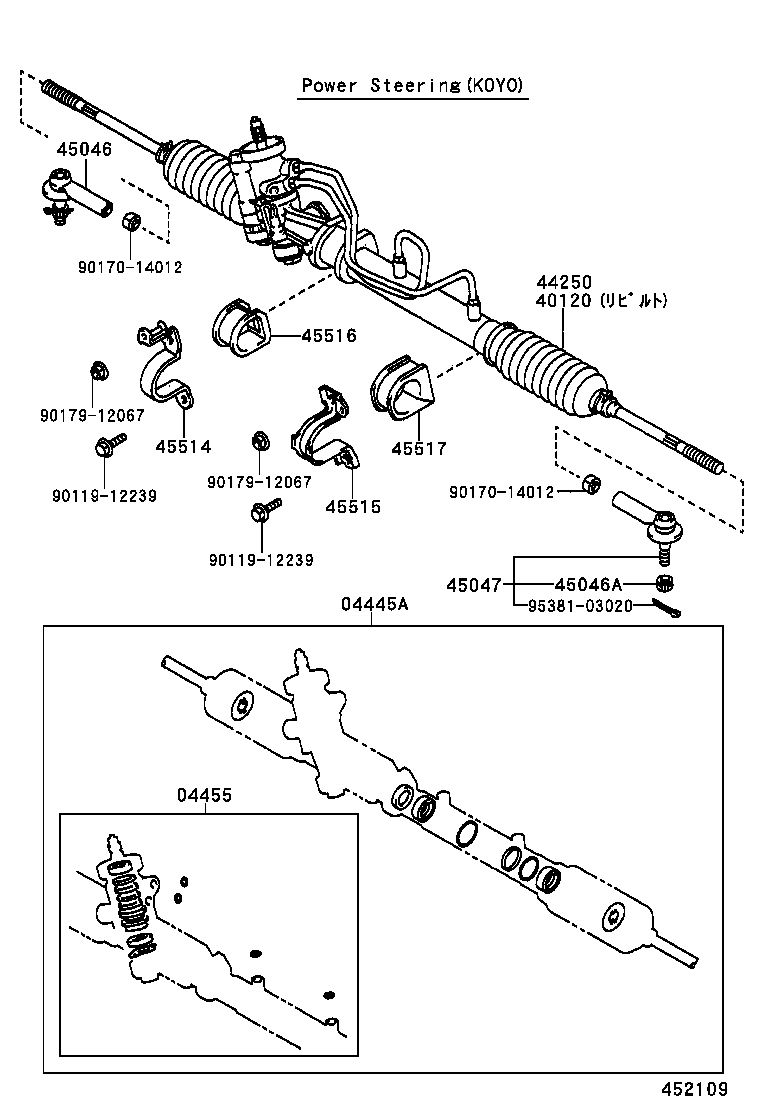

ILLUST NO. 1 OF 2(9106-9305)F,G,GT,GTAPX,GTZ,SJ,X ; (9305-9505)SJ,X ; (9405-9505)AE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12100 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 04445-12100 |
AE101 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-10040 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-12340 |
AE101..GT..5F;AE101..G,GTAPX KOYO |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12340 |
AE101..G,GT,GTAPX |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE10# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE10# |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE10# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||

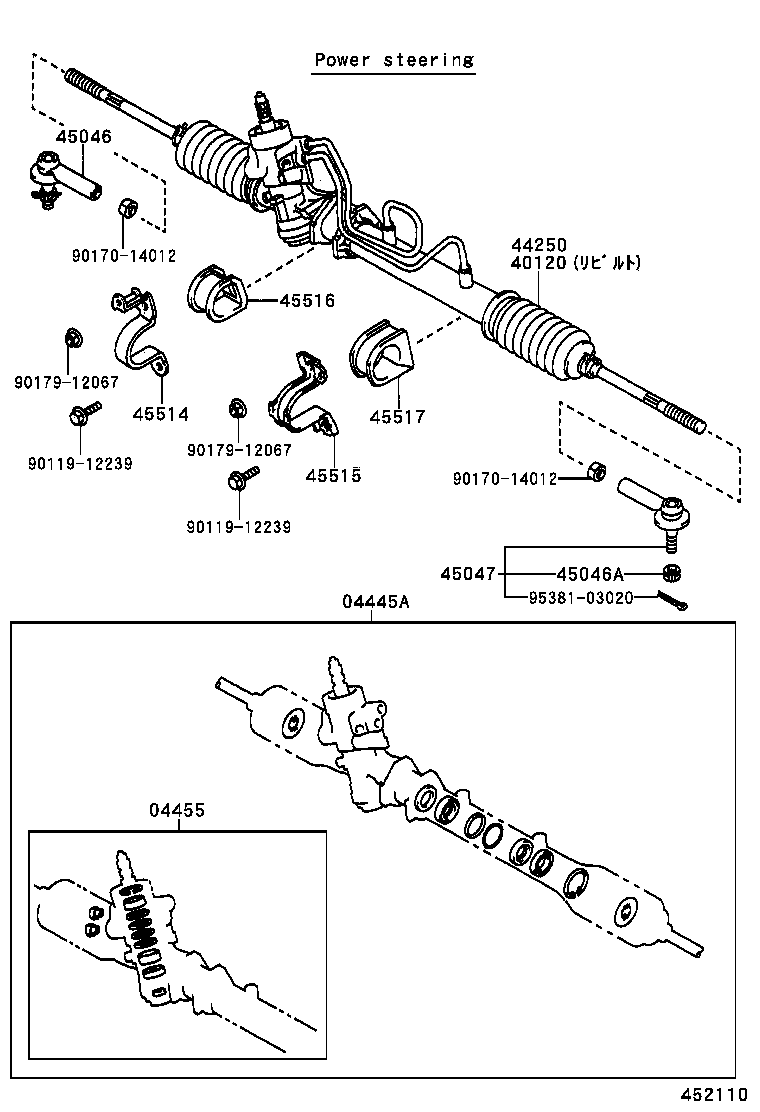

ILLUST NO. 1 OF 2(9106-9505)AE100 ; (9505- )F,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12100 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 04445-12100 |
AE101 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-10040 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-12340 |
AE101..GT..5F;AE101..G,GTAPX KOYO |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12340 |
AE101..G,GT,GTAPX |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE10# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE10# |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE10# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||

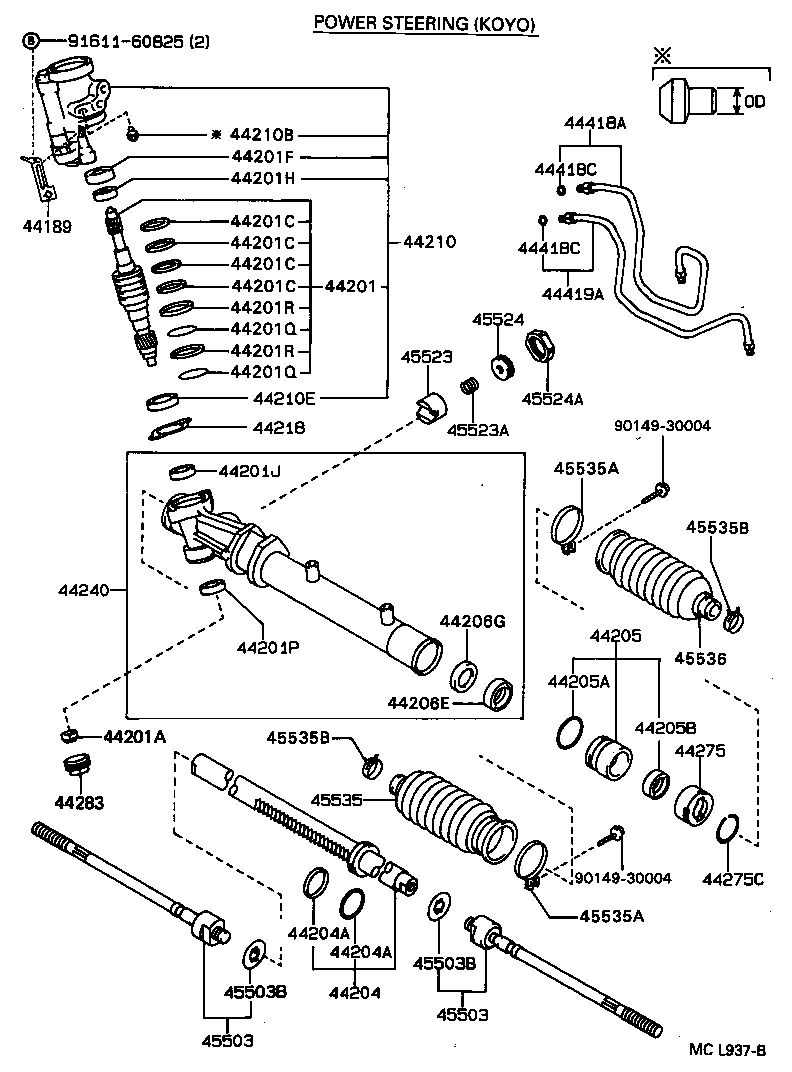

ILLUST NO. 2 OF 2(9106-9305)F,G,GT,GTAPX,GTZ,SJ,X ; (9305-9505)SJ,X ; (9405-9505)AE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44189 - CLAMP, SOLENOID VALVE TERMINAL | ||||
| 44189-12010 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12240 |
AE101..G,GT,GTAPX |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-10048 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19005 |
AE101 TOYOTA GEAR BOX |
1 | ||
| 90311-19010 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-22006 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12009 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
AE101..G,GT,GTAPX,SJ,X |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
AE101..G,GT,GTAPX,SJ,X |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
AE101..G,GT,GTAPX,SJ,X |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
AE101..G,GT,GTAPX,SJ,X |
2 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12100 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,内側 |
1 | ||
| 90562-37003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,内側 |
1 | ||
| 90562-37003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX,外側 |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-12051 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 96711-31035 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-24008 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-24007 |
AE101 |
1 | ||
| 90311-24007 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25014 |
AE101 |
1 | ||
| 90560-25014 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12240 |
AE101..G,GT,GTAPX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
AE101..(G,GT,GTAPX,GTZ)..(4FC,5F) |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 44240-12140 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12051 |
AE10#..F,G,GT,GTAPX,SJ,X KOYO GEAR BOX |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18002 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12150 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 44418-12120 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12150 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 44419-12160 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19175 |
AE101..G,GT,GTAPX |
2 | ||
| 45503-29365 |
AE10#..F,S,SJ,X |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19175 |
AE101..G,GT,GTAPX |
2 | ||
| 45503-29365 |
AE10#..F,S,SJ,X |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE10# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE10# 外径=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-12010 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26075 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 90501-26042 |
AE10#..F,GTZ KOYO GEAR BOX |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12030 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12060 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE10# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE10# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12060 |
AE10#..F,G,GT,GTAPX,GTZ,SJ,X KOYO GEAR BOX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
