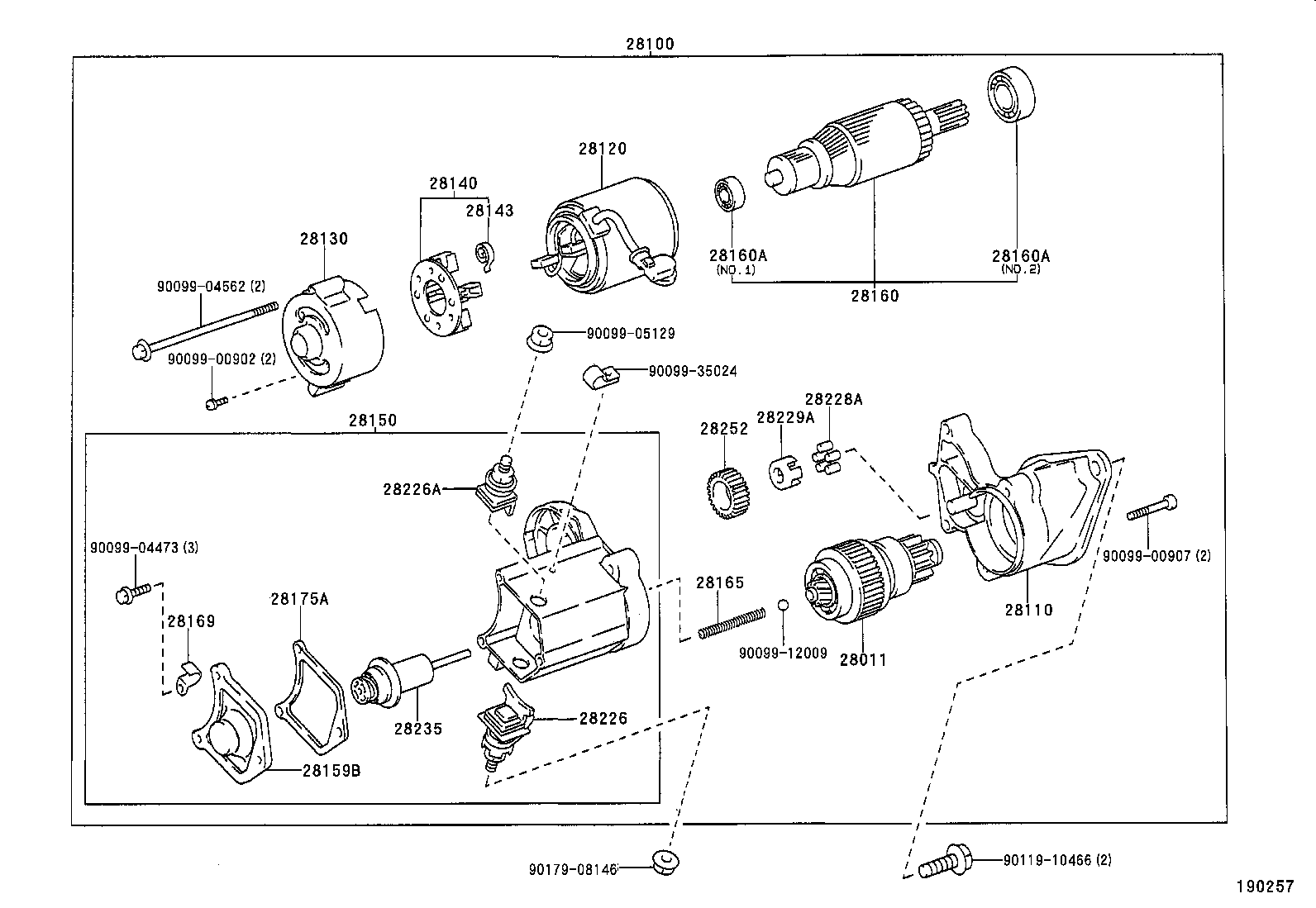

AE101-ACPVF (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106-9704)4AFE,4AGE,5AFE
ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-16040 |
4AFE,4AGE,5AFE..AE10#..4FC |
1 | ||
| 28011-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16041 |
4AFE,4AGE,5AFE..AE10#..4FC 12V 0.8KW |
1 | ||
| 28100-16140 |
4AGE..AE101 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16020 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-16071 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28110-16041 |
4AFE,4AGE,5AFE..AE10#..4FC |
1 | ||
| 28110-16020 |
4AG#..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28120-26071 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16070 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28130-72010 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130-72010 |
4AG#..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
4AFE,4AGE,5AFE..AE10# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-10021 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28150-16140 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70021 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28160-26071 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
4AFE,4AGE,5AFE..AE10#..4FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4AFE,4AG#,5AFE..AE10# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-35024 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||

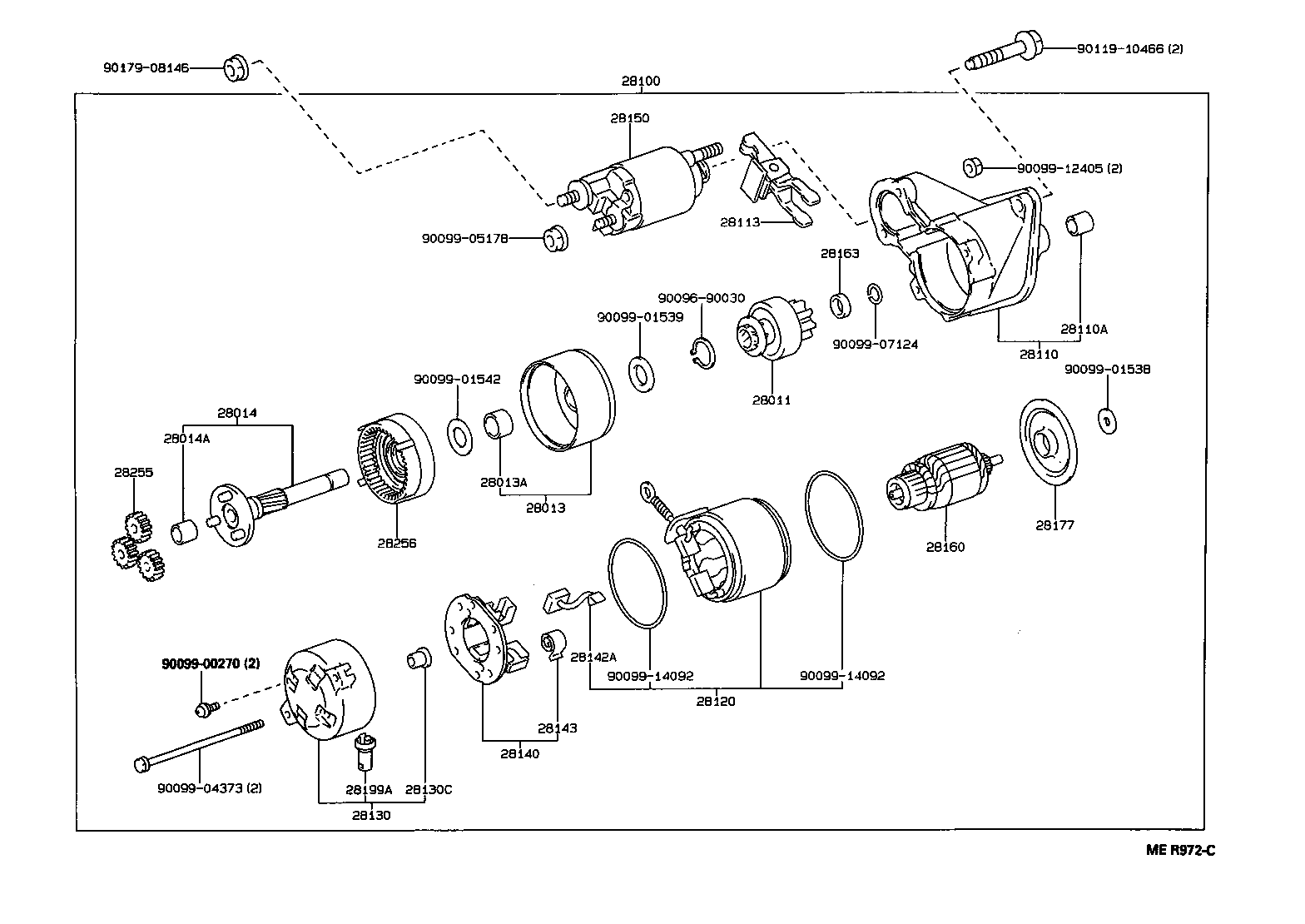

(9106- )4AFE,4AGE,5AFE
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-16040 |
4AFE,4AGE,5AFE..AE10#..4FC |
1 | ||
| 28011-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16041 |
4AFE,4AGE,5AFE..AE10#..4FC 12V 0.8KW |
1 | ||
| 28100-16140 |
4AGE..AE101 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16020 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-16071 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28110-16041 |
4AFE,4AGE,5AFE..AE10#..4FC |
1 | ||
| 28110-16020 |
4AG#..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-16070 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28120-26071 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16070 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28130-72010 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130-72010 |
4AG#..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
4AFE,4AGE,5AFE..AE10# |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,4AGE,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
4AFE,4AGE,5AFE..AE10# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-10021 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28150-16140 |
4AGE..AE101 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70021 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28160-26071 |
4AFE,4AG#,5AFE..AE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-46080 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
4AFE,4AGE,5AFE..AE10# |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-00270 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90099-14092 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
