AE101-ACPGK (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1995
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

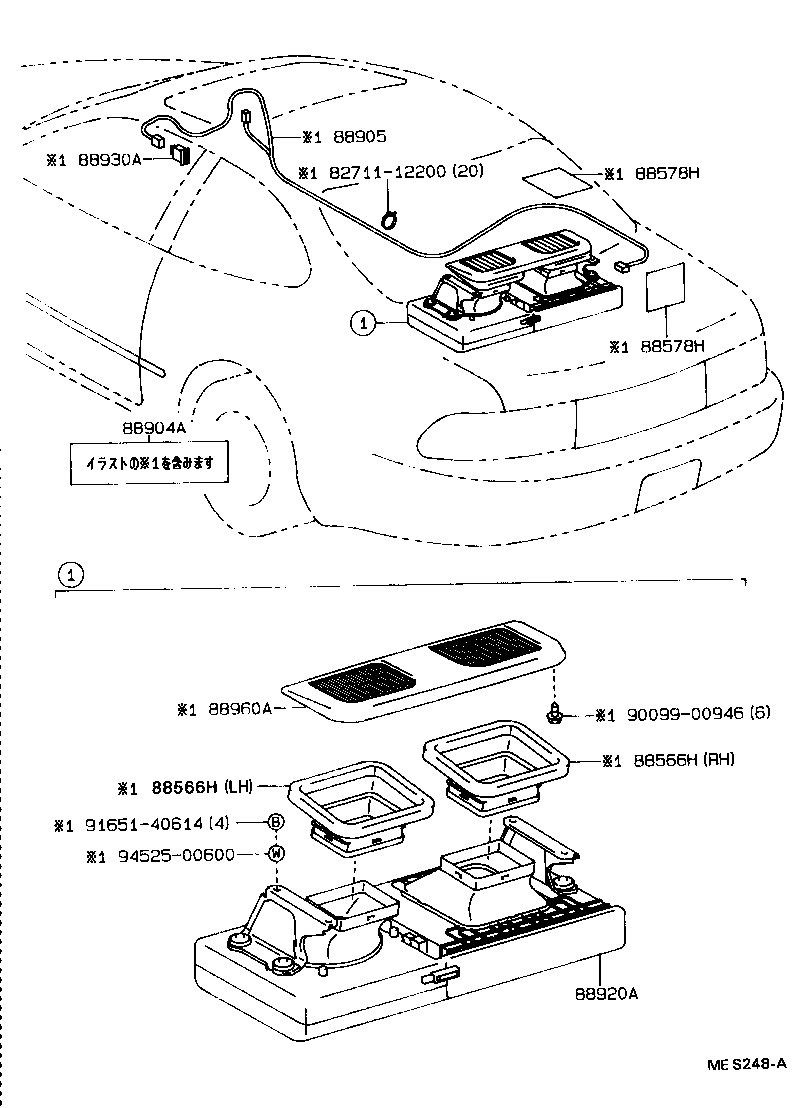

ILLUST NO. 1 OF 2(9106- )LVN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-12080 |
AE10#..LVN 右側 |
1 | ||
| 88566-12070 |
AE10#..LVN 左側 |
1 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-12080 |
AE10#..LVN 右側 |
1 | ||
| 88566-12070 |
AE10#..LVN 左側 |
1 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-12170 |
AE10#..CRE,LVN |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-12170 |
AE10#..CRE,LVN |
2 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-12040 |
AE10#..LVN ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88904-12030 |
AE10#..LVN ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-12030 |
AE10#..LVN ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88905-12040 |
AE10#..LVN ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-12040 |
AE10#..LVN ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88920-12140 |
AE10#..LVN ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-12010 |
AE10#..CRE,LVN ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88930-12020 |
AE10#..CRE,LVN ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-12010C0 |
AE10#..CRE,LVN BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90099-00946 | ||||
| 91651-40614 | ||||
| 94525-00600 | ||||

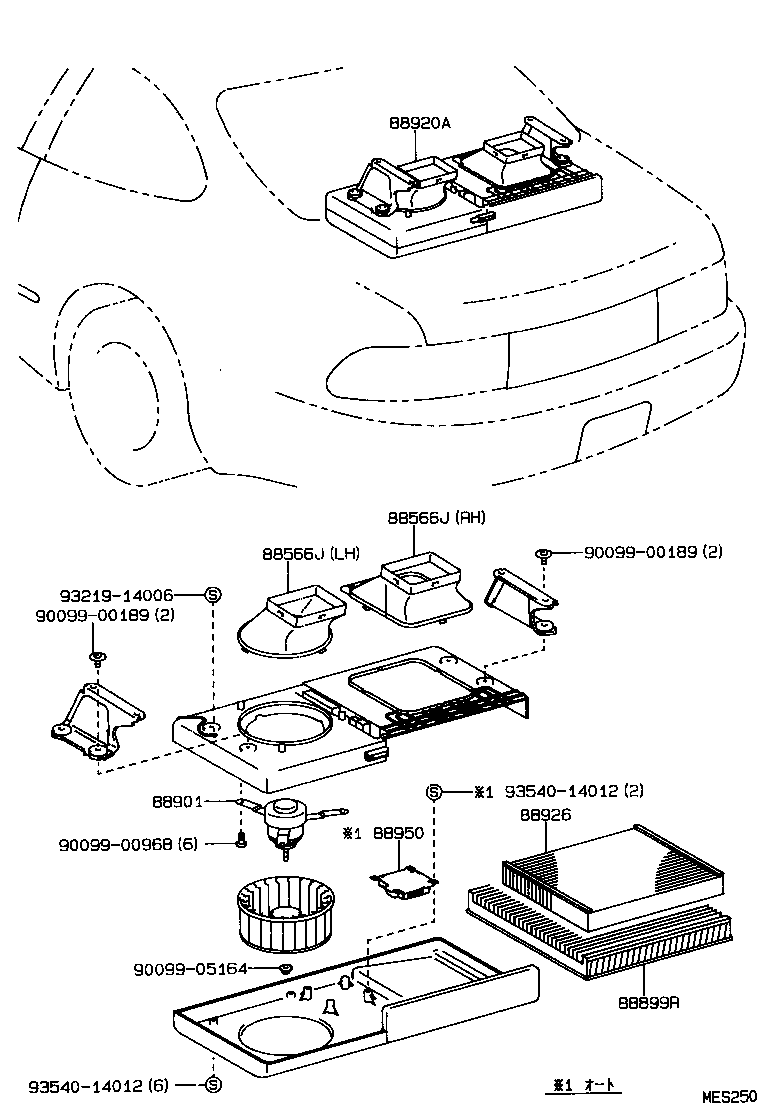

ILLUST NO. 2 OF 2(9106- )LVN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566J - DUCT, AIR, NO.2 | ||||
| 88566-12050 |
AE10#..LVN 左側 |
1 | ||
| 88566-12060 |
AE10#..LVN 右側 |
1 | ||
| 88566J - DUCT, AIR, NO.2 | ||||
| 88566-12050 |
AE10#..LVN 左側 |
1 | ||
| 88566-12060 |
AE10#..LVN 右側 |
1 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-12080 |
AE10#..CRE,LVN |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-12010 |
AE10#..CRE,LVN |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-12040 |
AE10#..LVN ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88920-12140 |
AE10#..LVN ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-12020 |
AE10#..CRE,LVN |
1 | ||
| 88950 - AMPLIFIER ASSY, AIR PURIFIER | ||||
| 88950-12010 |
AE10#..CRE,LVN |
1 | ||
| Common parts | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-05164 | ||||
| 93219-14006 | ||||
| 93540-14012 | ||||
