AE101-ACPGK (1991)
Toyota Lvn/Cre/Trn/Mrn

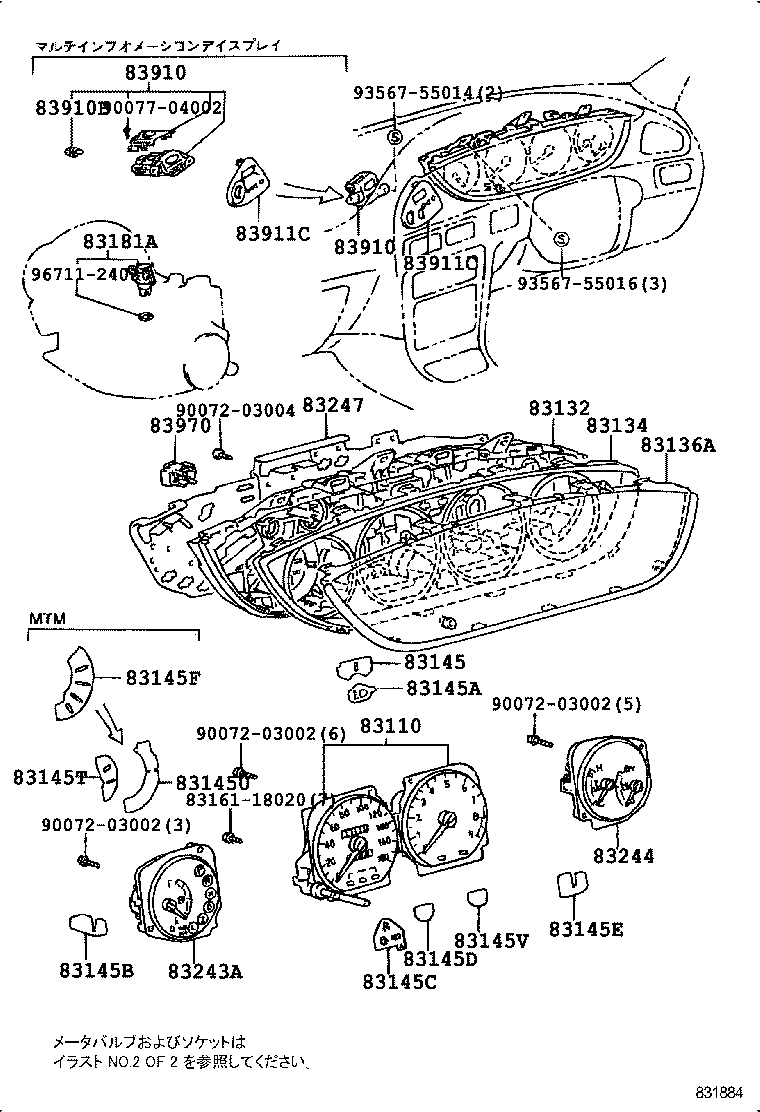

ILLUST NO. 1 OF 2(9106- )
ｱﾅﾛｸﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E800 |
AE101..(G,GT,GTAPX)..4FC |
1 | ||
| 83110-1E770 |
AE101..(SJ,X)..4FC |
1 | ||
| 83110-1E801 |
AE101..(G,GTAPX)..4FC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1E540 |
AE10#..4FC |
1 | ||
| 83132-1A510 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-1E520 |
AE10# |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-1E520 |
AE10# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E520 |
AE10# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1E540 |
AE10# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-1E560 |
AE10# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-1E580 |
AE10# |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-1E600 |
AE10# |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-1E620 |
AE10# |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83145-1E660 |
AE10#..4FC |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83145-1E680 |
AE10#..4FC |
1 | ||
| 83145V - LENS, METER, NO.10 | ||||
| 83145-1E700 |
AE10#..4FC |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1E850 |
AE101..SJ..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83243-1E540 |
AE10#..4FC |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E520 |
AE10# |
1 | ||
| 83244-1E521 |
AE10# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-1E600 |
AE101..4FC |
1 | ||
| 83247-1H170 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12500 |
AE10# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12500 |
AE10# |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-12010G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 83911-1201022 |
AE101..GT..5F;AE10#..F,G,GTAPX,GTZ,S,SJ,X BLACK,TRIM2# |
1 | ||
| 83911-12020G0 |
AE10#..F,X ｱﾘ(ﾏﾙﾁｲﾝﾌｵﾒ-ｼﾖﾝ ﾃﾞｲｽﾌﾟﾚｲ),SPRUCE,TRIM6# |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-12010G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 83911-1201022 |
AE101..GT..5F;AE10#..F,G,GTAPX,GTZ,S,SJ,X BLACK,TRIM2# |
1 | ||
| 83911-12020G0 |
AE10#..F,X ｱﾘ(ﾏﾙﾁｲﾝﾌｵﾒ-ｼﾖﾝ ﾃﾞｲｽﾌﾟﾚｲ),SPRUCE,TRIM6# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
AE10#..4FC |
1 | ||
| 83970-20010 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) |
1 | ||
| Common parts | ||||
| 83161-18020 | ||||
| 90072-03002 | ||||
| 90072-03004 | ||||
| 90077-04002 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 96711-24030 | ||||

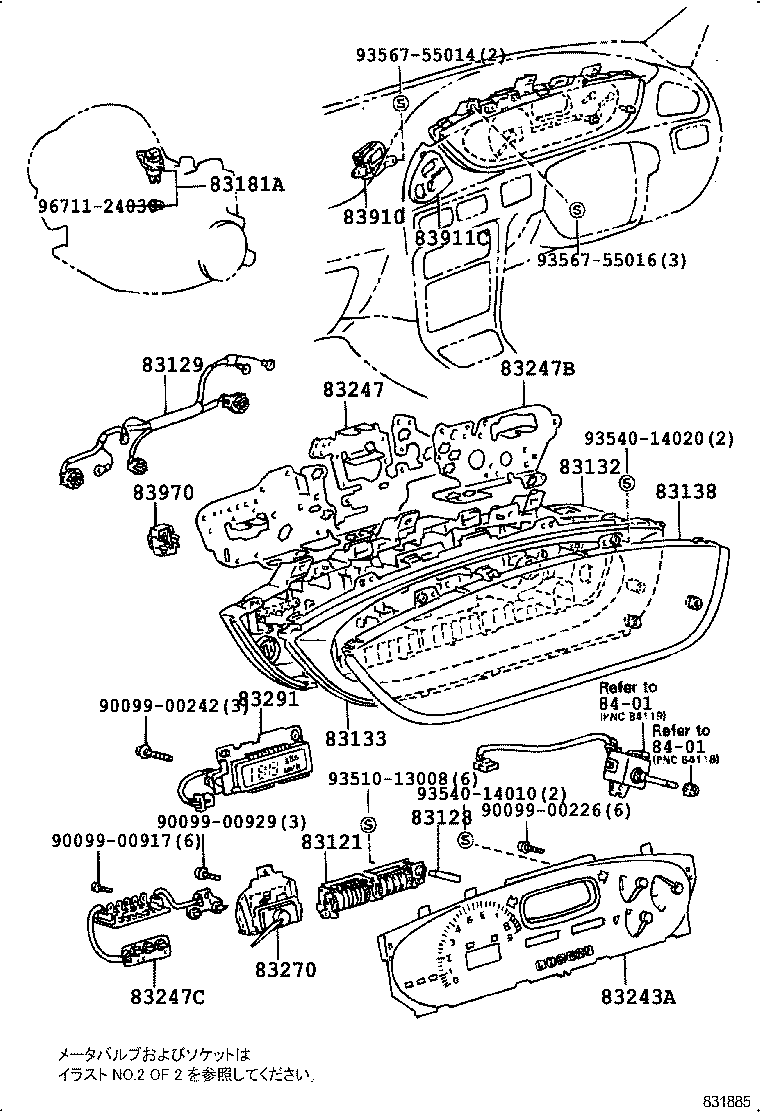

ILLUST NO. 1 OF 2(9106-9305)GTAPX,GTZ,SJ
ﾃﾞｼﾞﾀﾙﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83121 - COUNTER, TOTAL | ||||
| 83121-12070 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12810 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12130 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1E540 |
AE10#..4FC |
1 | ||
| 83132-1A510 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-13290 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A090 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1E850 |
AE101..SJ..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83243-1E540 |
AE10#..4FC |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-1E600 |
AE101..4FC |
1 | ||
| 83247-1H170 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-1H310 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83247-1H270 |
AE101..SJ..4FC |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E670 |
AE101..SJ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-12160 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12500 |
AE10# |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-12010G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 83911-1201022 |
AE101..GT..5F;AE10#..F,G,GTAPX,GTZ,S,SJ,X BLACK,TRIM2# |
1 | ||
| 83911-12020G0 |
AE10#..F,X ｱﾘ(ﾏﾙﾁｲﾝﾌｵﾒ-ｼﾖﾝ ﾃﾞｲｽﾌﾟﾚｲ),SPRUCE,TRIM6# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
AE10#..4FC |
1 | ||
| 83970-20010 |
AE101..(GTAPX,SJ)..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) |
1 | ||
| Common parts | ||||
| 90099-00226 | ||||
| 90099-00242 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93510-13008 | ||||
| 93540-14010 | ||||
| 93540-14020 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 96711-24030 | ||||
| Linked diagrams | ||||
| 8401 | ||||

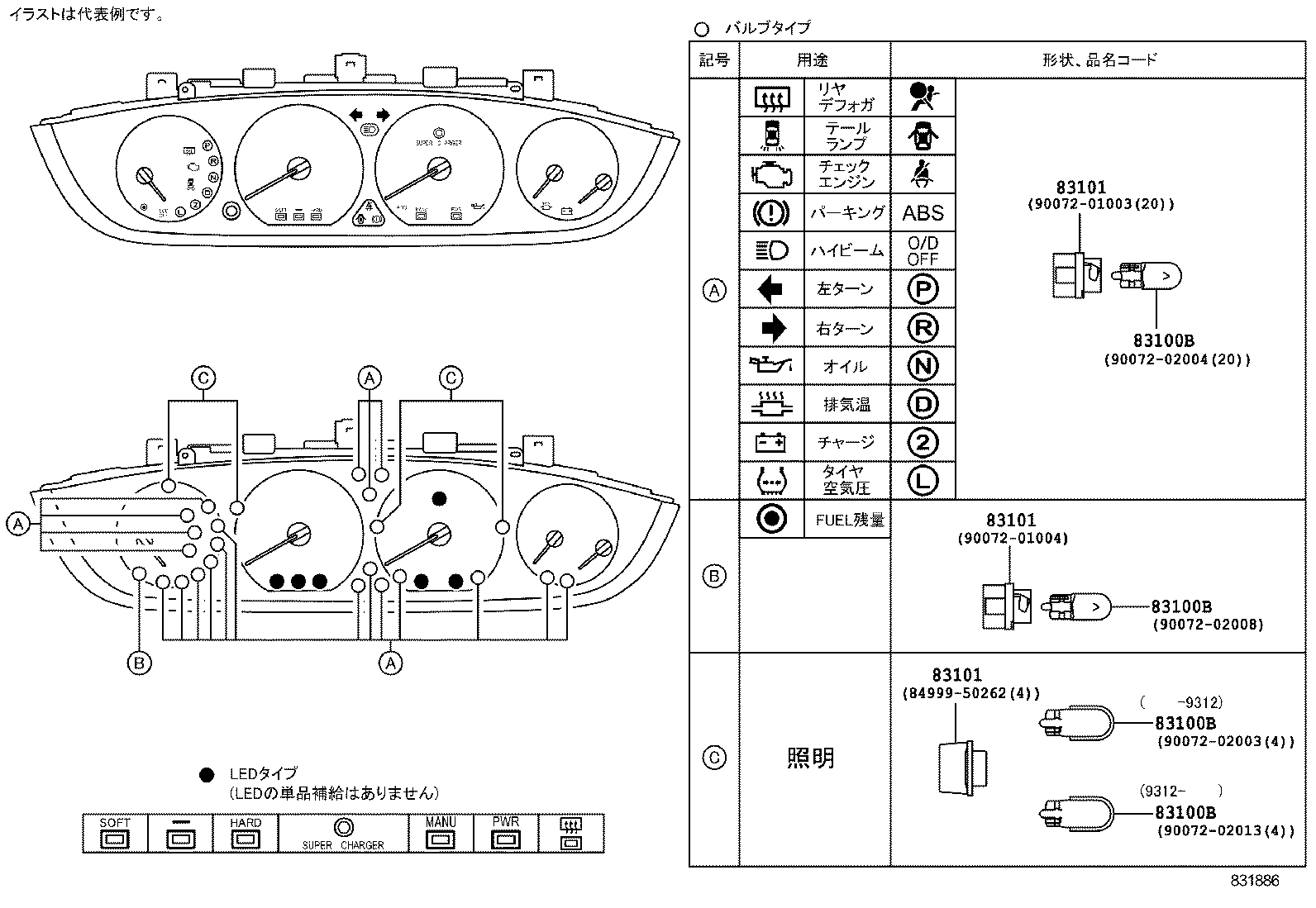

ILLUST NO. 2 OF 2(9106- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||

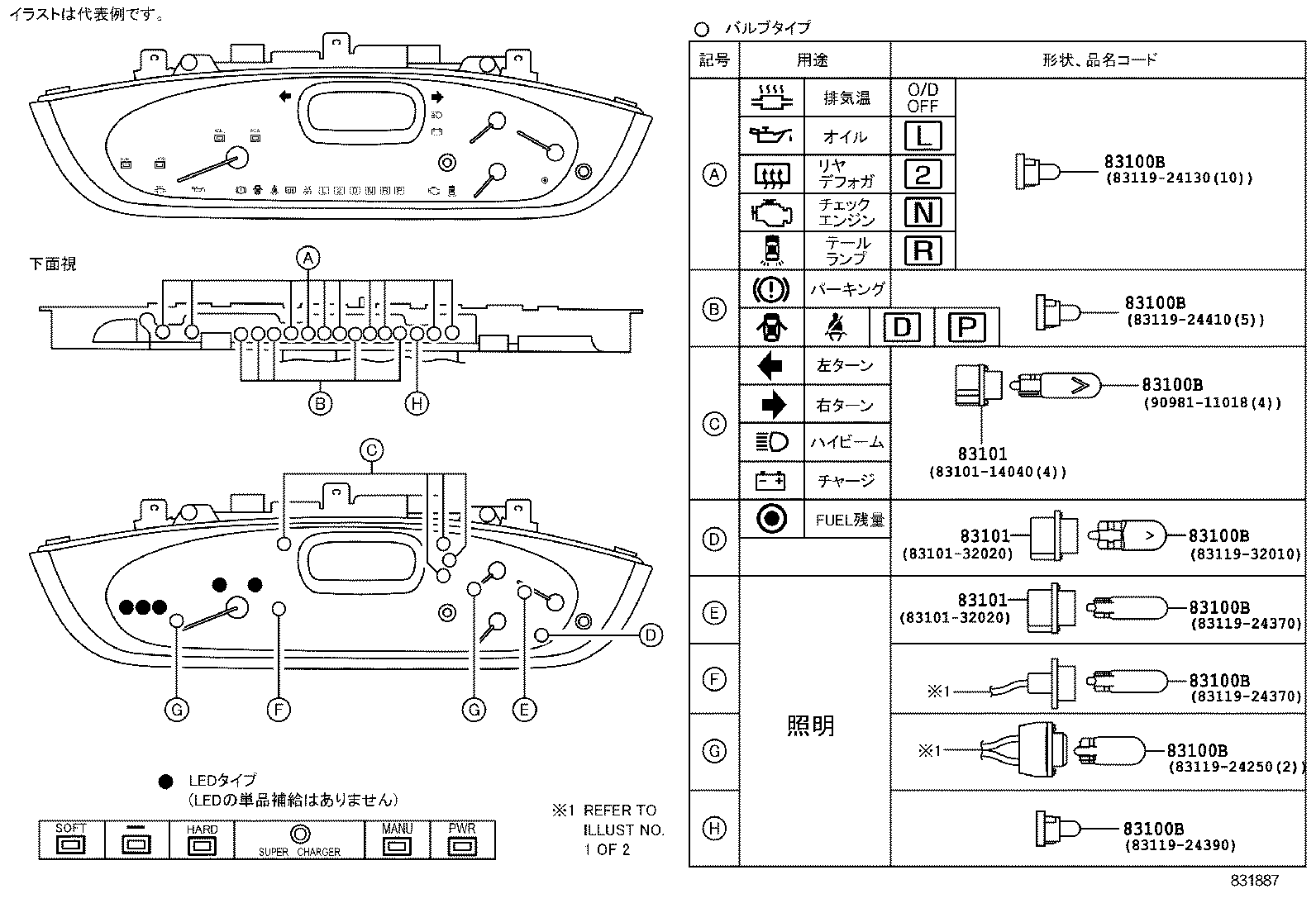

ILLUST NO. 2 OF 2(9106-9305)GTAPX,GTZ,SJ
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24130 |
AE101..GTAPX,GTZ,SJ 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 83119-24250 |
AE101..GTAPX,GTZ,SJ 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-24410 |
AE101..GTAPX,GTZ,SJ 14V 2.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-32010 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,ｱﾘ(ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ) |
1 | ||
| 90981-11018 |
AE101..GTAPX,GTZ,SJ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24370 |
AE101..GTAPX,GTZ,SJ 14V 3.0W,LONG LIFE |
1 | ||
| 90072-02008 |
AE10# 14V 3.0W |
1 | ||
| 90072-02003 |
AE10# 12V 3.8W |
1 | ||
| 83119-24390 |
AE101..GTAPX,GTZ,SJ 14V 1.4W,ｿｹｯﾄ付き,L |
1 | ||
| 90072-02004 |
AE10# 14V 1.1W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE101..GTAPX,GTZ,SJ 12V 1.4W |
1 | ||
| 84999-50262 |
AE10# 12V 3.8W |
1 | ||
| 83101-32020 |
AE101..GTAPX,GTZ,SJ 14V 3.0W LONG LIFE |
1 | ||
| 90072-01003 |
AE10# 14V 1.1W |
1 | ||
| 90072-01004 |
AE10# 14V 3W |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
