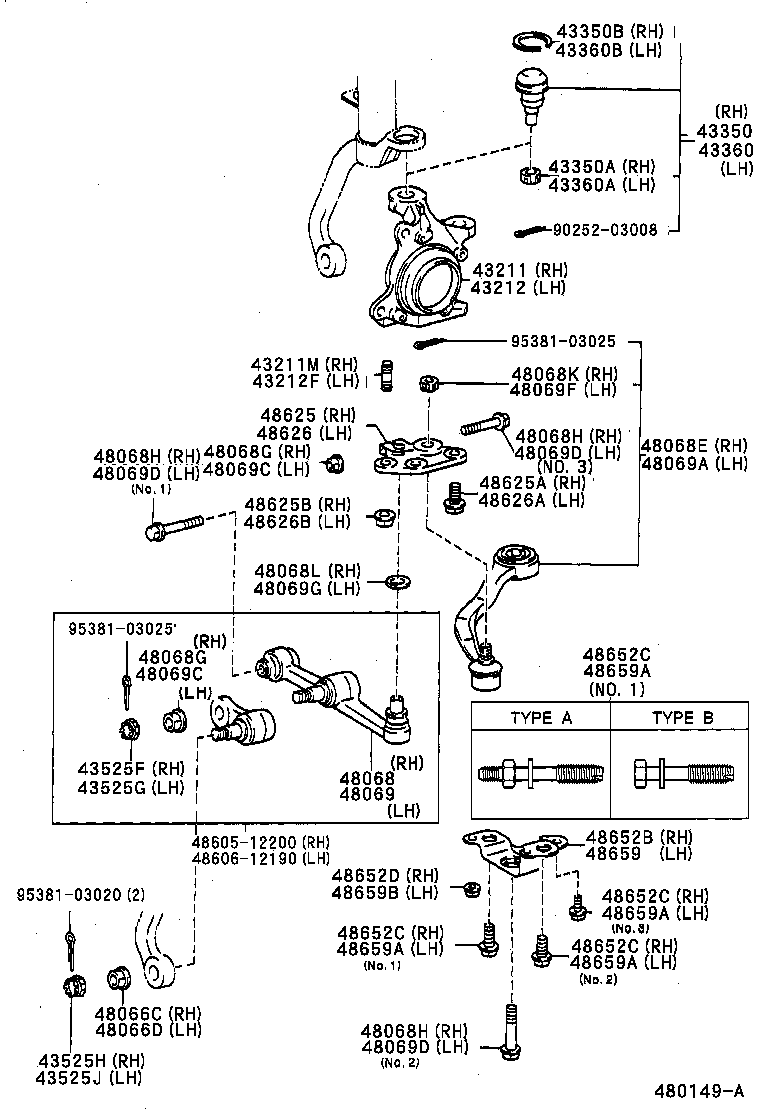

AE101-ACMZF (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106-9505)GTAPX,GTZ
ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-12240 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 43211-12180 |
AE101..GTAPX ｱﾘ(*66 & ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 43211-12220 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43211M - STUD, HEXAGON LOBULAR (FOR STEERING KNUCKLE RH) | ||||
| 90126-12001 |
AE101..GTAPX,GTZ |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-12140 |
AE101..GTAPX ｱﾘ(*66 & ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 43212-12180 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43212-12200 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 43212F - STUD, HEXAGON LOBULAR (FOR STEERING KNUCKLE LH) | ||||
| 90126-12001 |
AE101..GTAPX,GTZ |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43310-19025 |
AE101..GTAPX,GTZ |
1 | ||
| 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90171-14003 |
AE101..GTAPX,GTZ |
1 | ||
| 43350B - RING, SNAP (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90520-33017 |
AE101..GTAPX,GTZ |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43310-19025 |
AE101..GTAPX,GTZ |
1 | ||
| 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90171-14003 |
AE101..GTAPX,GTZ |
1 | ||
| 43360B - RING, SNAP (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90520-33017 |
AE101..GTAPX,GTZ |
1 | ||
| 43525F - CAP, FRONT SUSPENSION LOWER ARM, RH | ||||
| 43525-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 43525G - CAP, FRONT SUSPENSION LOWER ARM, LH | ||||
| 43525-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 43525H - CAP, FRONT SUSPENSION CAMBER CONTROL ARM, RH | ||||
| 43525-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 43525J - CAP, FRONT SUSPENSION CAMBER CONTROL ARM, LH | ||||
| 43525-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 48066C - NUT(FOR FRONT SUSPENSION CAMBER CONTROL ARM RH) | ||||
| 90179-14053 |
AE101..GTAPX,GTZ |
1 | ||
| 48066D - NUT(FOR FRONT SUSPENSION CAMBER CONTROL ARM LH) | ||||
| 90179-14053 |
AE101..GTAPX,GTZ |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 48605-12090 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48068-19155 |
AE101..GTAPX,GTZ |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90171-14003 |
AE101..GTAPX,GTZ |
1 | ||
| 48068L - WASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90201-18019 |
AE101..GTAPX,GTZ |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48606-12080 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48069-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48069-19135 |
AE101..GTAPX,GTZ |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90171-14003 |
AE101..GTAPX,GTZ |
1 | ||
| 48069G - WASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90201-18019 |
AE101..GTAPX,GTZ |
1 | ||
| 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH | ||||
| 48625-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 48625A - BOLT(FOR FRONT LOWER BALL JOINT ATTACHMENT RH) | ||||
| 90105-12223 |
AE101..GTAPX,GTZ |
2 | ||
| 48625B - NUT(FOR FRONT LOWER BALL JOINT ATTACHMENT RH) | ||||
| 90179-12077 |
AE101..GTAPX,GTZ |
1 | ||
| 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH | ||||
| 48626-12010 |
AE101..GTAPX,GTZ |
1 | ||
| 48626A - BOLT(FOR FRONT LOWER BALL JOINT ATTACHMENT LH) | ||||
| 90105-12223 |
AE101..GTAPX,GTZ |
2 | ||
| 48626B - NUT(FOR FRONT LOWER BALL JOINT ATTACHMENT LH) | ||||
| 90179-12077 |
AE101..GTAPX,GTZ |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48075-12010 |
AE101..G,GT,GTAPX |
1 | ||
| 48075-12031 |
AE10#..F,S,SJ,X |
1 | ||
| 48075-12010 |
AE101..GT,GTAPX,SJ |
1 | ||
| 48652-12030 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48075-12031 |
AE101..SJ,X |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652D - NUT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90179-08145 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08072 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08072 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08145 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48076-12010 |
AE101..G,GT,GTAPX |
1 | ||
| 48659-12030 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48076-12031 |
AE10#..F,S,SJ,X |
1 | ||
| 48076-12031 |
AE101..SJ,X |
1 | ||
| 48076-12010 |
AE101..GT,GTAPX,SJ |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659B - NUT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90179-08072 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08145 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08145 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08072 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| Common parts | ||||
| 48605-12200 | ||||
| 48606-12190 | ||||
| 90252-03008 | ||||
| 95381-03020 | ||||
| 95381-03025 | ||||

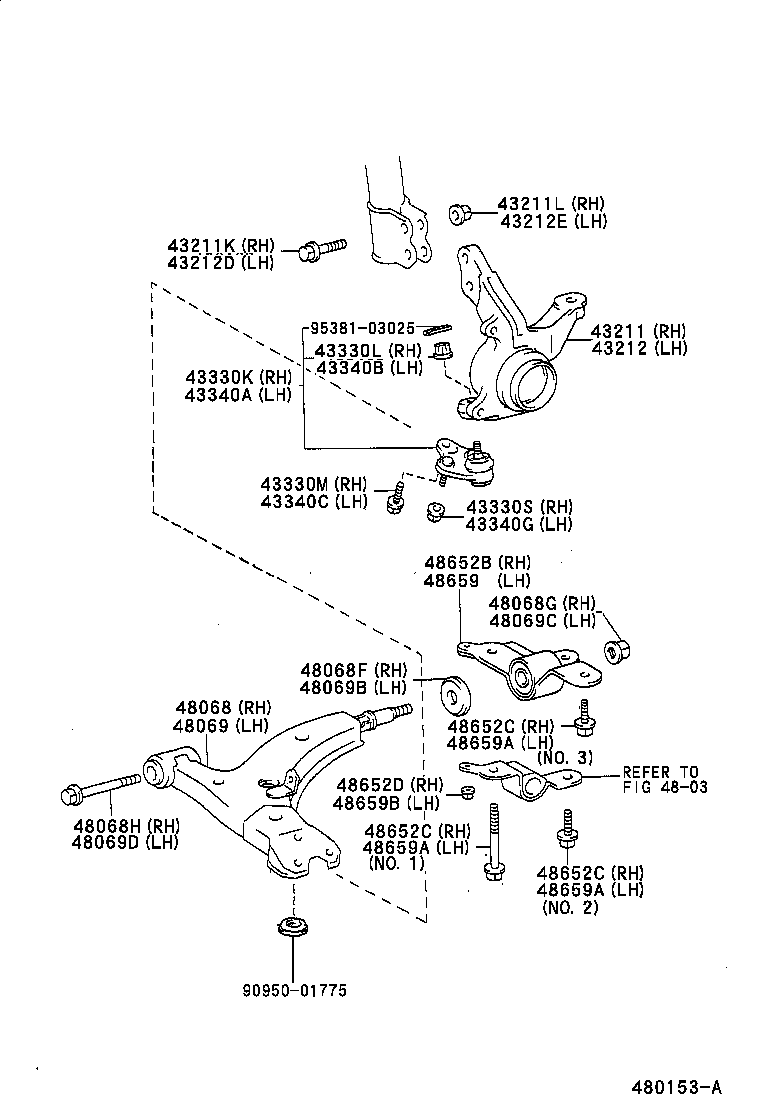

ILLUST NO. 2 OF 2(9106- )F,G,GT,GTAPX,S,SJ,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15004 |
AE10#..GT,GTAPX,S,SJ 外径=13.9 |
1 | ||
| 90105-15004 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.9 |
1 | ||
| 90105-15005 |
AE10#..GT,GTAPX,S,SJ 外径=13.3 |
1 | ||
| 90105-15007 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15005 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.3 |
1 | ||
| 90105-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15006 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=12.4 |
1 | ||
| 90105-15006 |
AE10#..GT,GTAPX,S,SJ 外径=12.4 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15007 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15004 |
AE10#..GT,GTAPX,S,SJ 外径=13.9 |
1 | ||
| 90105-15006 |
AE10#..GT,GTAPX,S,SJ 外径=12.4 |
1 | ||
| 90105-15004 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.9 |
1 | ||
| 90105-15006 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=12.4 |
1 | ||
| 90105-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15005 |
AE10#..GT,GTAPX,S,SJ 外径=13.3 |
1 | ||
| 90105-15005 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.3 |
1 | ||
ILLUST NO. 1 OF 2(9106-9505)F,G,GT,GTAPX,S,SJ,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-12240 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 43211-12180 |
AE101..GTAPX ｱﾘ(*66 & ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 43211-12220 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15004 |
AE10#..GT,GTAPX,S,SJ 外径=13.9 |
1 | ||
| 90105-15004 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.9 |
1 | ||
| 90105-15005 |
AE10#..GT,GTAPX,S,SJ 外径=13.3 |
1 | ||
| 90105-15007 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15005 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.3 |
1 | ||
| 90105-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15006 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=12.4 |
1 | ||
| 90105-15006 |
AE10#..GT,GTAPX,S,SJ 外径=12.4 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-12140 |
AE101..GTAPX ｱﾘ(*66 & ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 43212-12180 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43212-12200 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15007 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15004 |
AE10#..GT,GTAPX,S,SJ 外径=13.9 |
1 | ||
| 90105-15006 |
AE10#..GT,GTAPX,S,SJ 外径=12.4 |
1 | ||
| 90105-15004 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.9 |
1 | ||
| 90105-15006 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=12.4 |
1 | ||
| 90105-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=15.0 |
2 | ||
| 90105-15005 |
AE10#..GT,GTAPX,S,SJ 外径=13.3 |
1 | ||
| 90105-15005 |
AE10#..F,G,GT,GTAPX,S,SJ,X 外径=13.3 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15001 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19095 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12156 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12070 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-19095 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12156 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12070 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 48605-12090 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48068F - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 R | ||||
| 90948-02152 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48606-12080 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48069-12140 |
AE101..G,GT,GTAPX,SJ,X |
1 | ||
| 48069B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 L | ||||
| 90948-02152 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90179-14006 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-10075 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),ATTACHMENT SIDE |
1 | ||
| 90179-14053 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),CONTROL ARM SIDE |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-10327 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.3 |
1 | ||
| 90119-14023 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90119-14041 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.2 |
1 | ||
| 90119-14023 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ),NO.1 |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48075-12010 |
AE101..G,GT,GTAPX |
1 | ||
| 48075-12031 |
AE10#..F,S,SJ,X |
1 | ||
| 48075-12010 |
AE101..GT,GTAPX,SJ |
1 | ||
| 48652-12030 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48075-12031 |
AE101..SJ,X |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652D - NUT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90179-08145 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08072 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08072 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08145 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48076-12010 |
AE101..G,GT,GTAPX |
1 | ||
| 48659-12030 |
AE101..GTAPX ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 48076-12031 |
AE10#..F,S,SJ,X |
1 | ||
| 48076-12031 |
AE101..SJ,X |
1 | ||
| 48076-12010 |
AE101..GT,GTAPX,SJ |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-12125 |
AE10# *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE10# *12−1.25PX75−38,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-10692 |
AE10# *10−1.25PX29−23,NO.2 |
1 | ||
| 48659B - NUT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90179-08072 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08145 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| 90179-08145 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 90179-08072 |
AE101..GTAPX ｱﾘ(*SSS) |
2 | ||
| Common parts | ||||
| 90950-01775 | ||||
| 95381-03025 | ||||
| Linked diagrams | ||||
| 4803 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
