AE101-ACMZF (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-16021 |
4AG#..AE101 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-16021 |
4AG#..AE101 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-19003 |
4AGE..AE101 |
1 | ||
| 13505C - PIN(FOR IDLER SPRING TENSION) | ||||
| 90249-06006 |
4AFE,4AG#,5AFE..AE10# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-16050 |
4AGE..AE101 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-16040 |
4AGE..AE101 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-16040 |
4AGE..AE101 EXHAUST SIDE |
1 | ||
| 13050-16010 |
4AGE..AE101 INTAKE SIDE |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-16040 |
4AGE..AE101 EXHAUST SIDE |
1 | ||
| 13050-16010 |
4AGE..AE101 INTAKE SIDE |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-16030 |
4AGE..AE101 |
1 | ||
| 13568-19035 |
4AGE..AE101 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-16040 |
4AGE..AE101 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
4AGE..AE101 NO.2 |
12 | ||
| 90913-02092 |
4AGE..AE101 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
4AGE..AE101 NO.2 |
12 | ||
| 90913-02092 |
4AGE..AE101 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26067 |
4AGE..AE101 |
20 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26067 |
4AGE..AE101 |
20 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-16040 |
4AGE..AE101 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16020 |
4AGE..AE101 |
20 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16020 |
4AGE..AE101 |
20 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16020 |
4AGE..AE101 |
20 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16020 |
4AGE..AE101 |
20 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03026 |
4AGE..AE101 |
40 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03026 |
4AGE..AE101 |
40 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16020 |
4AGE..AE101 |
20 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16020 |
4AGE..AE101 |
20 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16800 |
4AGE..AE101 厚さ=1.74 |
20 | ||
| 13753-1A010 |
4AGE..AE101 厚さ=1.92 |
20 | ||
| 13753-16880 |
4AGE..AE101 厚さ=1.90 |
20 | ||
| 13753-16820 |
4AGE..AE101 厚さ=1.78 |
20 | ||
| 13753-16860 |
4AGE..AE101 厚さ=1.86 |
20 | ||
| 13753-16840 |
4AGE..AE101 厚さ=1.82 |
20 | ||
| 13753-1A240 |
4AGE..AE101 厚さ=2.20 |
20 | ||
| 13753-1A050 |
4AGE..AE101 厚さ=1.96 |
20 | ||
| 13753-1A170 |
4AGE..AE101 厚さ=2.08 |
20 | ||
| 13753-1A260 |
4AGE..AE101 厚さ=2.24 |
20 | ||
| 13753-1A130 |
4AGE..AE101 厚さ=2.04 |
20 | ||
| 13753-1A220 |
4AGE..AE101 厚さ=2.16 |
20 | ||
| 13753-1A200 |
4AGE..AE101 厚さ=2.12 |
20 | ||
| 13753-16780 |
4AGE..AE101 厚さ=1.70 |
20 | ||
| 13753-1A090 |
4AGE..AE101 厚さ=2.00 |
20 | ||
| 13753-1A280 |
4AGE..AE101 厚さ=2.28 |
20 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16800 |
4AGE..AE101 厚さ=1.74 |
20 | ||
| 13753-1A010 |
4AGE..AE101 厚さ=1.92 |
20 | ||
| 13753-16880 |
4AGE..AE101 厚さ=1.90 |
20 | ||
| 13753-16820 |
4AGE..AE101 厚さ=1.78 |
20 | ||
| 13753-16860 |
4AGE..AE101 厚さ=1.86 |
20 | ||
| 13753-16840 |
4AGE..AE101 厚さ=1.82 |
20 | ||
| 13753-1A240 |
4AGE..AE101 厚さ=2.20 |
20 | ||
| 13753-1A050 |
4AGE..AE101 厚さ=1.96 |
20 | ||
| 13753-1A170 |
4AGE..AE101 厚さ=2.08 |
20 | ||
| 13753-1A260 |
4AGE..AE101 厚さ=2.24 |
20 | ||
| 13753-1A130 |
4AGE..AE101 厚さ=2.04 |
20 | ||
| 13753-1A220 |
4AGE..AE101 厚さ=2.16 |
20 | ||
| 13753-1A200 |
4AGE..AE101 厚さ=2.12 |
20 | ||
| 13753-16780 |
4AGE..AE101 厚さ=1.70 |
20 | ||
| 13753-1A090 |
4AGE..AE101 厚さ=2.00 |
20 | ||
| 13753-1A280 |
4AGE..AE101 厚さ=2.28 |
20 | ||
| Common parts | ||||
| 90105-10334 | ||||
| 90119-10380 | ||||
| 90179-06143 | ||||
| 90201-10098 | ||||
| 90301-14007 | ||||

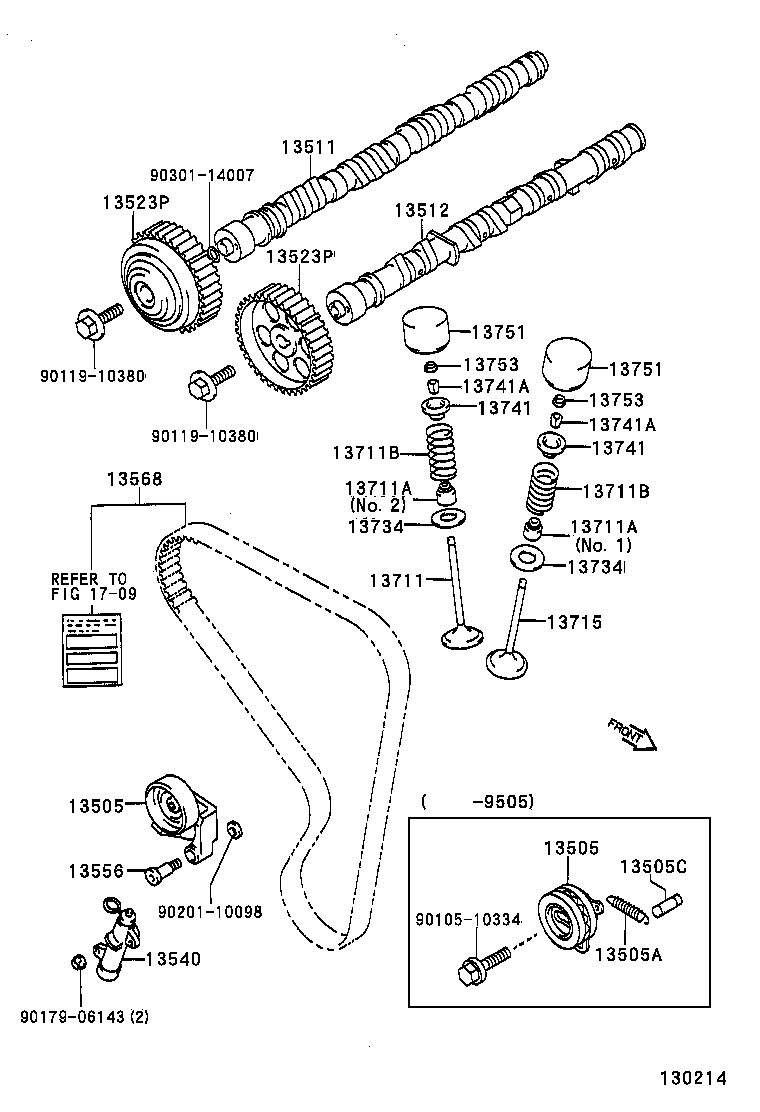

| Linked diagrams | ||||
| 1709 | ||||
