AE101-ACMVF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

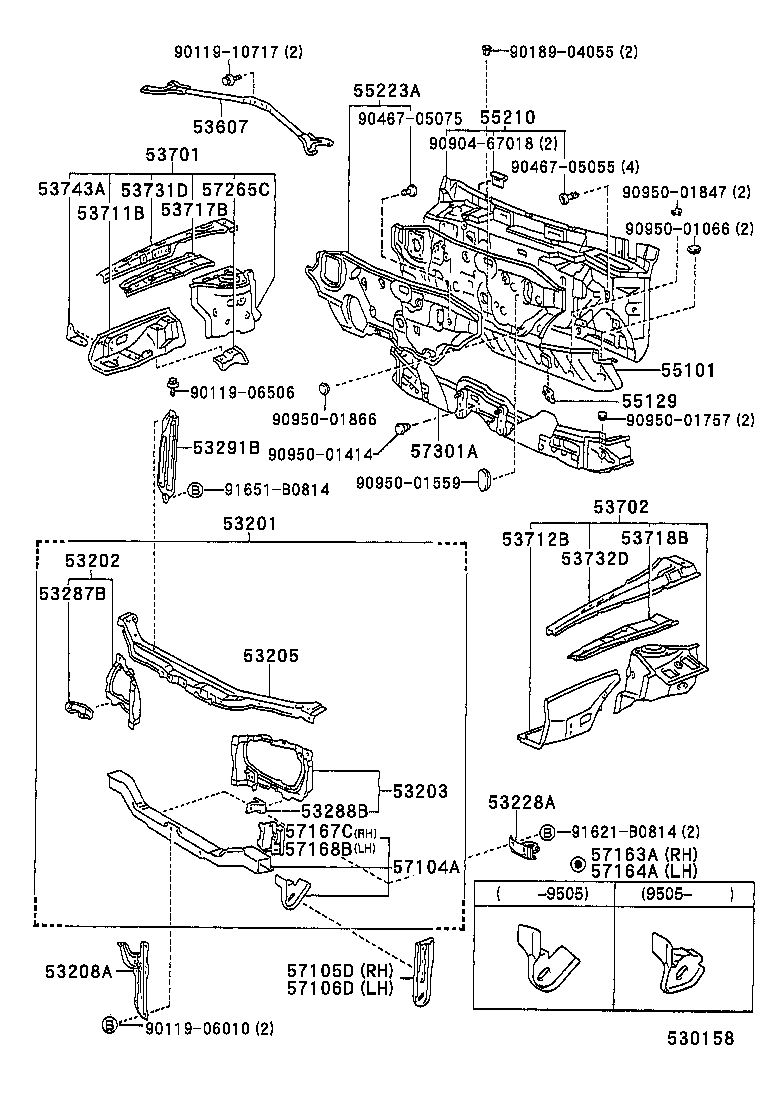

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53208A 53228A 53287B 53288B 53291B 53607 53701 53702 53711B 53712B 53717B 53718B 53731D 53732D 53743A 55101 55129 55210 55223A 57104A 57105D 57106D 57163A 57164A 57167C 57168B 57265C 57301A 9011906010 9011906506 9011910717 9018904055 9046705055 9046705075 9090467018 9095001066 9095001414 9095001559 9095001757 9095001847 9095001866 91621B0814 91651B0814
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-1A050

AE10#..GT,GTAPX,S,SJ

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-12901

AE10#

 1
53202-12330

AE10#..CP

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-12290

AE10#..CP

 1
53212-12901

AE10#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-12933

AE10#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12400

AE10#..LVN

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-12130

AE10#

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-12040

AE10#..CP

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-12040

AE10#..CP

 1
53291B - PLATE, RADIATOR COVER
53291-12100

AE100..F..4FC;AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

 1
53607 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53607-12030

AE101..G,GT,GTAPX,GTZ

 1
53607-12040

AE101..G,GT,GTAPX,GTZ

 11
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A051

AE10#..F,G,GT,GTAPX,S,SJ,X

ｱﾘ(*66)

 1
53701-1A050

AE10#..F,G,GT,GTAPX,S,SJ,X

ｱﾘ(*66)

 1
53701-1A040

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
53701-1A041

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A040

AE10#

 1
53702-1A041

AE10#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12220

AE10#

 1
53711-12221

AE10#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12181

AE10#

 1
53712-12180

AE10#

 1
53717B - GUSSET, FENDER APRON, RH
53717-12051

AE10#

 1
53717-12050

AE10#

 1
53718B - GUSSET, FENDER APRON, LH
53718-12050

AE10#

 1
53718-12051

AE10#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12150

AE10#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12130

AE10#

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-12040

AE10#..4FC,5F

ｱﾘ(*66)

 1
55101 - PANEL SUB-ASSY, DASH
55101-1A451

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

 1
55101-1A280

AE101..(GT,GTAPX,GTZ)..5F

 1
55101-1A451

AE10#..MTM

 1
55129 - COVER, DASH PANEL HOLE
55129-12030

AE10#

 2
55210 - INSULATOR ASSY, DASH PANEL
55210-12390

AE10#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-12070

AE101..G,GT,GTAPX,GTZ

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12010

AE10#

 1
57104-12010

AE10#..CP

 1
57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-12050

AE10#

 1
57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-12050

AE10#

 1
57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57163-12110

AE10#

 1
57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57164-12060

AE10#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12100

AE10#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12100

AE10#

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-12050

AE10#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-12120

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
Common parts
90119-06010
90119-06506
90119-10717
90189-04055
90467-05055
90467-05075
90904-67018
90950-01066
90950-01414
90950-01559
90950-01757
90950-01847
90950-01866
91621-B0814
91651-B0814
