AE101-ACMVF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9106- )MTM

Click highlighted areas on diagram

diagram 31126 31204 31204 31210 31230 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-17010

AE101..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-17010

AE101..5F

 1
31210 - COVER ASSY, CLUTCH
31210-12220

AE101..(G,GT,GTAPX)..5F

 1
31210-12151

AE101..(G,GT,GTAPX)..5F

 1
31210-12152

AE101..MTM..(G,GT,GTAPX)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12170

AE101..(G,GT,GTAPX,SJ,X)..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12050

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 2

 1
31232-12060

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 3

 1
31232-12070

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 4

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

AE101..(G,GT,GTAPX,SJ,X)..5F

 1
31250 - DISC ASSY, CLUTCH
31250-12320

AE101..(G,GT,GTAPX)..5F

 1
Common parts
90119-08026

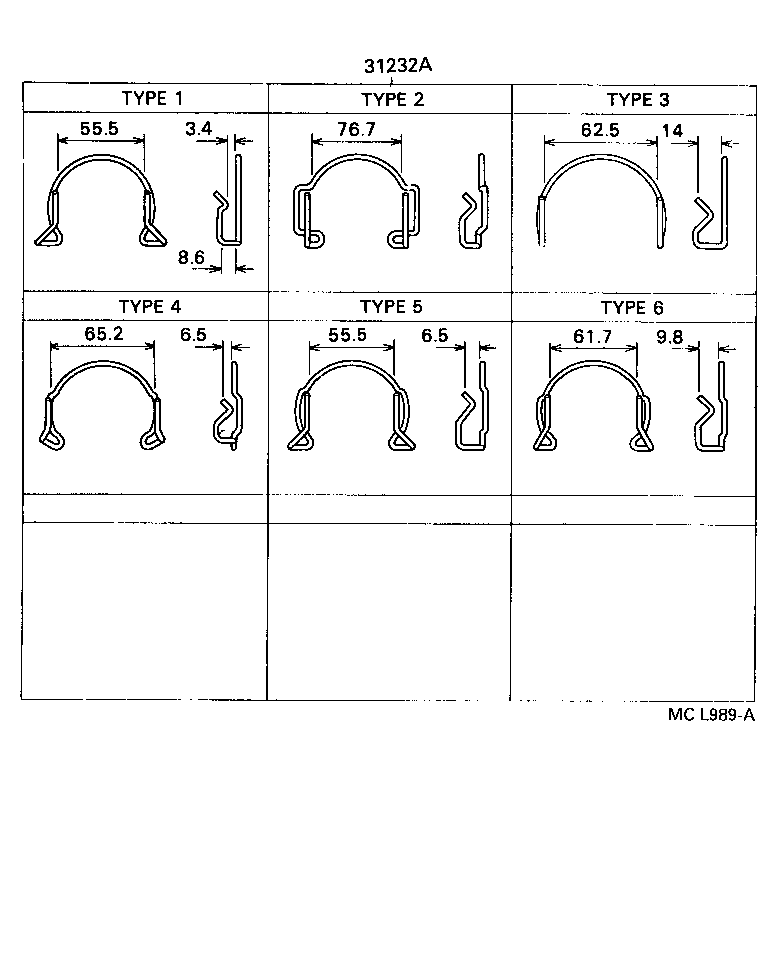

ILLUST NO. 2 OF 2(9106- )MTM

Click highlighted areas on diagram

diagram 31232A
Part # Description Qty Price
31232A - CLIP, RELEASE BEARING HUB
31232-12050

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 2

 1
31232-12060

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 3

 1
31232-12070

AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F

TYPE 4

 1
