AE101-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

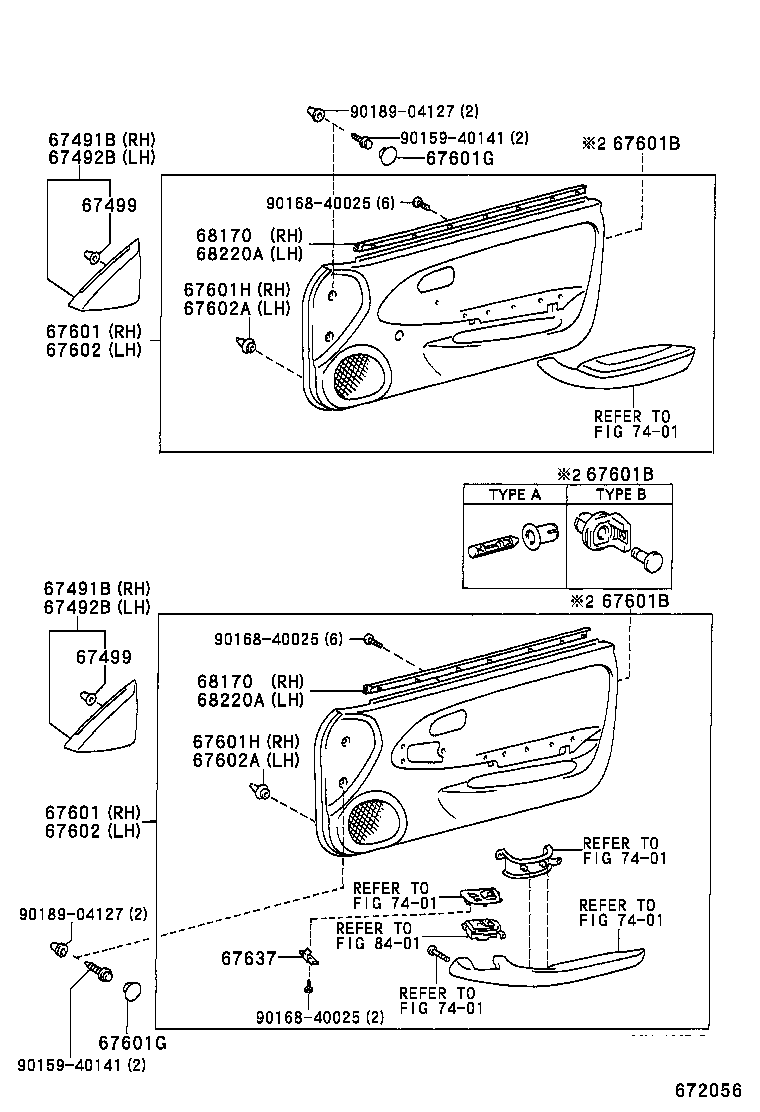

ILLUST NO. 1 OF 2(9106- )CP

Click highlighted areas on diagram

diagram 67491B 67491B 67492B 67492B 67499 67499 67601 67601 67601B 67601B 67601B 67601G 67601G 67601H 67601H 67602 67602 67602A 67602A 67637 68170 68170 68220A 68220A 7401 7401 7401 7401 7401 8401 9015940141 9015940141 9016840025 9016840025 9016840025 9018904127 9018904127
Part # Description Qty Price
67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
67491-1229022

AE101..SJ

BLACK,TRIM20,21,22

 1
67491-1229022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
67491-1230022

AE101..SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM20,21,22

 1
67491-1229022

AE10#..GT,GTZ,S,SJ

BLACK,TRIM2#

 1
67491-1230022

AE10#..GT,GTZ,S,SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67491-1230022

AE10#..GT,GTZ,S

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
67491-1229022

AE101..SJ

BLACK,TRIM20,21,22

 1
67491-1229022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
67491-1230022

AE101..SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM20,21,22

 1
67491-1229022

AE10#..GT,GTZ,S,SJ

BLACK,TRIM2#

 1
67491-1230022

AE10#..GT,GTZ,S,SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67491-1230022

AE10#..GT,GTZ,S

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67492-1230022

AE10#..GT,GTZ,S

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67492-1229022

AE10#..GT,GTZ,S,SJ

BLACK,TRIM2#

 1
67492-1230022

AE101..SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM20,21,22

 1
67492-1229022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
67492-1229022

AE101..SJ

BLACK,TRIM20,21,22

 1
67492-1230022

AE10#..GT,GTZ,S,SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67492-1230022

AE10#..GT,GTZ,S

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67492-1229022

AE10#..GT,GTZ,S,SJ

BLACK,TRIM2#

 1
67492-1230022

AE101..SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM20,21,22

 1
67492-1229022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
67492-1229022

AE101..SJ

BLACK,TRIM20,21,22

 1
67492-1230022

AE10#..GT,GTZ,S,SJ

ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-12030

AE10#..CP

 4
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-12030

AE10#..CP

 4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1E450C0

AE101..SJ

BLACK GRAY,TRIM20

 1
67650-1E450C2

AE101..SJ

BLACK LAVENDER,TRIM22

 1
67650-1E450C1

AE101..SJ

BLACK AQUA,TRIM21

 1
67610-1H050C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),BLACK,TRIM2#

 1
67610-1H080G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67610-1H060C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H050G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),SPRUCE,TRIM6#

 1
67610-1H480C0

AE101..G

BLACK,TRIM2#

 1
67610-1H080C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H090C0

AE101..G

ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ & ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ);ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H550G0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67610-1H470C0

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H051G0

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,SPRUCE,TRIM6#

 1
67610-1H550C0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H560C0

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H091C1

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H061C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H471G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67610-1H051C1

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H481C1

AE101..G

BLACK,TRIM2#

 1
67610-1H470G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67610-1H471C1

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H561C1

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67650-1E430C1

AE10#..GT,S

BLACK/GRAY,TRIM2#

 1
67610-1H061C0

AE10#..F,X

ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2#

 1
67650-1E451C3

AE10#..GT,S

ｱﾘ(*PW),BLACK/GRAY,TRIM2#

 1
67610-1H052C2

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H061C0

AE101..G

BLACK,TRIM2#

 1
67650-1E451C3

AE101..SJ

BLACK/GRAY,TRIM2#

 1
67610-1H052G1

AE10#..F,X

SPRUCE,TRIM6#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1E450C0

AE101..SJ

BLACK GRAY,TRIM20

 1
67650-1E450C2

AE101..SJ

BLACK LAVENDER,TRIM22

 1
67650-1E450C1

AE101..SJ

BLACK AQUA,TRIM21

 1
67610-1H050C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),BLACK,TRIM2#

 1
67610-1H080G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67610-1H060C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H050G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),SPRUCE,TRIM6#

 1
67610-1H480C0

AE101..G

BLACK,TRIM2#

 1
67610-1H080C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H090C0

AE101..G

ｱﾘ(ｽﾎﾟ-ﾂ ﾀｲﾌﾟ ｼ-ﾄ & ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ);ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H550G0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67610-1H470C0

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H051G0

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,SPRUCE,TRIM6#

 1
67610-1H550C0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H560C0

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H091C1

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67610-1H061C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H471G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67610-1H051C1

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67610-1H481C1

AE101..G

BLACK,TRIM2#

 1
67610-1H470G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67610-1H471C1

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H561C1

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67650-1E430C1

AE10#..GT,S

BLACK/GRAY,TRIM2#

 1
67610-1H061C0

AE10#..F,X

ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2#

 1
67650-1E451C3

AE10#..GT,S

ｱﾘ(*PW),BLACK/GRAY,TRIM2#

 1
67610-1H052C2

AE10#..F,X

BLACK,TRIM2#

 1
67610-1H061C0

AE101..G

BLACK,TRIM2#

 1
67650-1E451C3

AE101..SJ

BLACK/GRAY,TRIM2#

 1
67610-1H052G1

AE10#..F,X

SPRUCE,TRIM6#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0706601

AE10#

BLACK,TRIM2#

 4
90467-0706601

AE101..SJ

BLACK,TRIM20,21,22

 4
90467-07066G0

AE10#..F,X

SPRUCE,TRIM6#

 4
90467-0706601

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 4
90467-09122

AE10#..CP

ﾀｲﾌﾟ B

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0706601

AE10#

BLACK,TRIM2#

 4
90467-0706601

AE101..SJ

BLACK,TRIM20,21,22

 4
90467-07066G0

AE10#..F,X

SPRUCE,TRIM6#

 4
90467-0706601

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 4
90467-09122

AE10#..CP

ﾀｲﾌﾟ B

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0706601

AE10#

BLACK,TRIM2#

 4
90467-0706601

AE101..SJ

BLACK,TRIM20,21,22

 4
90467-07066G0

AE10#..F,X

SPRUCE,TRIM6#

 4
90467-0706601

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 4
90467-09122

AE10#..CP

ﾀｲﾌﾟ B

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800C0

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 4
90950-01800C0

AE101..SJ

BLACK,TRIM20,21,22

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800C0

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 4
90950-01800C0

AE101..SJ

BLACK,TRIM20,21,22

 4
67601H - RETAINER, DOOR TRIM, RH
67771-12050

AE10#

ﾚｯﾄﾞ

 4
67771-28020

AE10#..F,X

ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),ﾚｯﾄﾞ

 5
67771-32140

AE10#..CP

ｲｴﾛｰ

 1
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 4
90467-10161

AE10#..CP

 5
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 2
67601H - RETAINER, DOOR TRIM, RH
67771-12050

AE10#

ﾚｯﾄﾞ

 4
67771-28020

AE10#..F,X

ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),ﾚｯﾄﾞ

 5
67771-32140

AE10#..CP

ｲｴﾛｰ

 1
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 4
90467-10161

AE10#..CP

 5
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1K530C0

AE101..SJ

BLACK GRAY,TRIM20

 1
67620-1K530C2

AE101..SJ

BLACK LAVENDER,TRIM22

 1
67620-1K530C1

AE101..SJ

BLACK AQUA,TRIM21

 1
67620-1L020G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67620-1K890C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67620-1K880C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),BLACK,TRIM2#

 1
67620-1K880G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),SPRUCE,TRIM6#

 1
67620-1L580C0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L020C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L490G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67620-1L500C0

AE101..G

BLACK,TRIM2#

 1
67620-1L580G0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67620-1L030C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L590C0

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1K890C0

AE10#..F,X

ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2#

 1
67620-1L490C0

AE10#..F,X

BLACK,TRIM2#

 1
67620-1K510C1

AE10#..GT,S

BLACK/GRAY,TRIM2#

 1
67620-1K530C3

AE101..SJ

BLACK/GRAY,TRIM2#

 1
67620-1K530C3

AE10#..GT,S

ｱﾘ(*PW),BLACK/GRAY,TRIM2#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1K530C0

AE101..SJ

BLACK GRAY,TRIM20

 1
67620-1K530C2

AE101..SJ

BLACK LAVENDER,TRIM22

 1
67620-1K530C1

AE101..SJ

BLACK AQUA,TRIM21

 1
67620-1L020G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67620-1K890C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
67620-1K880C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),BLACK,TRIM2#

 1
67620-1K880G0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ),SPRUCE,TRIM6#

 1
67620-1L580C0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L020C0

AE10#..F,X

ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ) & ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L490G0

AE10#..F,X

SPRUCE,TRIM6#

 1
67620-1L500C0

AE101..G

BLACK,TRIM2#

 1
67620-1L580G0

AE10#..F,X

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
67620-1L030C0

AE101..G

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1L590C0

AE101..G

ｱﾘ(ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ OR ﾗｲﾌﾞｻｳﾝﾄﾞｽﾋﾟ-ｶ),BLACK,TRIM2#

 1
67620-1K890C0

AE10#..F,X

ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,BLACK,TRIM2#

 1
67620-1L490C0

AE10#..F,X

BLACK,TRIM2#

 1
67620-1K510C1

AE10#..GT,S

BLACK/GRAY,TRIM2#

 1
67620-1K530C3

AE101..SJ

BLACK/GRAY,TRIM2#

 1
67620-1K530C3

AE10#..GT,S

ｱﾘ(*PW),BLACK/GRAY,TRIM2#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-28020

AE10#..F,X

ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),ﾚｯﾄﾞ

 5
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 4
67771-32140

AE10#..CP

ｲｴﾛｰ

 1
67771-12050

AE10#

ﾚｯﾄﾞ

 4
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 2
90467-10161

AE10#..CP

 5
67602A - RETAINER, DOOR TRIM, LH
67771-28020

AE10#..F,X

ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ OR ｽ-ﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞ ｽﾋﾟ-ｶ),ﾚｯﾄﾞ

 5
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 4
67771-32140

AE10#..CP

ｲｴﾛｰ

 1
67771-12050

AE10#

ﾚｯﾄﾞ

 4
67771-28020

AE10#..CP

ﾚｯﾄﾞ

 2
90467-10161

AE10#..CP

 5
67637 - PLATE, FRONT DOOR TRIM
67637-12030

AE10#..CP

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12300

AE10#..CP

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12300

AE10#..CP

 1
68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68220-12210

AE10#..CP

 1
68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68220-12210

AE10#..CP

 1
Common parts
90159-40141
90168-40025
90189-04127
Linked diagrams
7401
8401

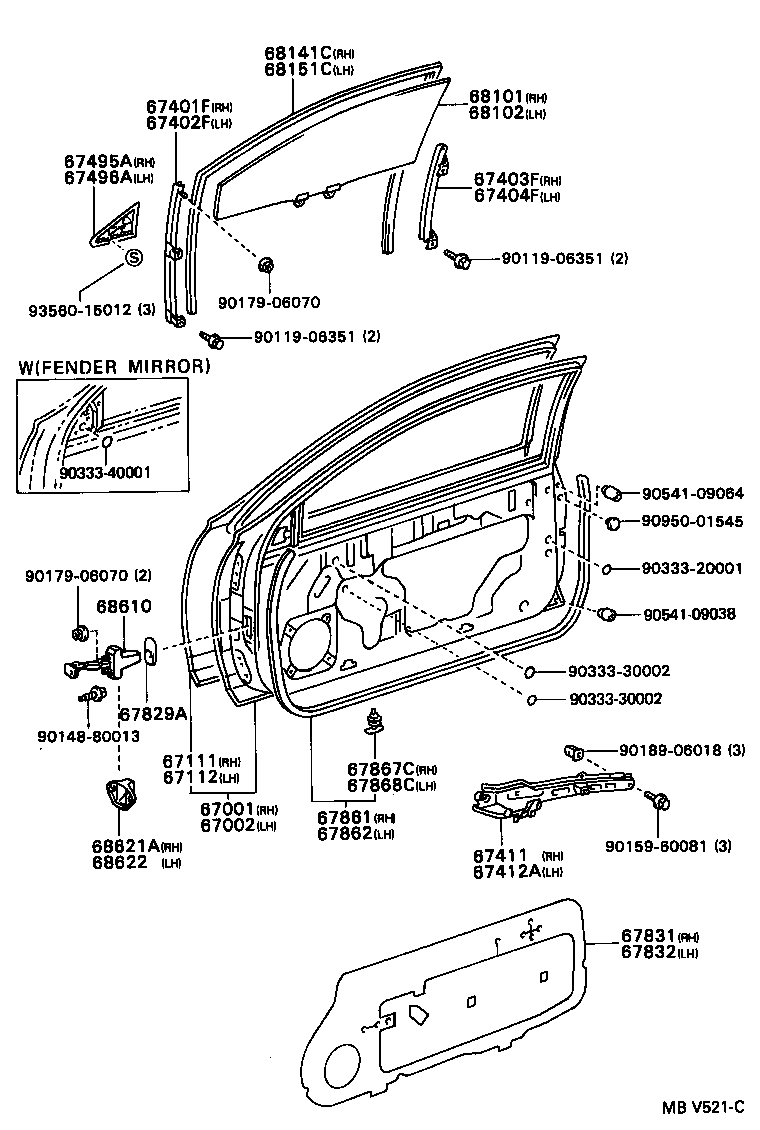

ILLUST NO. 2 OF 2(9106- )CP

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67411 67412A 67495A 67496A 67829A 67831 67832 67861 67862 67867C 67868C 68101 68102 68141C 68151C 68610 68621A 68622 9011906351 9011906351 9014880013 9015960081 9017906070 9017906070 9018906018 9033320001 9033330002 9033330002 9033340001 9054109038 9054109064 9095001545 9356015012
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A500

AE10#..CP

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A480

AE10#..CP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12590

AE10#..CP

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12630

AE10#..CP

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12310

AE10#..CP

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12330

AE10#..CP

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12180

AE10#..CP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12180

AE10#..CP

 1
67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67411-12130

AE10#..CP

 1
67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67412-12140

AE10#..CP

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-12180

AE10#..CP

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-12180

AE10#..CP

 1
67829A - SEAL, FRONT DOOR WIRE HOLE
67829-12010

AE10#..CP

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12500

AE10#..CP

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12250

AE10#..CP

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12790

AE10#..CP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12750

AE10#..CP

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AE10#..CP

 14
67868-12050

AE10#..CP

 14
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-12050

AE10#..CP

 14
67867-12150

AE10#..CP

 14
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-1A090

AE10#..CP

*TT,厚さ=4.0,ﾌﾞﾙｰ

 1
68101-12880

AE10#..CP

*TEM,厚さ=4.0,ｸﾞﾚｰ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-1A090

AE10#..CP

*TT,厚さ=4.0,ﾌﾞﾙｰ

 1
68102-12880

AE10#..CP

*TEM,厚さ=4.0,ｸﾞﾚｰ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12410

AE10#..CP

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12130

AE10#..CP

 1
68610 - CHECK ASSY, FRONT DOOR
68620-12030

AE10#..CP

左側

 1
68610-12100

AE10#..CP

右側

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-12030

AE10#..CP

 1
68622 - COVER, FRONT DOOR CHECK, LH
68622-12010

AE10#..CP

 1
Common parts
90119-06351
90148-80013
90159-60081
90179-06070
90189-06018
90333-20001
90333-30002
90333-40001
90541-09038
90541-09064
90950-01545
93560-15012
