Toyota Lvn/cre/trn/mrn AE100 WIRING & CLAMP

AE100-BTPGK (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Aug 1998

Engine 5AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

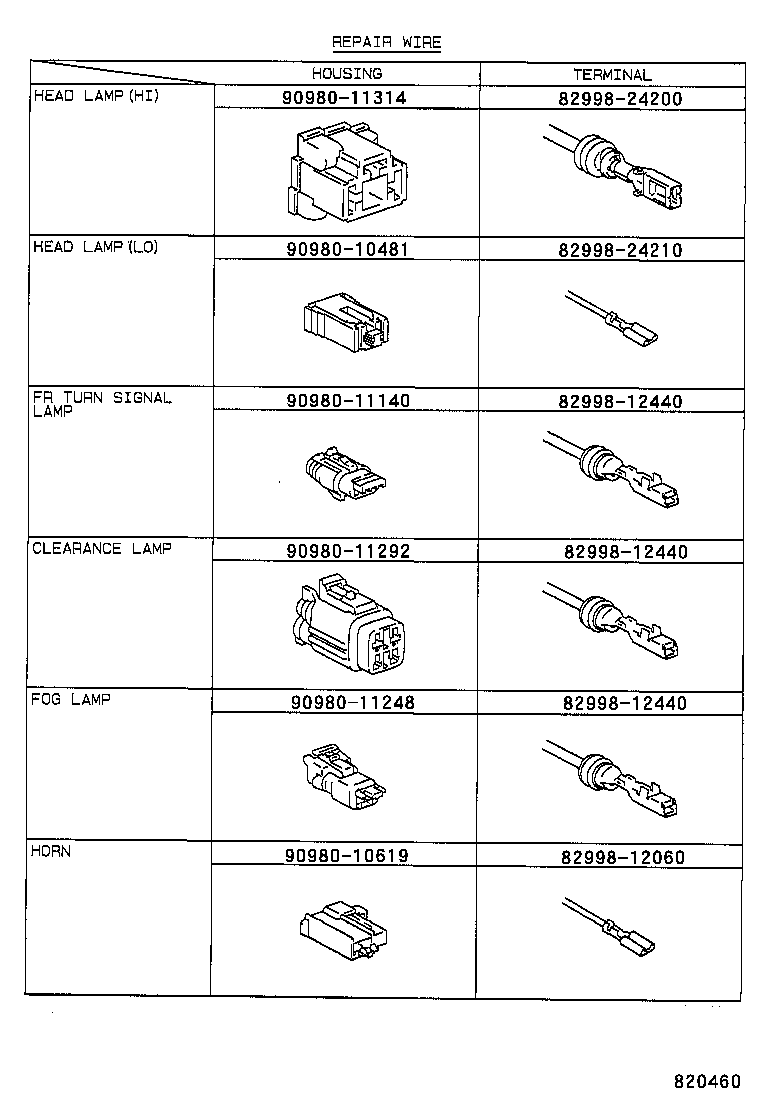

ILLUST NO. 6 OF 8(9205- )HT

Click highlighted areas on diagram

ﾘﾍﾟｱ

Part #	Description	Period	Qty	Price

ILLUST NO. 6 OF 8(9205- )HT

Click highlighted areas on diagram

ﾘﾍﾟｱ

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#..HT	05/1992 - 12/2999	1

Part #

Description

Qty

Price

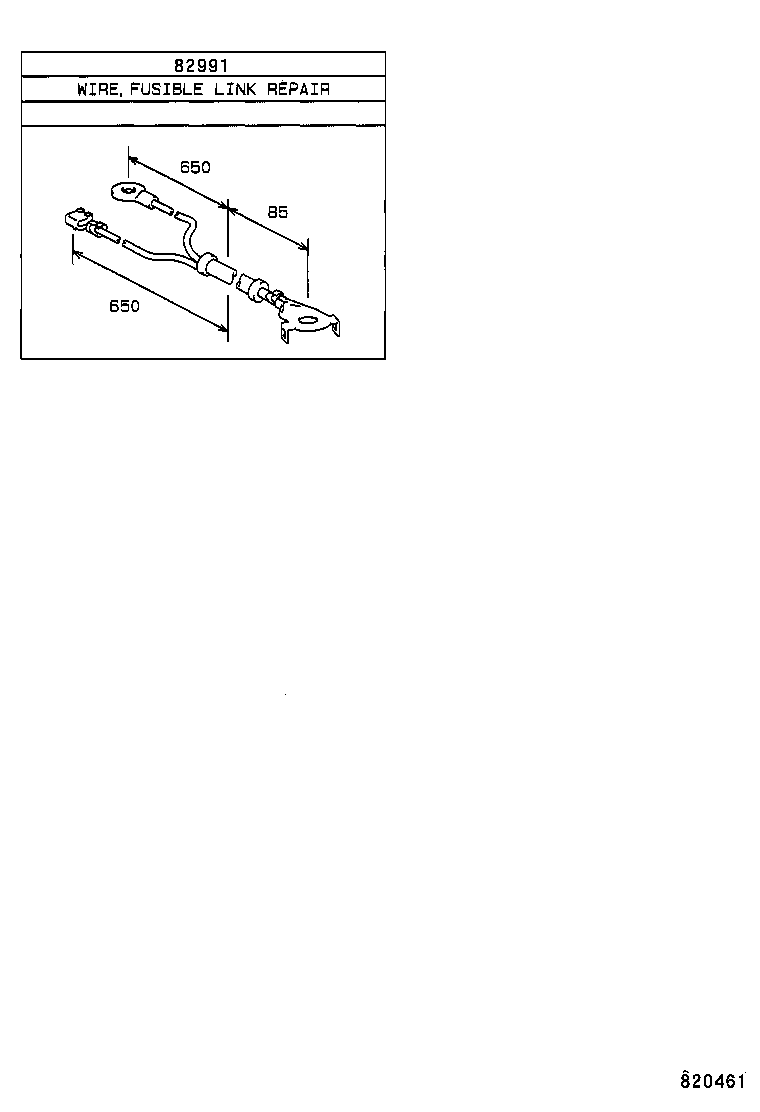

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12050

AE10#..HT

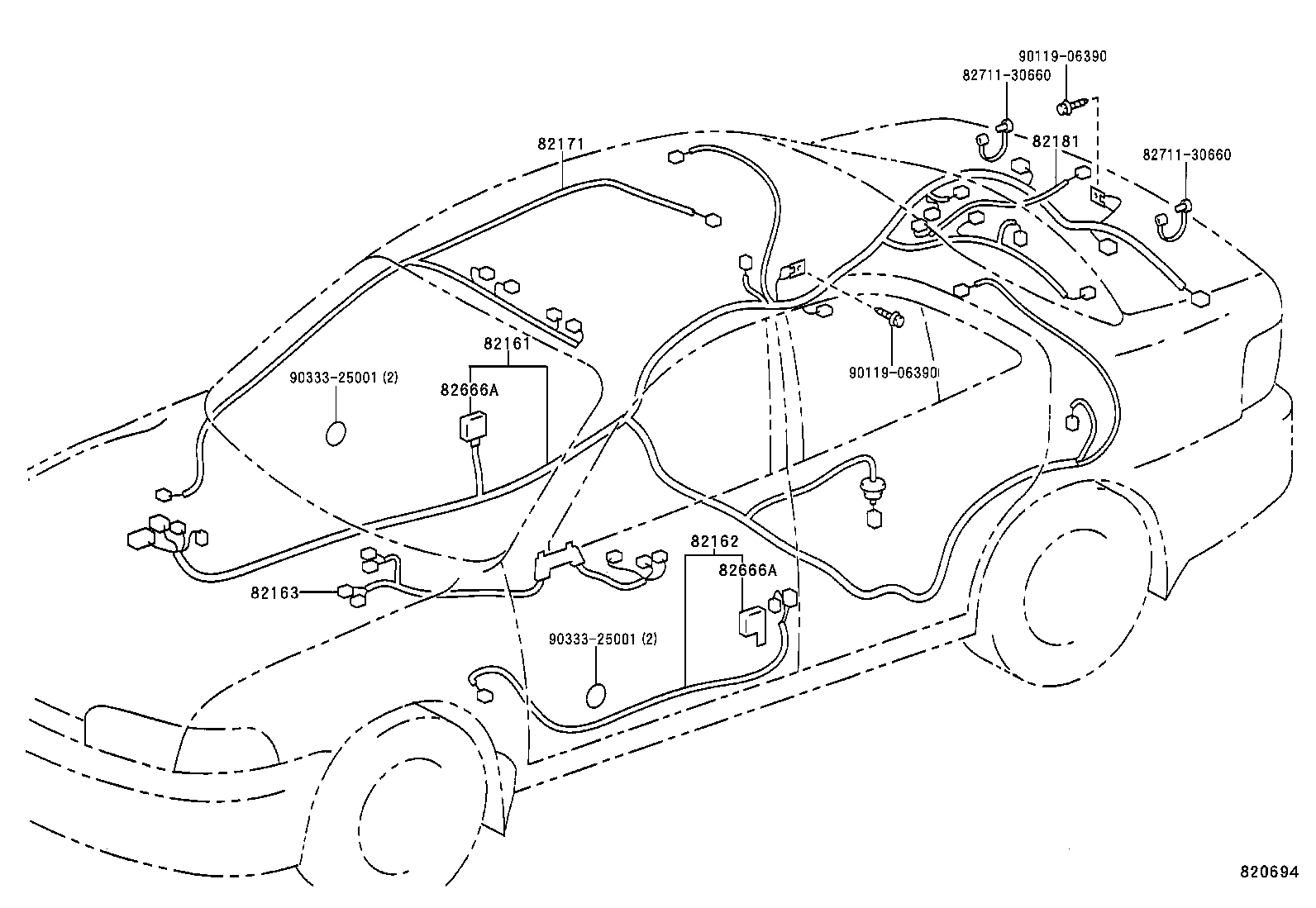

ILLUST NO. 5 OF 8(9205- )HT

Click highlighted areas on diagram

ﾌﾛｱ & ﾙ-ﾌ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1K420	AE10#..HT ｱﾘ(*66)	05/1992 - 05/1993	1
82161-1K410	AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F	05/1992 - 12/1993	1
82161-1L060	AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F ｱﾘ(*66)	05/1993 - 05/1994	1
82161-1K410	AE10#..HT ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	12/1993 - 05/1994	1
82161-1L071	AE10#..HT ｱﾘ(*66)	05/1994 - 05/1995	1
82161-1L480	AE100 ｱﾘ(ﾘﾔｽﾎﾟｲﾗ-)	05/1995 - 05/1996	1
82161-1K411	AE10#..HT ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	05/1994 - 05/1995	1
82161-1L490	AE10# ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	05/1995 - 05/1996	1
82161-1L190	AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F	12/1993 - 05/1995	1
82161-1L470	AE10#	05/1995 - 05/1996	1
82161-1L610	AE10# ｱﾘ(ABS)	05/1995 - 05/1996	1
82161-1L611	AE10#	05/1996 - 04/1997	1
82161-1N090	AE10#	04/1997 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-12611	AE10#	04/1997 - 12/2999	1
82162-12610	AE10#..HT	05/1992 - 04/1997	1
82163 - WIRE, FLOOR, NO.3
82163-12070	AE10# ｱﾘ(ｽ-ﾊﾟﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	06/1991 - 05/1993	1
82163-12060	AE10#..F,G,GT,GTZ,S,SJ,X ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	06/1991 - 05/1993	1
82163-12060	AE10#..F,GT,S	05/1993 - 05/1994	1
82171 - WIRE, ROOF, NO.1
82171-12540	AE10#..HT	05/1992 - 12/2999	1
82171-12550	AE10#..HT ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	05/1992 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-12210	AE10#..HT	05/1992 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-12070	AE10#..HT FLOOR WIRE,LH	05/1992 - 12/2999	1
82666-12060	AE10#..HT FLOOR WIRE,RH	05/1992 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-12070	AE10#..HT FLOOR WIRE,LH	05/1992 - 12/2999	1
82666-12060	AE10#..HT FLOOR WIRE,RH	05/1992 - 12/2999	1
Common parts
82711-30660
90119-06390
90333-25001

ILLUST NO. 5 OF 8(9205- )HT

Click highlighted areas on diagram

ﾄﾞｱ & ｼ-ﾄ

Part #	Description	Period	Qty

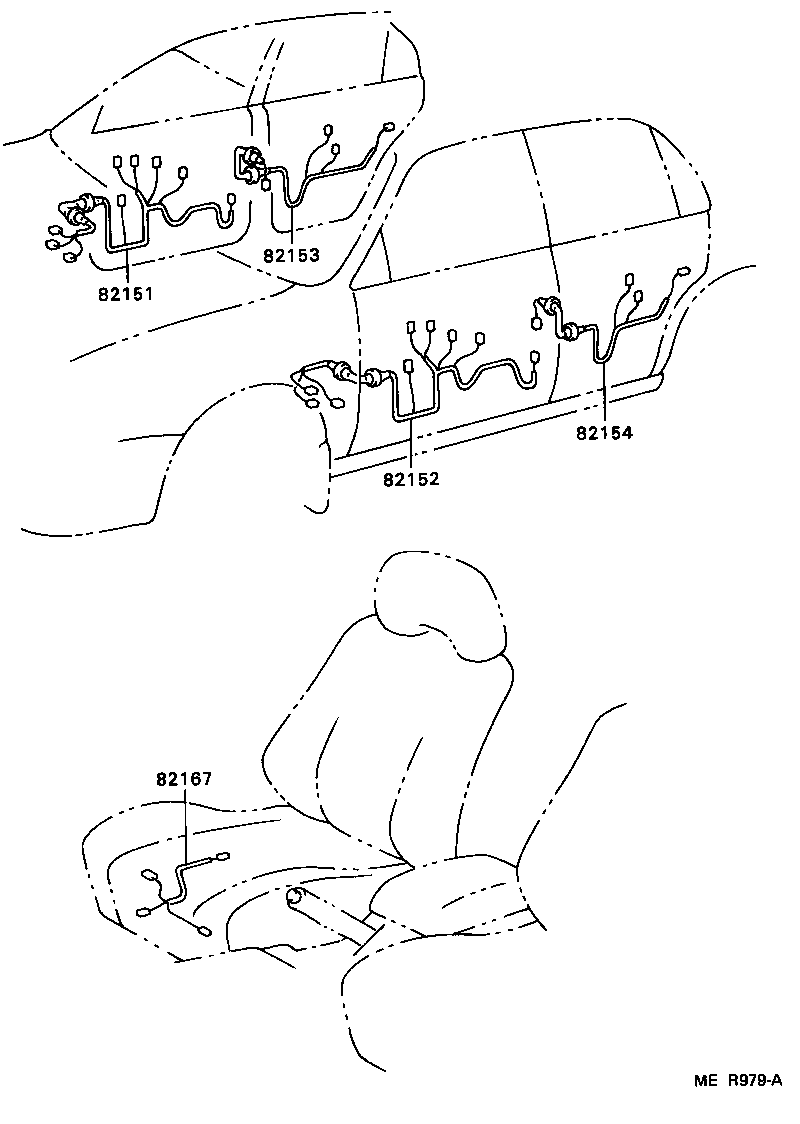

82151 - WIRE, FRONT DOOR, RH
82151-1A180	AE10#..HT	05/1992 - 05/1994	1
82151-1A181	AE10#..HT	05/1994 - 04/1997	1
82151-1A880	AE10# ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	04/1997 - 12/2999	1
82151-1A870	AE10#	04/1997 - 12/2999	1
82151-1A190	AE10#..HT..(4FC,5F) ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	05/1992 - 05/1997	1
82152 - WIRE, FRONT DOOR, LH
82152-1A031	AE10#..HT	05/1994 - 04/1997	1
82152-1A040	AE10#..HT ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	05/1992 - 05/1994	1
82152-1A041	AE10#..HT..(4FC,5F) ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	05/1994 - 05/1997	1
82152-1A030	AE10#..HT	05/1992 - 05/1994	1
82152-1A042	AE10# ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	04/1997 - 12/2999	1
82152-1A032	AE10#	04/1997 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12270	AE10#..HT	05/1992 - 04/1997	1
82153-12271	AE10#	04/1997 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-12271	AE10#	04/1997 - 12/2999	1
82154-12270	AE10#..HT	05/1992 - 04/1997	1
82167 - WIRE, SEAT, NO.1
82167-12020	AE10#..HT	05/1992 - 05/1994	1
