Toyota Lvn/cre/trn/mrn AE100 POWER STEERING TUBE

AE100-BTPGK (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Aug 1998

Engine 5AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

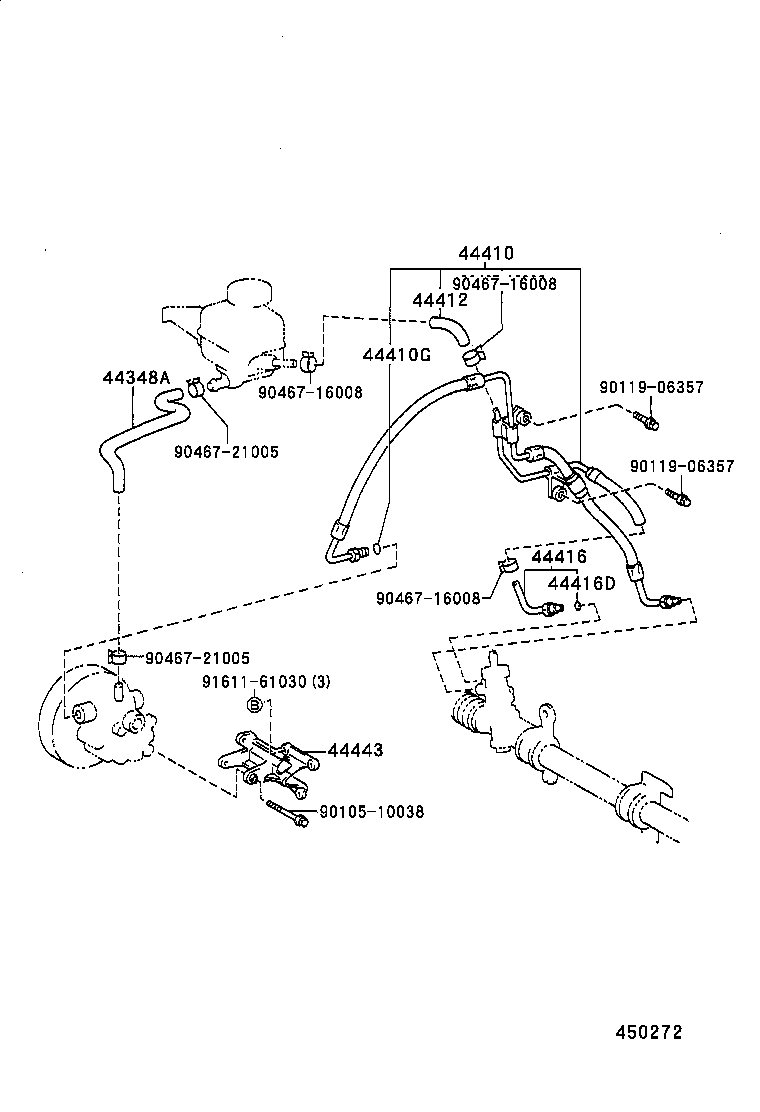

Click highlighted areas on diagram

Part #	Description	Period	Qty
44410 - TUBE ASSY, PRESSURE FEED
44410-12370	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	06/1991 - 05/1992	1
44410-12390	AE100 TOYOTA GEAR BOX	06/1991 - 05/1992	1
44410-12391	AE100 TOYOTAｷﾞﾔﾎﾞｯｸｽ	05/1992 - 08/1998	1
44410-12371	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	05/1992 - 08/1998	1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	AE10#	04/1994 - 12/2999	1
90301-07009	AE10#..F,G,GT,GTAPX,GTZ,SJ,X	06/1991 - 08/1992	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12210	AE100 TOYOTA GEAR BOX	06/1991 - 04/1992	1
44416-12220	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	06/1991 - 09/1991	1
44406-12170	AE100..F KOYO GEAR BOX	05/1992 - 08/1992	1
44406-12171	AE10#..F,X KOYOｷﾞﾔﾎﾞｯｸｽ	05/1995 - 08/1998	1
44406-12181	AE10#..F,X TOYOTAｷﾞﾔﾎﾞｯｸｽ	05/1995 - 08/1998	1
44406-12181	AE100 TOYOTAｷﾞﾔﾎﾞｯｸｽ	08/1992 - 05/1995	1
44406-12171	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	04/1994 - 05/1995	1
44416D - RING, O(FOR RETURN TUBE)
90301-07009	AE10#	04/1994 - 12/2999	1
90301-07009	AE10#..F,G,GT,GTAPX,GTZ,SJ,X	06/1991 - 08/1992	1
44443 - BRACKET, PUMP
44443-12100	AE10#..F,S,SJ,X	05/1992 - 12/2999	1
Common parts
90105-10038
90119-06357
90467-16008
90467-21005
91611-61030

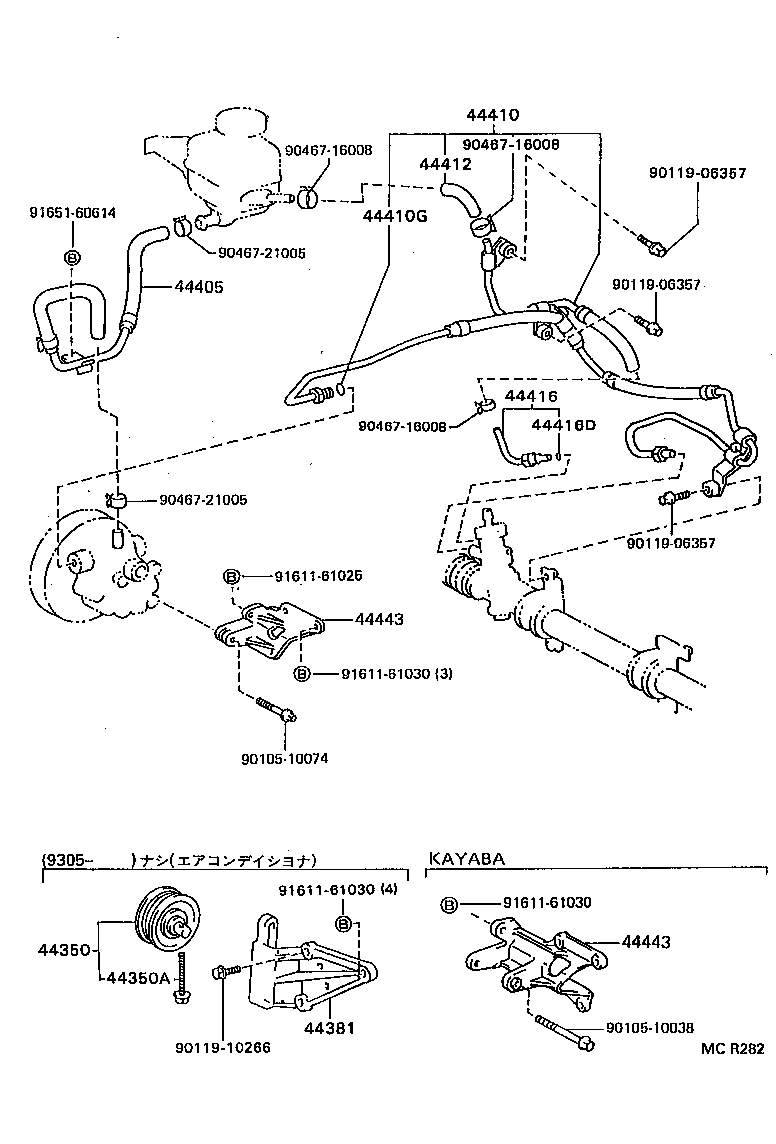

Click highlighted areas on diagram

Part #	Description	Period	Qty
44410 - TUBE ASSY, PRESSURE FEED
44410-12370	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	06/1991 - 05/1992	1
44410-12390	AE100 TOYOTA GEAR BOX	06/1991 - 05/1992	1
44410-12391	AE100 TOYOTAｷﾞﾔﾎﾞｯｸｽ	05/1992 - 08/1998	1
44410-12371	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	05/1992 - 08/1998	1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	AE10#	04/1994 - 12/2999	1
90301-07009	AE10#..F,G,GT,GTAPX,GTZ,SJ,X	06/1991 - 08/1992	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12210	AE100 TOYOTA GEAR BOX	06/1991 - 04/1992	1
44416-12220	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	06/1991 - 09/1991	1
44406-12170	AE100..F KOYO GEAR BOX	05/1992 - 08/1992	1
44406-12171	AE10#..F,X KOYOｷﾞﾔﾎﾞｯｸｽ	05/1995 - 08/1998	1
44406-12181	AE10#..F,X TOYOTAｷﾞﾔﾎﾞｯｸｽ	05/1995 - 08/1998	1
44406-12181	AE100 TOYOTAｷﾞﾔﾎﾞｯｸｽ	08/1992 - 05/1995	1
44406-12171	AE100 KOYOｷﾞﾔﾎﾞｯｸｽ	04/1994 - 05/1995	1
44416D - RING, O(FOR RETURN TUBE)
90301-07009	AE10#	04/1994 - 12/2999	1
90301-07009	AE10#..F,G,GT,GTAPX,GTZ,SJ,X	06/1991 - 08/1992	1
44443 - BRACKET, PUMP
44443-12100	AE10#..F,S,SJ,X	05/1992 - 12/2999	1
44443 - BRACKET, PUMP
44443-12100	AE10#..F,S,SJ,X	05/1992 - 12/2999	1
Common parts
90105-10038
90105-10074
90119-06357
90119-10266
90467-16008
90467-21005
91611-61025
91611-61030
91651-60614
