AE100-BCPGK (1991)
Toyota Lvn/Cre/Trn/Mrn

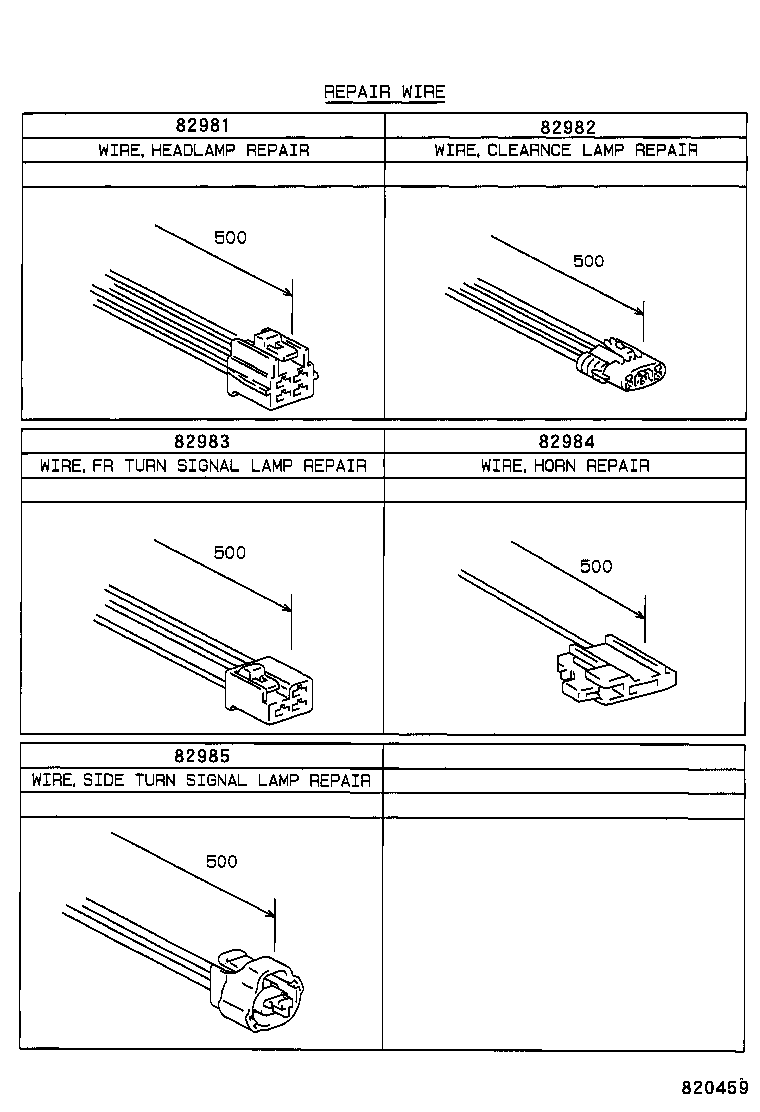

ILLUST NO. 6 OF 8(9106- )TRN
ﾘﾍﾟｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-12040 |
AE10#..TRN |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12090 |
AE10#..CP |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-12070 |
AE10#..TRN |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE10#..CP |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-12020 |
AE10#..CP |
1 | ||
ILLUST NO. 8 OF 8(9106- )
ﾀﾞｲｵ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..GT,S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-32020 |
AE10#..S,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..GT,S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-32020 |
AE10#..S,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||

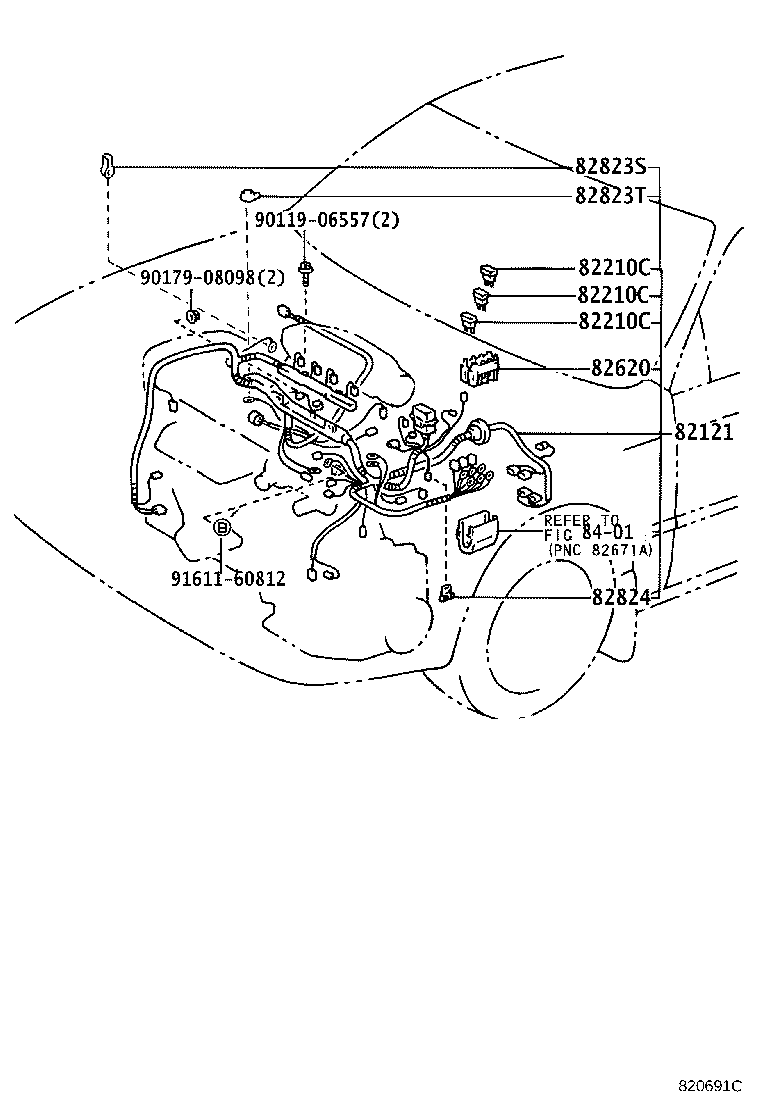

ILLUST NO. 2 OF 8(9106- )F,S,SJ,X
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1H270 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H271 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H390 |
AE100..4FC |
1 | ||
| 82121-1H391 |
AE100..4FC |
1 | ||
| 82121-1H272 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H392 |
AE100..4FC |
1 | ||
| 82121-1K660 |
AE100..(CRE,MRN,TRN)..4FC |
1 | ||
| 82121-1K690 |
AE100..(CRE,MRN,TRN)..4FC ｱﾘ(*66) |
1 | ||
| 82121-1K691 |
AE100..(CRE,MRN,TRN)..4FC ｱﾘ(*66) |
1 | ||
| 82121-1K661 |
AE100..(CRE,MRN,TRN)..4FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12150 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 82620-12080 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AE10#..F,S,SJ,X |
1 | ||
| 82817-1A070 |
AE101..SJ,X;AE100..LVN..5F;AE100..CRE,MRN,TRN |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE101;AE100..LVN..5F;AE100..CRE,MRN,TRN |
1 | ||
| 82824-20050 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||

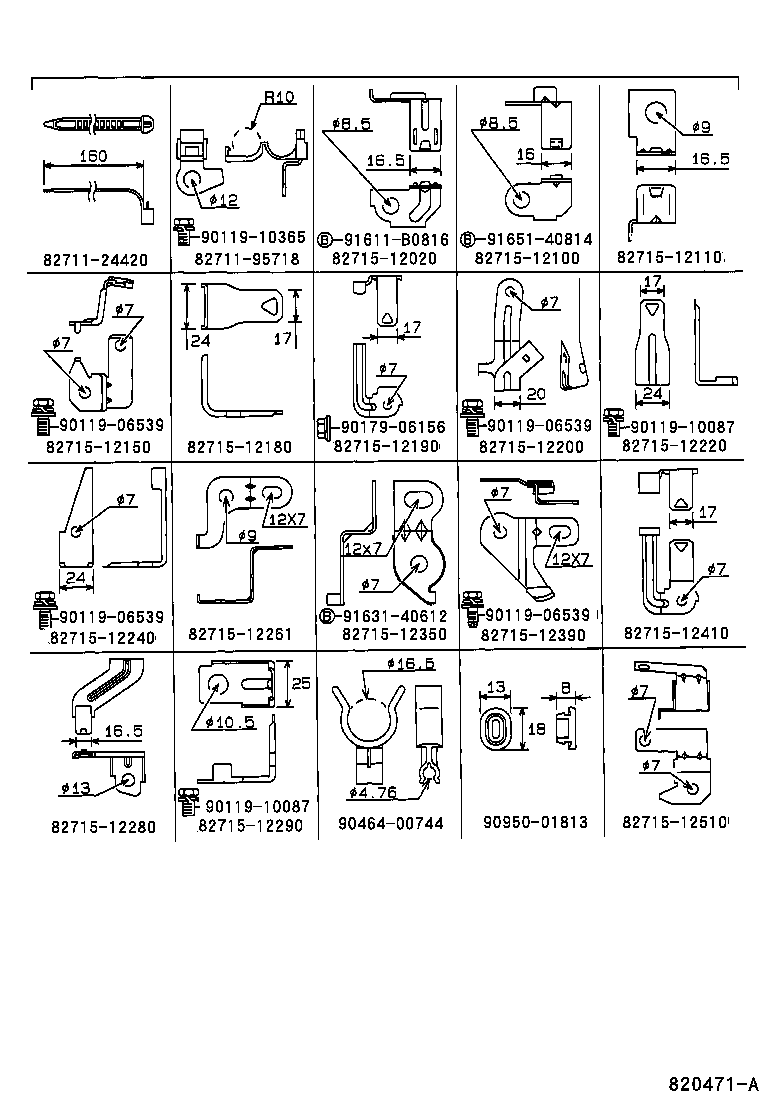

ILLUST NO. 3 OF 8(9106- )
ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 82711-95718 | ||||
| 82715-12020 | ||||
| 82715-12100 | ||||
| 82715-12110 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12190 | ||||
| 82715-12200 | ||||
| 82715-12220 | ||||
| 82715-12240 | ||||
| 82715-12261 | ||||
| 82715-12280 | ||||
| 82715-12290 | ||||
| 82715-12350 | ||||
| 82715-12390 | ||||
| 82715-12410 | ||||
| 82715-12510 | ||||
| 90119-06539 | ||||
| 90119-10087 | ||||
| 90119-10365 | ||||
| 90179-06156 | ||||
| 90464-00744 | ||||
| 90950-01813 | ||||
| 91611-B0816 | ||||
| 91631-40612 | ||||
| 91651-40814 | ||||

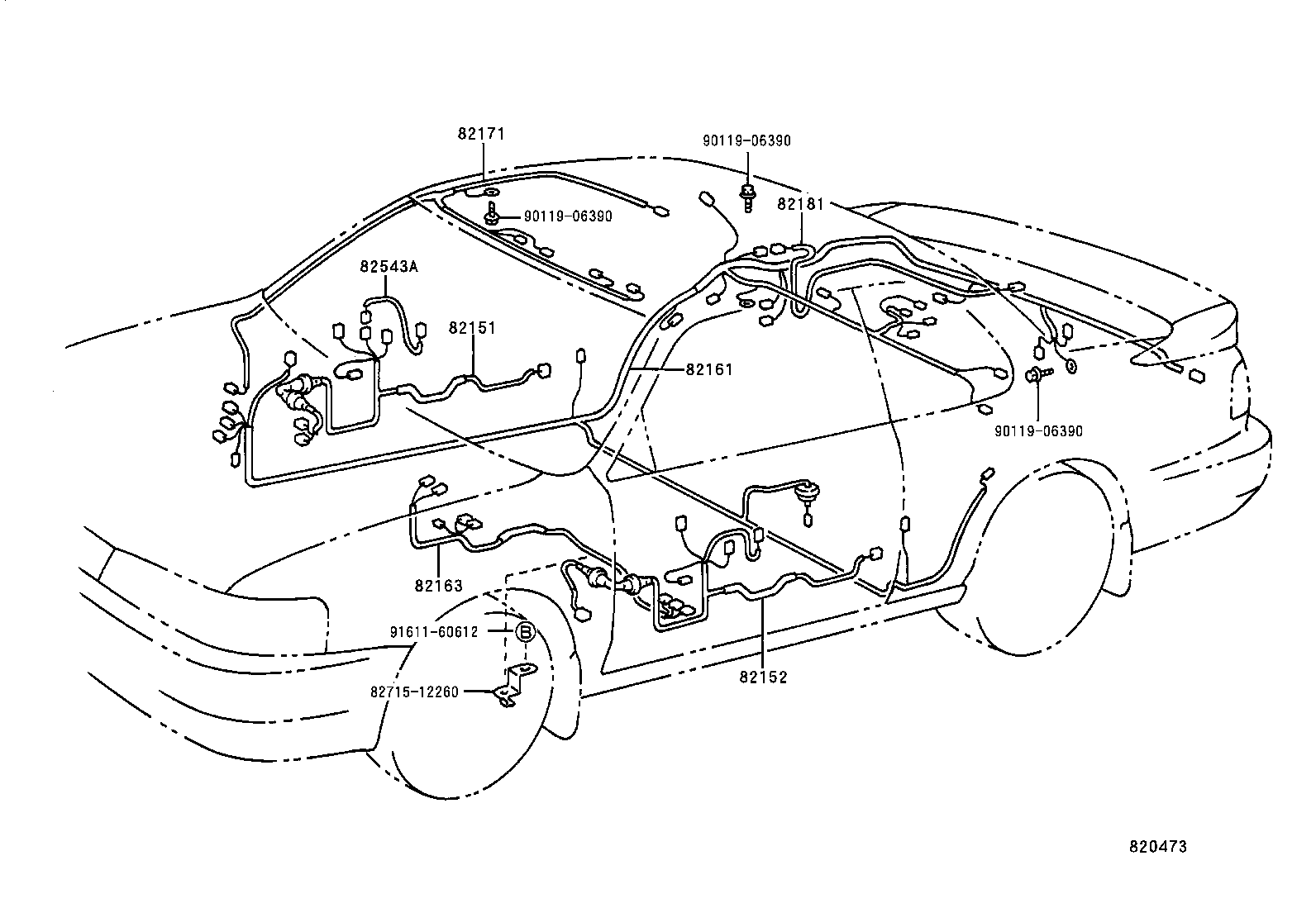

ILLUST NO. 5 OF 8(9106- )CP
ﾄﾞｱ,ﾌﾛｱ,ﾙ-ﾌ & ﾗﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A350 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82151-1A030 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82151-1A020 |
AE10#..GT,S |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12830 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82152-12820 |
AE10#..GT,S |
1 | ||
| 82152-1A170 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1K410 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F |
1 | ||
| 82161-1K140 |
AE10#..GT,S,SJ ｱﾘ(*66) |
1 | ||
| 82161-1L060 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F ｱﾘ(*66) |
1 | ||
| 82161-1L100 |
AE10#..GT,S,SJ ｱﾘ(*66) |
1 | ||
| 82161-1K130 |
AE10#..GT,S,SJ |
1 | ||
| 82161-1L190 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-12070 |
AE10# ｱﾘ(ｽ-ﾊﾟ ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82163-12060 |
AE10#..F,G,GT,GTZ,S,SJ,X ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82163-12060 |
AE10#..GT,S |
1 | ||
| 82163-12060 |
AE10#..F,GT,S |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12490 |
AE10#..CP ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-12480 |
AE10#..CP |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-12180 |
AE10#..CP |
1 | ||
| 82543A - WIRE, POWER WINDOW, RH | ||||
| 82543-12010 |
AE10#..CP |
1 | ||
| Common parts | ||||
| 82715-12260 | ||||
| 90119-06390 | ||||
| 91611-60612 | ||||
ILLUST NO. 7 OF 8(9106- )
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌｪﾝﾀﾞ |
1 | ||
| 90980-07299 |
AE10#..F,S,SJ,X MANIFOLD |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| 91651-40816 | ||||

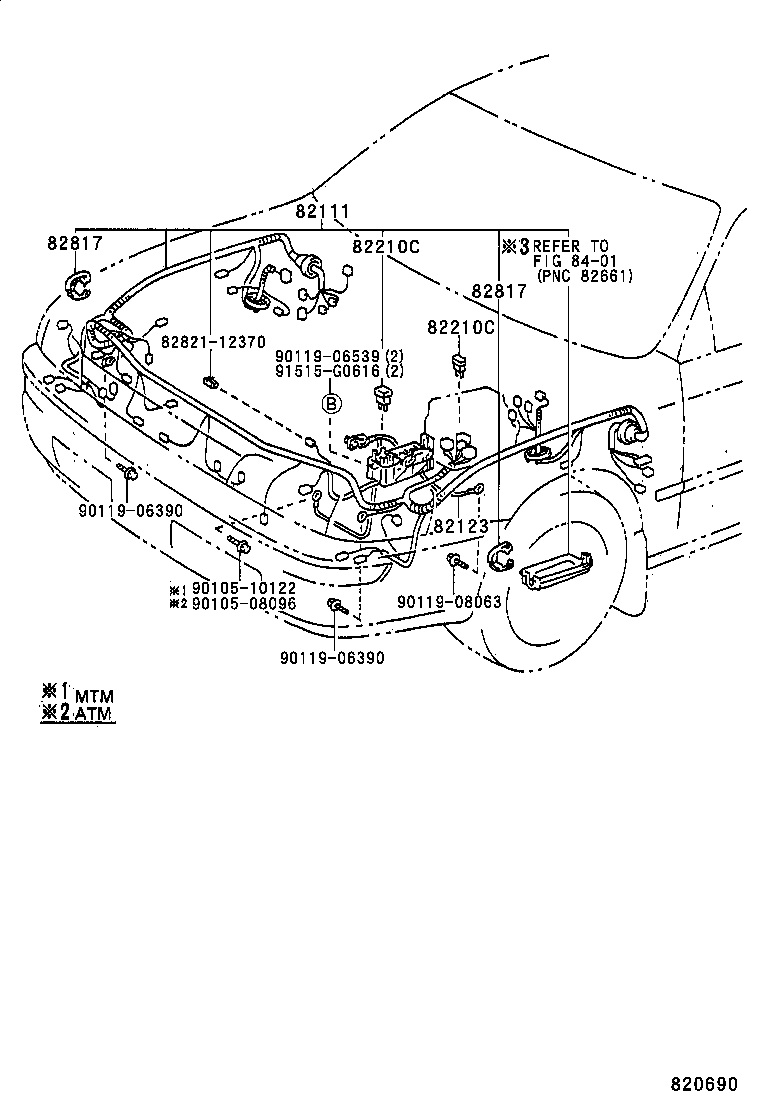

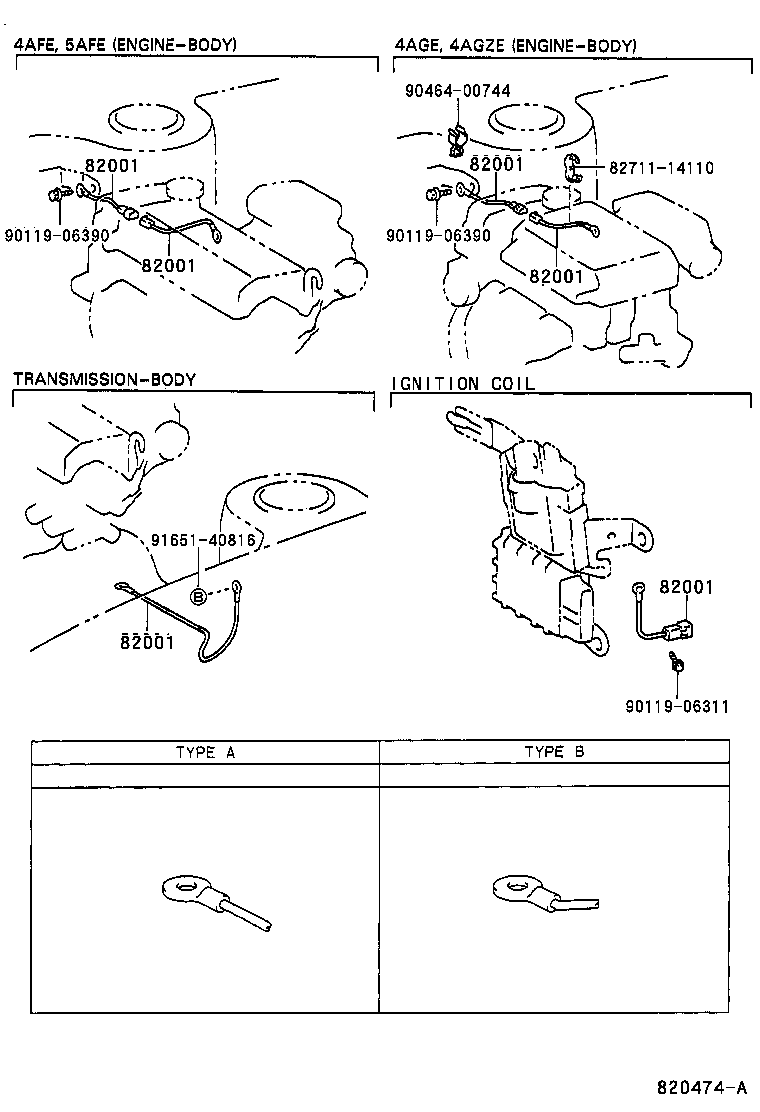

ILLUST NO. 1 OF 8(9106- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1E380 |
AE10#..TRN..(GT,GTAPX,S,SJ) ｱﾘ(*66)---ﾅｼ(TEMS) |
1 | ||
| 82111-1E870 |
AE10#..TRN..(GT,GTAPX,S,SJ) ｱﾘ(*66)---ﾅｼ(TEMS) |
1 | ||
| 82111-1E871 |
AE10#..TRN..(GT,GTAPX,S,SJ) ｱﾘ(*66)---ﾅｼ(TEMS) |
1 | ||
| 82111-1E340 |
AE10#..TRN..(GT,GTAPX,S,SJ) |
1 | ||
| 82111-1E460 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F |
1 | ||
| 82111-1E341 |
AE10#..TRN..(GT,GTAPX,S,SJ) |
1 | ||
| 82111-1H170 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F |
1 | ||
| 82111-1E872 |
AE10#..TRN..(GT,GTAPX,S,SJ) ｱﾘ(*66)---ﾅｼ(TEMS) |
1 | ||
| 82111-1H171 |
AE100..F;AE101..MRN;AE101..CRE..4FC;AE101..CRE..G..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12180 |
AE10# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A090 |
AE10# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A090 |
AE10# |
2 | ||
| Common parts | ||||
| 82821-12370 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90119-08063 | ||||
| 91515-G0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 8(9106- )G,GT,GTAPX
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1H270 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H271 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H390 |
AE100..4FC |
1 | ||
| 82121-1H391 |
AE100..4FC |
1 | ||
| 82121-1H272 |
AE100..4FC ｱﾘ(*66) |
1 | ||
| 82121-1H392 |
AE100..4FC |
1 | ||
| 82121-1K660 |
AE100..(CRE,MRN,TRN)..4FC |
1 | ||
| 82121-1K690 |
AE100..(CRE,MRN,TRN)..4FC ｱﾘ(*66) |
1 | ||
| 82121-1K691 |
AE100..(CRE,MRN,TRN)..4FC ｱﾘ(*66) |
1 | ||
| 82121-1K661 |
AE100..(CRE,MRN,TRN)..4FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
2 | ||
| 90982-08257 |
AE10# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08246 |
AE10# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08228 |
AE10# 50A,ｵｽ端子,赤 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12150 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 82620-12080 |
AE10#..F,G,GT,GTAPX,S,SJ,X ｱﾘ(*66) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE101;AE100..LVN..5F;AE100..CRE,MRN,TRN |
1 | ||
| 82824-20050 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-06557 | ||||
| 90179-08098 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||

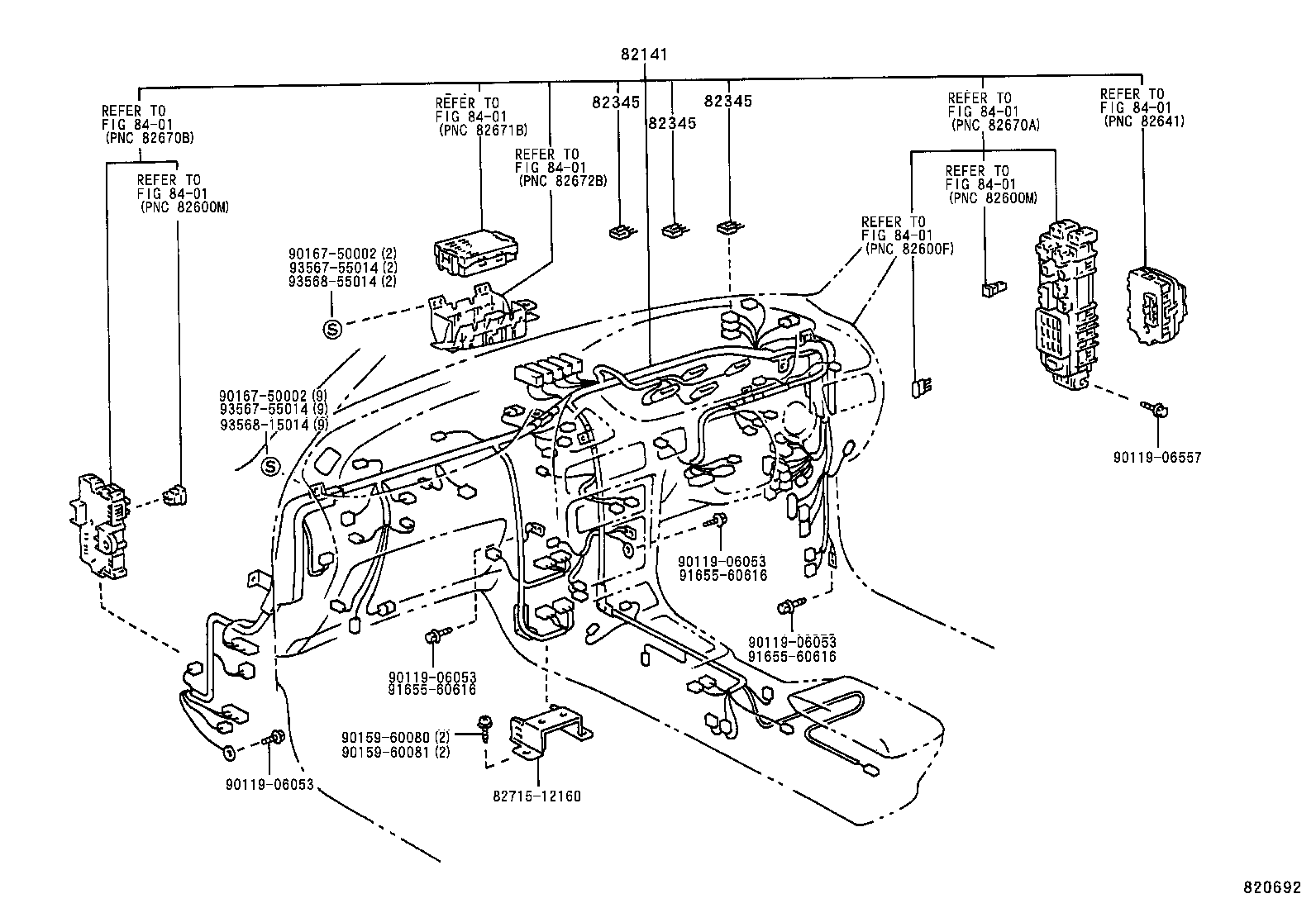

ILLUST NO. 4 OF 8(9106- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12370 |
AE100..TRN;AE100..LVN..4FC |
1 | ||
| 82141-12371 |
AE100..S |
1 | ||
| 82141-12730 |
AE100..F |
1 | ||
| 82141-1A700 |
AE100..F ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82141-1E650 |
AE100..F |
1 | ||
| 82141-1E660 |
AE100..F ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82141-1E790 |
AE100..S |
1 | ||
| 82141-1E651 |
AE100..F |
1 | ||
| 82141-1E661 |
AE100..F ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82141-1H320 |
AE100..F ﾌﾞﾗﾂｸ ｾﾚｽ / ﾌﾞﾗﾂｸ ﾏﾘﾉ |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..GT,S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-32020 |
AE10#..S,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..GT,S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-32020 |
AE10#..S,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..GT,S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-32020 |
AE10#..S,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| Common parts | ||||
| 82715-12160 | ||||
| 90119-06053 | ||||
| 90119-06557 | ||||
| 90159-60080 | ||||
| 90159-60081 | ||||
| 90167-50002 | ||||
| 91655-60616 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
