AE100-ATMGK (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
5AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

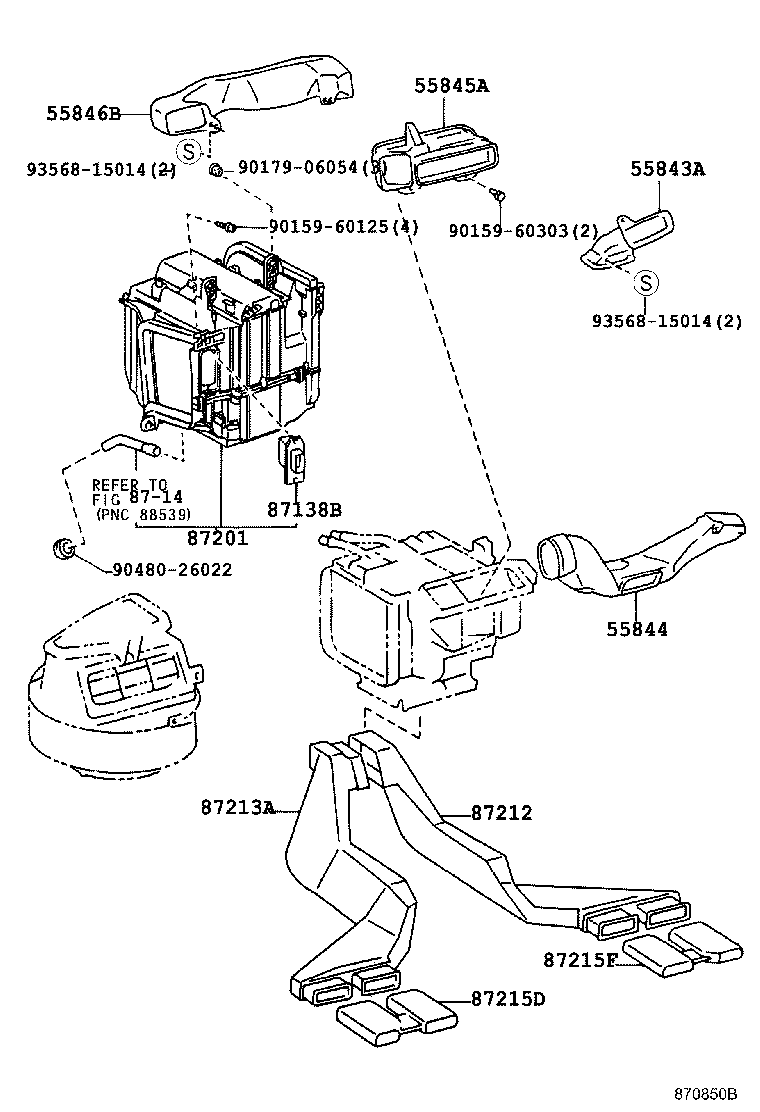

ILLUST NO. 2 OF 3(9505- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12220 |
AE10#..HT |
1 | ||
| 55843-12220 |
AE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12320 |
AE10# |
1 | ||
| 55844-12321 |
AE10#..HT |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12160 |
AE10#..HT |
1 | ||
| 55845-12160 |
AE10# |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12250 |
AE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55846-12170 |
AE10# |
1 | ||
| 55846-12170 |
AE10#..HT..(4FC,5F) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE100 |
1 | ||
| 87138-12130 |
AE100 |
1 | ||
| 87138-12130 |
AE10#..F,X |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12340 |
AE100 |
1 | ||
| 87201-12580 |
AE100 |
1 | ||
| 87201-12350 |
AE100 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12580 |
AE10#..F,X |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
AE10# |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
AE10# |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
AE10# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
AE10# |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

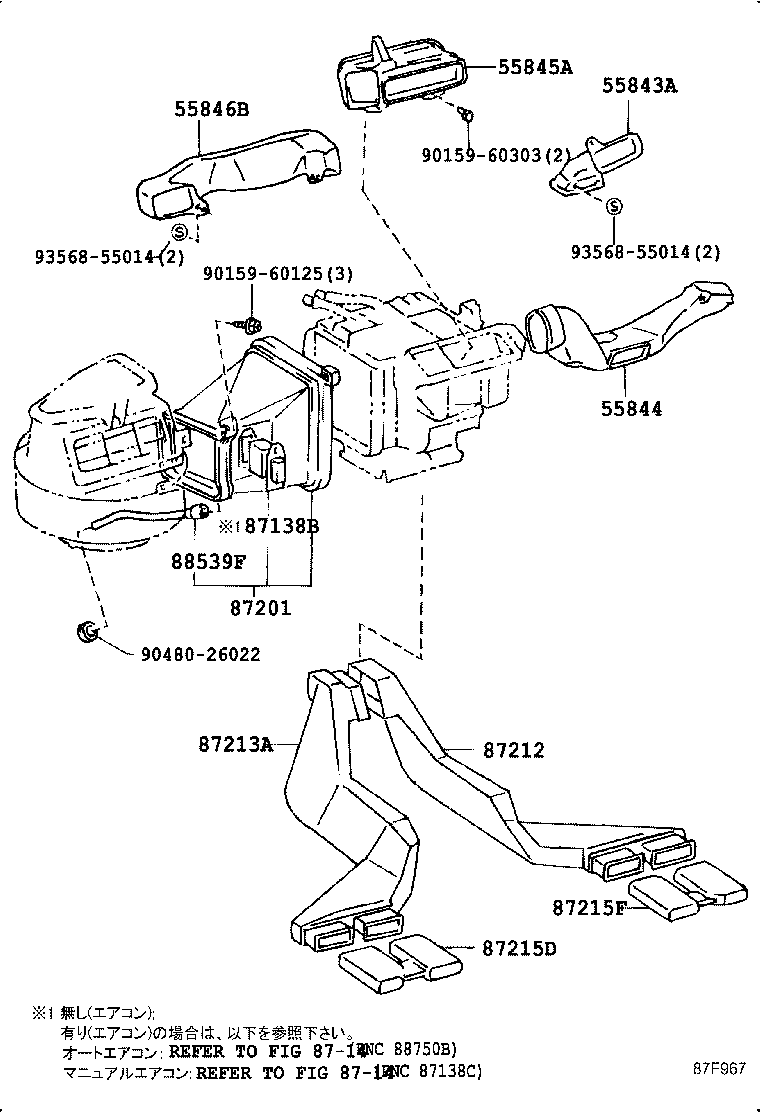

ILLUST NO. 2 OF 3(9106-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12220 |
AE10#..HT |
1 | ||
| 55843-12220 |
AE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12320 |
AE10# |
1 | ||
| 55844-12321 |
AE10#..HT |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12160 |
AE10#..HT |
1 | ||
| 55845-12160 |
AE10# |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12250 |
AE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55846-12170 |
AE10# |
1 | ||
| 55846-12170 |
AE10#..HT..(4FC,5F) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE100 |
1 | ||
| 87138-12130 |
AE100 |
1 | ||
| 87138-12130 |
AE10#..F,X |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12340 |
AE100 |
1 | ||
| 87201-12580 |
AE100 |
1 | ||
| 87201-12350 |
AE100 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12580 |
AE10#..F,X |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
AE10# |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
AE10# |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
AE10# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
AE10# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-12110 |
AE100 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
