AE100-ACPGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

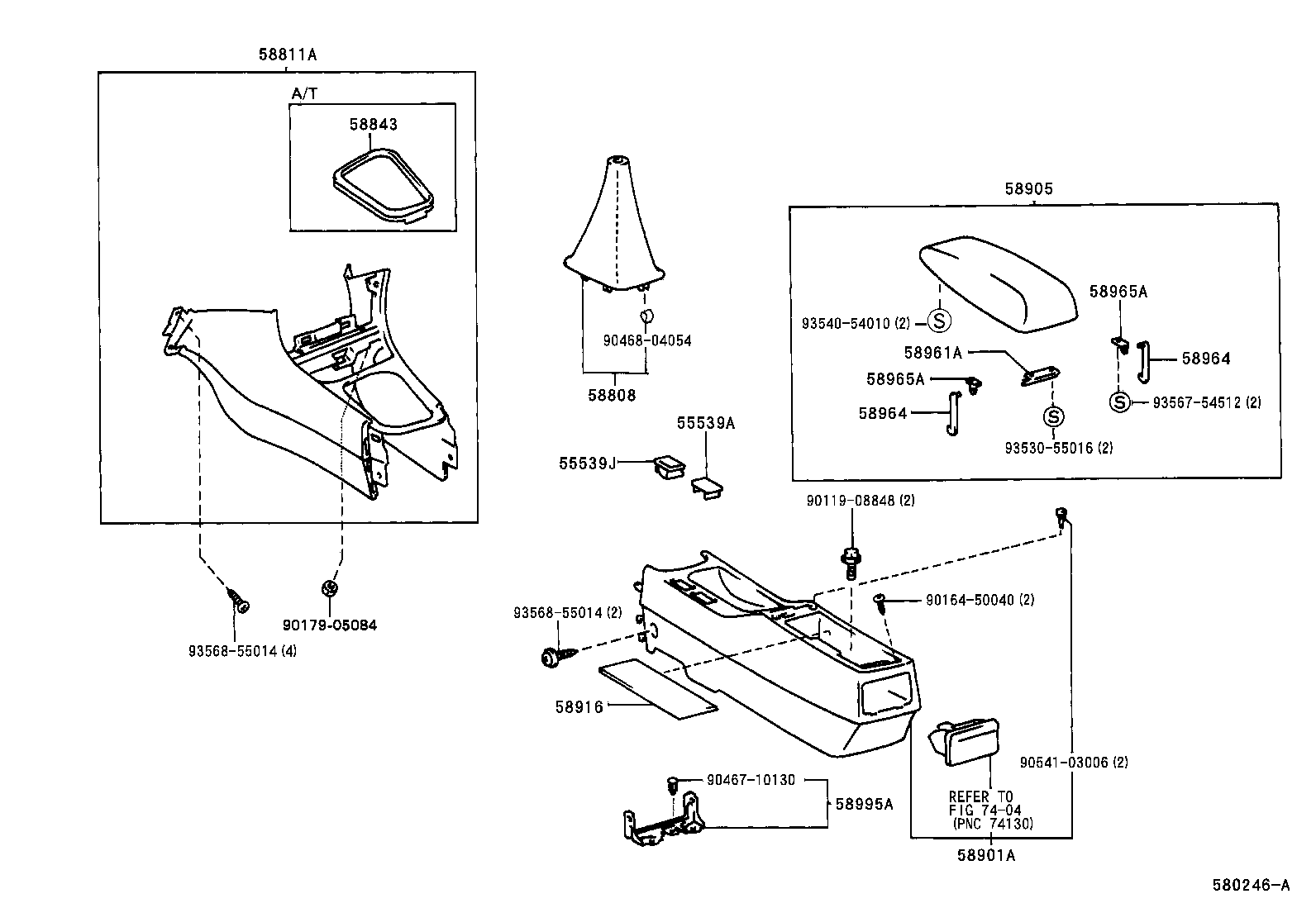

Click highlighted areas on diagram

diagram 55539A 55539J 58808 58811A 58843 58901A 58905 58916 58961A 58964 58964 58965A 58965A 58995A 7404 9011908848 9016450040 9046710130 9046804054 9054103006 9353055016 9354054010 9356754512 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-32040C0

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
55539-32040C0

AE100;AE101..(GT,GTZ,X)..5F

BLACK,TRIM2#

 1
55539-32040G0

AE100..F;AE101..X..5F

SPRUCE,TRIM6#

 1
55539-32040C0

AE100;AE101..(GT,GTAPX,GTZ,SJ,X)..5F

BLACK,TRIM2#

 1
55539-32040C0

AE100..S;AE101..CP..5F

BLACK,TRIM2#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-2002011

AE100;AE101..(G,GT,GTZ,X)..5F

BLACK,TRIM2#

 1
55539-32040C0

AE100;AE101..(GT,GTZ)..5F

BLACK,TRIM2#

 1
55539-20020C0

AE100;AE101..(G,GT,GTZ,X)..5F

BLACK,TRIM2#

 1
58811A - BOX, CONSOLE, FRONT
58811-12490C0

AE10#..4FC

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-1207022

AE10#..(F,GTAPX,S,SJ,X)..4FC

BLACK,TRIM2#

 1
58843-12070G0

AE10#..(F,X)..4FC

SPRUCE,TRIM6#

 1
58843-1207022

AE10#..(F,G,GT,S,X)..4FC

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12270C0

AE10#

BLACK,TRIM2#

 1
58901-12270G0

AE10#..F,X

SPRUCE,TRIM6#

 1
58901-12270C0

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12140C0

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
58905-12150C0

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2#

 1
58905-12140G0

AE10#..F,X

SPRUCE,TRIM6#

 1
58905-12140C0

AE10#

BLACK,TRIM2#

 1
58905-12150G0

AE10#..F,X

ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,SPRUCE,TRIM6#

 1
58916 - MAT, BOX BOTTOM
58916-12020

AE10#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-12060G0

AE10#..F,X

SPRUCE,TRIM6#

 1
58961-12060C0

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
58961-12060C0

AE10#

BLACK,TRIM2#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12050

AE10#

右側

 1
58965-12050

AE10#

左側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12050

AE10#

右側

 1
58965-12050

AE10#

左側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

AE10#..4FC,5F

左側

 1
58965-20020

AE10#..4FC,5F

右側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

AE10#..4FC,5F

左側

 1
58965-20020

AE10#..4FC,5F

右側

 1
Common parts
90119-08848
90164-50040
90467-10130
90468-04054
90541-03006
93530-55016
93540-54010
93567-54512
93568-55014
Linked diagrams
7404
