AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

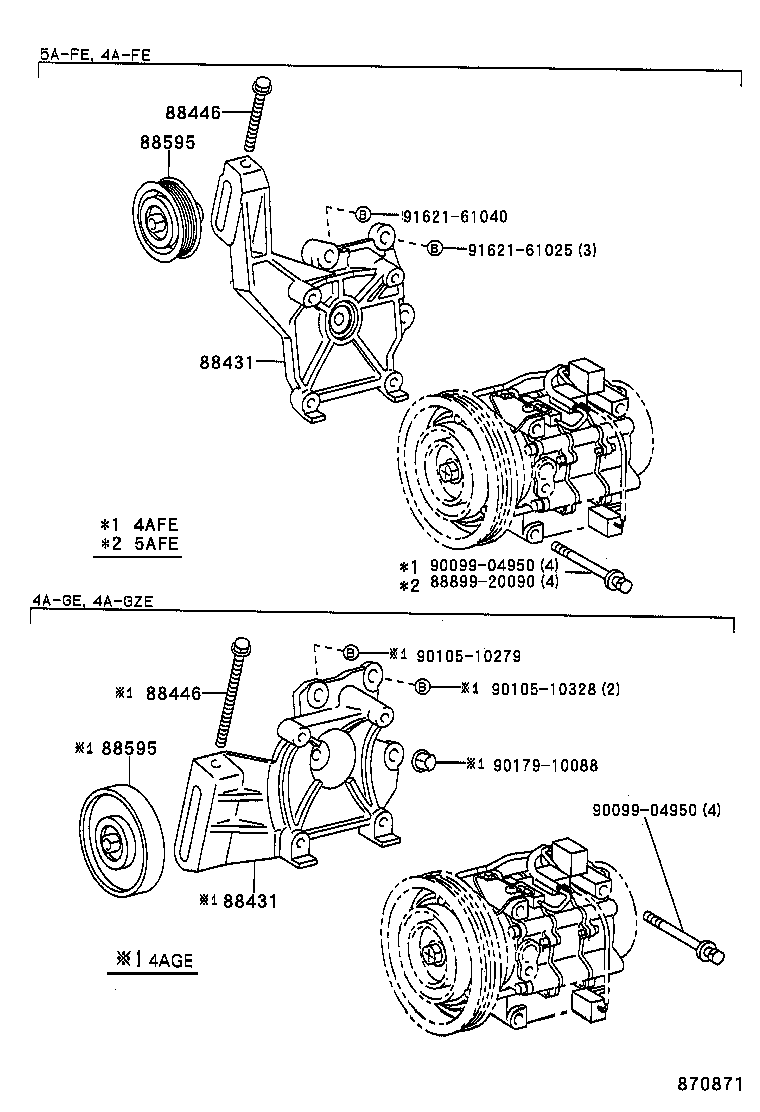

ILLUST NO. 1 OF 2(9106- )

Click highlighted areas on diagram

diagram 88431 88431 88446 88446 88595 88595 8889920090 9009904950 9009904950 9010510279 9010510328 9017910088 9162161025 9162161040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12500

AE10#..F,S,SJ,X

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12500

AE10#..F,S,SJ,X

 1
88446 - BOLT, IDLE PULLEY
88446-12030

AE10#..F,S,SJ,X

 1
88446 - BOLT, IDLE PULLEY
88446-12030

AE10#..F,S,SJ,X

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

AE10#..F,S,SJ,X

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

AE10#..F,S,SJ,X

 1
Common parts
88899-20090
90099-04950
90105-10279
90105-10328
90179-10088
91621-61025
91621-61040

ILLUST NO. 2 OF 2(9106- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 8871822420 9009904349 9009907065 9009907114 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12180

AE10#..S,SJ

 1
88412-1A020

AE10#..F,S,SJ,X

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-60030

AE10#..GTZ,S,SJ

 1
88411-1A010

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
88320 - COMPRESSOR ASSY, COOLER
88320-1A040

AE10#..S,SJ

 1
88320-1A240

AE10#..F,S,SJ,X

 1
88320-1A350

AE10#..F,S,SJ,X

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AE10#..F,S,SJ,X

3個ｾｯﾄ

 1
90099-01554

AE10#..F,S,SJ,X

厚さ=0.3

 1
90099-01553

AE10#..F,S,SJ,X

厚さ=0.1

 1
90099-01555

AE10#..F,S,SJ,X

厚さ=0.5

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

AE10#

 1
88410 - CLUTCH ASSY, MAGNET
88410-12290

AE10#..S,SJ

 1
88410-1A030

AE10#..F,S,SJ,X

 1
Common parts
88718-22420
90099-04349
90099-07065
90099-07114
93319-15008
