AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

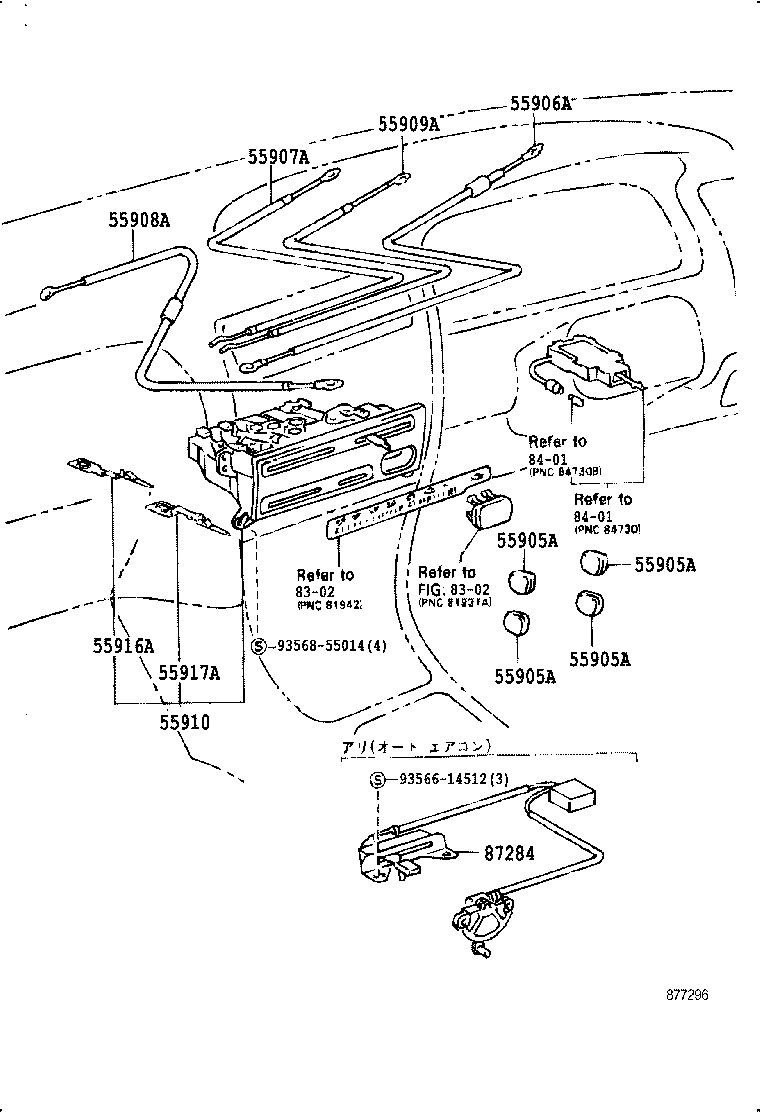

ILLUST NO. 1 OF 3(9106- )F,GT,S,SJ,X

Click highlighted areas on diagram

LEVER CONTROL TYPE

diagram 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55916A 55917A 8302 8302 8401 8401 87284 9356614512 9356855014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89115

AE100

 4
55905-89115

AE10#..F,S,SJ

 4
55905-89115

AE100..F

 4
55905-89115

AE10#..F,GT,S,SJ

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE100

 4
55905-89115

AE10#..F,S,SJ

 4
55905-89115

AE100..F

 4
55905-89115

AE10#..F,GT,S,SJ

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE100

 4
55905-89115

AE10#..F,S,SJ

 4
55905-89115

AE100..F

 4
55905-89115

AE10#..F,GT,S,SJ

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE100

 4
55905-89115

AE10#..F,S,SJ

 4
55905-89115

AE100..F

 4
55905-89115

AE10#..F,GT,S,SJ

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12340

AE10#..F,S,SJ,X

 1
55906-12340

AE100

 1
55906-12341

AE10#..F,S,SJ,X

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12370

AE100

 1
55907-12371

AE10#..F,S,SJ,X

 1
55907-12370

AE10#..F,S,SJ,X

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12270

AE10#..F,S,SJ,X

 1
55908-12270

AE100

 1
55908-12271

AE10#..F,S,SJ,X

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12251

AE10#..F,S,SJ,X

 1
55909-12250

AE10#..F,S,SJ,X

 1
55909-12250

AE100

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12580

AE10#..F,S,SJ

 1
55910-12580

AE100

 1
55910-12581

AE10#..F,S,SJ

 1
55910-12581

AE10#..F,GT,S,SJ

 1
55916A - LEVER, COOLER CONTROL
55916-12060

AE10#..F,S,SJ,X

 1
55917A - LEVER, TEMPERATURE DAMPER CONTROL
55917-12120

AE10#..F,S,SJ

 1
55917-12140

AE10#..F,S,SJ,X

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-12140

AE100

 1
Common parts
93566-14512
93568-55014
Linked diagrams
8302
8401

ILLUST NO. 2 OF 3(9106-9505)

Click highlighted areas on diagram

diagram 55843A 55844 55845A 55846B 87138B 8714 8714 87201 87212 87213A 87215D 87215F 88539F 9015960125 9015960303 9048026022 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12220

AE10#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12320

AE10#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12160

AE10#

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-12170

AE10#

 1
87138B - RESISTOR, HEATER BLOWER
87138-12130

AE100

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12340

AE100

 1
87201-12350

AE100

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87212 - DUCT, AIR, REAR NO.1
87212-12080

AE10#

 1
87213A - DUCT, AIR REAR NO.2
87213-12050

AE10#

 1
87215D - DUCT, AIR, REAR NO.4
87216-12010

AE10#

 1
87215F - DUCT, AIR, REAR NO.3
87215-12020

AE10#

 1
88539F - HOSE, DRAIN
88539-12110

AE100

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90159-60125
90159-60303
90480-26022
93568-55014
Linked diagrams
8714

ILLUST NO. 3 OF 3(9106- )

Click highlighted areas on diagram

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

diagram 88625C 88625C 88625H 88669 886881A100 88897P 9009490402 9009900968 9009900968 9011906416 9351055012 9356855014
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-12260

AE10#

AMBIENT TEMP

 1
88790-12020

AE10#

ROOM TEMP

 1
88625C - THERMISTOR, COOLER
88625-12260

AE10#

AMBIENT TEMP

 1
88790-12020

AE10#

ROOM TEMP

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-12290

AE10#

 1
88669 - HOSE, COOLER AIR
88669-12030

AE100

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88669-12030

AE100

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88669-12030

AE10#..F,S,SJ

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88669-12030

AE10#..F,GT,S,SJ

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88897P - ASPIRATOR
88897-24030

AE100

 1
Common parts
88688-1A100
90094-90402
90099-00968
90119-06416
93510-55012
93568-55014
