Toyota Lvn/cre/trn/mrn AE100 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995

Engine 5AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

ﾚﾊﾞ-ｼｷﾋ-ﾀｺﾝﾄﾛ-ﾙ

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12030	AE10#	06/1991 - 12/2999	1
87126B - CLAMP, HEATER CONTROL
87126-12040	AE100	06/1991 - 05/1992	1
87126-12040	AE10#..F,S,SJ,X	05/1992 - 05/1993	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12280	AE100	06/1991 - 05/1992	1
87130-12280	AE10#..F,GT,S,SJ	05/1993 - 03/1995	1
87130-12280	AE10#..F,S,SJ	05/1992 - 05/1993	1
88605U - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-1E870	AE10#	06/1991 - 12/2999	1
Common parts
90179-06054

Click highlighted areas on diagram

ﾚﾊﾞ-ｼｷﾋ-ﾀｺﾝﾄﾛ-ﾙ

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12470	AE10# ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 05/1996	1
87107-12380	AE10#	06/1991 - 05/1996	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12470	AE10# ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 05/1996	1
87107-12380	AE10#	06/1991 - 05/1996	1
87126A - CLAMP, HEATER CONTROL
87126-12050	AE100	06/1991 - 05/1992	2
87126-12050	AE10#..F,S,SJ,X	05/1992 - 05/1993	2
87150 - RADIATOR ASSY, HEATER
87150-12570	AE10#..F,S,SJ	05/1992 - 05/1993	1
87150-12600	AE10#..F,S,SJ ｶﾝﾚｲﾁｼﾖｳ	05/1992 - 05/1993	1
87150-12570	AE100	06/1991 - 05/1992	1
87150-12600	AE100 ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 05/1992	1
87150-12570	AE10#..F,GT,S,SJ	05/1993 - 03/1995	1
87150-12600	AE10#..F,GT,S,SJ ｶﾝﾚｲﾁｼﾖｳ	05/1993 - 03/1995	1
87150-12601	AE10#..F,GT,S,SJ ｶﾝﾚｲﾁｼﾖｳ	03/1995 - 05/1995	1
87150-12571	AE10#..F,GT,S,SJ	03/1995 - 05/1995	1
87201D - DUCT SUB-ASSY, AIR
87201-12300	AE100	06/1991 - 05/1992	1
87201-12310	AE100 ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 05/1992	1
87201-12300	AE10#..F,S,SJ	05/1992 - 05/1993	1
87201-12310	AE10#..F,GT,S,SJ ｶﾝﾚｲﾁｼﾖｳ	05/1993 - 12/2999	1
87201-12310	AE10#..F,S,SJ ｶﾝﾚｲﾁｼﾖｳ	05/1992 - 05/1993	1
87201-12300	AE10#..F,GT,S,SJ	05/1993 - 12/2999	1
87211F - DUCT, AIR
87211-12160	AE10#	06/1991 - 05/1995	1
87211-12170	AE10# ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 05/1995	1
Common parts
90179-06054

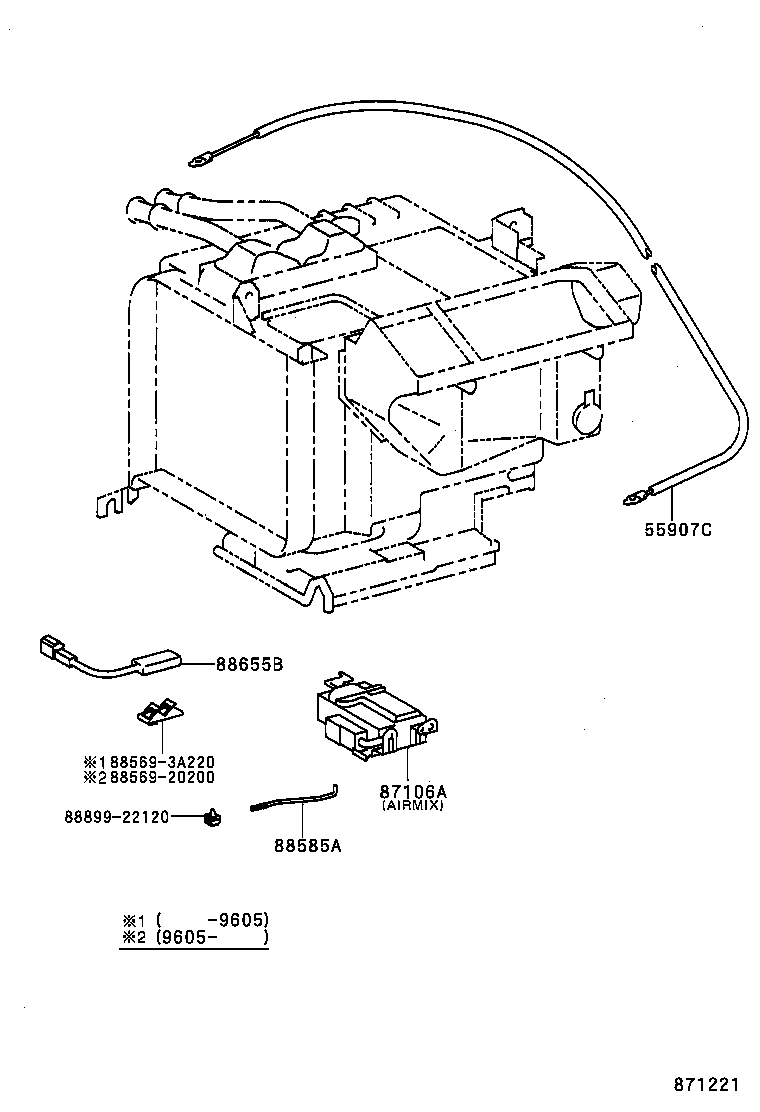

Click highlighted areas on diagram

ﾚﾊﾞ-ｼｷﾋ-ﾀｺﾝﾄﾛ-ﾙ,ｱﾘ(ｵ-ﾄｴｱｺﾝ)

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12390	AE100 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	06/1991 - 05/1992	1
55907-12390	AE10#..F,GT,S,SJ ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1993 - 12/2999	1
55907-12390	AE10#..F,S,SJ ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1992 - 05/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-12050	AE10# AIR MIX CONTROL	06/1991 - 05/1993	1
87106-12060	AE10# ｶﾝﾚｲﾁｼﾖｳ,AIR MIX CONTROL	06/1991 - 05/1995	1
88585A - SHAFT, HEATER AIR DAMPER
88585-12080	AE100 ｶﾝﾚｲﾁｼﾖｳ	06/1991 - 12/2999	1
88585-12070	AE100	06/1991 - 12/2999	1
88655B - SWITCH, WATER TEMPERATURE
88790-28010	AE100 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	06/1991 - 05/1992	1
Common parts
88569-20200
88569-3A220
88899-22120
