AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1995
Engine
5AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )CP

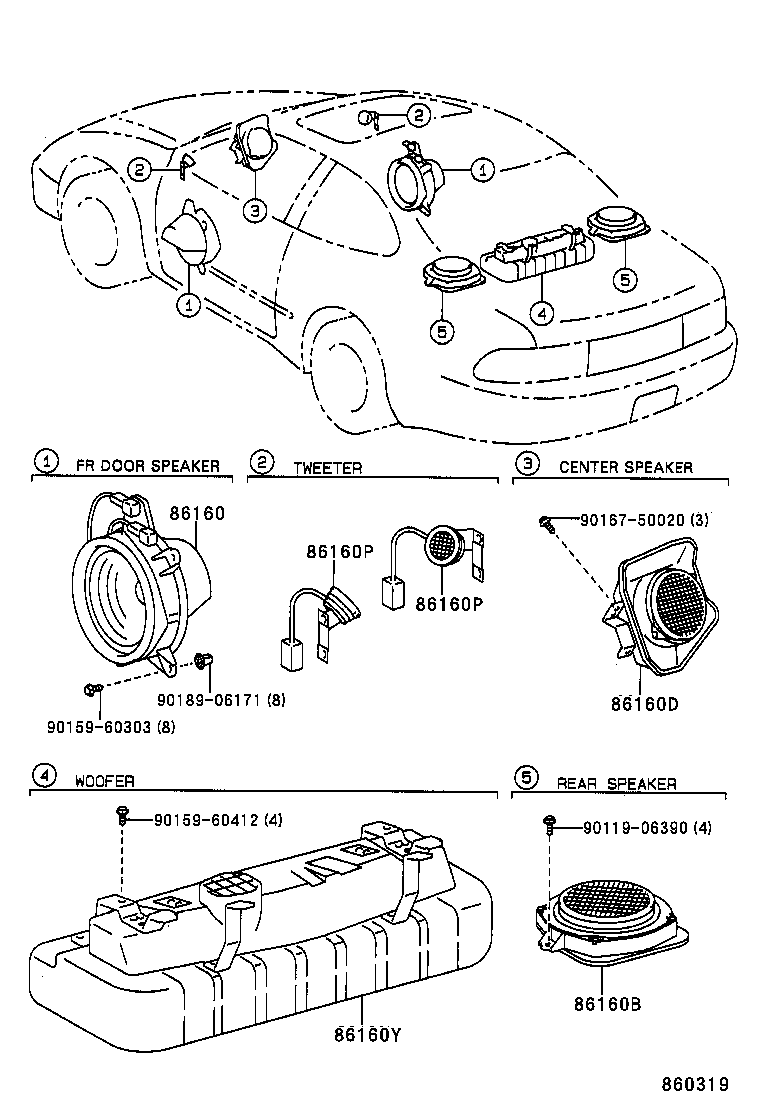

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12490 |
AE10#..CP |
2 | ||
| 86160-12490 |
AE10#..GT,S ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160-12810 |
AE10#..CP |
2 | ||
| 86160-12600 |
AE100..F ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),左側 |
1 | ||
| 86160-12590 |
AE100..F ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),右側 |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-12530 |
AE100..S;AE101..LVN..(GT,GTZ);AE101..TRN..(GT,GTZ,SJ) ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160-12540 |
AE10#..CP ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160-12560 |
AE10#..GT,GTZ,S,SJ ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160-12690 |
AE100..F ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),左側 |
1 | ||
| 86160-12530 |
AE10#..CP |
2 | ||
| 86160-12680 |
AE100..F ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),右側 |
1 | ||
| 86160-12540 |
AE10#..GT,GTZ,S,SJ ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT | ||||
| 86160-12550 |
AE10# |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-12510 |
AE10#..CP 右側 |
1 | ||
| 86160-12520 |
AE10#..CP 左側 |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-12510 |
AE10#..CP 右側 |
1 | ||
| 86160-12520 |
AE10#..CP 左側 |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86150-12170 |
AE10#..CP |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60303 | ||||
| 90159-60412 | ||||
| 90167-50020 | ||||
| 90189-06171 | ||||
