AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn

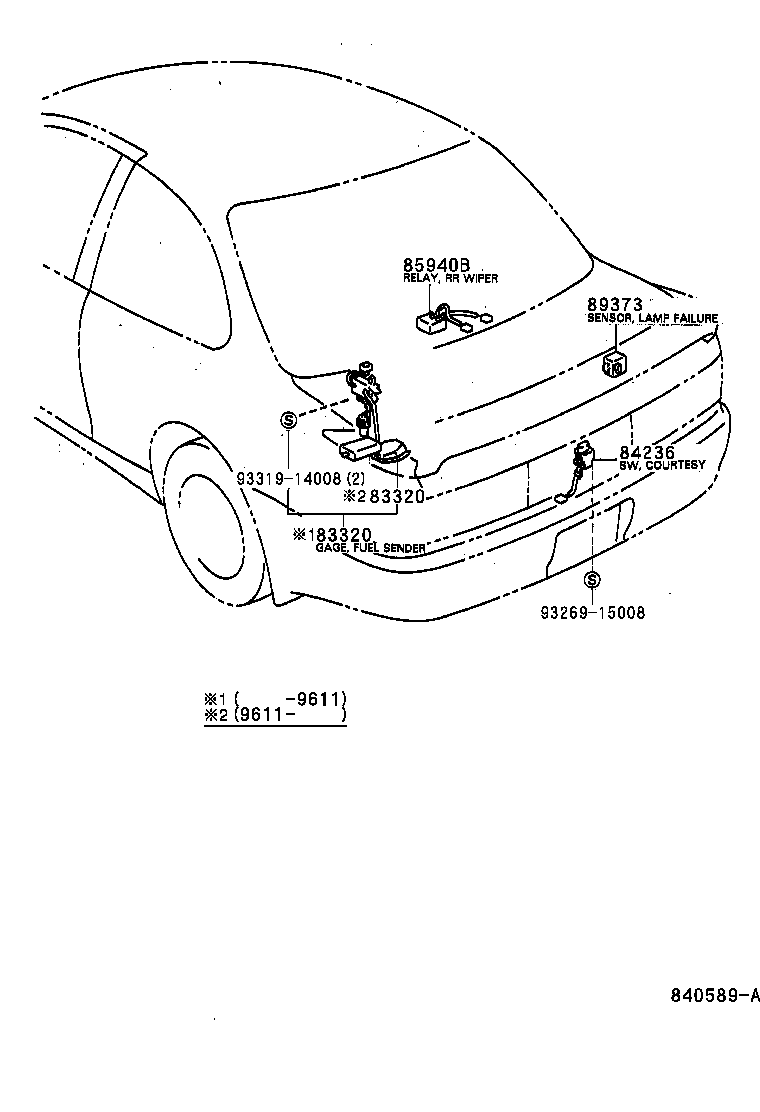

ILLUST NO. 8 OF 8(9106- )CP
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80203 |
AE10# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80203 |
AE10# |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-32060 |
AE10#..F,G,GTAPX,GTZ,SJ,X |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22270 |
AE10#..F,G,S,SJ,X ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ ｼﾂﾅｲ ﾖｳ) |
1 | ||
| 89373-12140 |
AE10#..F,G,GT,S,SJ,X ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ ｼﾂﾅｲ ﾖｳ) |
1 | ||
| 89373-12130 |
AE10# |
1 | ||
| 89373-28020 |
AE10# |
1 | ||
| 89373-12140 |
AE10#..F,G,S,SJ,X ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ ｼﾂﾅｲ ﾖｳ) |
1 | ||
| Common parts | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
ILLUST NO. 2 OF 8(9106- )

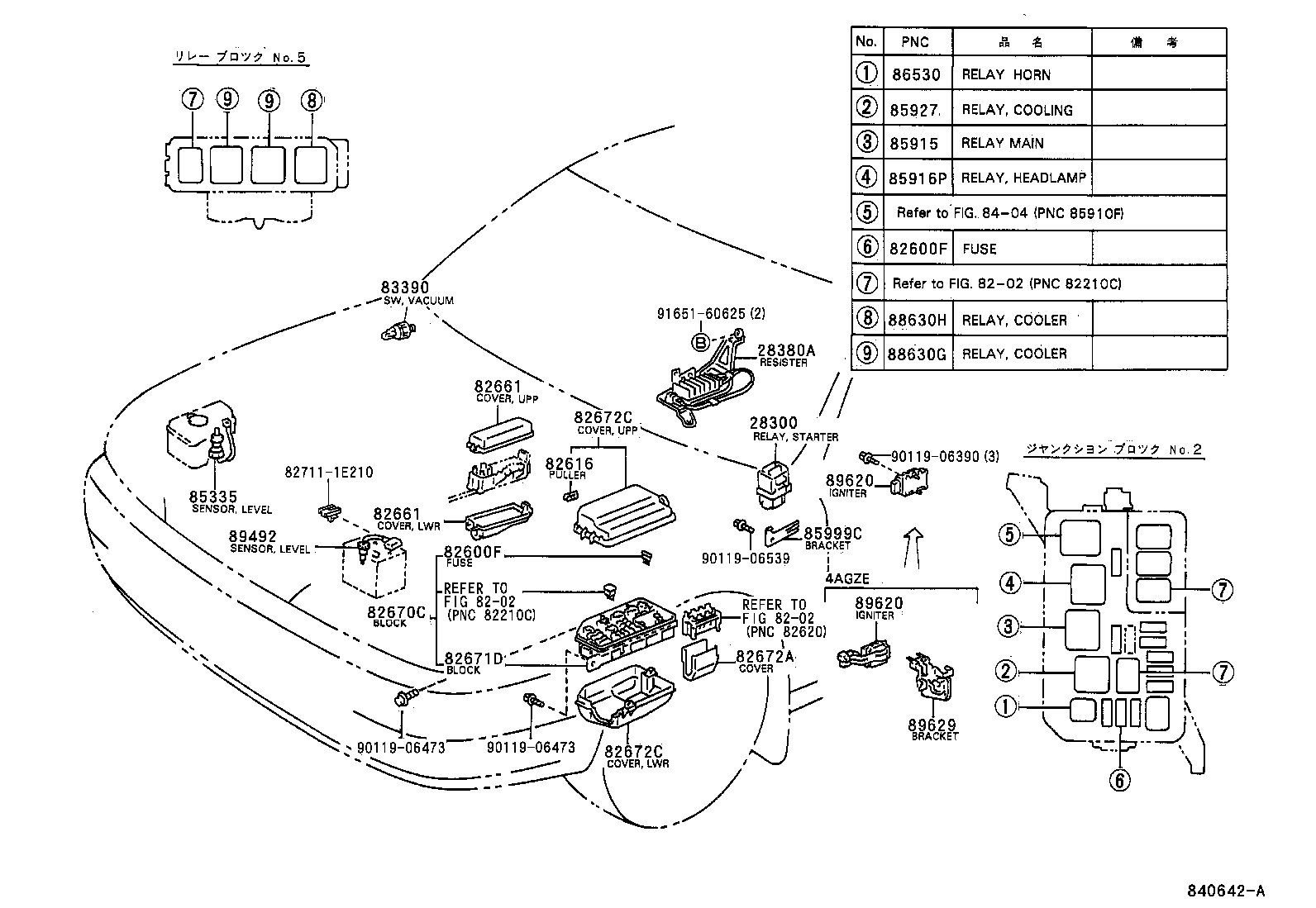

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16020 |
4AFE,4AGE,5AFE..AE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10# 下側 |
1 | ||
| 82661-12220 |
AE100..S;AE101..CP..4FC;AE101..(CRE,LVN,TRN)..(GT,GTAPX,GTZ,SJ,X)..5F 下側 |
1 | ||
| 82661-12200 |
AE10# 上側 |
1 | ||
| 82661-12200 |
AE100..S;AE101..CP..4FC;AE101..(CRE,LVN,TRN)..(GT,GTAPX,GTZ,SJ,X)..5F 上側 |
1 | ||
| 82661-12200 |
AE10# 上側 |
1 | ||
| 82661-12220 |
AE10# 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10# 下側 |
1 | ||
| 82661-12220 |
AE100..S;AE101..CP..4FC;AE101..(CRE,LVN,TRN)..(GT,GTAPX,GTZ,SJ,X)..5F 下側 |
1 | ||
| 82661-12200 |
AE10# 上側 |
1 | ||
| 82661-12200 |
AE100..S;AE101..CP..4FC;AE101..(CRE,LVN,TRN)..(GT,GTAPX,GTZ,SJ,X)..5F 上側 |
1 | ||
| 82661-12200 |
AE10# 上側 |
1 | ||
| 82661-12220 |
AE10# 下側 |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12270 |
AE10#..F,S,SJ,X |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12170 |
AE10#..F,S,SJ,X |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10# LOWER |
1 | ||
| 82672-12250 |
AE10#..F,G,GT,GTAPX,S,SJ,X UPPER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10# LOWER |
1 | ||
| 82672-12250 |
AE10#..F,G,GT,GTAPX,S,SJ,X UPPER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12180 |
AE10#..F,S,SJ,X |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE100 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
2 | ||
| 90987-02009 |
AE100 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
2 | ||
| 90987-02010 |
AE100 ｱﾘ(ｴｱｺﾝ=DOP) |
2 | ||
| 90987-02009 |
AE100 ｱﾘ(ｴｱｺﾝ=DOP) |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AE10# |
1 | ||
| Common parts | ||||
| 82711-1E210 | ||||
| 90119-06390 | ||||
| 90119-06473 | ||||
| 90119-06539 | ||||
| 91651-60625 | ||||
| Linked diagrams | ||||
| 8202 | ||||

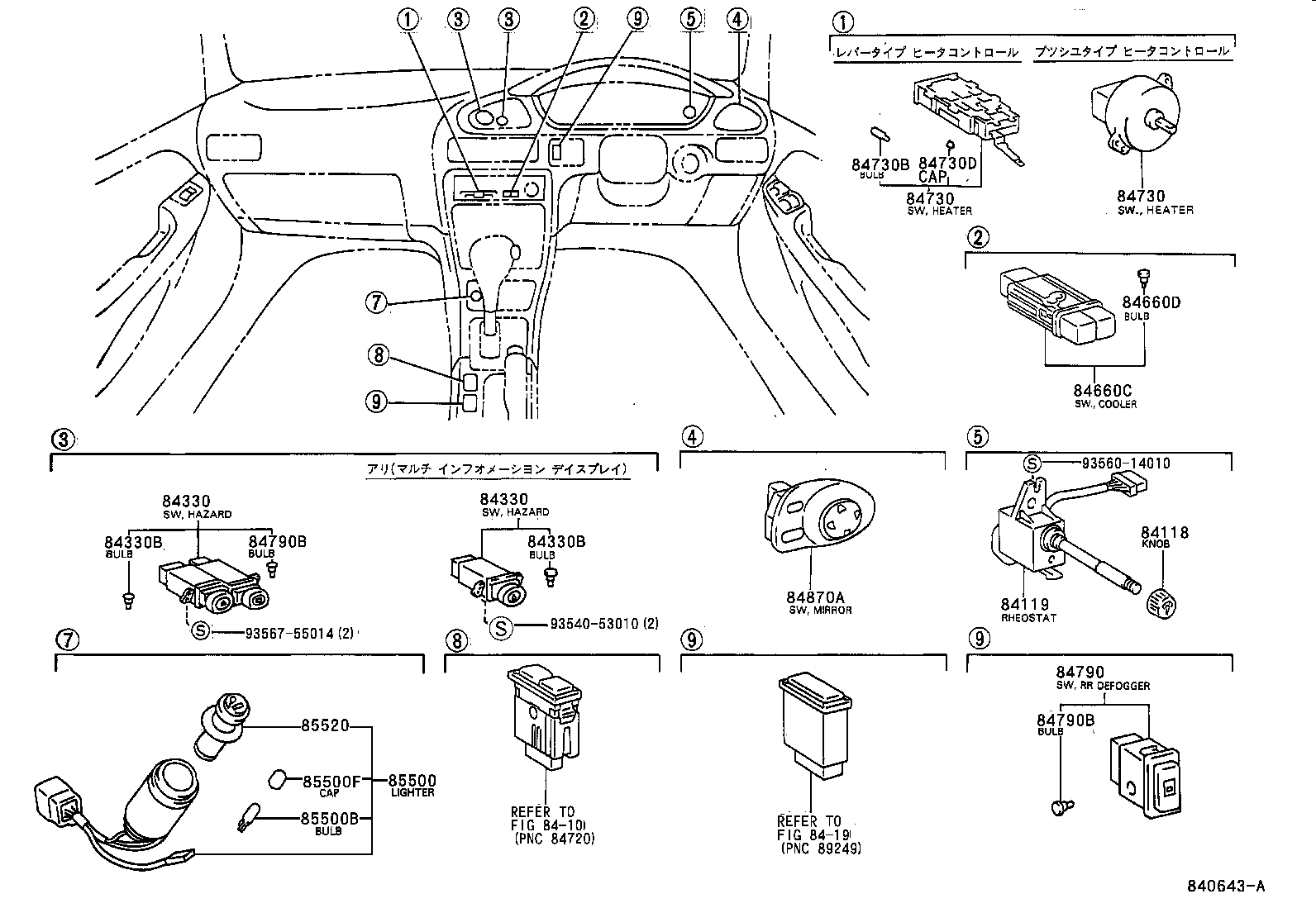

ILLUST NO. 3 OF 8(9106- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84790-1231022 |
AE10#..F,G,GT,S,X BLACK,TRIM2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84790-1231022 |
AE10#..F,G,GT,S,X BLACK,TRIM2# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10# 14V 0.84W,ｱﾘ(ﾏﾙﾁｲﾝﾌｵﾒ-ｼﾖﾝ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10# 14V 0.84W,ｱﾘ(ﾏﾙﾁｲﾝﾌｵﾒ-ｼﾖﾝ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12150 |
AE100 |
1 | ||
| 84660-12150 |
AE10#..F,S,SJ,X |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE10#..F,S,X 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12220 |
AE100 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12210 |
AE10#..F,S,SJ |
1 | ||
| 84732-12210 |
AE100..F |
1 | ||
| 84732-12220 |
AE100..S |
1 | ||
| 84732-12210 |
AE100 |
1 | ||
| 84732-12220 |
AE100..F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12220 |
AE100 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12210 |
AE10#..F,S,SJ |
1 | ||
| 84732-12210 |
AE100..F |
1 | ||
| 84732-12220 |
AE100..S |
1 | ||
| 84732-12210 |
AE100 |
1 | ||
| 84732-12220 |
AE100..F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE100 14V 1.4W |
1 | ||
| 90981-11014 |
AE10#..F,S,SJ,X 14V 1.4W |
1 | ||
| 90981-11014 |
AE10#..F,S,X 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE100 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE10# 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE10# 14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-1208022 |
AE10#..F,G,GT,GTZ,S,SJ,X BLACK,TRIM2# |
1 | ||
| 84870-1208022 |
AE10#..F,G,GT,S,SJ,X BLACK,TRIM2# |
1 | ||
| 84870-12090G0 |
AE10#..F,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ ﾄﾞｱﾐﾗ-),SPRUCE,TRIM6# |
1 | ||
| 84870-12080G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 84870-1208022 |
AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12230 |
AE10# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
AE10#..4FC,5F 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10520 |
AE10#..4FC,5F |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30210 |
AE10# |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||
| 93560-14010 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8419 | ||||
ILLUST NO. 5 OF 8(9106- )

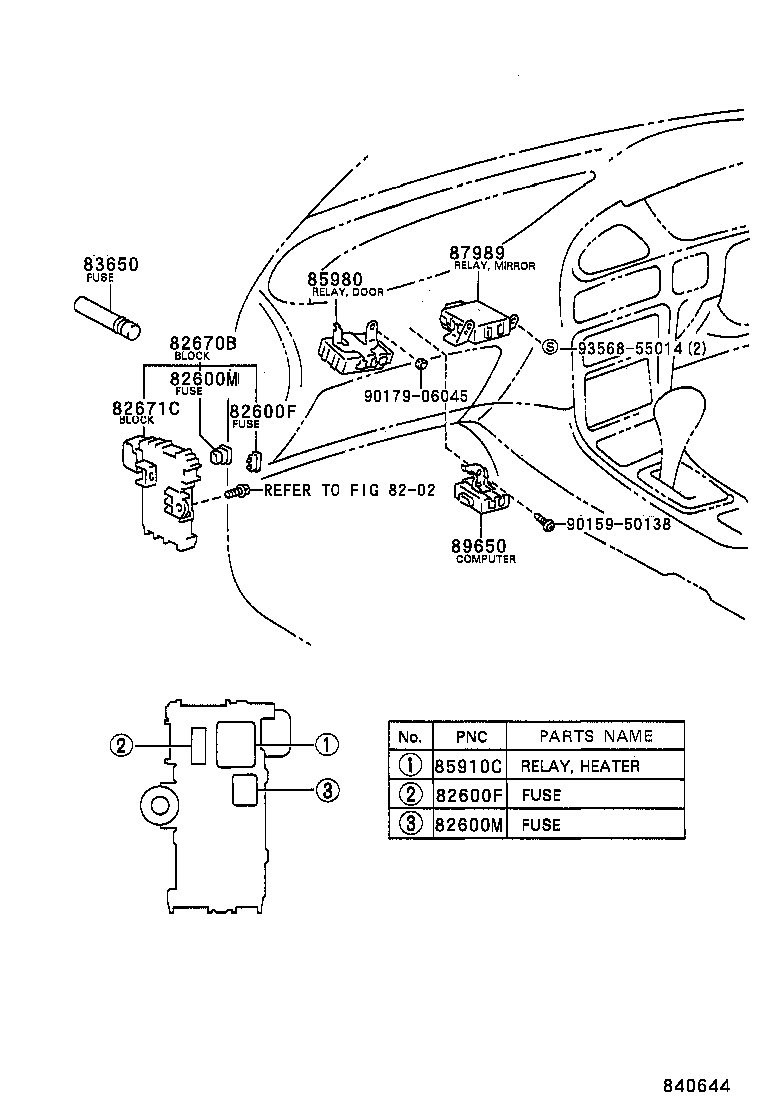

COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10# 40A,緑 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12310 |
AE10# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12160 |
AE10# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE10# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12150 |
AE10#..CP |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-12020 |
AE10#..F,G,GTAPX,X |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06045 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||

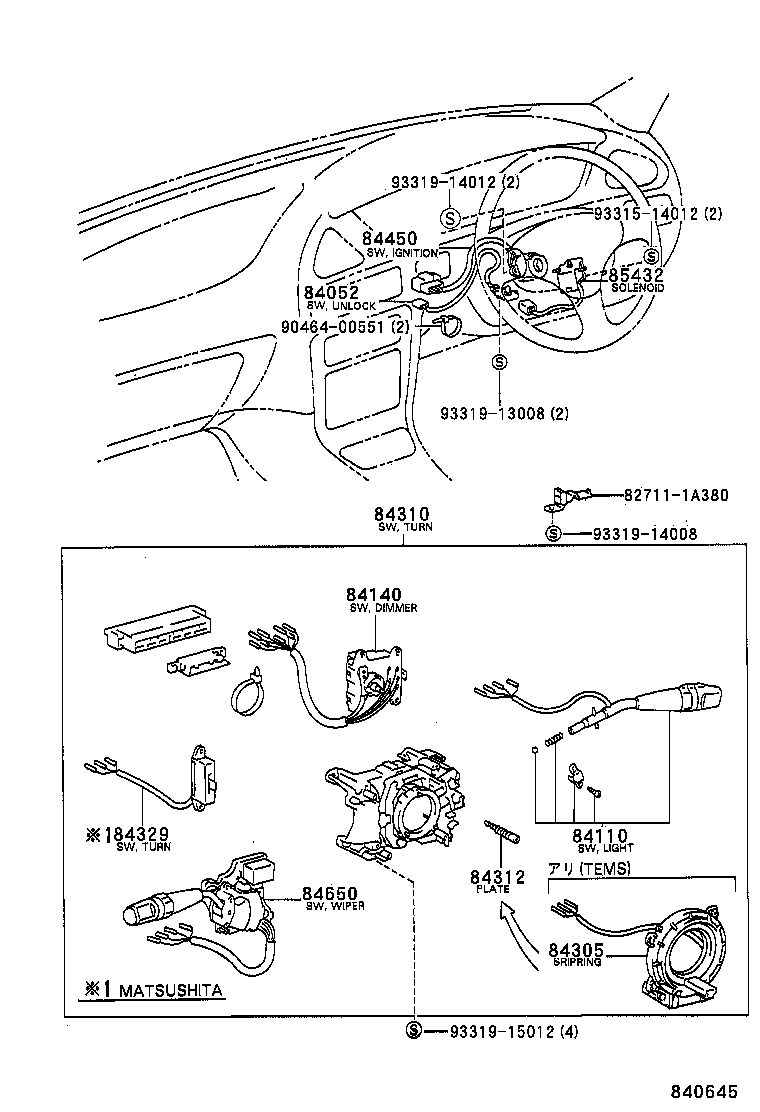

ILLUST NO. 6 OF 8(9106- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
AE10# |
1 | ||
| 84052-12060 |
AE10# |
1 | ||
| 84052-20030 |
AE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80082 |
AE10#..F,X ｱﾘ(*VIW & ｶﾝｹﾂ ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 84112-80081 |
AE10#..F,G,GT,S,X |
1 | ||
| 84112-80081 |
AE10#..GT,S |
1 | ||
| 84112-80142 |
AE10#..F,G,GTAPX,GTZ,SJ,X |
1 | ||
| 84112-80142 |
AE10#..F,X ｱﾘ(*VIW & ｶﾝｹﾂ ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12290 |
AE10#..F,G,GT,S,X |
1 | ||
| 84140-12310 |
AE10#..F,X ｱﾘ(ｶﾝｹﾂ ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 84140-12290 |
AE10#..GT,S |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A580 |
AE10#..F,G,GTAPX,SJ,X |
1 | ||
| 84310-1A570 |
AE10#..F,G,GT,S,X |
1 | ||
| 84310-1A600 |
AE10#..F,G,GT,GTAPX,SJ,X ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A570 |
AE10#..GT,S |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE10#..GT,S |
1 | ||
| 84312-12050 |
AE10#..F,G,GT,S,X |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12050 |
AE10#..F,G,GT,S,X |
1 | ||
| 84329-12050 |
AE10#..GT,S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10# |
1 | ||
| 84450-20260 |
AE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A130 |
AE10#..F,G,GT,S,X |
1 | ||
| 84652-1A130 |
AE10#..GT,S |
1 | ||
| 84652-1A160 |
AE10#..F,G,GTAPX,SJ,X |
1 | ||
| 84652-1A200 |
AE10#..F,G,GT,GTAPX,SJ,X ｱﾘ(ｶﾝｹﾂ ﾘﾔｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

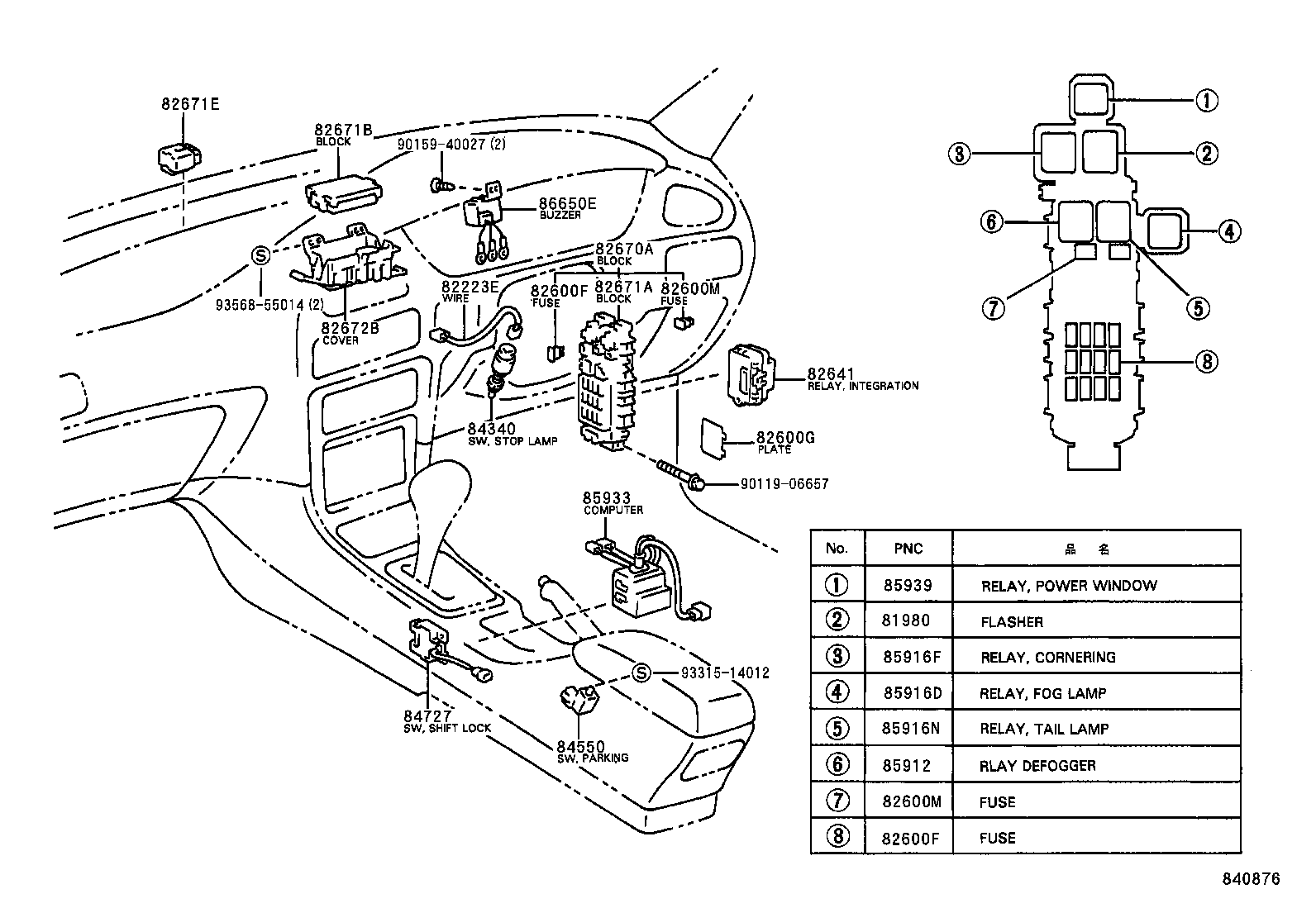

ILLUST NO. 4 OF 8(9106- )
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10# |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10# 15A |
5 | ||
| 90982-09005 |
AE10# 7.5A |
3 | ||
| 90982-09002 |
AE10# 10A |
4 | ||
| 90982-09004 |
AE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,緑 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12160 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..F,G,GT,GTAPX,S,SJ,X 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10# 40A,緑 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12080 |
AE10#..F,G,GT,S,X |
1 | ||
| 82641-12060 |
AE10#..GT,S |
1 | ||
| 82641-12080 |
AE10#..F,G,GTAPX,GTZ,SJ,X |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12290 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..(4FC,5F) |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12130 |
AE10#..F,G,GT,GTAPX,S,SJ,X |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12260 |
AE10# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE10# |
1 | ||
| 84340-32090 |
AE10# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AE10# |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02009 |
AE10# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AE10# |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12030 |
AE10# |
1 | ||
| 86650-12040 |
AE10#..F,G ｱﾘ(*DS) |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 90159-40027 | ||||
| 93315-14012 | ||||
| 93568-55014 | ||||

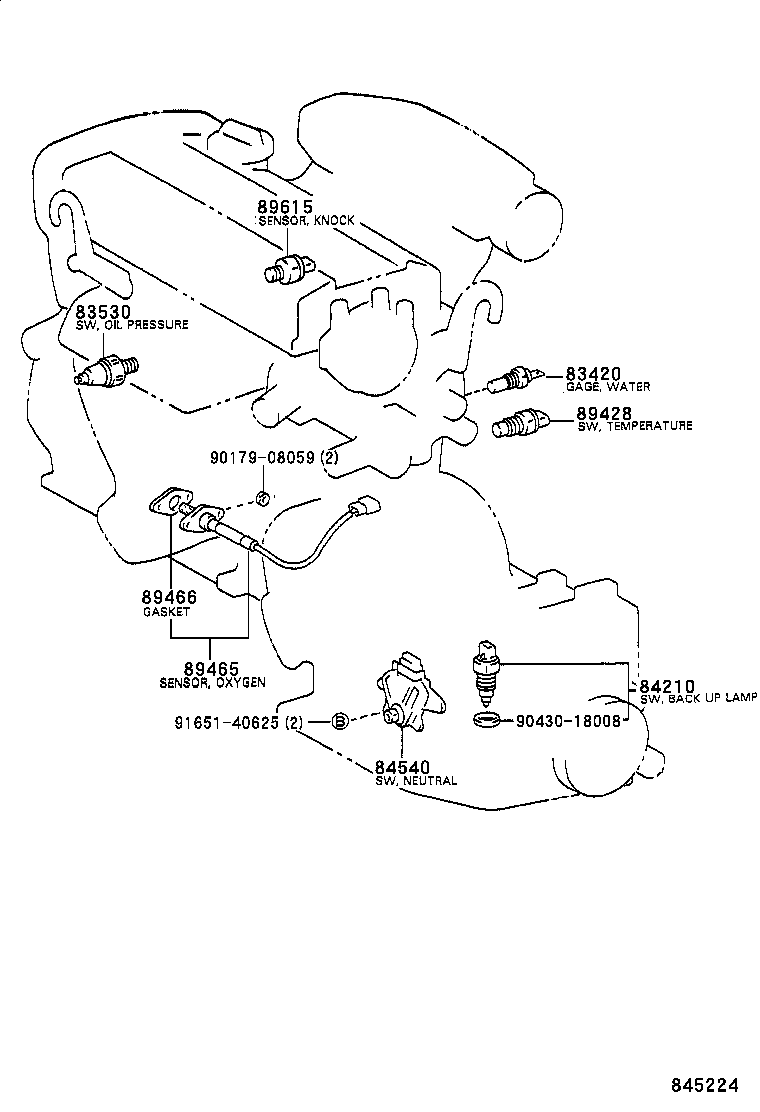

ILLUST NO. 1 OF 8(9106- )G,GT,GTAPX
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16050 |
AE10#..F,S,SJ,X |
1 | ||
| 83420-16020 |
AE10#..GT,GTAPX,S,SJ |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
AE10#..F,S,SJ,X |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10# |
1 | ||
| 89428-12160 |
AE10# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12270 |
AE100 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
AE10#..F,S,SJ,X MATSUSHITA |
1 | ||
| 89615-12030 |
AE10#..F,S,SJ,X TOYOTA |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||

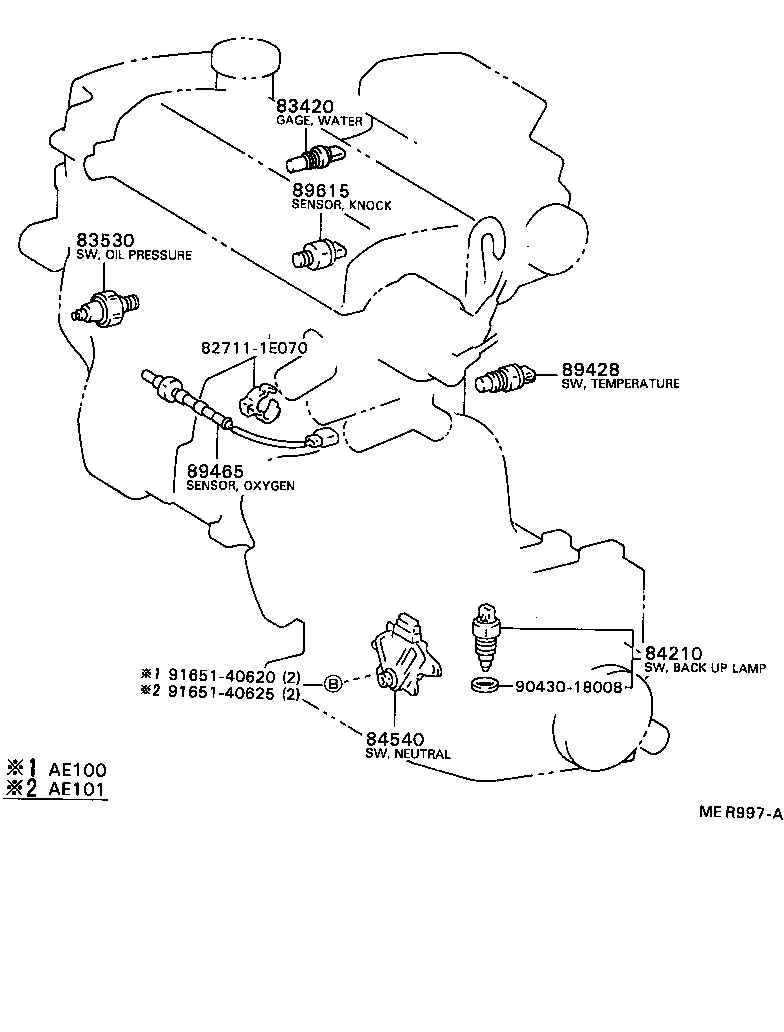

ILLUST NO. 1 OF 8(9106- )F,S,SJ,X
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16050 |
AE10#..F,S,SJ,X |
1 | ||
| 83420-16020 |
AE10#..GT,GTAPX,S,SJ |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
AE10#..F,S,SJ,X |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10# |
1 | ||
| 89428-12160 |
AE10# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12270 |
AE100 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
AE10#..F,S,SJ,X MATSUSHITA |
1 | ||
| 89615-12030 |
AE10#..F,S,SJ,X TOYOTA |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

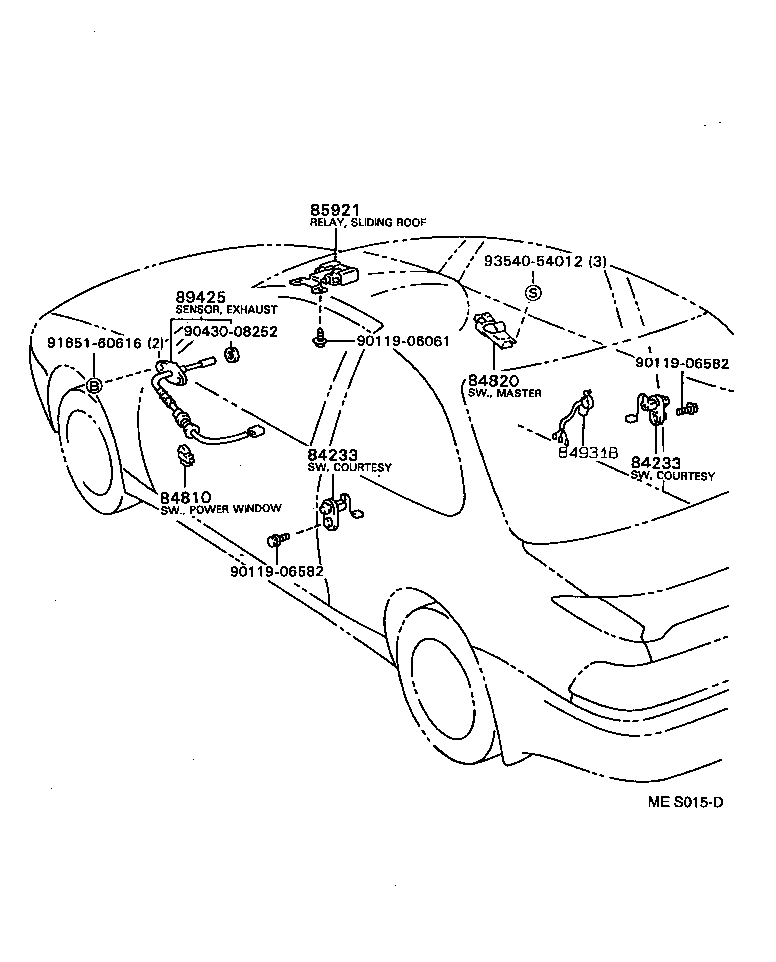

ILLUST NO. 7 OF 8(9106- )CP
ROOF,FRONT DOOR & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
AE10#..CP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
AE10#..CP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE10#..CP |
1 | ||
| 84810-12090G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12260 |
AE10#..CP |
1 | ||
| 84820-12261 |
AE10#..CP |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12050 |
AE10#..CP |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12040 |
AE10# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19455 |
AE10# |
2 | ||
| 89425-19455 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90119-06582 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
