AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )CP

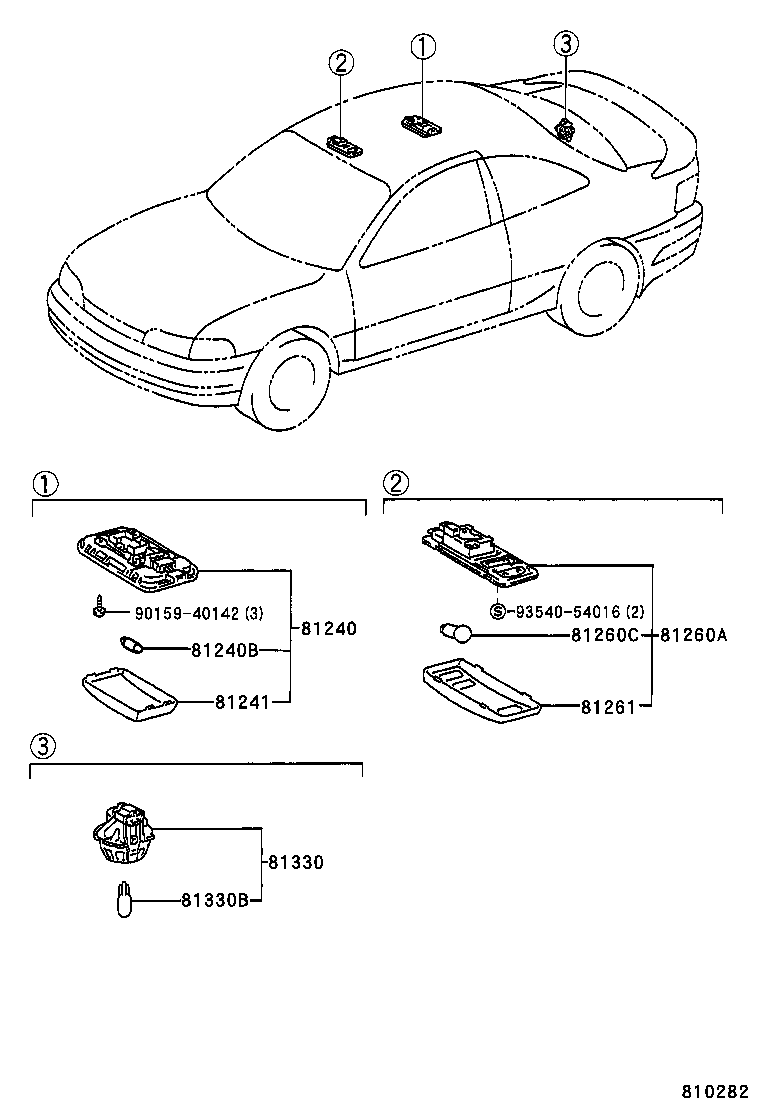

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260A 81260C 81261 81330 81330B 9015940142 9354054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-32031S3

AE10#..CP

LIGHT GRAY,TRIM2#

 1
81240-32031S3

AE10#..GT,GTZ,S

LIGHT GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

AE10#..CP

12V 8W

 1
99132-12100

AE10#..CP

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-32031

AE10#..CP

 1
81260A - LAMP ASSY, MAP
81260-12070B0

AE10#..F,X

LIGHT GRAY,TRIM2#,6#

 1
81260-12080B0

AE10#..F,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM2#,6#

 1
81260-20160S3

AE10#..CP

SHADOW GRAY,TRIM2#

 1
81260-20160S3

AE10#..GT,GTZ,S

SHADOW GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE10#..CP

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-20160B0

AE10#..CP

LIGHT GRAY,TRIM2#

 1
81261-2016003

AE10#..GT,GTZ,S

SHADOW GRAY,TRIM2#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AE10#..F,G,GTAPX,GTZ,SJ,X

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AE10#..F,G,GTAPX,GTZ,SJ,X

12V 3.8W

 1
Common parts
90159-40142
93540-54016
