Toyota Lvn/cre/trn/mrn AE100 CENTER STOP LAMP

Part #	Description	Period	Qty
81570 - LAMP ASSY, CENTER STOP
81570-12241G0	AE10#..F,X ｼﾂﾅｲﾖｳ,SPRUCE,TRIM6#	12/1993 - 05/1994	1
81570-12200	AE10#..S,SJ ｼﾂﾅｲﾖｳ	06/1991 - 05/1993	1
81570-12160	AE10#..S,SJ ｽﾎﾟｲﾗ- ﾖｳ	06/1991 - 05/1993	1
81570-12270	AE10#..GT,S,SJ ｽﾎﾟｲﾗ- ﾖｳ	05/1993 - 05/1995	1
81570-12200	AE10#..GT,S,SJ ｼﾂﾅｲﾖｳ	05/1993 - 05/1995	1
81570-12240G0	AE10#..F,X ｼﾂﾅｲﾖｳ,SPRUCE,TRIM6#	05/1992 - 12/1993	1
81570 - LAMP ASSY, CENTER STOP
81570-12241G0	AE10#..F,X ｼﾂﾅｲﾖｳ,SPRUCE,TRIM6#	12/1993 - 05/1994	1
81570-12200	AE10#..S,SJ ｼﾂﾅｲﾖｳ	06/1991 - 05/1993	1
81570-12160	AE10#..S,SJ ｽﾎﾟｲﾗ- ﾖｳ	06/1991 - 05/1993	1
81570-12270	AE10#..GT,S,SJ ｽﾎﾟｲﾗ- ﾖｳ	05/1993 - 05/1995	1
81570-12200	AE10#..GT,S,SJ ｼﾂﾅｲﾖｳ	05/1993 - 05/1995	1
81570-12240G0	AE10#..F,X ｼﾂﾅｲﾖｳ,SPRUCE,TRIM6#	05/1992 - 12/1993	1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039	AE10#..F,G,GT,S,SJ,X 12V 16W	05/1993 - 12/2999	1
90981-11039	AE10#..F,G,S,SJ,X 12V 16W	06/1991 - 05/1993	1
81977 - COVER, CENTER STOP LAMP
81977-12140	AE10#..S,SJ	06/1991 - 05/1993	1
81977-12140	AE10#..GT,S,SJ	05/1993 - 05/1995	1
81977-12160G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0707122	AE10#..GT,S,SJ BLACK,TRIM2#	05/1993 - 05/1995	2
90467-0707122	AE100..S BLACK,TRIM2#	06/1991 - 05/1993	2
90467-07139G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	2
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0707122	AE10#..GT,S,SJ BLACK,TRIM2#	05/1993 - 05/1995	2
90467-0707122	AE100..S BLACK,TRIM2#	06/1991 - 05/1993	2
90467-07139G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	2
Common parts
90119-06598
90149-50032

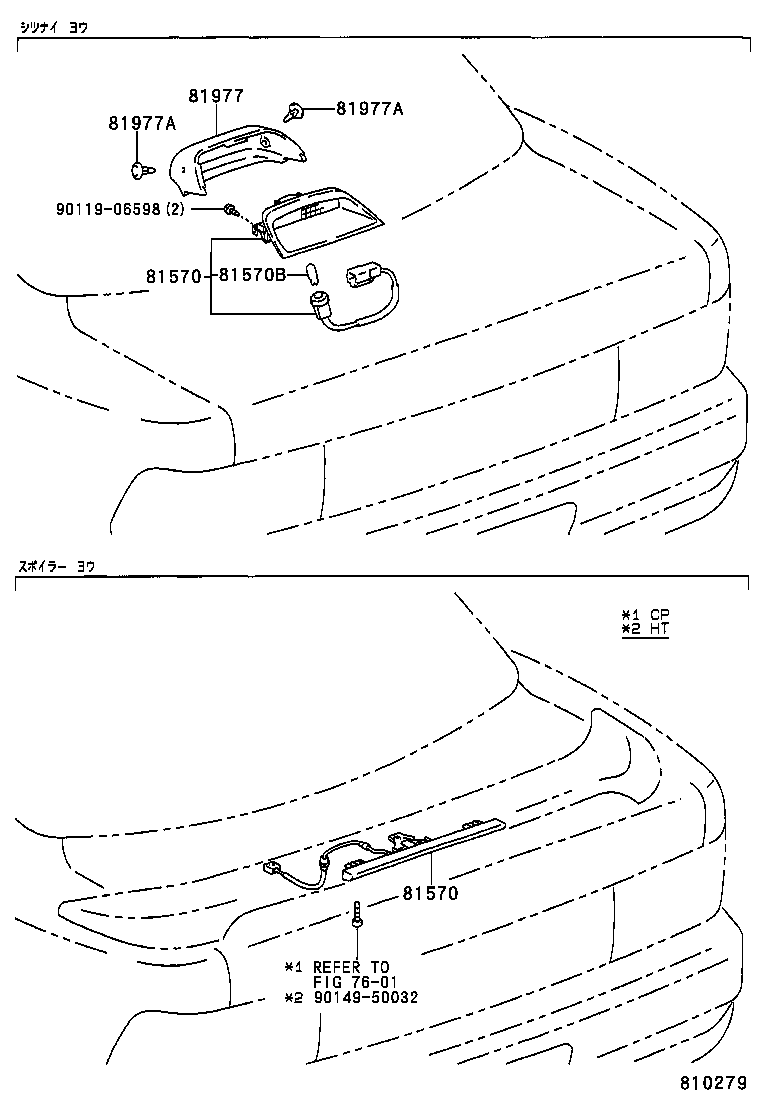

Linked diagrams
7601

AE100-ACMGK (1991)

(9106- )
