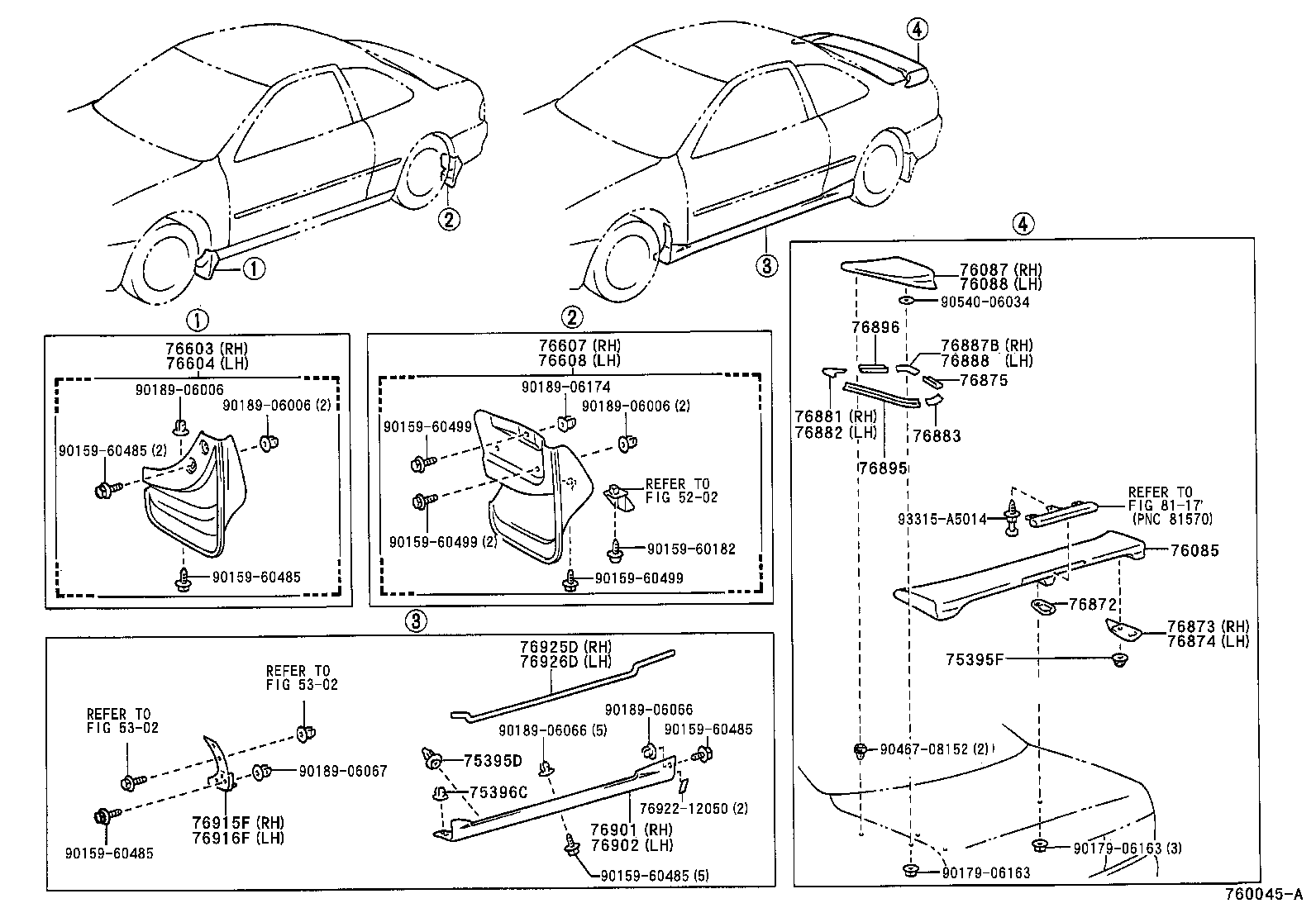

AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106-9305)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75395D - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-12110 |
AE10#..CP |
8 | ||
| 75395F - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-12090 |
AE10#..CP |
2 | ||
| 75396C - CLIP, OUTSIDE MOULDING, NO.2 REAR | ||||
| 75396-12110 |
AE10#..CP |
2 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12915 |
AE10#..CP |
1 | ||
| 76085-12911 |
AE10#..CP |
1 | ||
| 76087 - SPOILER SUB-ASSY, REAR NO.1 | ||||
| 76087-12902 |
AE10#..CP |
1 | ||
| 76891-12902 |
AE10#..CP |
1 | ||
| 76088 - SPOILER SUB-ASSY, REAR NO.2 | ||||
| 76892-12902 |
AE10#..CP |
1 | ||
| 76088-12902 |
AE10#..CP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-1923517 |
AE10#..S,SJ LIGHT AQUA OPAL M,748 |
1 | ||
| 76621-1923508 |
AE10#..S,SJ SUPER WHITE 2,040 |
1 | ||
| 76621-19235B0 |
AE10#..S,SJ SILVER MICA M,192 ,28V |
1 | ||
| 76621-1923501 |
AE10#..S,SJ BLACK 2,205 |
1 | ||
| 76621-1923507 |
AE10#..S,SJ GRAYISH GREEN M,6M3 |
1 | ||
| 76621-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W ,6M3 |
1 | ||
| 76621-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W |
1 | ||
| 76621-1923508 |
AE10#..GT,S,SJ SUPER WHITE 2,040 |
1 | ||
| 76621-1923502 |
AE10#..GT,S,SJ RED MICA M,3K4 |
1 | ||
| 76621-1923502 |
AE10#..S,SJ RED MICA M,3K4 |
1 | ||
| 76621-1923501 |
AE10#..GT,S,SJ BLACK 2,205 |
1 | ||
| 76621-1923512 |
AE10#..S,SJ LAVENDER MICA M,925 |
1 | ||
| 76621-19235B0 |
AE10#..GT,S,SJ SILVER MICA M,192 |
1 | ||
| 76621-19235B1 |
AE10#..GT,S,SJ BLUEISH GRAY ME.,23V |
1 | ||
| 76621-19235B0 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W |
1 | ||
| 76621-19235B1 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-1923502 |
AE10#..S,SJ RED MICA M,3K4 |
1 | ||
| 76622-1923508 |
AE10#..S,SJ SUPER WHITE 2,040 |
1 | ||
| 76622-1923512 |
AE10#..S,SJ LAVENDER MICA M,925 |
1 | ||
| 76622-1923517 |
AE10#..S,SJ LIGHT AQUA OPAL M,748 |
1 | ||
| 76622-19235B0 |
AE10#..S,SJ SILVER MICA M,192 ,28V |
1 | ||
| 76622-1923501 |
AE10#..GT,S,SJ BLACK M,205 |
1 | ||
| 76622-1923507 |
AE10#..S,SJ GRAYISH GREEN M,6M3 |
1 | ||
| 76622-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W ,6M3 |
1 | ||
| 76622-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W |
1 | ||
| 76622-1923501 |
AE10#..S,SJ BLACK M,205 |
1 | ||
| 76622-19235B0 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,SILVER MICA,28W |
1 | ||
| 76622-1923502 |
AE10#..GT,S,SJ RED MICA M,3K4 |
1 | ||
| 76622-19235B1 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V |
1 | ||
| 76622-1923508 |
AE10#..GT,S,SJ SUPER WHITE 2,040 |
1 | ||
| 76622-19235B0 |
AE10#..GT,S,SJ SILVER MICA M,192 |
1 | ||
| 76622-19235B1 |
AE10#..GT,S,SJ BLUEISH GRAY ME.,23V |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76625-1948501 |
AE10#..CP BLACK M,205 |
1 | ||
| 76625-1948507 |
AE10#..CP GRAYISH GREEN M,6M3 |
1 | ||
| 76625-1948502 |
AE10#..CP RED MICA M,3K4 |
1 | ||
| 76625-19485B0 |
AE10#..CP SILVER MICA M,192 ,28V |
1 | ||
| 76625-1948508 |
AE10#..CP SUPER WHITE 2,040 |
1 | ||
| 76625-19515 |
AE10#..CP |
1 | ||
| 76625-1948512 |
AE10#..CP LAVENDER MICA M,925 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-19485B0 |
AE10#..CP SILVER MICA M,192 ,28V |
1 | ||
| 76626-1948501 |
AE10#..CP BLACK M,205 |
1 | ||
| 76626-1948512 |
AE10#..CP LAVENDER MICA M,925 |
1 | ||
| 76626-1948507 |
AE10#..CP GRAYISH GREEN M,6M3 |
1 | ||
| 76626-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76626-1948502 |
AE10#..CP RED MICA M,3K4 |
1 | ||
| 76626-1948508 |
AE10#..CP SUPER WHITE 2,040 |
1 | ||
| 76626-19515 |
AE10#..CP |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-12140 |
AE10#..CP |
1 | ||
| 76872-12110 |
AE10#..CP |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-12120 |
AE10#..CP |
1 | ||
| 76873-12150 |
AE10#..CP |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12130 |
AE10#..CP |
1 | ||
| 76874-12160 |
AE10#..CP |
4 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-12020 |
AE10#..CP |
2 | ||
| 76875-12070 |
AE10#..CP |
2 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-12040 |
AE10#..CP |
1 | ||
| 76881-12020 |
AE10#..CP |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76882-12040 |
AE10#..CP |
1 | ||
| 76881-12020 |
AE10#..CP |
1 | ||
| 76883 - PROTECTER, REAR SPOILER, NO.7 RH | ||||
| 76883-12020 |
AE10#..CP |
2 | ||
| 76887B - PROTECTOR, REAR SPOILER SIDE, NO.2 | ||||
| 76887-12020 |
AE10# |
1 | ||
| 76888 - PROTECTOR, REAR SPOILER SIDE, NO.3 | ||||
| 76887-12020 |
AE10# |
1 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-12050 |
AE10#..CP |
2 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-12010 |
AE10#..CP |
2 | ||
| 76896-12030 |
AE10#..CP |
2 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-12900 |
AE10#..CP |
1 | ||
| 76901-12901 |
AE10#..CP |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-12900 |
AE10#..CP |
1 | ||
| 76902-12901 |
AE10#..CP |
1 | ||
| 76915F - MUDGUARD, SIDE, FR RH | ||||
| 76915-12070 |
AE10#..CP |
1 | ||
| 76915-12050 |
AE10#..CP |
1 | ||
| 76916F - MUDGUARD, SIDE, FR LH | ||||
| 76916-12050 |
AE10#..CP |
1 | ||
| 76916-12070 |
AE10#..CP |
1 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-12020 |
AE10#..CP |
1 | ||
| 76925-12030 |
AE10#..CP |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76926-12020 |
AE10#..CP |
1 | ||
| 76926-12030 |
AE10#..CP |
1 | ||
| Common parts | ||||
| 76922-12050 | ||||
| 90159-60182 | ||||
| 90159-60485 | ||||
| 90159-60499 | ||||
| 90179-06163 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| 90189-06067 | ||||
| 90189-06174 | ||||
| 90467-08152 | ||||
| 90540-06034 | ||||
| 93315-A5014 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5302 | ||||
| 8117 | ||||
(9305-9505)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75395F - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-12090 |
AE10#..CP |
2 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12915 |
AE10#..CP |
1 | ||
| 76085-12911 |
AE10#..CP |
1 | ||
| 76087 - SPOILER SUB-ASSY, REAR NO.1 | ||||
| 76087-12902 |
AE10#..CP |
1 | ||
| 76891-12902 |
AE10#..CP |
1 | ||
| 76088 - SPOILER SUB-ASSY, REAR NO.2 | ||||
| 76892-12902 |
AE10#..CP |
1 | ||
| 76088-12902 |
AE10#..CP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-1923517 |
AE10#..S,SJ LIGHT AQUA OPAL M,748 |
1 | ||
| 76621-1923508 |
AE10#..S,SJ SUPER WHITE 2,040 |
1 | ||
| 76621-19235B0 |
AE10#..S,SJ SILVER MICA M,192 ,28V |
1 | ||
| 76621-1923501 |
AE10#..S,SJ BLACK 2,205 |
1 | ||
| 76621-1923507 |
AE10#..S,SJ GRAYISH GREEN M,6M3 |
1 | ||
| 76621-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W ,6M3 |
1 | ||
| 76621-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W |
1 | ||
| 76621-1923508 |
AE10#..GT,S,SJ SUPER WHITE 2,040 |
1 | ||
| 76621-1923502 |
AE10#..GT,S,SJ RED MICA M,3K4 |
1 | ||
| 76621-1923502 |
AE10#..S,SJ RED MICA M,3K4 |
1 | ||
| 76621-1923501 |
AE10#..GT,S,SJ BLACK 2,205 |
1 | ||
| 76621-1923512 |
AE10#..S,SJ LAVENDER MICA M,925 |
1 | ||
| 76621-19235B0 |
AE10#..GT,S,SJ SILVER MICA M,192 |
1 | ||
| 76621-19235B1 |
AE10#..GT,S,SJ BLUEISH GRAY ME.,23V |
1 | ||
| 76621-19235B0 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W |
1 | ||
| 76621-19235B1 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-1923502 |
AE10#..S,SJ RED MICA M,3K4 |
1 | ||
| 76622-1923508 |
AE10#..S,SJ SUPER WHITE 2,040 |
1 | ||
| 76622-1923512 |
AE10#..S,SJ LAVENDER MICA M,925 |
1 | ||
| 76622-1923517 |
AE10#..S,SJ LIGHT AQUA OPAL M,748 |
1 | ||
| 76622-19235B0 |
AE10#..S,SJ SILVER MICA M,192 ,28V |
1 | ||
| 76622-1923501 |
AE10#..GT,S,SJ BLACK M,205 |
1 | ||
| 76622-1923507 |
AE10#..S,SJ GRAYISH GREEN M,6M3 |
1 | ||
| 76622-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W ,6M3 |
1 | ||
| 76622-1923507 |
AE10#..GT,S,SJ GRAYISH GREEN M,20W |
1 | ||
| 76622-1923501 |
AE10#..S,SJ BLACK M,205 |
1 | ||
| 76622-19235B0 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,SILVER MICA,28W |
1 | ||
| 76622-1923502 |
AE10#..GT,S,SJ RED MICA M,3K4 |
1 | ||
| 76622-19235B1 |
AE100..S Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V |
1 | ||
| 76622-1923508 |
AE10#..GT,S,SJ SUPER WHITE 2,040 |
1 | ||
| 76622-19235B0 |
AE10#..GT,S,SJ SILVER MICA M,192 |
1 | ||
| 76622-19235B1 |
AE10#..GT,S,SJ BLUEISH GRAY ME.,23V |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76625-1948501 |
AE10#..CP BLACK M,205 |
1 | ||
| 76625-1948507 |
AE10#..CP GRAYISH GREEN M,6M3 |
1 | ||
| 76625-1948502 |
AE10#..CP RED MICA M,3K4 |
1 | ||
| 76625-19485B0 |
AE10#..CP SILVER MICA M,192 ,28V |
1 | ||
| 76625-1948508 |
AE10#..CP SUPER WHITE 2,040 |
1 | ||
| 76625-19515 |
AE10#..CP |
1 | ||
| 76625-1948512 |
AE10#..CP LAVENDER MICA M,925 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-19515 |
AE10#..CP |
1 | ||
| 76626-1948501 |
AE10#..CP BLACK M,205 |
1 | ||
| 76626-1948512 |
AE10#..CP LAVENDER MICA M,925 |
1 | ||
| 76626-1948507 |
AE10#..CP GRAYISH GREEN M,6M3 |
1 | ||
| 76626-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76626-1948502 |
AE10#..CP RED MICA M,3K4 |
1 | ||
| 76626-1948508 |
AE10#..CP SUPER WHITE 2,040 |
1 | ||
| 76626-19485B0 |
AE10#..CP SILVER MICA M,192 ,28V |
1 | ||
| 76865A - RETAINER, SIDE MUDGUARD | ||||
| 67771-12070 |
AE10#..CP |
14 | ||
| 76868A - RETAINER, REAR SPOILER, NO.4 | ||||
| 76868-12100 |
AE10#..CP |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-12140 |
AE10#..CP |
1 | ||
| 76872-12110 |
AE10#..CP |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-12120 |
AE10#..CP |
1 | ||
| 76873-12150 |
AE10#..CP |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12130 |
AE10#..CP |
1 | ||
| 76874-12160 |
AE10#..CP |
4 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12130 |
AE10#..CP |
1 | ||
| 76874-12160 |
AE10#..CP |
4 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12130 |
AE10#..CP |
1 | ||
| 76874-12160 |
AE10#..CP |
4 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-12020 |
AE10#..CP |
2 | ||
| 76875-12070 |
AE10#..CP |
2 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-12040 |
AE10#..CP |
1 | ||
| 76881-12020 |
AE10#..CP |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76882-12040 |
AE10#..CP |
1 | ||
| 76881-12020 |
AE10#..CP |
1 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-12010 |
AE10#..CP |
2 | ||
| 76896-12030 |
AE10#..CP |
2 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-12900 |
AE10#..CP |
1 | ||
| 76901-12901 |
AE10#..CP |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-12900 |
AE10#..CP |
1 | ||
| 76902-12901 |
AE10#..CP |
1 | ||
| 76915F - MUDGUARD, SIDE, FR RH | ||||
| 76915-12070 |
AE10#..CP |
1 | ||
| 76915-12050 |
AE10#..CP |
1 | ||
| 76916F - MUDGUARD, SIDE, FR LH | ||||
| 76916-12050 |
AE10#..CP |
1 | ||
| 76916-12070 |
AE10#..CP |
1 | ||
| 76921B - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-12060 |
AE10#..CP |
4 | ||
| 76921B - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-12060 |
AE10#..CP |
4 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-12020 |
AE10#..CP |
1 | ||
| 76925-12030 |
AE10#..CP |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76926-12020 |
AE10#..CP |
1 | ||
| 76926-12030 |
AE10#..CP |
1 | ||
| 76931 - RETAINER, SIDE MUDGUARD, NO.3 | ||||
| 76931-12020 |
AE10#..CP |
2 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90159-60500 | ||||
| 90164-45013 | ||||
| 90167-50046 | ||||
| 90179-06129 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| 90189-06067 | ||||
| 90189-06174 | ||||
| 90467-08152 | ||||
| 90540-06034 | ||||
| 93567-34512 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5302 | ||||
| 8117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
