AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

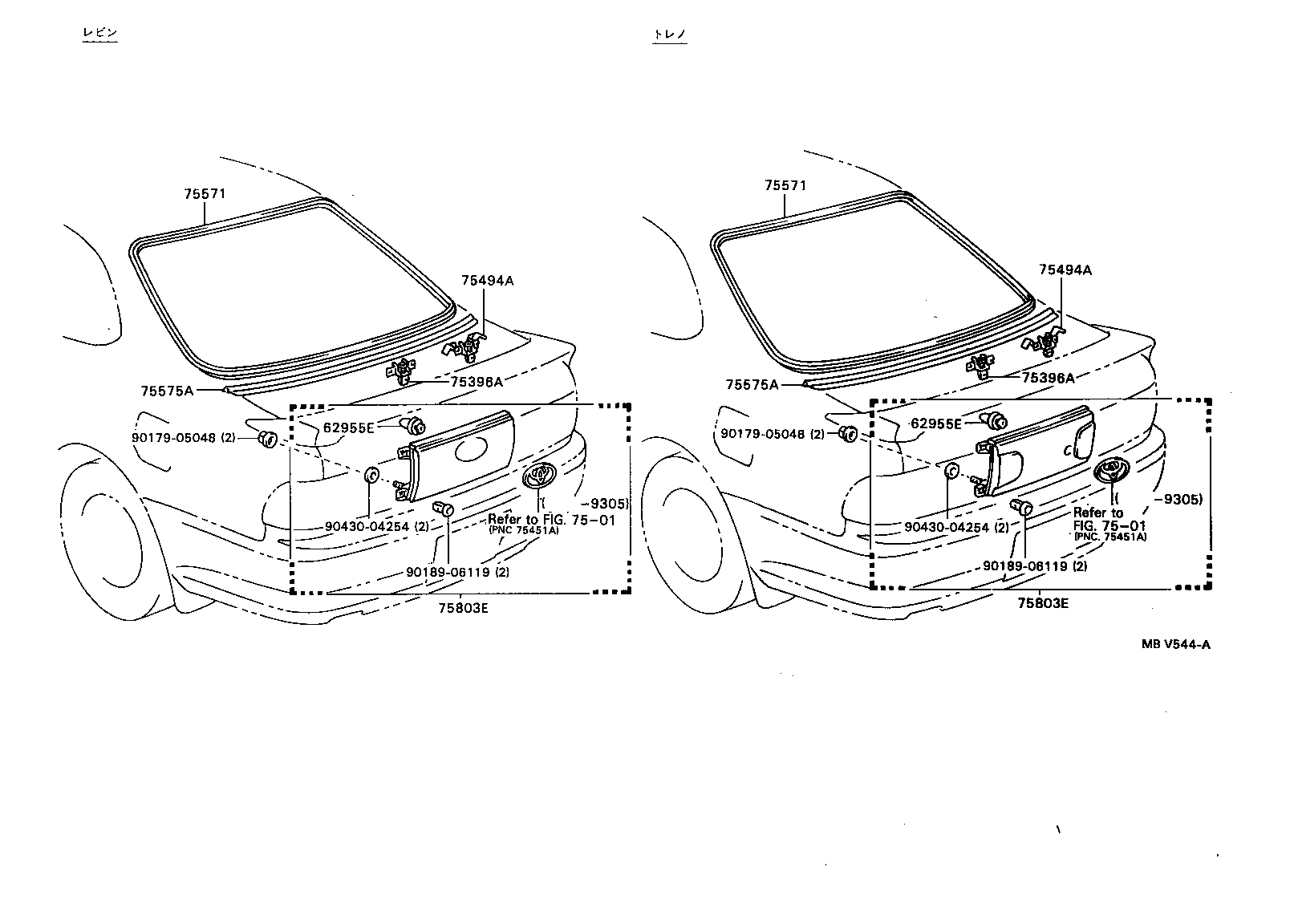

Click highlighted areas on diagram

diagram 62955E 62955E 7501 7501 75396A 75396A 75494A 75494A 75571 75571 75575A 75575A 75803E 75803E 9017905048 9017905048 9018906119 9018906119 9043004254 9043004254
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

AE10#..CP

 1
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

AE10#..CP

 1
75396A - CLIP, OUTSIDE MOULDING, NO.2
75396-12100

AE10#..CP

 5
75396A - CLIP, OUTSIDE MOULDING, NO.2
75396-12100

AE10#..CP

 5
75494A - CLIP, OUTSIDE MOULDING, NO.3
75496-12030

AE10#..CP

右側

 1
75497-12020

AE10#..CP

左側

 1
75494A - CLIP, OUTSIDE MOULDING, NO.3
75496-12030

AE10#..CP

右側

 1
75497-12020

AE10#..CP

左側

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12620

AE10#..GTAPX,S,SJ

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12620

AE10#..GTAPX,S,SJ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12380

AE10#..CP

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12380

AE10#..CP

 1
75803E - MOULDING SUB-ASSY, LOWER BACK PANEL
75803-12120

AE10#..LVN

 1
75803-12140

AE10#..LVN

 1
75803E - MOULDING SUB-ASSY, LOWER BACK PANEL
75803-12120

AE10#..LVN

 1
75803-12140

AE10#..LVN

 1
Common parts
90179-05048
90189-06119
90430-04254
Linked diagrams
7501
