AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

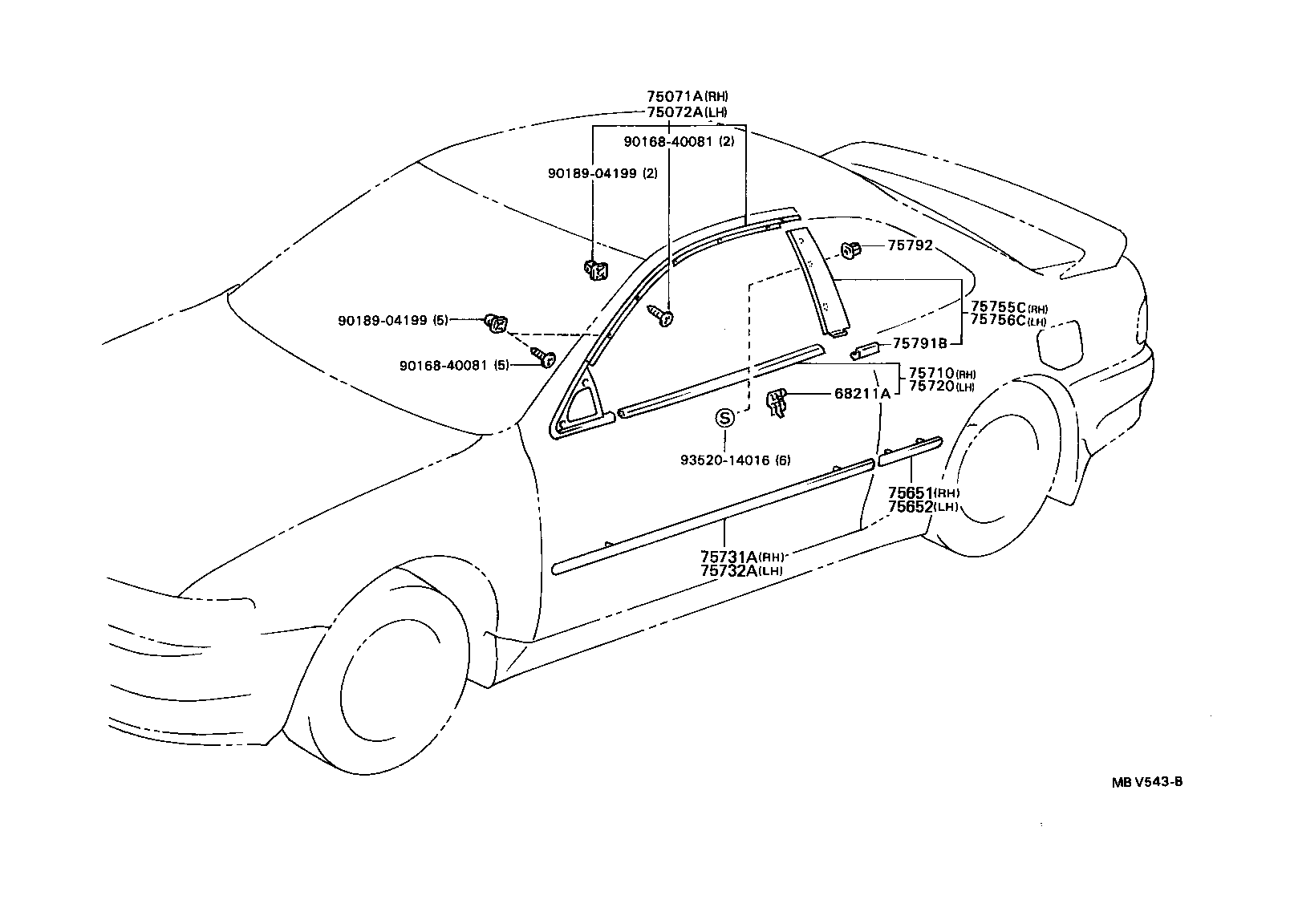

Click highlighted areas on diagram

diagram 68211A 75071A 75072A 75651 75652 75710 75720 75731A 75732A 75755C 75756C 75791B 75792 9016840081 9016840081 9018904199 9018904199 9352014016
Part # Description Qty Price
68211A - CLIP, DOOR BELT MOULDING
68212-12030

AE10#..CP

 10
75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75071-12030

AE10#..GTAPX,S,SJ

 1
75071-12040

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75072-12050

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75072-12040

AE10#..GTAPX,S,SJ

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-1289007

AE10#..CP

GRAYISH GREEN M,20W ,6M3

 1
75651-12890B0

AE10#..CP

SILVER MICA M,192

 1
75651-1289007

AE10#..CP

GRAYISH GREEN M,20W

 1
75651-1289017

AE10#

LIGHT AQUA M.OPAL,748

 1
75651-1289008

AE10#..CP

SUPER WHITE 2,040

 1
75651-12890B1

AE10#..CP

BLUEISH GRAY ME.,23V

 1
75651-1289007

AE10#..CP

GRAYISH GREEN M,6M3

 1
75651-1289002

AE10#..CP

RED MICA M,3K4

 1
75651-12890B1

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V

 1
75651-12890B0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W

 1
75651-1289001

AE10#..CP

BLACK M,205

 1
75651-1289012

AE10#..CP

LAVENDER MICA M,925

 1
75651-12890B0

AE10#..CP

SILVER MICA M,192 ,28V

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-1289001

AE10#..CP

BLACK M,205

 1
75652-1289007

AE10#..CP

GRAYISH GREEN M,6M3

 1
75652-1289012

AE10#..CP

LAVENDER MICA M,925

 1
75652-12890B1

AE10#..CP

BLUISH GRAY ME.,23V

 1
75652-12890B0

AE10#..CP

SILVER MICA M,192 ,28V

 1
75652-12890B0

AE10#..CP

SILVER MICA M,192

 1
75652-1289008

AE10#..CP

SUPER WHITE 2,040

 1
75652-12890B0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W

 1
75652-12890B1

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLUISH GRAY ME.,26V

 1
75652-1289002

AE10#..CP

RED MICA M,3K4

 1
75652-1289007

AE10#..CP

GRAYISH GREEN M,20W

 1
75652-1289007

AE10#..CP

GRAYISH GREEN M,20W ,6M3

 1
75652-1289017

AE10#

LIGHT AQUA M.OPAL,748

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-12550

AE10#..GTAPX,S,SJ

 1
75710-12560

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-12550

AE10#..GTAPX,S,SJ

 1
75720-12560

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1A370B0

AE10#..CP

SILVER MICA M,192 ,28V

 1
75731-1A37017

AE10#

LIGHT AQUA M.OPAL,748

 1
75731-1A37007

AE10#..CP

GRAYISH GREEN M,20W ,6M3

 1
75731-1A37012

AE10#..CP

LAVENDER MICA M,925

 1
75731-1A37007

AE10#..CP

GRAYISH GREEN M,6M3

 1
75731-1A37002

AE10#..CP

RED MICA M,3K4

 1
75731-1A37008

AE10#..CP

SUPER WHITE 2,040

 1
75731-1A370B1

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V

 1
75731-1A370B0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W

 1
75731-1A37001

AE10#..CP

BLACK M,205

 1
75731-1A370B1

AE10#..CP

BLUEISH GRAY ME.,23V

 1
75731-1A370B0

AE10#..CP

SILVER MICA M,192

 1
75731-1A37007

AE10#..CP

GRAYISH GREEN M,20W

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1A21017

AE10#

LIGHT AQUA M.OPAL,748

 1
75732-1A210B0

AE10#..CP

SILVER MICA M,192 ,28V

 1
75732-1A21007

AE10#..CP

GRAYISH GREEN M,20W ,6M3

 1
75732-1A21007

AE10#..CP

GRAYISH GREEN M,6M3

 1
75732-1A21012

AE10#..CP

LAVENDER MICA M,925

 1
75732-1A21002

AE10#..CP

RED MICA M,3K4

 1
75732-1A210B0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,SILVER MICA M,28W

 1
75732-1A210B1

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLUEISH GRAY ME.,26V

 1
75732-1A21007

AE10#..CP

GRAYISH GREEN M,20W

 1
75732-1A210B1

AE10#..CP

BLUEISH GRAY ME.,23V

 1
75732-1A21001

AE10#..CP

BLACK M,205

 1
75732-1A210B0

AE10#..CP

SILVER MICA M,192

 1
75732-1A21008

AE10#..CP

SUPER WHITE 2,040

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-12100

AE10#..CP

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-12120

AE10#..CP

 1
75791B - CLIP, BELT MOULDING SIDE
75791-12030

AE10#..CP

 2
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-12010

AE10#..CP

 6
Common parts
90168-40081
90189-04199
93520-14016
