AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

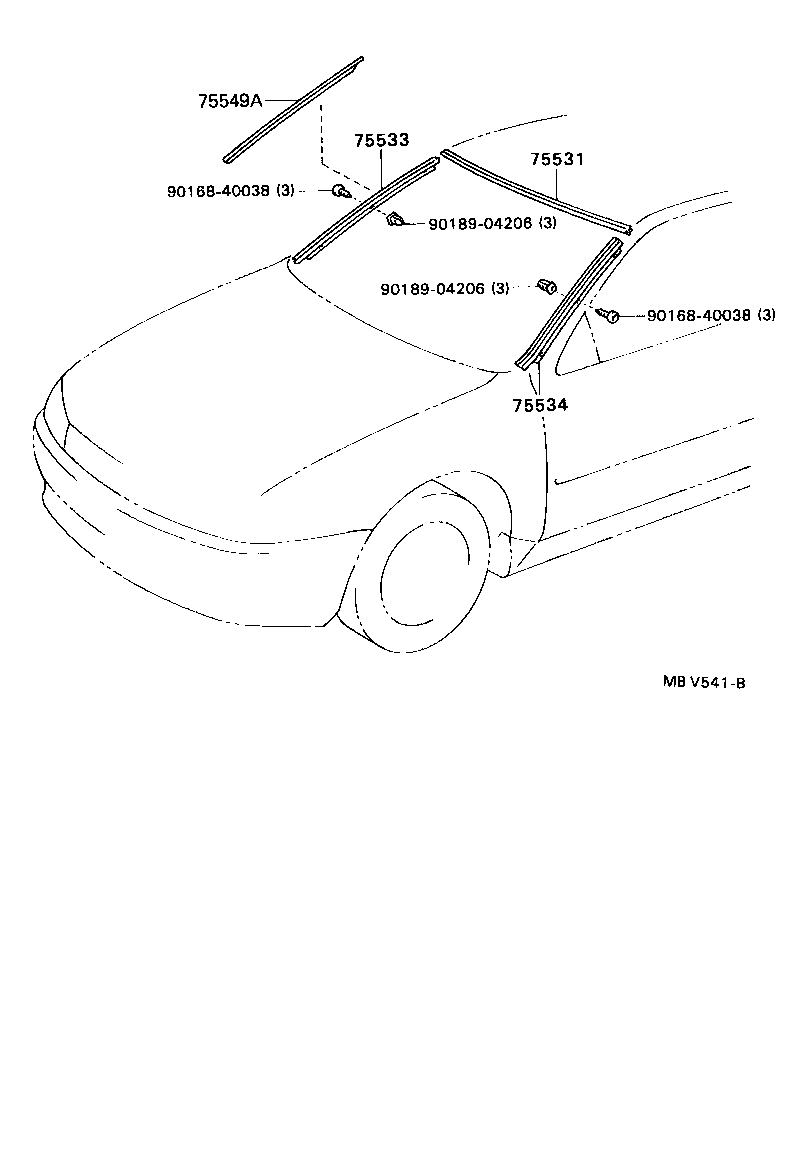

Click highlighted areas on diagram

diagram 75531 75533 75534 75549A 9016840038 9016840038 9018904206 9018904206
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12540

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75531-12530

AE10#..GTAPX,S,SJ

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12550

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533-12540

AE10#..GTAPX,S,SJ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12470

AE10#..GTAPX,S,SJ

 1
75534-12480

AE10#..GTAPX,S,SJ

ｶｺﾞｼﾏ ｼﾖｳ

 1
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75539-12080

AE10#..CP

 1
Common parts
90168-40038
90189-04206
