AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

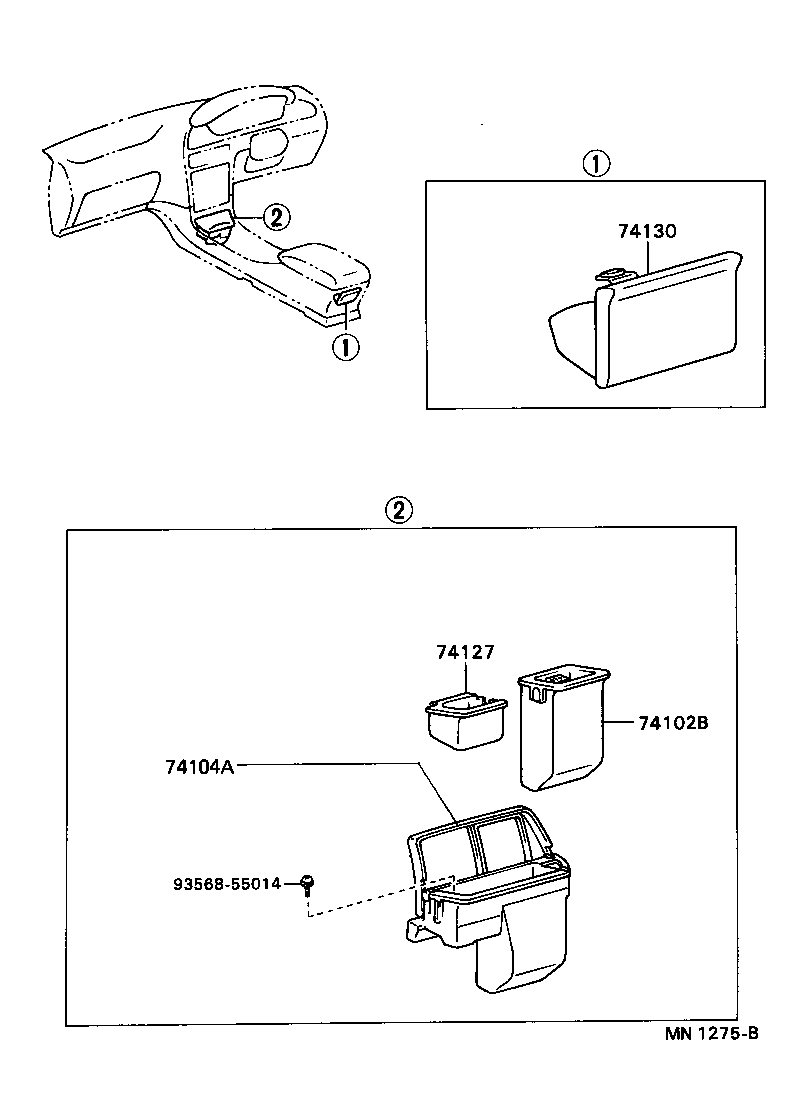

Click highlighted areas on diagram

diagram 74102B 74104A 74127 74130 9356855014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12230

AE10#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-12220

AE10#

 1
74127 - BEZEL, FRONT ASH RECEPTACLE
74127-12010

AE10#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-1202022

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
Common parts
93568-55014
