AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

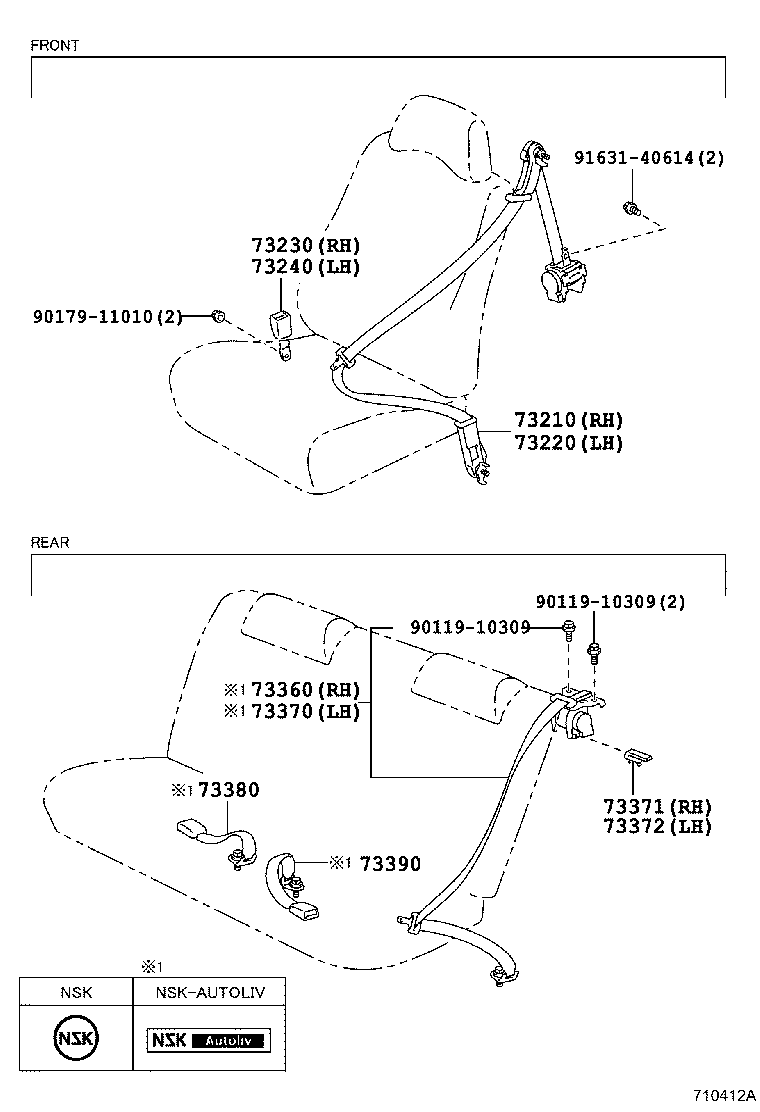

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73360 73370 73371 73372 73380 73390 9011910309 9011910309 9017911010 9163140614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1285022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73210-1285022

AE10#..CP

BLACK,TRIM2#

 1
73210-1A041G1

AE10#..F,X

SPRUCE,TRIM6#

 1
73210-1A040G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-12820G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73220-1274022

AE10#..CP

BLACK,TRIM2#

 1
73220-12821G1

AE10#..F,X

SPRUCE,TRIM6#

 1
73220-1274022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1247022

AE10#..CP

BLACK,TRIM2#

 1
73230-1247022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73230-12520G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73230-12530G0

AE10#..F,X

ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SPRUCE,TRIM6#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-12240G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73240-1220022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73240-1220022

AE10#..CP

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1253022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73360-12650G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73360-1253022

AE10#..CP

BLACK,TRIM2#

 1
73360-0W010G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73360-0W011G0

AE10#..F,X

SPRUCE,TRIM6#,NSK-AUTOLIV

 1
73360-0W020C0

AE10#..CP

BLACK,TRIM2#

 1
73360-0W021C0

AE10#..CP

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0W011G0

AE10#..F,X

SPRUCE,TRIM6#,NSK-AUTOLIV

 1
73370-0W010G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73370-1230022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73370-0W020C0

AE10#..CP

BLACK,TRIM2#

 1
73370-12430G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73370-1230122

AE10#..CP

BLACK,TRIM2#

 1
73370-0W021C0

AE10#..CP

BLACK,TRIM2#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-1605001

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73371-1605022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73371-1605022

AE10#..CP

BLACK,TRIM2#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-1605022

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73371-1605001

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
73371-1605022

AE10#..CP

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-0W010G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73470-12060G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73380-0W010C0

AE10#..CP

BLACK,TRIM2#

 1
73470-0W011G0

AE10#..F,X

SPRUCE,TRIM6#,NSK-AUTOLIV

 1
73380-0W011C0

AE10#..CP

BLACK,TRIM2#

 1
73380-1233022

AE10#..CP

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1233022

AE10#..CP

BLACK,TRIM2#

 1
73480-12060G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73480-0W010G0

AE10#..F,X

SPRUCE,TRIM6#

 1
73380-0W011C0

AE10#..CP

BLACK,TRIM2#

 1
73480-0W011G0

AE10#..F,X

SPRUCE,TRIM6#,NSK-AUTOLIV

 1
73380-0W010C0

AE10#..CP

BLACK,TRIM2#

 1
Common parts
90119-10309
90179-11010
91631-40614
