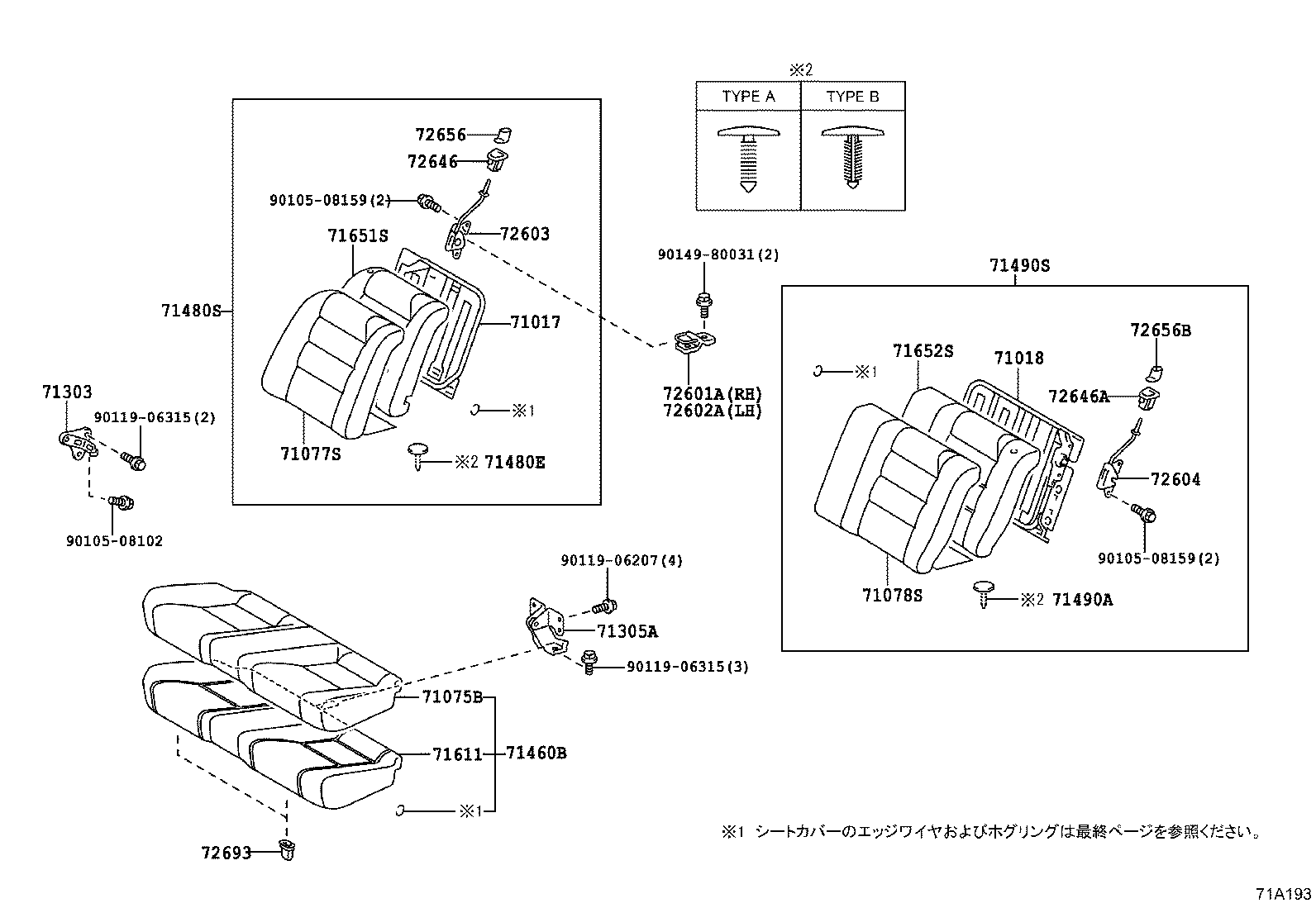

AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(9106-9505)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12400 |
AE10#..CP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12130 |
AE10#..CP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E770B0 |
AE100 GRAY,TRIM2# |
1 | ||
| 71075-1E770B1 |
AE100..S GRAY,TRIM2# |
1 | ||
| 71065-1E180G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 71065-1E170B0 |
AE100..F ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71065-1E280B0 |
AE10#..F,X ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71075-1E772B3 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71065-1E180B0 |
AE10#..F,X GRAY,TRIM2# |
1 | ||
| 71075-1E770B2 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1K550B0 |
AE100 GRAY,TRIM2# |
1 | ||
| 71077-1K550B1 |
AE100..S GRAY,TRIM2# |
1 | ||
| 71077-1L190B0 |
AE10#..F,X ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71077-1K860B1 |
AE10#..F,X GRAY,TRIM2# |
1 | ||
| 71077-1K552B2 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71077-1K860G1 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 71077-1K553B3 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71077-1K850B0 |
AE100..F ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A810B0 |
AE100 GRAY,TRIM2# |
1 | ||
| 71078-1A810B1 |
AE100..S GRAY,TRIM2# |
1 | ||
| 71078-1E080B0 |
AE100..F ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71078-1A812B2 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71078-1E090B0 |
AE10#..F,X GRAY,TRIM2# |
1 | ||
| 71078-1A813B3 |
AE10#..GT,S,SJ GRAY,TRIM2# |
1 | ||
| 71078-1E280B0 |
AE10#..F,X ﾌﾞﾗﾂｸ ｾﾚｽ/ﾌﾞﾗﾂｸ ﾏﾘﾉ,GRAY,TRIM2# |
1 | ||
| 71078-1E090G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12120 |
AE10#..CP |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12100 |
AE10#..CP |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E770B0 |
AE100 ***,GRAY,TRIM2# |
1 | ||
| 71560-1E180B0 |
AE10#..F,X GRAY,TRIM2# |
1 | ||
| 71460-1E770B2 |
AE10#..GT,S,SJ ***,GRAY,TRIM2# |
1 | ||
| 71460-1E772B3 |
AE10#..GT,S,SJ ***,GRAY,TRIM2# |
1 | ||
| 71560-1E180G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 71460-1E770B1 |
AE100..S ***,GRAY,TRIM2# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-07049C0 |
AE10#..CP BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 90467-06037C0 |
AE10#..GT,GTZ,S,SJ BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0603701 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06037C0 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 90467-07049C0 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704901 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1K570B0 |
AE100 ***,GRAY,TRIM2# |
1 | ||
| 71480-1L010B0 |
AE10#..F,X ***,GRAY,TRIM2# |
1 | ||
| 71480-1K570B1 |
AE100..S ***,GRAY,TRIM2# |
1 | ||
| 71480-1K572B2 |
AE10#..GT,S,SJ ***,GRAY,TRIM2# |
1 | ||
| 71480-1L010G0 |
AE10#..F,X ***,SPRUCE,TRIM6# |
1 | ||
| 71480-1K573B3 |
AE10#..GT,S,SJ ***,GRAY,TRIM2# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-0603701 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06037C0 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 90467-07049C0 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704901 |
AE10#..GT,GTZ,S BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049C0 |
AE10#..CP BLACK,TRIM2#,ﾀｲﾌﾟ B |
4 | ||
| 90467-06037C0 |
AE10#..CP BLACK,TRIM2#,ﾀｲﾌﾟ A |
4 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1A870B0 |
AE100 ***,GRAY,TRIM2# |
1 | ||
| 71490-1A870B1 |
AE100..S ***,GRAY,TRIM2# |
1 | ||
| 71490-1A873B3 |
AE10#..GT,S,SJ ***,GRAY/BLACK,TRIM2# |
1 | ||
| 71490-1A872B2 |
AE10#..GT,S,SJ ***,GRAY,TRIM2# |
1 | ||
| 71490-1E150B0 |
AE10#..F,X ***,GRAY,TRIM2# |
1 | ||
| 71490-1E150G0 |
AE10#..F,X ***,SPRUCE,TRIM6# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-12030 |
AE10#..CP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12590 |
AE10#..CP |
1 | ||
| 71651-12591 |
AE10#..CP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12510 |
AE10#..CP |
1 | ||
| 71652-12511 |
AE10#..CP |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-10060 |
AE10#..CP |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-10060 |
AE10#..CP |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12230 |
AE10#..CP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12220 |
AE10#..CP |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1206022 |
AE10#..GT,GTZ,S BLACK,TRIM2# |
1 | ||
| 72646-1206022 |
AE10#..CP BLACK,TRIM2# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1206022 |
AE10#..CP BLACK,TRIM2# |
1 | ||
| 72646-1206022 |
AE10#..GT,GTZ,S BLACK,TRIM2# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1203022 |
AE10#..CP BLACK,TRIM2# |
1 | ||
| 72661-1203022 |
AE10#..GT,GTZ,S BLACK,TRIM2# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1203022 |
AE10#..CP BLACK,TRIM2# |
1 | ||
| 72661-1203022 |
AE10#..GT,GTZ,S BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10# |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06207 | ||||
| 90119-06315 | ||||
| 90149-80031 | ||||
