AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)CP

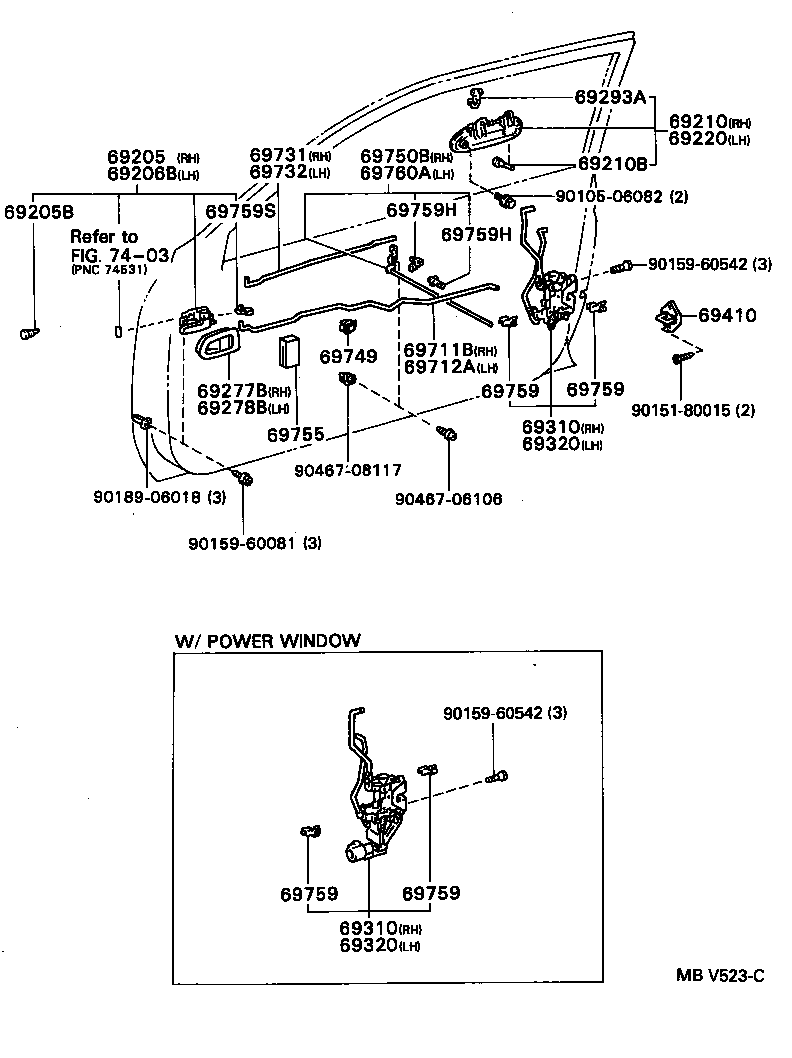

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69731 69732 69749 69750B 69755 69759 69759 69759 69759 69759H 69759H 69759S 69760A 7403 9010506082 9015180015 9015960081 9015960542 9015960542 9018906018 9046706106 9046708117
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1215001

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
69205-12150G0

AE10#..F,X

SPRUCE,TRIM6#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

AE10#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1215001

AE10#..F,G,GT,GTZ,S,X

BLACK,TRIM2#

 1
69206-12150G0

AE10#..F,X

SPRUCE,TRIM6#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-1217017

AE10#

LIGHT AQUA M.OPAL,748

 1
69210-1217001

AE10#..CP

BLACK M,205

 1
69210-1217013

AE10#

SILVER MICA M,192

 1
69210-1217034

AE10#

RED MICA M,3K4

 1
69210-1217007

AE10#

GRAYISH GREEN M,6M3

 1
69210-1217007

AE10#..CP

GRAYISH GREEN M,28V ,6M3

 1
69210-12170C0

AE10#..CP

BLACK METALLIC,205

 1
69210-1217008

AE10#

SUPER WHITE 2,040

 1
69210-1217032

AE10#..CP

LAVENDER MICA M,925

 1
69210-1217007

AE10#

GRAYISH GREEN M,6M3

 1
69210-12170A0

AE10#

SUPER WHITE 2,040

 1
69210-12170D2

AE100..S

Sﾘﾐﾃﾂﾄﾞ,RED MICA ME,28W

 1
69210-12170B0

AE10#

SILVER MICA M,192

 1
69210-12170G1

AE10#..CP

DARK GREEN MICA,20W

 1
69210-12170J4

AE10#..CP

DARK BLUE MICA M,23V

 1
69210-12170A0

AE10#..CP

SUPER WHITE 2,040

 1
69210-12170C0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLACK METALLIC,26V

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

AE10#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-1217017

AE10#

LIGHT AQUA M.OPAL,748

 1
69220-1217034

AE10#

RED MICA M,3K4

 1
69220-1217001

AE10#..CP

BLACK M,205

 1
69220-1217013

AE10#

SILVER MICA M,192

 1
69220-1217007

AE10#

GRAYISH GREEN M,6M3

 1
69220-1217007

AE10#..CP

GRAYISH GREEN M,28V ,6M3

 1
69220-1217032

AE10#..CP

LAVENDER MICA M,925

 1
69220-1217008

AE10#

SUPER WHITE 2,040

 1
69220-12170B0

AE10#

SILVER MICA M,192

 1
69220-12170J4

AE10#..CP

DARK BLUE MICA M.,23V

 1
69220-12170A0

AE10#

SUPER WHITE 2,040

 1
69220-1217007

AE10#

GRAYISH GREEN M,6M3

 1
69220-12170G1

AE10#..CP

DARK GREEN MICA,20W

 1
69220-12170C0

AE100..S

Sﾘﾐﾃﾂﾄﾞ,BLACK METALLIC,26V

 1
69220-12170A0

AE10#..CP

SUPER WHITE 2,040

 1
69220-12170C0

AE10#..CP

BLACK METALLIC,205

 1
69220-12170D2

AE100..S

Sﾘﾐﾃﾂﾄﾞ,RED MICA ME,28W

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-1208001

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
69277-12110G0

AE10#..F,X

SPURCE,TRIM6#

 1
69277-1208001

AE10#..CP

BLACK,TRIM2#

 1
69277-12100G0

AE10#..F,X

ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ),SPURCE,TRIM6#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-12110G0

AE10#..F,X

SPRUCE,TRIM6#

 1
69278-1208001

AE10#..GT,GTZ,S

BLACK,TRIM2#

 1
69278-1208001

AE10#..CP

BLACK,TRIM2#

 1
69278-12100G0

AE10#..F,X

ｱﾘ(ｽﾋﾟ-ｶ),SPRUCE,TRIM6#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AE10#..4FC,5F

左側

 1
69293-12030

AE10#..4FC,5F

右側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-12210

AE10#..GT,S

ｱﾘ(*PW)

 1
69310-12460

AE10#..GT,S

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-12210

AE10#..GT,S

ｱﾘ(*PW)

 1
69310-12460

AE10#..GT,S

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-12220

AE10#..GT,S

ｱﾘ(*PW)

 1
69320-12470

AE10#..GT,S

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-12220

AE10#..GT,S

ｱﾘ(*PW)

 1
69320-12470

AE10#..GT,S

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-16010

AE10#

 2
69410-20080

AE10#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-12140

AE10#..CP

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-12150

AE10#..CP

 1
69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-12040

AE10#..CP

 1
69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-12040

AE10#..CP

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-50020

AE10#..CP

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-12040

AE10#..CP

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-30021

AE10#..CP

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20080

AE10#..CP

ｵﾚﾝｼﾞ

 1
69759-20090

AE10#..CP

ﾋﾟﾝｸ

 1
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20080

AE10#..CP

ｵﾚﾝｼﾞ

 1
69759-20090

AE10#..CP

ﾋﾟﾝｸ

 1
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20080

AE10#..CP

ｵﾚﾝｼﾞ

 1
69759-20090

AE10#..CP

ﾋﾟﾝｸ

 1
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20080

AE10#..CP

ｵﾚﾝｼﾞ

 1
69759-20090

AE10#..CP

ﾋﾟﾝｸ

 1
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759-50040

AE10#..CP

NATURAL

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20040

AE10#..CP

ｲｴﾛｰ

 1
69759-20050

AE10#..CP

ﾌﾞﾗｳﾝ

 1
69759-50040

AE10#..CP

NATURAL

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20060

AE10#..CP

右側

 2
69759-20070

AE10#..CP

左側

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-12040

AE10#..CP

 1
Common parts
90105-06082
90151-80015
90159-60081
90159-60542
90189-06018
90467-06106
90467-08117
Linked diagrams
7403
