Toyota Lvn/cre/trn/mrn AE100 INSTRUMENT PANEL & GLOVE COMPARTMENT

Part #	Description	Period	Qty
55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1
55305-12120	AE10#	06/1991 - 12/2999	1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-12160	AE10#	06/1991 - 08/1998	1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-12210	AE10#	06/1991 - 08/1998	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-12190	AE10#	06/1991 - 04/1997	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-12250	AE10#	06/1991 - 01/1994	1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1231022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55401-1232022	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｽﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ),BLACK,TRIM2#	06/1991 - 05/1993	1
55401-12320G0	AE10#..F,X ｱﾘ(ｽﾊﾟ-ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ),SPRUCE,TRIM6#	05/1992 - 05/1993	1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-1201022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55408-12010G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1993	1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-12880	AE10#	06/1991 - 05/1993	1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-12470	AE10#	06/1991 - 12/2999	1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-12341C0	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	05/1993 - 05/1994	1
55432-12340G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1993	1
55432-12341G0	AE10#..F,X SPRUCE,TRIM6#	05/1993 - 12/2999	1
55432-12341C0	AE10# BLACK,TRIM2#	05/1994 - 12/2999	1
55432-12340C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-12100C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55441 - BOX, INSTRUMENT PANEL
55440-12060C0	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55440-12060G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 07/1993	1
55440-12060G1	AE10#..F,X SPRUCE,TRIM6#	07/1993 - 05/1994	1
55440-12060C0	AE10# BLACK,TRIM2#	05/1993 - 05/1994	1
55440-12060C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55441C - BOX, INSTRUMENT PANEL COIN
55441-2014011	AE10# BLACK,TRIM2#	05/1993 - 08/1993	1
55441-2014011	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55441-20140C0	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	08/1993 - 05/1994	1
55441-20140G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55441-20140G0	AE10#..F,X ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ,SPRUCE,TRIM6#	05/1994 - 05/1995	1
55441-20140C0	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55444A - SPRING, INSTRUMENT PANEL BOX
55444-12030	AE10#	06/1991 - 05/1993	1
55447C - BASE, SWITCH HOLE, NO.2
55447-1207022	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55447-12070G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55447-1207022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55447-1207022	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	05/1993 - 05/1994	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-12320C0	AE10# BLACK,TRIM2#	05/1993 - 12/2999	1
55550-12320G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 07/1993	1
55550-12320C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55521C - COVER, STEREO OPENING
55521-16030	AE10# ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	06/1991 - 05/1993	1
55521-16030	AE10#	05/1992 - 05/1993	2
55521-16030	AE100..S Sﾘﾐﾃﾂﾄﾞ	12/1994 - 04/1995	1
55538A - COVER, COOLER SWITCH HOLE
55538-2006022	AE10#..GT,S,SJ BLACK,TRIM2#	08/1993 - 05/1995	1
55538-20060G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 08/1993	1
55538-2006022	AE10#..F,X BLACK,TRIM2#,6#	08/1993 - 05/1994	1
55538-2006022	AE10#..F,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55538-2006022	AE10#..F,GT,S,SJ,X BLACK,TRIM2#	05/1993 - 08/1993	1
55539 - COVER, SPARE SWITCH HOLE
55539-2008001	AE10#..GT,GTZ,S BLACK,TRIM2#	06/1991 - 03/1992	1
55539-12130G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55539-12130C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	03/1992 - 05/1993	1
55539-12130C0	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	05/1993 - 05/1994	1
55539-12130C0	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201011	AE10# BLACK,TRIM2#	05/1993 - 08/1993	1
55539-3201011	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55539-32010C0	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55539-32010G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55539-32010C0	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	08/1993 - 05/1994	1
55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE
55544-12020G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1993	1
55544-1202022	AE10#..F,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-1208001	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010	AE10#	06/1991 - 12/2999	2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-12030	AE100..S Sﾘﾐﾃﾂﾄﾞ	12/1994 - 04/1995	1
55620-12030	AE10#..F,X F ﾘﾐﾃﾂﾄﾞ OR X ﾘﾐﾃﾂﾄﾞ	09/1993 - 12/1993	1
55620-12030	AE10#..CP	06/1991 - 05/1995	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1220022	AE10# BLACK,TRIM2#	05/1993 - 12/2999	1
55650-1220022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55650-12200G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-1222022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55660-1222022	AE10# BLACK,TRIM2#	05/1993 - 12/2999	1
55660-12220G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-1216022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55670-12160G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 12/2999	1
55670-1216022	AE10# BLACK,TRIM2#	05/1993 - 12/2999	1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-1705001	AE10#..G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 04/1993	1
55680-89101C0	AE10#..G,GT,GTZ,S,X BLACK,TRIM2#	04/1993 - 05/1993	1
55950A - NOZZLE ASSY, DEFROSTER
55950-12150	AE10#..4FC,5F	06/1991 - 05/1997	1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1219022	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	05/1993 - 05/1994	1
55961-1219022	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55961-1219022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55961-12190G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1217022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
55962-1217022	AE10#..F,GT,GTAPX,GTZ,S,SJ,X BLACK,TRIM2#	05/1993 - 05/1994	1
55962-1217022	AE10#..CP BLACK,TRIM2#	05/1994 - 05/1995	1
55962-12170G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1994	1
55967A - NOZZLE, DEFROSTER, LOWER
55967-12040	AE10#	06/1991 - 05/1993	1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-12120	AE10#	06/1991 - 05/1993	1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-1206022	AE10#..G,GT,GTZ,S BLACK,TRIM2#	06/1991 - 05/1993	1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-1206022	AE10#..G,GT,GTZ,S BLACK,TRIM2#	06/1991 - 05/1993	1
84763E - HOLE COVER, OUTER MIRROR SWITCH
84763-12100	AE10#..4FC,5F	06/1991 - 05/1997	1
Common parts
55631-32013
90105-08120
90105-08334
90119-06106
90151-40005
90159-40144
90167-45011
90176-08007
90179-08102
90183-05094
90189-05085
90467-14013
90467-14023
90468-04157
90541-03015
90541-04007
90541-05080
93560-54016
93568-15014
93568-55012
93568-55014

AE100-ACMGK (1991)

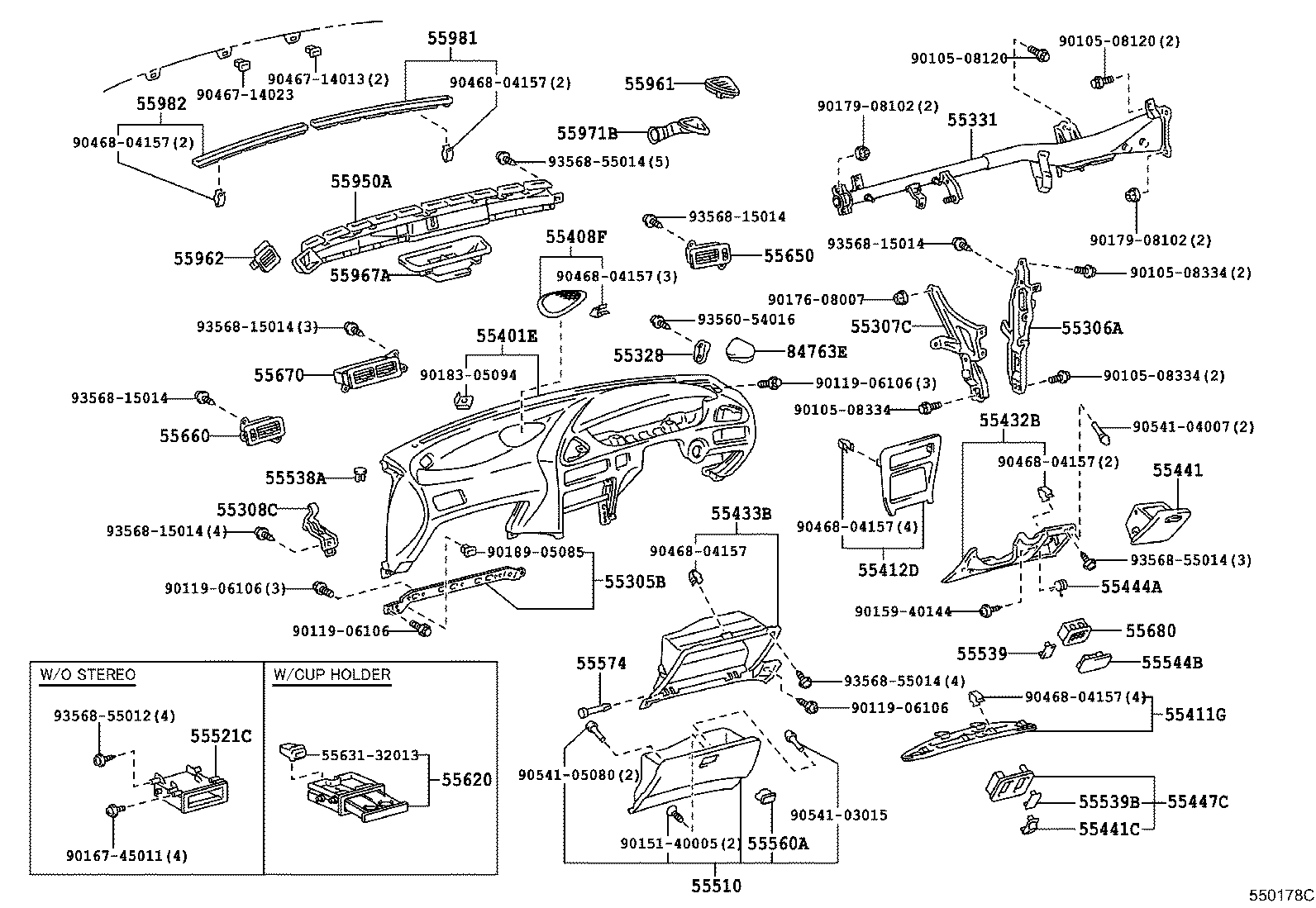

ILLUST NO. 1 OF 2(9106- )
