AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1995
Engine
5AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9505)LVN

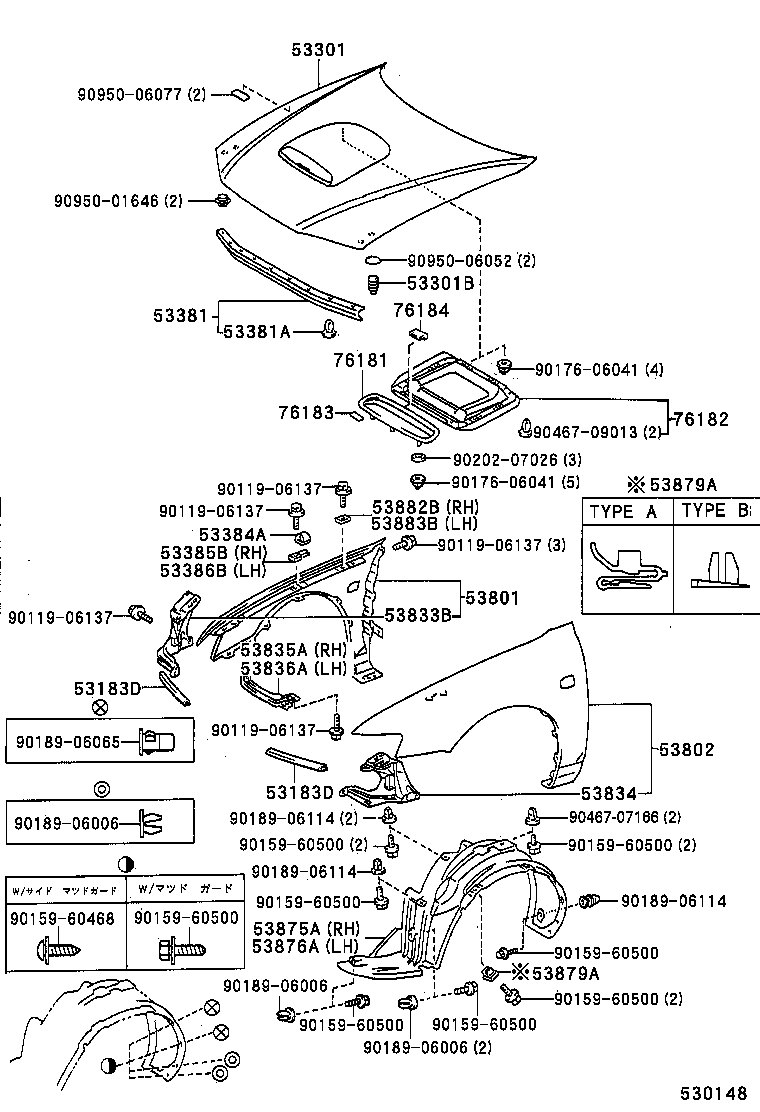

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53184-12090 |
AE10#..LVN 左側 |
1 | ||
| 53183-12140 |
AE10#..LVN 右側 |
1 | ||
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53184-12090 |
AE10#..LVN 左側 |
1 | ||
| 53183-12140 |
AE10#..LVN 右側 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12720 |
AE10#..LVN..(GT,GTAPX,S,SJ) |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
AE10# |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-12160 |
AE10# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AE10# |
9 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-12070 |
AE10#..CP |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-12050 |
AE10#..CP |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-12060 |
AE10#..CP |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-1E760 |
AE10#..LVN |
1 | ||
| 53801-1E770 |
AE10#..LVN ｱﾘ(*FM) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-1E640 |
AE10#..LVN |
1 | ||
| 53802-1E650 |
AE10#..LVN ｱﾘ(*FM) |
1 | ||
| 53833B - PANEL, FRONT FENDER SIDE, RH | ||||
| 53831-12270 |
AE10#..CP |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53832-12270 |
AE10#..CP |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-12090 |
AE10#..CP |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-12050 |
AE10#..CP |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12220 |
AE10#..CP |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12210 |
AE10#..CP |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
AE10# |
4 | ||
| 75396-12110 |
AE10#..CP ﾀｲﾌﾟ B |
2 | ||
| 53879-14010 |
AE10#..CP ﾀｲﾌﾟ A |
4 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
AE10# |
4 | ||
| 75396-12110 |
AE10#..CP ﾀｲﾌﾟ B |
2 | ||
| 53879-14010 |
AE10#..CP ﾀｲﾌﾟ A |
4 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
AE10#..CP |
4 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
AE10#..CP |
4 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90159-60468 | ||||
| 90159-60500 | ||||
| 90176-06041 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06114 | ||||
| 90202-07026 | ||||
| 90467-09013 | ||||
| 90950-01646 | ||||
| 90950-06052 | ||||
| 90950-06077 | ||||
