AE100-ACMGK (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106- )F,G,GT,GTAPX,S,SJ,X..5F
C50,C51,C52,C56

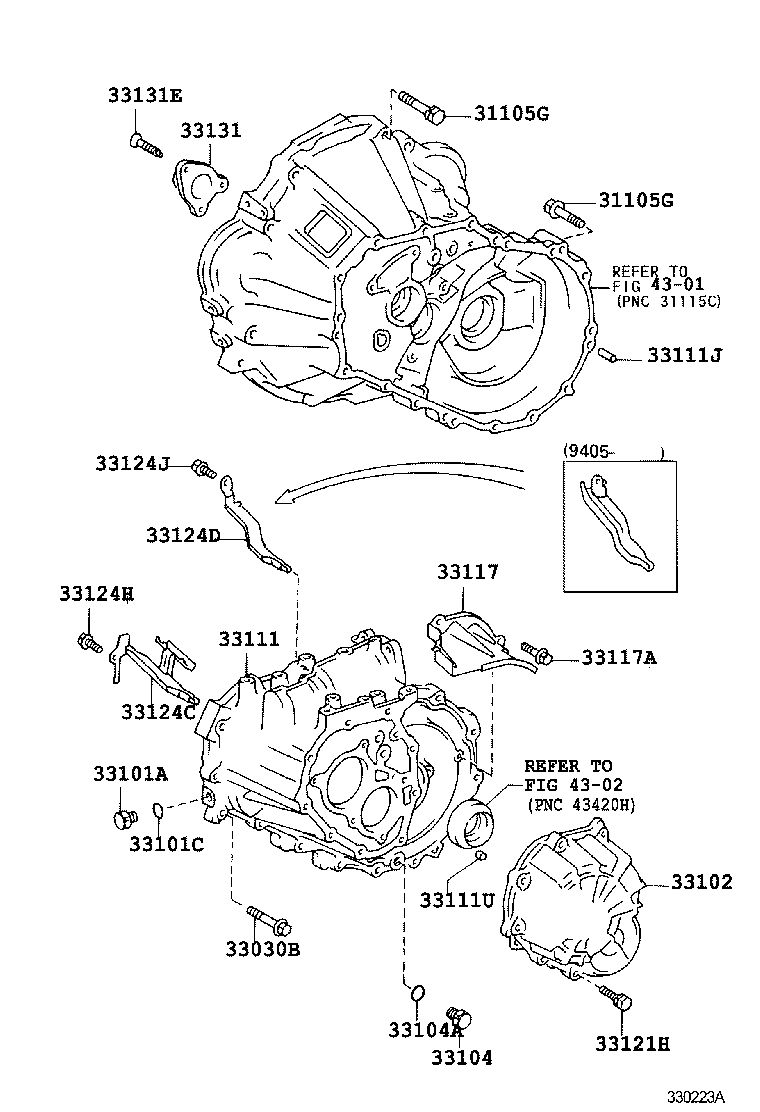

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE10#..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12042 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) *12−1.25PX75−30 |
1 | ||
| 90119-12168 |
AE10#..MTM *12−1.25PX55−30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE10#..MTM *10−1.25PX43−26 |
1 | ||
| 90119-12042 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) *12−1.25PX75−30 |
1 | ||
| 90119-12168 |
AE10#..MTM *12−1.25PX55−30 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F *8−1.25PX51−28 |
13 | ||
| 90105-08086 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F *8−1.25PX45−27.5 |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE10#..MTM |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE10#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE10#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16040 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33111-16060 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE10#..MTM 長さ=23,外径=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) 長さ=11,外径=11 |
2 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-16010 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE10#..5F |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12010 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12020 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-60820 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-12071 |
AE10#..(F,G,GT,GTAPX,S,SJ,X)..5F |
1 | ||
| 33131E - SCREW(FOR BEARING RETAINER FRONT) | ||||
| 90149-60028 |
AE10#..MTM..(F,G,GT,GTAPX,S,SJ,X) |
3 | ||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
