AE100-ACMGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

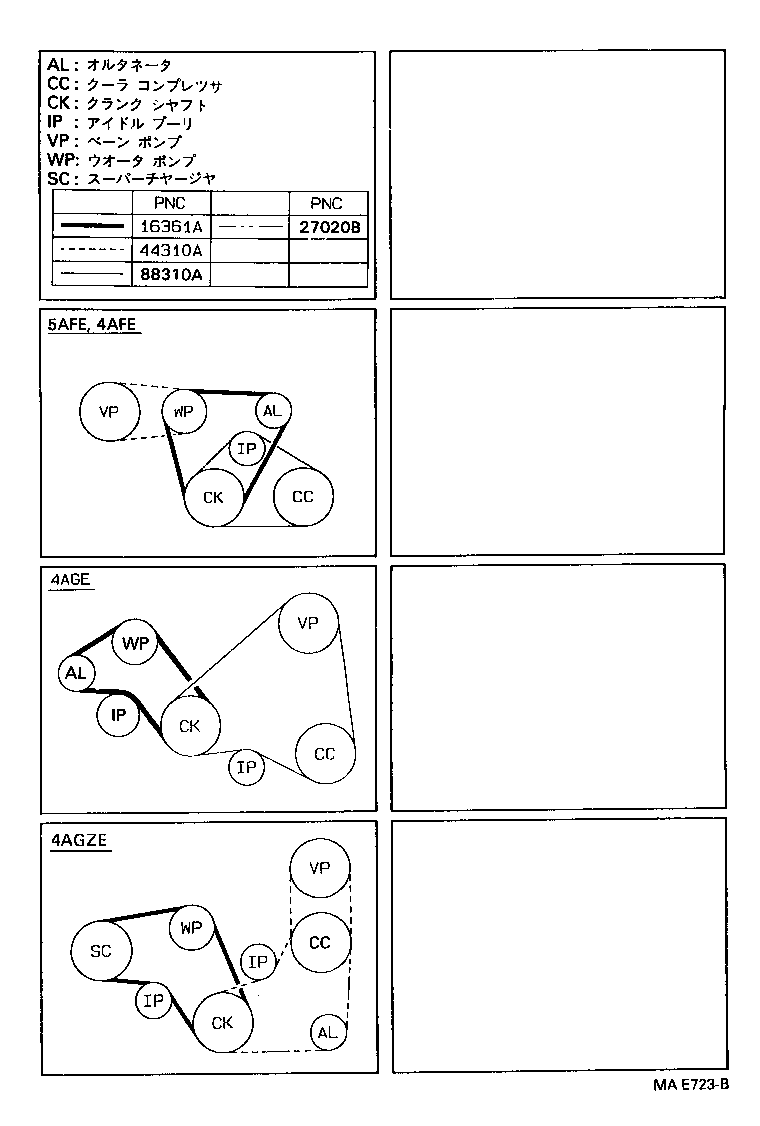

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-20970

4AFE,5AFE..AE10#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AE10#..F,S,SJ,X

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02364

AE10#..F,S,SJ,X

 1
99364-20850

AE10#..F,S,X

 1
