YM40G-PXS (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
3YU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CM4#,YM40

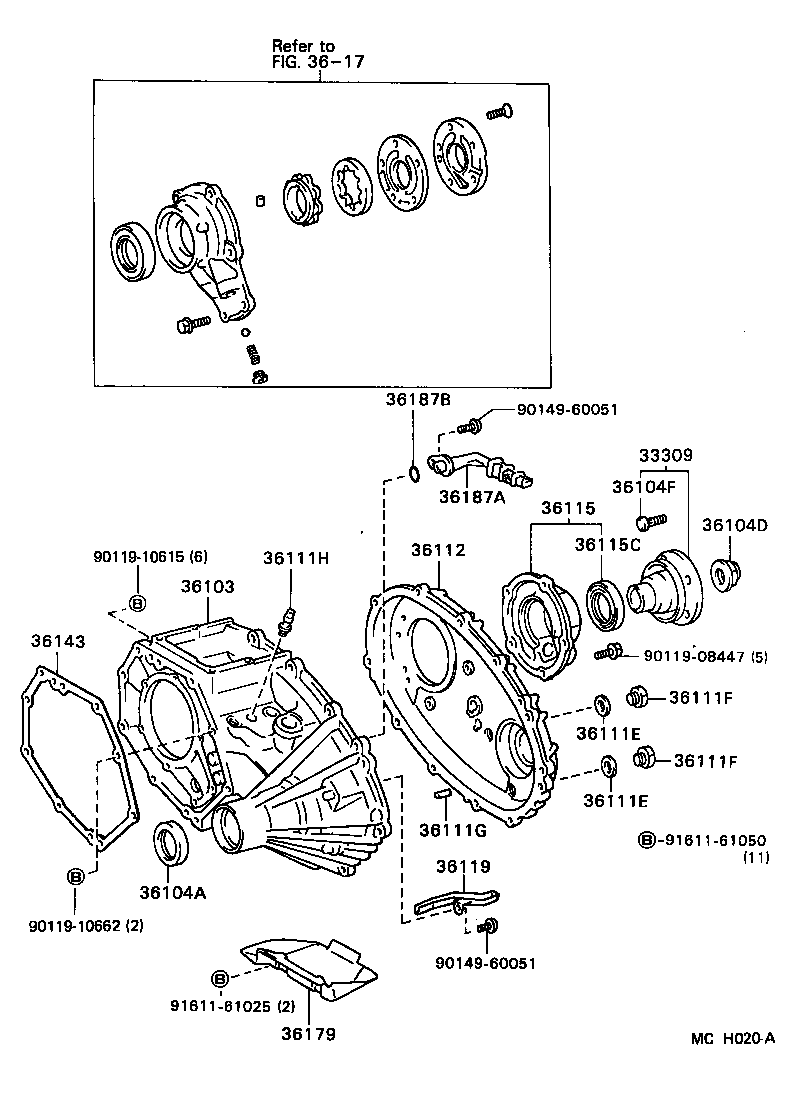

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-28010 |
CM4#,YM40 |
1 | ||
| 33309-26010 |
CM4#,YM40 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-28020 |
CM4#,YM40 |
1 | ||
| 36103-28011 |
CM4#,YM40 |
1 | ||
| 36103-28012 |
CM4#,YM40 |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38026 |
CM4#,YM40 |
1 | ||
| 90311-38039 |
CM4#,YM40 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20010 |
CM4#,YM40 |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
CM4#,YM40 |
4 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
CM4#,YM40 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
CM4#,YM40 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
CM4#,YM40 FILLER |
1 | ||
| 90341-18057 |
CM4#,YM40 DRAIN |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
CM4#,YM40 FILLER |
1 | ||
| 90341-18057 |
CM4#,YM40 DRAIN |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
CM4#,YM40 長さ=14,外径=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
CM4#,YM40 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-28030 |
CM4#,YM40 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28010 |
CM4#,YM40 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-54001 |
CM4#,YM40 |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-28010 |
CM4#,YM40 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
CM4#,YM40 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-28011 |
CM4#,YM40 |
1 | ||
| 36179-28020 |
CM4#,YM40 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-28010 |
CM4#,YM40 |
1 | ||
| 36187B - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 96721-24017 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 90119-08447 | ||||
| 90119-10615 | ||||
| 90119-10662 | ||||
| 90149-60051 | ||||
| 91611-61025 | ||||
| 91611-61050 | ||||
| Linked diagrams | ||||
| 3617 | ||||
