YM40G-PXS (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
3YU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8510- )CM40,YM40 ; (8608- )CM30,KM30,YM30..FXV,GXL,SUC

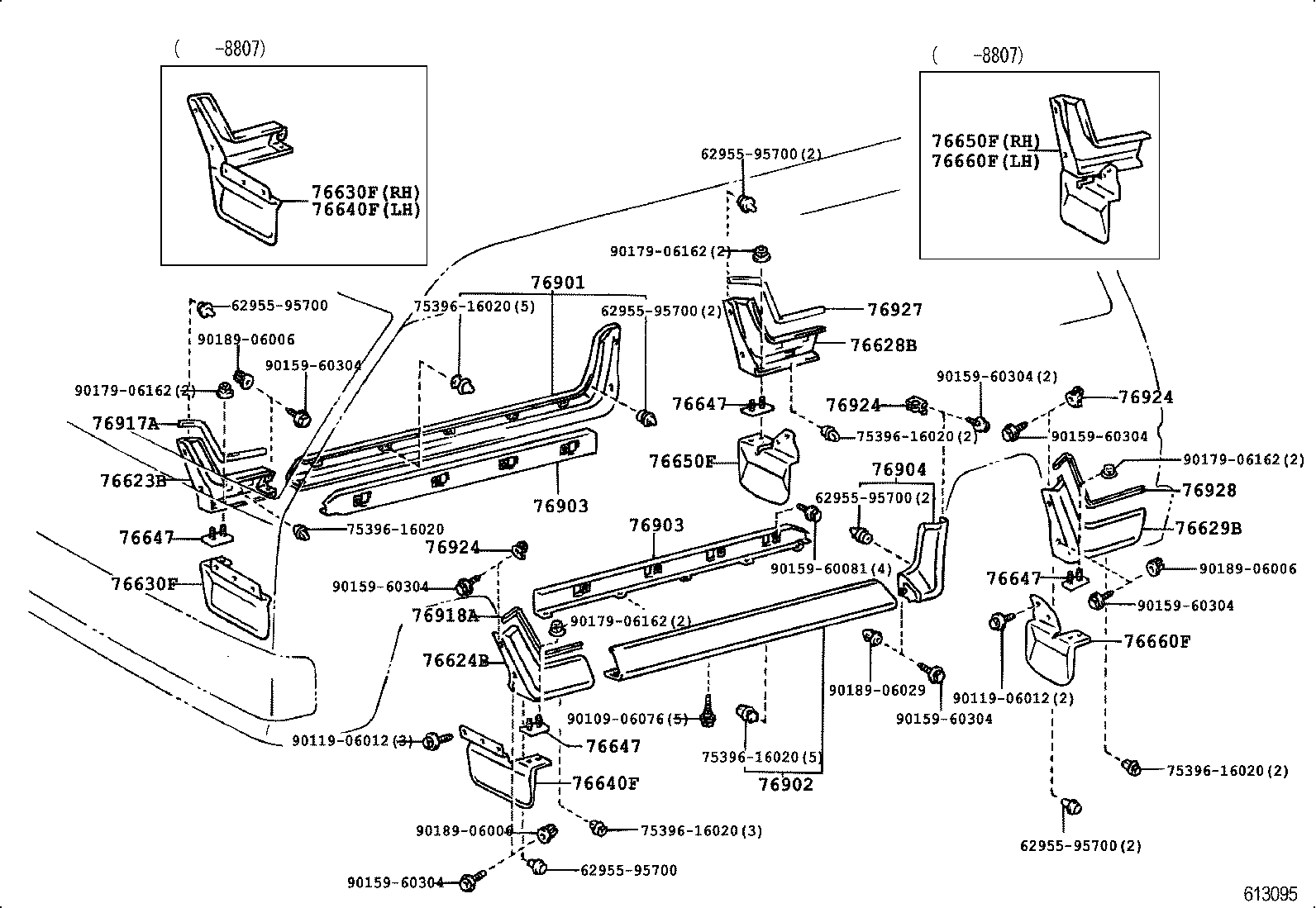

Click highlighted areas on diagram
W/SIDE MUD GUARD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76628B - MUDGUARD, QUARTER PANEL, UPPER REAR RH | ||||
| 76628-95700 |
CM40,YM40 |
1 | ||
| 76629B - MUDGUARD, QUARTER PANEL, UPPER REAR LH | ||||
| 76629-95700 |
CM40,YM40 |
1 | ||
| 76630F - MUDGUARD ASSY, FRONT RH | ||||
| 76621-95703 |
CM40,YM40..FXV,GXL |
1 | ||
| 76630-95700 |
CM40,YM40 |
1 | ||
| 76630F - MUDGUARD ASSY, FRONT RH | ||||
| 76621-95703 |
CM40,YM40..FXV,GXL |
1 | ||
| 76630-95700 |
CM40,YM40 |
1 | ||
| 76640F - MUDGUARD ASSY, FRONT LH | ||||
| 76622-95703 |
CM40,YM40..FXV,GXL |
1 | ||
| 76640-95700 |
CM40,YM40 |
1 | ||
| 76640F - MUDGUARD ASSY, FRONT LH | ||||
| 76622-95703 |
CM40,YM40..FXV,GXL |
1 | ||
| 76640-95700 |
CM40,YM40 |
1 | ||
| 76650F - MUDGUARD ASSY, REAR RH | ||||
| 76650-95700 |
CM40,YM40 |
1 | ||
| 76625-95703 |
CM40,YM40 |
1 | ||
| 76650F - MUDGUARD ASSY, REAR RH | ||||
| 76650-95700 |
CM40,YM40 |
1 | ||
| 76625-95703 |
CM40,YM40 |
1 | ||
| 76660F - MUDGUARD ASSY, REAR LH | ||||
| 76660-95700 |
CM40,YM40 |
1 | ||
| 76626-95704 |
CM40,YM40 |
1 | ||
| 76660F - MUDGUARD ASSY, REAR LH | ||||
| 76660-95700 |
CM40,YM40 |
1 | ||
| 76626-95704 |
CM40,YM40 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-95700 |
CM40,YM40 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-95700 |
CM40,YM40 |
1 | ||
| 76903 - RETAINER SUB-ASSY, SIDE MUDGUARD | ||||
| 76903-95700 |
CM40,YM40 |
2 | ||
| 76903 - RETAINER SUB-ASSY, SIDE MUDGUARD | ||||
| 76903-95700 |
CM40,YM40 |
2 | ||
| 76904 - MUDGUARD SUB-ASSY, SIDE, NO.2 | ||||
| 76904-95700 |
CM40,YM40 |
1 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM40,YM40 |
8 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM40,YM40 |
8 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-95700 |
CM40,YM40 |
8 | ||
| 76927 - PROTECTER, REAR MUDGUARD, RH | ||||
| 76927-95700 |
CM40,YM40 |
1 | ||
| 76928 - PROTECTER, REAR MUDGUARD, LH | ||||
| 76928-95700 |
CM40,YM40 |
1 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 75396-16020 | ||||
| 90109-06076 | ||||
| 90119-06012 | ||||
| 90159-60081 | ||||
| 90159-60304 | ||||
| 90179-06162 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
