YM40G-PQS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81553 81554 81555 81560 81561 81563 81564 81565 9018905027 9354014012 9356066016
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95715

CM3#,4#,KM3#,YM3#,40

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CM3#,4#,KM3#,YM3#,40

12V 21/5W,STOP & TAIL

 2
99132-11210

CM3#,4#,KM3#,YM3#,40

12V 21W,TURN

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CM3#,4#,KM3#,YM3#,40

12V 21/5W,STOP & TAIL

 2
99132-11210

CM3#,4#,KM3#,YM3#,40

12V 21W,TURN

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95715

CM3#,4#,KM3#,YM3#,40

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
81556-95707

CM3#,4#,KM3#,YM3#,40

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95707

CM3#,4#,KM3#,YM3#,40

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95707

CM3#,4#,KM3#,YM3#,40

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95715

CM3#,4#,KM3#,YM3#,40

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95715

CM3#,4#,KM3#,YM3#,40

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
81556-95707

CM3#,4#,KM3#,YM3#,40

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95707

CM3#,4#,KM3#,YM3#,40

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95707

CM3#,4#,KM3#,YM3#,40

 1
Common parts
90189-05027
93540-14012
93560-66016

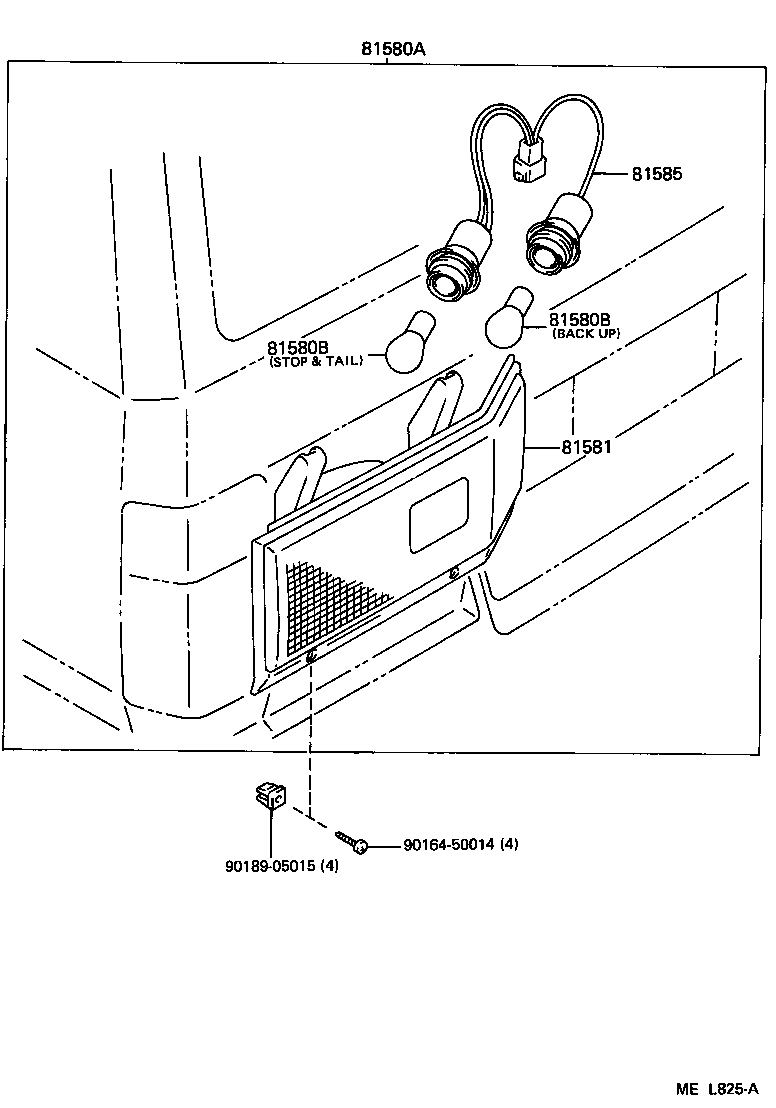

ILLUST NO. 2 OF 2(8808- )FXV,GXL,SCA,SUC

Click highlighted areas on diagram

diagram 81580A 81580B 81580B 81581 81585 9016450014 9018905015
Part # Description Qty Price
81580A - LAMP ASSY, REAR
81560-95714

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

左側

 1
81550-95714

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

右側

 1
81580B - BULB (FOR REAR LAMP)
99132-11210

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

12V 21W

 2
99132-21210

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

12V 21/5W

 2
81580B - BULB (FOR REAR LAMP)
99132-11210

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

12V 21W

 2
99132-21210

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

12V 21/5W

 2
81581 - LENS, REAR LAMP
81561-95714

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

左側

 1
81551-95714

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

右側

 1
81585 - SOCKET & WIRE, REAR LAMP
81555-95714

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

 2
Common parts
90164-50014
90189-05015
