YM40G-PQS (1988)
Toyota Liteace Van,Wagon

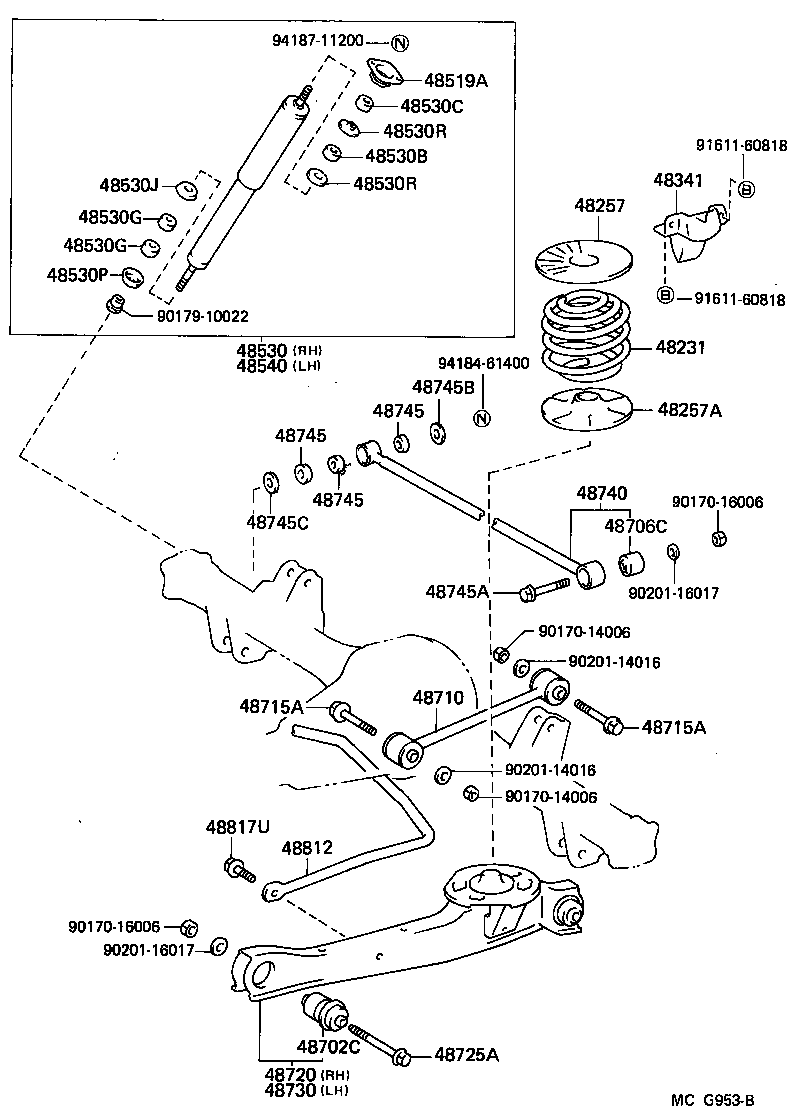

ILLUST NO. 1 OF 2(8808- )CM30,31,4#,KM30,31,YM3#,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-27050 |
CM40,YM40 |
2 | ||
| 48231-27120 |
CM40,YM40..FXV ｱﾘ(TEMS) |
2 | ||
| 48231-27160 |
CM40,YM40..4FC |
2 | ||
| 48231-27170 |
CM40,YM40..4FC..FXV ｱﾘ(TEMS) |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27070 |
CM30,31,4#,YM40 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80280 |
CM40,YM40 ﾏｰｸ 48531−27150 |
1 | ||
| 48531-80281 |
CM40,YM40 ﾏｰｸ 48531−27310 |
1 | ||
| 48531-80077 |
CM40,YM40..FXV ﾏｰｸ 48531−27290,ｱﾘ(TEMS) |
1 | ||
| 48531-80096 |
CM40,YM40..FXV ﾏｰｸ 48531−27291,ｱﾘ(TEMS) |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-01033 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 90948-03004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-01034 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02045 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80280 |
CM40,YM40 ﾏｰｸ 48531−27150 |
1 | ||
| 48531-80077 |
CM40,YM40..FXV ﾏｰｸ 48531−27290,ｱﾘ(TEMS) |
1 | ||
| 48531-80096 |
CM40,YM40..FXV ﾏｰｸ 48531−27291,ｱﾘ(TEMS) |
1 | ||
| 48531-80281 |
CM40,YM40 ﾏｰｸ 48531−27310 |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-27040 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48706C - BUSH SUB-ASSY, LATERAL CONTROL ROD | ||||
| 48706-22030 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-16025 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-16026 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-15019 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-24003 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-27050 |
CM40,YM40 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-10236 |
CM30,40,KM30,YM30,40 |
4 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90170-16006 | ||||
| 90179-10022 | ||||
| 90201-14016 | ||||
| 90201-16017 | ||||
| 91611-60818 | ||||
| 91611-61016 | ||||
| 94184-61400 | ||||
ILLUST NO. 1 OF 2(8808- )FXV
TEMS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-27050 |
CM40,YM40 |
2 | ||
| 48231-27120 |
CM40,YM40..FXV ｱﾘ(TEMS) |
2 | ||
| 48231-27160 |
CM40,YM40..4FC |
2 | ||
| 48231-27170 |
CM40,YM40..4FC..FXV ｱﾘ(TEMS) |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27070 |
CM30,31,4#,YM40 |
2 | ||
| 48519A - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-30020 |
CM30,40,YM30,40..FXV |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80280 |
CM40,YM40 ﾏｰｸ 48531−27150 |
1 | ||
| 48531-80281 |
CM40,YM40 ﾏｰｸ 48531−27310 |
1 | ||
| 48531-80077 |
CM40,YM40..FXV ﾏｰｸ 48531−27290,ｱﾘ(TEMS) |
1 | ||
| 48531-80096 |
CM40,YM40..FXV ﾏｰｸ 48531−27291,ｱﾘ(TEMS) |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-01033 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 90948-03004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-01034 |
CM30,40,YM30,40..FXV ｱﾘ(TEMS) |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02045 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02091 |
CM30,40,YM30,40..FXV 下側 |
2 | ||
| 90948-02092 |
CM30,40,YM30,40..FXV 上側 |
2 | ||
| 48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02091 |
CM30,40,YM30,40..FXV 下側 |
2 | ||
| 90948-02092 |
CM30,40,YM30,40..FXV 上側 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80280 |
CM40,YM40 ﾏｰｸ 48531−27150 |
1 | ||
| 48531-80077 |
CM40,YM40..FXV ﾏｰｸ 48531−27290,ｱﾘ(TEMS) |
1 | ||
| 48531-80096 |
CM40,YM40..FXV ﾏｰｸ 48531−27291,ｱﾘ(TEMS) |
1 | ||
| 48531-80281 |
CM40,YM40 ﾏｰｸ 48531−27310 |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-27040 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48706C - BUSH SUB-ASSY, LATERAL CONTROL ROD | ||||
| 48706-22030 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-16025 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-16026 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-15019 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-24003 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-27050 |
CM40,YM40 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-10236 |
CM30,40,KM30,YM30,40 |
4 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90170-16006 | ||||
| 90179-10022 | ||||
| 90201-14016 | ||||
| 90201-16017 | ||||
| 91611-60818 | ||||
| 94184-61400 | ||||
| 94187-11200 | ||||
